Solarthon 3500W Solar Energy Storage System

We Provide You The Largest Single Residential Battery On The Market With Easy Installation!
·Safe Lithium Iron Phosphate Technology (LiFeP04)
·High Durability and Long-Lasting
·Closed Loop Communication with Inverters
·Scalable from 3000W-5500W
·Intelligent Digital Processor Based Battery Management System(BMS)
·Advanced cell level monitoring and balancing
·Matched more than 20 brand inverters, include the SMA, VICTRON and so onLCD screen performance display

Inquire

5kW All-In-One Solar Power System

The Energy Storage Controller Inverter Integrated Machine combines the functions of inverter, MPPT solar controller and utility charging to provide stable power supply for power-using equipment in areas with no power, lack of power and unstable power. The product is based on a fully digital intelligent design with advanced SPWM technology,outputting pure sine wave, converting DC power into AC power, suitable for AC loads such as household appliances, power tools, industrial equipment, electronic video and audio. LCD screen display design, real-time display of system operation data and operating status. Comprehensive electronic protection function ensures the whole system is safer and more stable.

10kW All-In-One Solar Power System

Model：DQ1906B5K-11
Rated Power: 5KW
Lithium Battery: 100Ah/51.2V
AC Output Voltage: 110VAC
AC Output Frequency: 50/60Hz
AC Input Voltage Range: 110VAC
AC Input Frequency: 50/60Hz
Maximum PV Voltage: 500VDC
MPPT Voltage Range: 120-450VDC
PV Charge Current: 100A
Temperature For Operation: -20-+50℃
Temperature For Storage: -30 -+70℃
External Dimensions: 550*697*200mm
Max. Number Of Parallel: 6 sets
Warranty: 3 years

5kW All-In-One Solar Power System

Model:DQ1906C5K-11
Rated Power: 5KW
Lithium Battery: 200Ah/51.2V
AC Output Voltage: 110VAC
AC Output Frequency: 50/60Hz
AC Input Voltage Range: 110VAC
AC Input Frequency: 50/60Hz
AC Charge Current: 80A
Maximum PV Voltage: 450VDC
MPPT Voltage Range: 120-430VDC
PV Charge Current: 100A
Temperature For Operation: -20-+50℃
Temperature For Storage: -30 -+70℃
External Dimensions: 618*1072*198mm
Max. Number Of Parallel: 6 sets
Warranty: 3 years

5kW All-In-One Solar Power System

Model：DQ1906D5K-11
Rated Power: 5KW
Lithium Battery: 300Ah/51.2V
AC Output Voltage: 110VAC
AC Output Frequency: 50/60Hz
AC Input Voltage Range: 110VAC
AC Input Frequency: 50/60Hz
Maximum PV Voltage: 450VDC
MPPT Voltage Range: 120-430VDC
PV Charge Current: 100A
Temperature For Operation: -20-+50℃
Temperature For Storage: -30 -+70℃
External Dimensions: 550*697*200mm
Max. Number Of Parallel: 6 sets
Warranty: 3 years

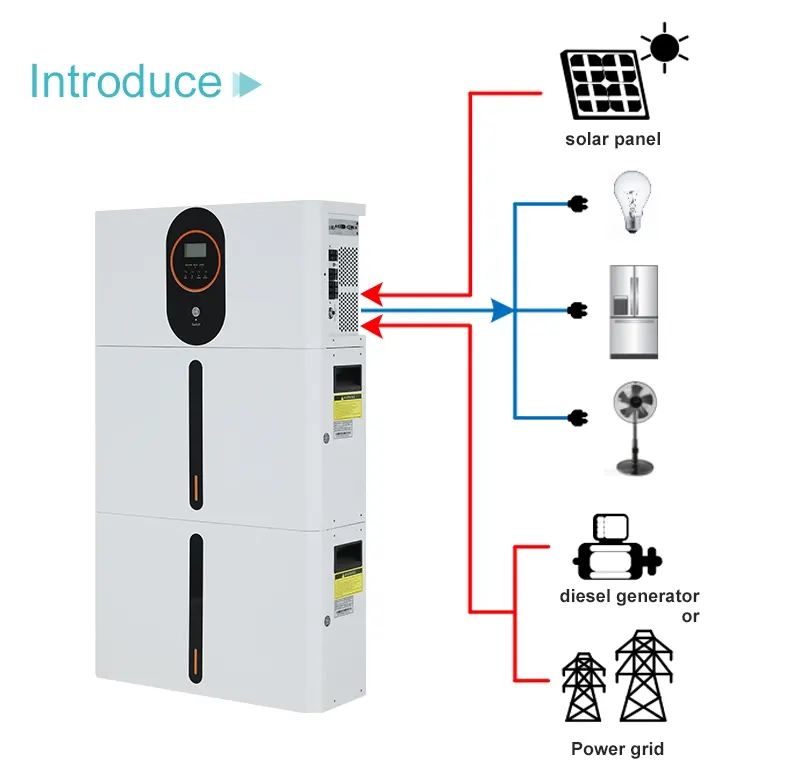

SYSTEM SCHEMATIC

The following figure shows the system application scenario of this product. A complete system includes the following parts:
1. Photovoltaic module: Convert light energy into DC electric energy, charge the battery through energy storage inverter, or directly reverse it into AC to power the load.
2. Utility or generator: Connected at the AC input, it can supply power to the load and charge the battery at the same time. If no utility or generator is connected, the system can also operate normally, when the load power is provided by the battery and PV module.
3. Battery: The role of the battery is to ensure the normal use of power for the system load when the solar energy is insufficient and there is no utility power.
4. Household load: It can access various household and office loads, including refrigerators, lamps, TV sets, fans, air conditioners and other AC loads.
5. Energy Storage Controller Inverter Integrated Machine: The energy conversion device of the whole system.Contact us

Supporting one-stop procurement, our product categories are complete; There is aspecialized production line with guaranteed quality; Batch purchase supports OEM/ODM and provides professional installation guidance. Welcome to Contact us

A: Yes, all our inverters provide true pure sine wave output.

A: Yes, all our inverters provide true pure sine wave output.

A: Low frequency inverters have various protections, strong adaptability to the environment, and are more reliable with voltage regulation.

A: Pure sine wave output inverters provide power quality equivalent to or better than the public power grid. They have a low repair rate, long lifespan, no harmonic pollution, and are environmentally friendly. Modified sine wave output inverters have a negative impact on appliances and cannot load inductive loads, such as air conditioners and refrigerators. Certain motor control circuits may not be compatible with modified sine wave inverters.

A: Our inverters can be used with household, office, agricultural appliances, and other inductive loads such as refrigerators, air conditioners, water pumps, etc.

A: Yes, we accept OEM orders and can customize the products with your company logo.

A: Simply tell us your requirements, and our sales team will recommend a suitable inverter for you.

A: We offer 24-hour after-service consultancy to help you easily solve any technical problems you may encounter.

A: While a power inverter is not absolutely required for a solar energy system, it is necessary if you want to use normal AC appliances. Without a power inverter, you will only have battery power and won’t have 220 or 230 volts AC. This may be acceptable for small RVs or cabins.

A: If any product is faulty, please send us a picture or video, and we will study it. We provide free spare parts of the PCB board for after-sale service.
