Residential Energy Storage System 100Ah Lifepo4 Battery Pack 12V or 24V High Performance Lithium lon Battery

① Ten-year life ② 100% usable capacity ③ Low self discharge lit ④ Environmentally friendly ⑤ Light weight ⑥ Built-in BMS ⑦ Fast charging ⑧ Non-ignition

Inquire

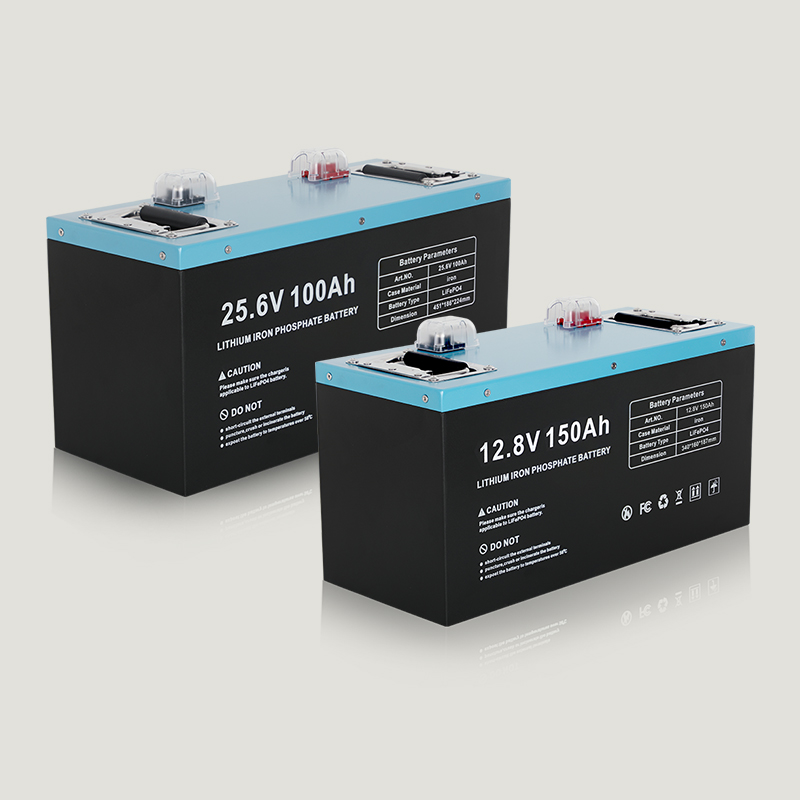

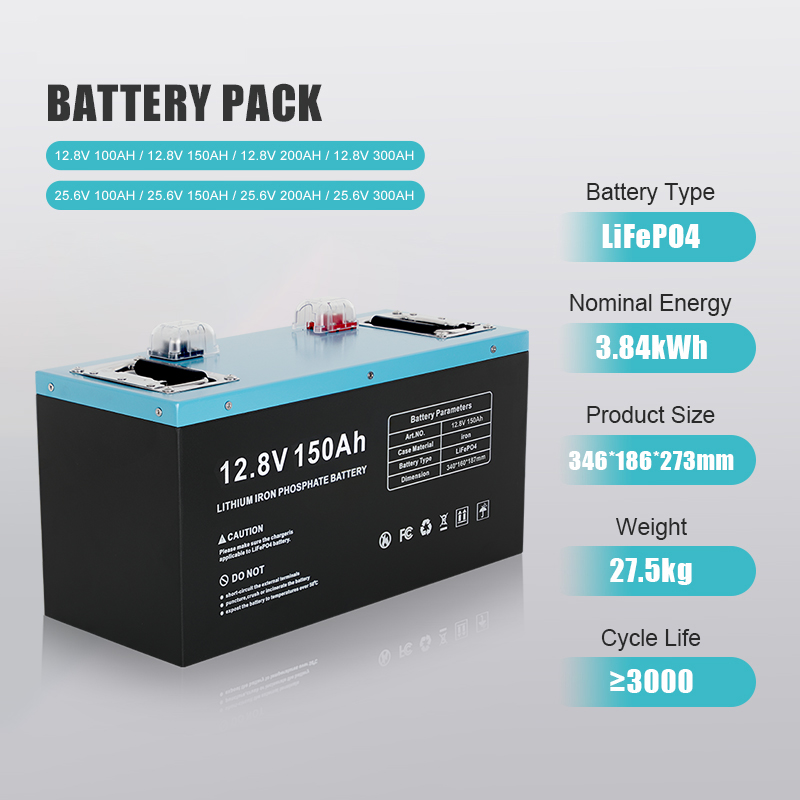

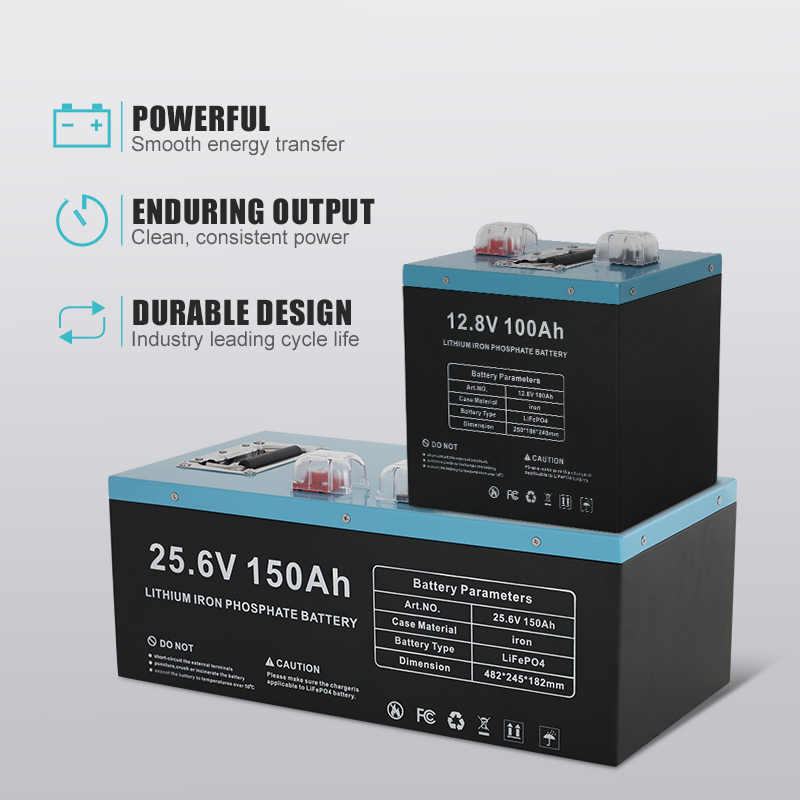

Battery Pack

12.8V 100AH/ 12.8V 150AH/12.8V 200AH/ 12.8V 300AH/ 25.6V 100AH/ 25.6V 150AH/25.6V 200AH/ 25.6V 300AH

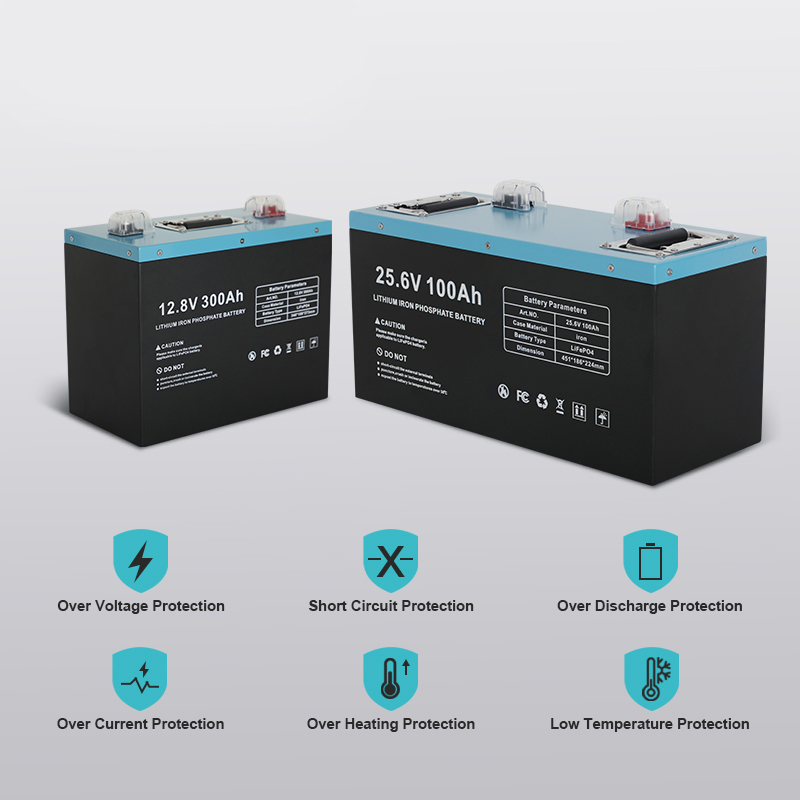

Safety Management System: The integrated battery management system(BMS) protects your battery from overcharge and discharge, overcurrent, short circuit and low and high temperature for better performance and longer life.
High Quality Materials: Made from 100% safe, non-toxic, non-hazardous energy, the lithium iron phosphate battery has higher chemical stability, is not prone to thermal runaway. and wil not overheat or catch fire even if punctured. With no acid in the battery, you can safely mount in any position.

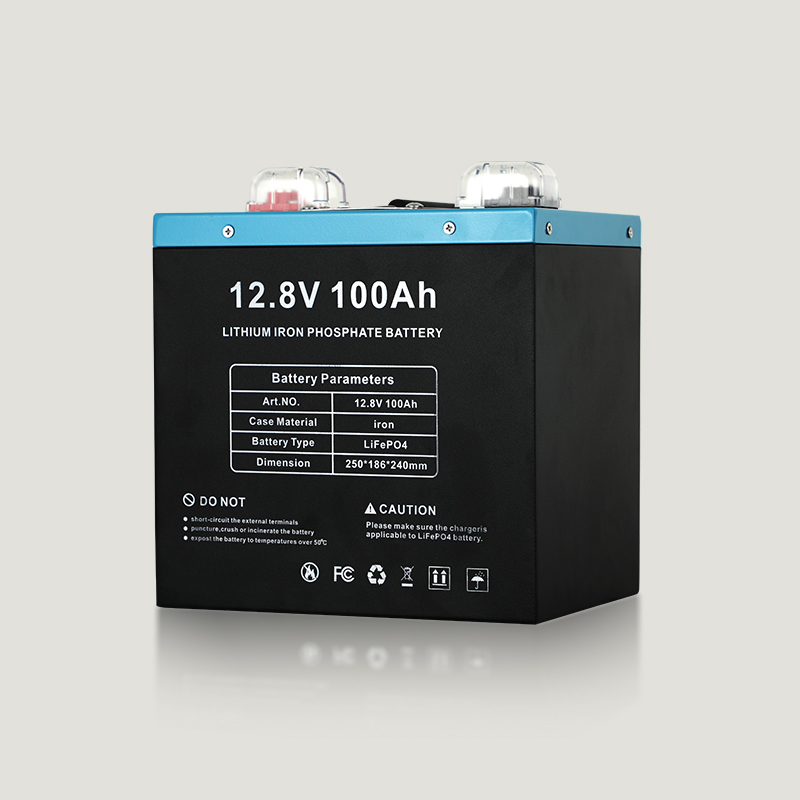

12.8V 100Ah Battery Pack

Model: LF12100-02
Battery Type: LiFePO4
Nominal Voltage: 12.8V
Nominal Capacity: 100Ah
Nominal Energy: 1.28kWh
Charging Cut-off Voltage: 14.6V
Discharging Cut-off Voltage: 11.2V
Max. Cont. Charging Current: 100A
Max. Cont. Discharging Current: 100A
Working Temperature: -20℃ ~ 55℃
Storage Temperature: -40℃ ~ 60℃
Cycle Life: ≥3000
Product Size: 250*186*240mm
Weight:15.5kg
Warranty: 5 years

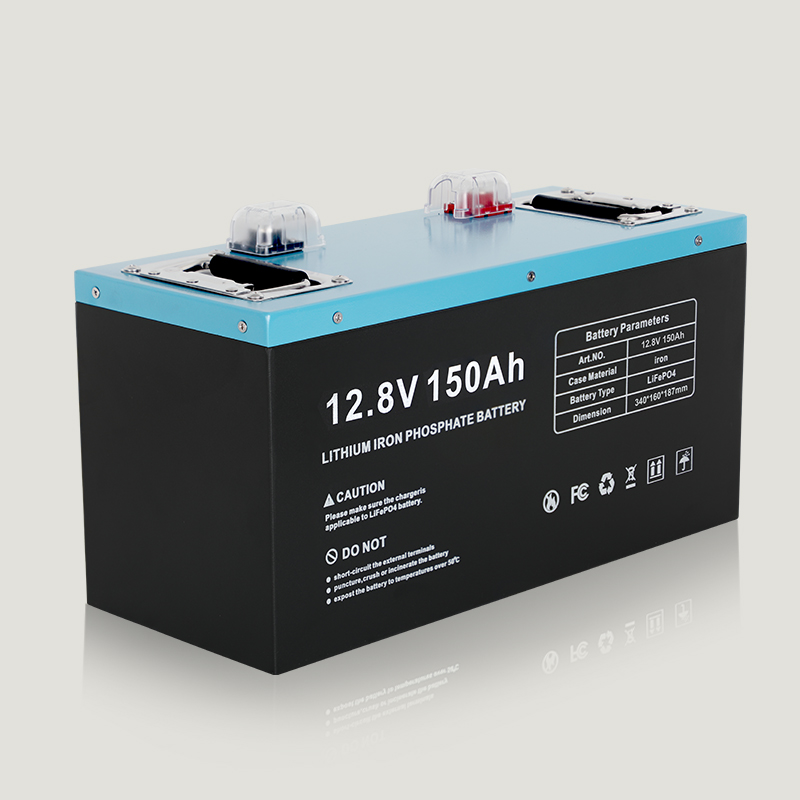

12.8V 150Ah Battery Pack

Model: LF12150-02
Battery Type: LiFePO4
Nominal Voltage: 12.8V
Nominal Capacity: 150Ah
Nominal Energy: 1.92kWh
Charging Cut-off Voltage: 14.6V
Discharging Cut-off Voltage: 11.2V
Max. Cont. Charging Current: 150A
Max. Cont. Discharging Current: 150A
Working Temperature: -20℃ ~ 55℃
Storage Temperature: -40℃ ~ 60℃
Cycle Life: ≥3000
Product Size:340160187mm
Weight:15kg
Warranty: 5 years

12.8V 200Ah Battery Pack

Model：LF12200-02
Battery Type: LiFePO4
Nominal Voltage: 12.8V
Nominal Capacity: 200Ah
Nominal Energy: 2.56kWh
Charging Cut-off Voltage: 14.6V
Discharging Cut-off Voltage: 11.2V
Max. Cont. Charging Current: 200A
Max. Cont. Discharging Current: 200A
Working Temperature: -20℃ ~ 55℃
Storage Temperature: -40℃ ~ 60℃
Cycle Life: ≥3000
Temperature For Storage: -30 -+70℃
Product Size: 315*260*185mm
Weight:20kg
Warranty: 5 years

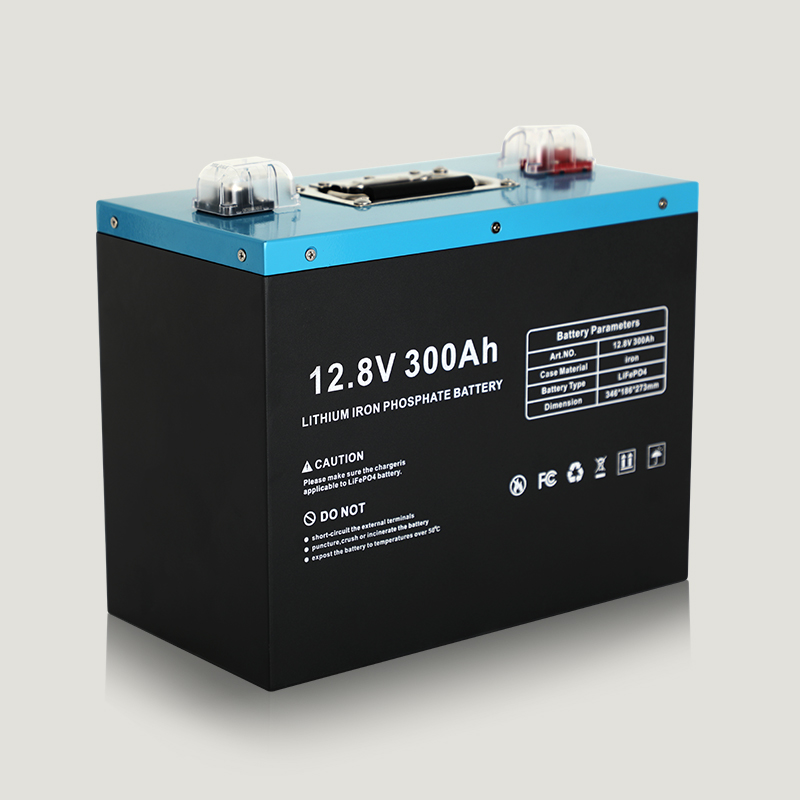

12.8V 300Ah Battery Pack

Model: LF12300-02
Battery Type: LiFePO4
Nominal Voltage: 12.8V
Nominal Capacity: 300Ah
Nominal Energy: 3.84kWh
Charging Cut-off Voltage: 14.6V
Discharging Cut-off Voltage: 11.2V
Max. Cont. Charging Current: 300A
Max. Cont. Discharging Current: 300A
Working Temperature: -20℃ ~ 55℃
Storage Temperature: -40℃ ~ 60℃
Cycle Life: ≥3000
Product Size: 346*186*273mm
Weight:27.5kg
Warranty: 5 years

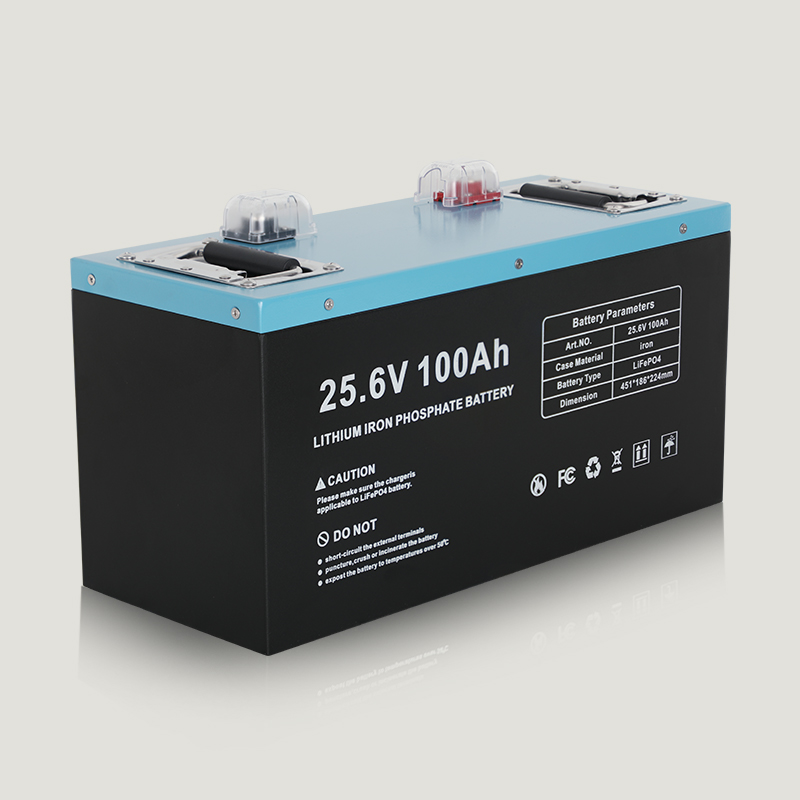

25.6V 100Ah Battery Pack

Model: LF24100-02
Battery Type: LiFePO4
Nominal Voltage: 25.6V
Nominal Capacity: 100Ah
Nominal Energy: 2.56kWh
Charging Cut-off Voltage: 29.2V
Discharging Cut-off Voltage: 22.4V
Max. Cont. Charging Current: 100A
Max. Cont. Discharging Current: 100A
Working Temperature: -20℃ ~ 55℃
Storage Temperature: -40℃ ~ 60℃
Cycle Life: ≥3000
Product Size: 451*186*224mm
Weight: 28kg
Warranty: 5 years

A: Yes, all our inverters provide true pure sine wave output.

A: Yes, all our inverters provide true pure sine wave output.

A: Low frequency inverters have various protections, strong adaptability to the environment, and are more reliable with voltage regulation.

A: Pure sine wave output inverters provide power quality equivalent to or better than the public power grid. They have a low repair rate, long lifespan, no harmonic pollution, and are environmentally friendly. Modified sine wave output inverters have a negative impact on appliances and cannot load inductive loads, such as air conditioners and refrigerators. Certain motor control circuits may not be compatible with modified sine wave inverters.

A: Our inverters can be used with household, office, agricultural appliances, and other inductive loads such as refrigerators, air conditioners, water pumps, etc.

A: Yes, we accept OEM orders and can customize the products with your company logo.

A: Simply tell us your requirements, and our sales team will recommend a suitable inverter for you.

A: We offer 24-hour after-service consultancy to help you easily solve any technical problems you may encounter.

A: While a power inverter is not absolutely required for a solar energy system, it is necessary if you want to use normal AC appliances. Without a power inverter, you will only have battery power and won’t have 220 or 230 volts AC. This may be acceptable for small RVs or cabins.

A: If any product is faulty, please send us a picture or video, and we will study it. We provide free spare parts of the PCB board for after-sale service.

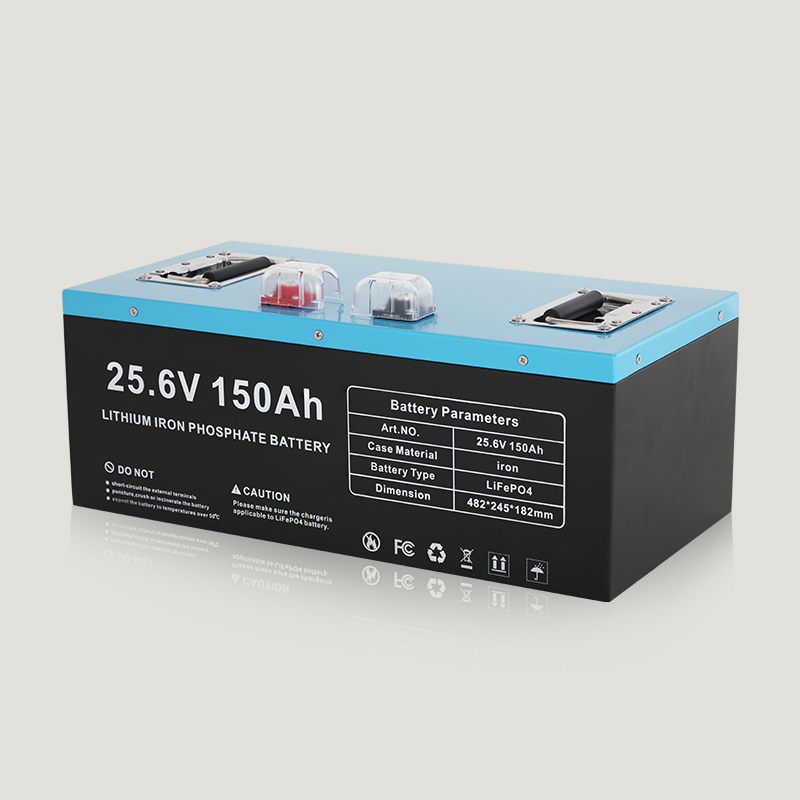

25.6V 150Ah Battery Pack

Model: LF24150-02
Battery Type: LiFePO4
Nominal Voltage: 25.6V
Nominal Capacity: 150Ah
Nominal Energy: 3.84kWh
Charging Cut-off Voltage: 29.2V
Discharging Cut-off Voltage: 22.4V
Max. Cont. Charging Current: 150A
Max. Cont. Discharging Current: 150A
Working Temperature: -20℃ ~ 55℃
Storage Temperature: -40℃ ~ 60℃
Cycle Life: ≥3000
Product Size: 482*245*182mm
Weight:27.5kg
Warranty: 5 years

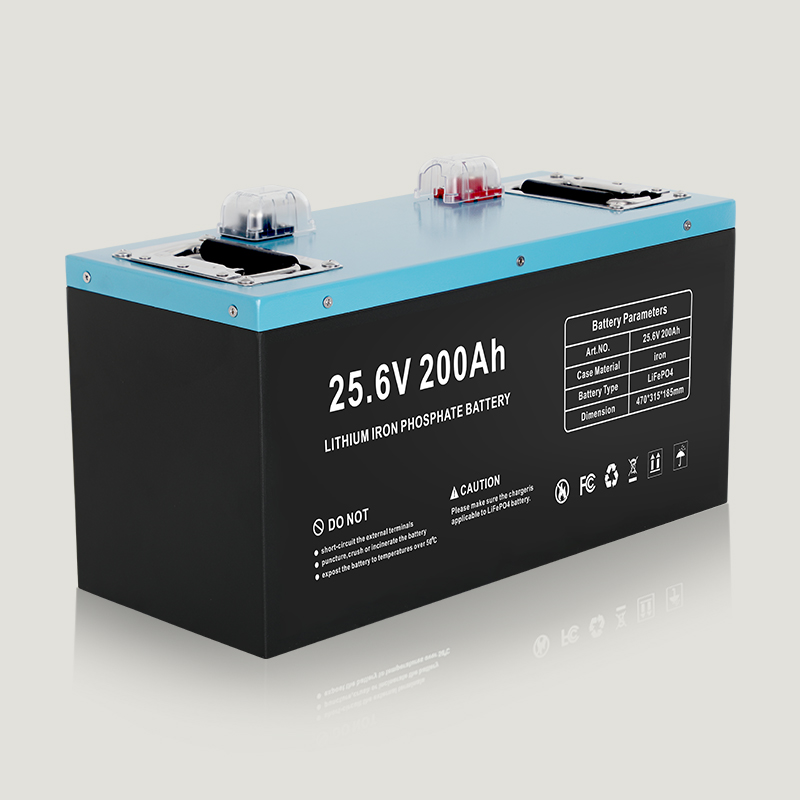

25.6V 200Ah Battery Pack

Model: LF24200-02
Battery Type: LiFePO4
Nominal Voltage: 25.6V
Nominal Capacity: 200Ah
Nominal Energy: 5.12kWh
Charging Cut-off Voltage: 29.2V
Discharging Cut-off Voltage: 22.4V
Max. Cont. Charging Current: 200A
Max. Cont. Discharging Current: 200A
Working Temperature: -20℃ ~ 55℃
Storage Temperature: -40℃ ~ 60℃
Cycle Life: ≥3000
Product Size: 470315185mm
Weight:37kg
Warranty: 5 years

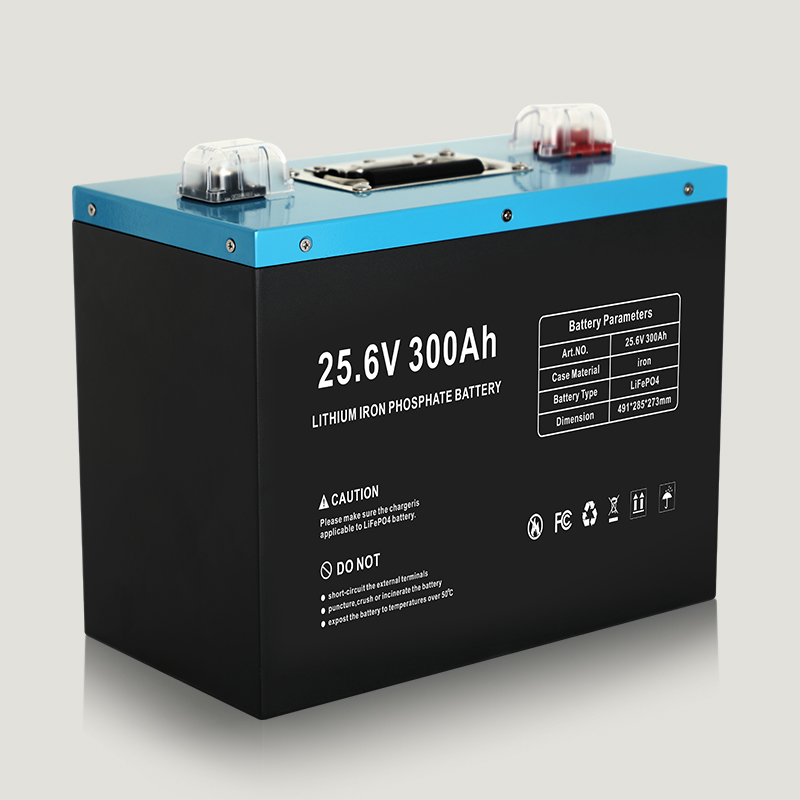

25.6V 300Ah Battery Pack

Model: LF24300-02
Battery Type: LiFePO4
Nominal Voltage: 25.6V
Nominal Capacity: 300Ah
Nominal Energy: 7.68kWh
Charging Cut-off Voltage: 29.2V
Discharging Cut-off Voltage: 22.4V
Max. Cont. Charging Current: 250A
Max. Cont. Discharging Current: 250A
Working Temperature: -20℃ ~ 55℃
Storage Temperature: -40℃ ~ 60℃
Cycle Life: ≥3000
Product Size: 491285273mm
Weight:53kg
Warranty: 5 years
