Home High Power High Capacity Battery Pack 10kwh 20kwh 30kwh 40kwh 51.2v 200ah Stackable Lithium Battery Energy Storage System

  • Stackable LiFePO4 10KW/10KWH 10KW/20KWH 10KW30KWH 10KW/40KWH Battery
  • Battery Support smart communication function RS485/ RS232/ CAN bus and can compatible with most of famous Hybrid off grid inverters / MPPT controllers
  • Built in accurate coulomb counter (LCD display), ON/OFF Switch, Handles,bracket and movable base.
  • For the bracket, we customized the high quality unique metal bracket which is more stable, safely and very firm to hold the power wall LiFePO4 battery install on the wall and ground.

Inquire

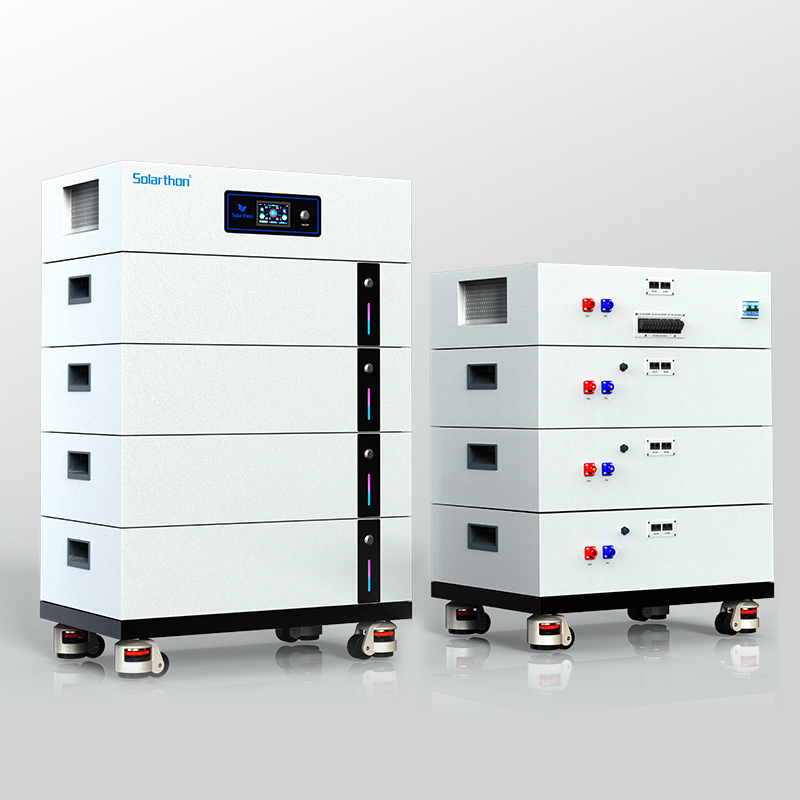

Flat Layer Stacked Energy Storage

The Energy Storage Controller Inverter Integrated Machine combines the functions of inverter, MPPT solar controller and utility charging to provide stable power supply for power-using equipment in areas with no power, lack of power and unstable power. The product is based on a fully digital intelligent design with advanced SPWM technology, outputting pure sine wave, converting DC power into AC power, suitable for AC loads such as household appliances, power tools, industrial equipment, electronic video and audio. LcD screen display design, real-time display of system operation data and operating status. Comprehensive electronic protection function ensures the whole system is safer and more stable.

10KW/10KWH Flat Layer Stacked Energy Storage

Model:DQ1912A10K-01
Rated Power: 10KW
LiFePO4 Battery: 200Ah/51.2V
AC Output Voltage: 230VAC
AC Output Frequency: 50/60Hz
AC Input Voltage Range: 170-280VAC
AC Input Frequency: 50/60Hz
Maximum AC innut current/charging current: 60A/150A
Maximum PV Voltage: 500VDC
MPPT Voltage Range: 120-450VDC
PV Charge Current: 150A
Temperature For Operation: -20-+50℃
Temperature For Storage: -30 -+70℃
External Dimensions:750*480*510mm
Weight: 126kg
Warranty: 3 years

10KW/20KWH Flat Layer Stacked Energy Storage

Model:DQ1912B10K-01
Rated Power: 10KW
LiFePO4 Battery: 400Ah/51.2V
AC Output Voltage: 230VAC
AC Output Frequency: 50/60Hz
AC Input Voltage Range:170-280VAC
AC Input Frequency: 50/60Hz
Maximum AC innut current/charging current: 60A/150A
Maximum PV Voltage: 500VDC
MPPT Voltage Range: 120-450VDC
PV Charge Current: 150A
Temperature For Operation: -20-+50℃
Temperature For Storage: -30 -+70℃
External Dimensions: 750*480*682mm
Weight: 198kg
Warranty: 3 years

10KW/30KWH Flat Layer Stacked Energy Storage

Model：DQ1912C10K-01
Rated Power: 10KW
LiFePO4 Battery: 600Ah/51.2V
AC Output Voltage: 230VAC
AC Output Frequency: 50/60Hz
AC Input Voltage Range: 170-280VAC
AC Input Frequency: 50/60Hz
Maximum AC innut current/charging current: 60A/150A
Maximum PV Voltage: 500VDC
MPPT Voltage Range: 120-450VDC
PV Charge Current: 150A
Temperature For Operation: -20-+50℃
Temperature For Storage: -30 -+70℃
External Dimensions: 750*480*853mm
Weight: 270kg
Warranty: 3 years

10KW/40KWH Flat Layer Stacked Energy Storage

Model:DQ1912D10K-01
Rated Power: 10KW
LiFePO4 Battery:800Ah/51.2V
AC Output Voltage: 230VAC
AC Output Frequency: 50/60Hz
AC Input Voltage Range: 170-280VAC
AC Input Frequency: 50/60Hz
Maximum AC innut current/charging current: 60A/150A
Maximum PV Voltage: 500VDC
MPPT Voltage Range: 120-450VDC
PV Charge Current: 150A
Temperature For Operation: -20-+50℃
Temperature For Storage: -30 -+70℃
External Dimensions: 750*480*1025mm
Weight: 342kg
Warranty: 3 years

A: Yes, all our inverters provide true pure sine wave output.

A: Yes, all our inverters provide true pure sine wave output.

A: Low frequency inverters have various protections, strong adaptability to the environment, and are more reliable with voltage regulation.

A: Pure sine wave output inverters provide power quality equivalent to or better than the public power grid. They have a low repair rate, long lifespan, no harmonic pollution, and are environmentally friendly. Modified sine wave output inverters have a negative impact on appliances and cannot load inductive loads, such as air conditioners and refrigerators. Certain motor control circuits may not be compatible with modified sine wave inverters.

A: Our inverters can be used with household, office, agricultural appliances, and other inductive loads such as refrigerators, air conditioners, water pumps, etc.

A: Yes, we accept OEM orders and can customize the products with your company logo.

A: Simply tell us your requirements, and our sales team will recommend a suitable inverter for you.

A: We offer 24-hour after-service consultancy to help you easily solve any technical problems you may encounter.

A: While a power inverter is not absolutely required for a solar energy system, it is necessary if you want to use normal AC appliances. Without a power inverter, you will only have battery power and won’t have 220 or 230 volts AC. This may be acceptable for small RVs or cabins.

A: If any product is faulty, please send us a picture or video, and we will study it. We provide free spare parts of the PCB board for after-sale service.
