Solar Power Plant Industrial Solar Energy System Home Commercial On Off Grid 50KW 70KW 80KW 100KW Solar Energy System

An energy storage cabinet is a device that integrates an energy storage device and a power management system, which is mainly used to store electrical energy and release it when needed.

Inquire

59.4KW 129KWH / 72.6KW 158KWH / 86KW 186KWH / 100KW 215KWH ESS with PCS and Solar Charging System

An energy storage cabinet is a device that integrates energy storage equipment and a power management system, designed to store electrical energy and provide power support during peak demand or emergency situations. It is composed of three core components: battery, inverter and control system. The battery is responsible for storing the energy, the inverter converts the direct current to alternating current for electrical use, and the control system is responsible for managing the energy use and protecting the battery to ensure the efficient and safe operation of the storage cabinet.

 Provide various application solutions.

Fast delivery and installation,we take care of the entire delivery and installation process, en-suring that the batteryies are installed safely and correctly.

Remote monitoring services to ensure that the system is operating efficiently and to iden-tify potential issues beforethey become major problems.

Energy storage system and equipment-level 3D visualization, real-time presentation system running status and parameters

Realize energy storage anytime and anywhere through the mobile APP client Station operation status check and maintenance management.

Realize regular storage and distribution of charging and discharging data of energy storage power stations Analysis of power plant investment and operation costs and beneddits in different dimensions.

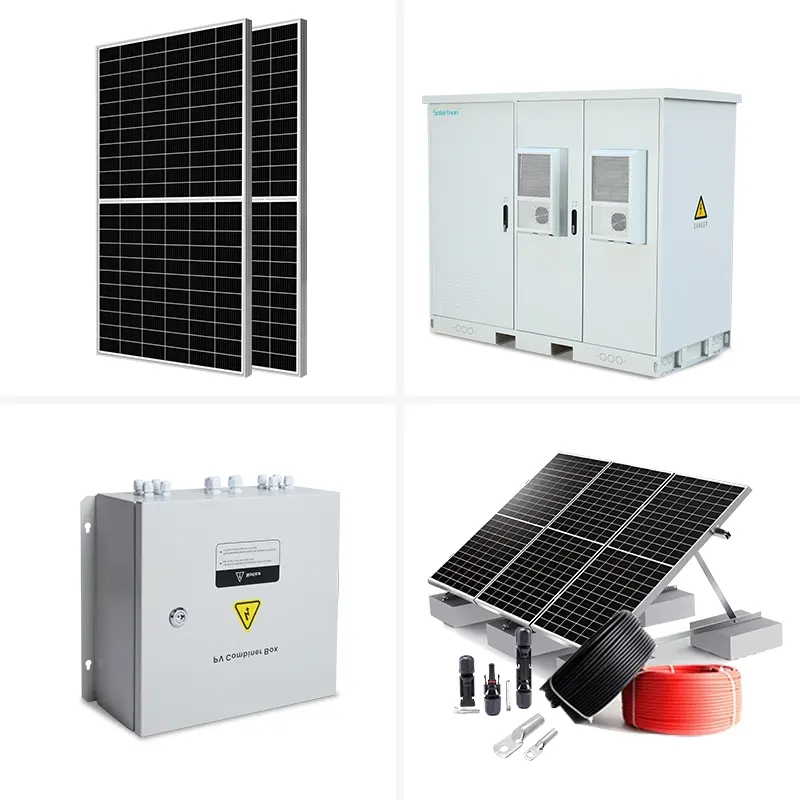

550W mono Half Cell PERC solar panel

Vmp: 41.95V Voc: 49.8V Imp 13.11A
Size: 2279*1134*35mm
weight: 28.3kg
25 years life span
Linear performance: 25 years 80 % ; 10 years 90%
Connection: 12 pcs In Series

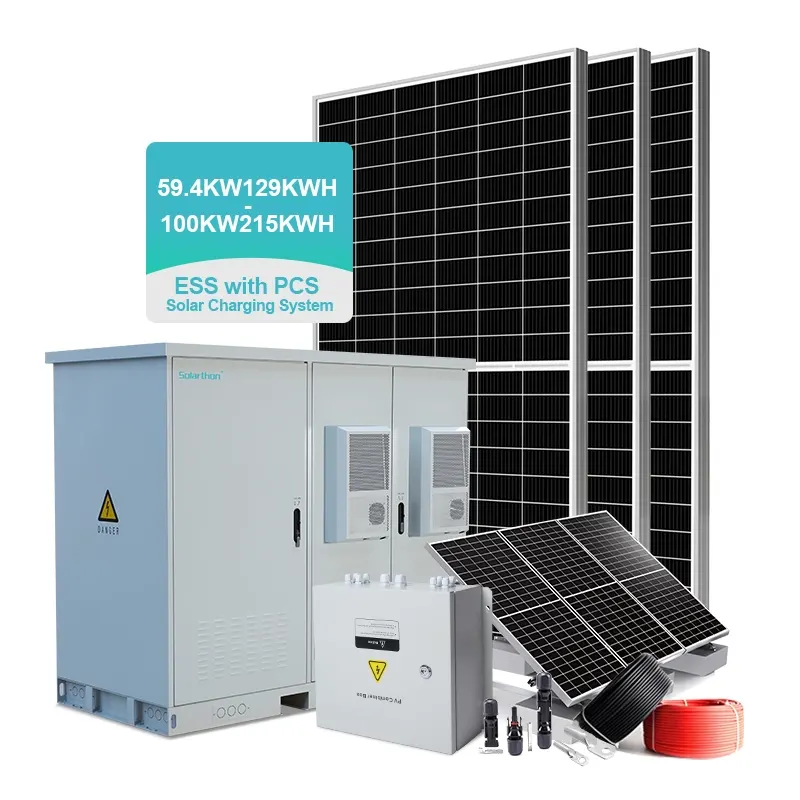

ESS with PCS and Solar Charging System

59.4KW129KWH/72.6KW158KWH/86KW186KWH/100KW215KWH
Energy Storage System(ESS)
Battery Voltage Range:403~518V/493~633V/582~748V/672~864V
Power Conversion System(PCS)
Rated Power: 100KW
Rated AC Voltage: 400V, 50/60Hz
AC Voltage Range: 320~460V, 50/60Hz
DC Voltage Range: 420~850V
Max. PV Charge Power: 120KW
Max. PV Input Voltage: 1000V
MPPT Voltage Range: 250~850V
Energy Management System(EMS)
LCD monitor, RS485, CAN, TCP/IP

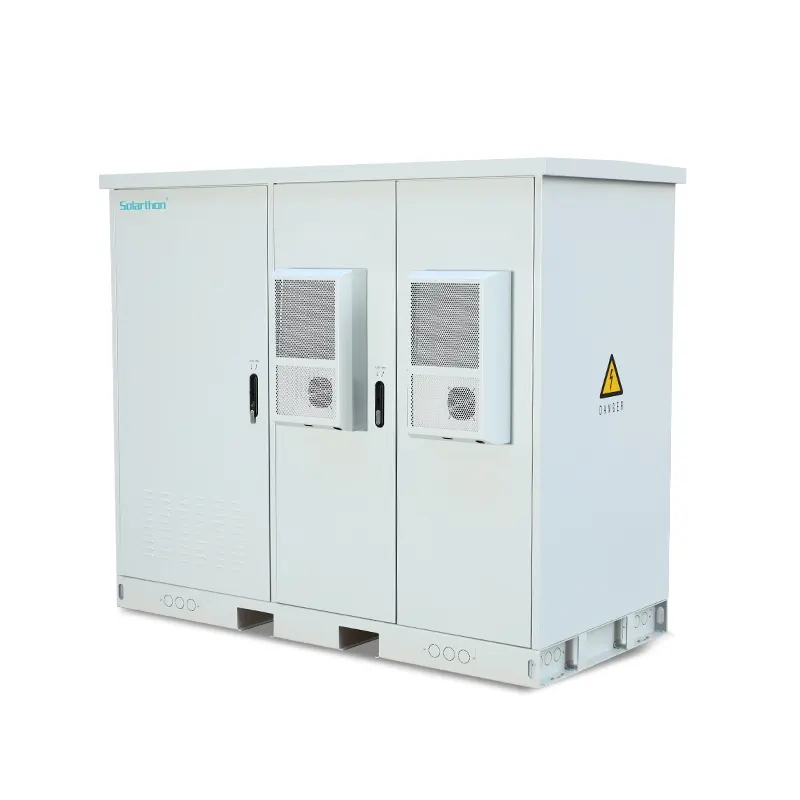

Outdoor Three-cabin Cabinet
Size: 2700*1100*2550mm
Air Conditioner, 600W, 2 sets
Fire Fighting System

8 In 1 Out PV Combiner Box

Rated Voltage: 1000VDC
Simplify Wiring Between PV Array And Controller;
Reliable Thunderstorm& Surge Protection
Product Size: 446x420x145mm
Weight: 11kg

Flat Roof Mounting Structure

structure: Hot-Dip Galvanized Steel
wind load: 55m/s,snow load:1.5kn/m2
4mm2 PV cable: 100m, Red
4mm2 PV cable: 100m, Black
25mm2 PV cable: 100m, Red
25mm2 PV cable: 100m, Black
MC4 Connector, Male Plug
MC4 Connector, Female Plug
Copper Lug: 25mm2

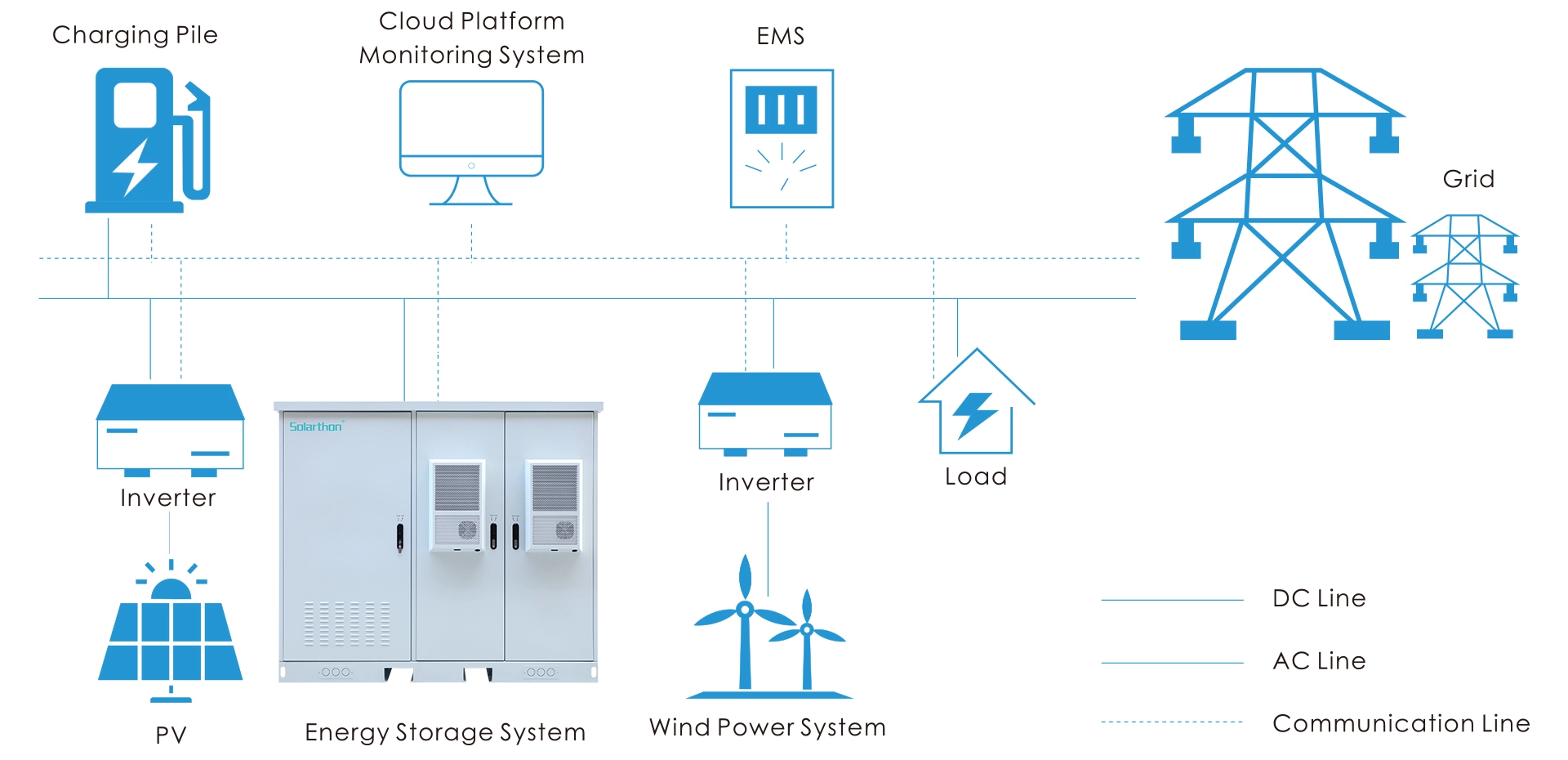

System Topology

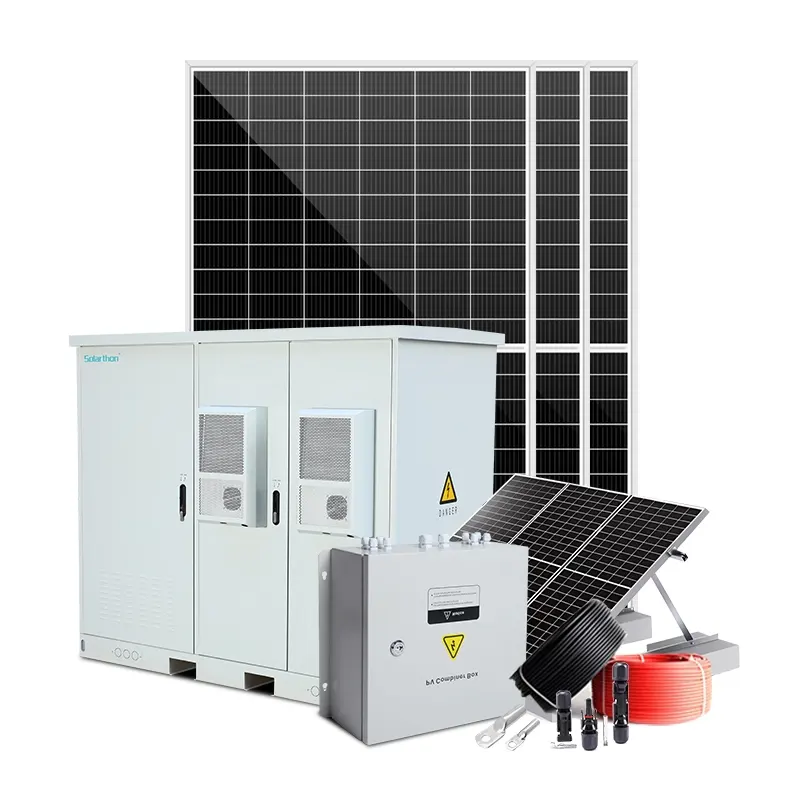

Product display

A: Yes, all our inverters provide true pure sine wave output.

A: Yes, all our inverters provide true pure sine wave output.

A: Low frequency inverters have various protections, strong adaptability to the environment, and are more reliable with voltage regulation.

A: Pure sine wave output inverters provide power quality equivalent to or better than the public power grid. They have a low repair rate, long lifespan, no harmonic pollution, and are environmentally friendly. Modified sine wave output inverters have a negative impact on appliances and cannot load inductive loads, such as air conditioners and refrigerators. Certain motor control circuits may not be compatible with modified sine wave inverters.

A: Our inverters can be used with household, office, agricultural appliances, and other inductive loads such as refrigerators, air conditioners, water pumps, etc.

A: Yes, we accept OEM orders and can customize the products with your company logo.

A: Simply tell us your requirements, and our sales team will recommend a suitable inverter for you.

A: We offer 24-hour after-service consultancy to help you easily solve any technical problems you may encounter.

A: While a power inverter is not absolutely required for a solar energy system, it is necessary if you want to use normal AC appliances. Without a power inverter, you will only have battery power and won’t have 220 or 230 volts AC. This may be acceptable for small RVs or cabins.

A: If any product is faulty, please send us a picture or video, and we will study it. We provide free spare parts of the PCB board for after-sale service.
