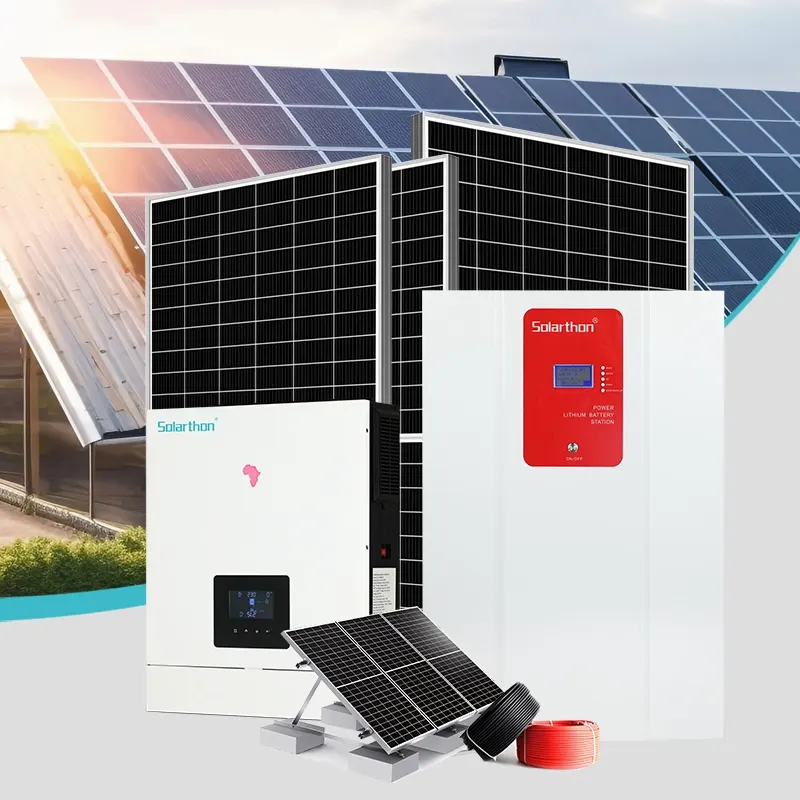

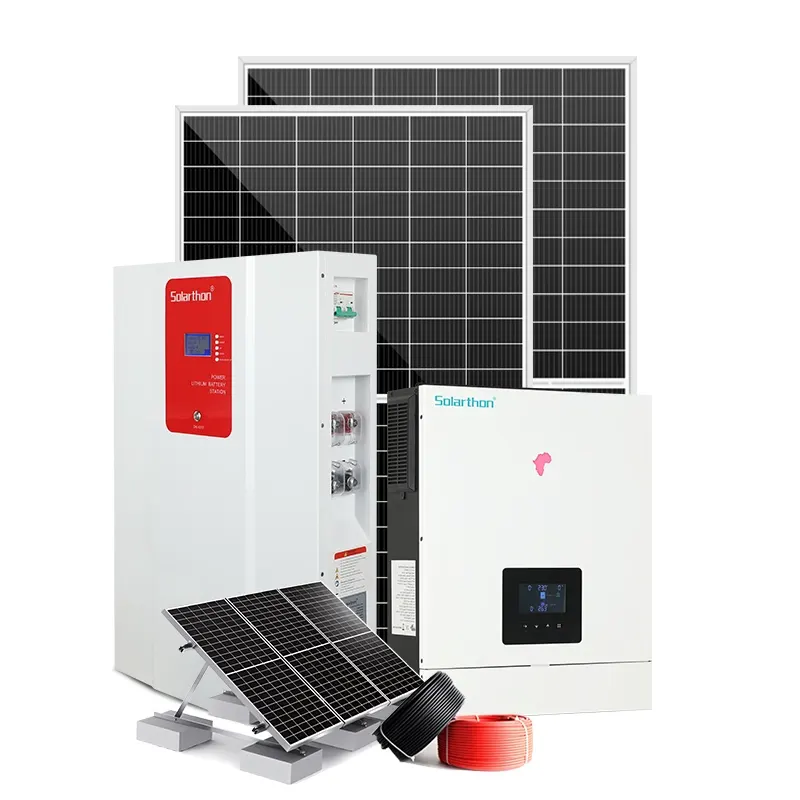

Solar Con Bateria Energy System Complete Kit 6.2KW Home Energy Storage Systems With Solar Panels

  • Self-consumption and feed-in to the grid.
  • Auto restart while AC is recovering. -Programmable supply priority for battery or grid.
  • Programmable multiple operate on modes: On grid, off grid and UPS.
  • Configurable battery charging current/voltage based on applications by LCD setting.
  • Configurable Ac/Solar/Generator Charger priority by LCD setting. -Compatible with mains voltage or generator power.
  • Overload/over temperature/short circuit protection.
  • Smart battery charger design for optimized battery performance.
  • With limit function, prevent excess power overflow to the grid.
  • Supporting WlFl monitoring and build-in 2 strings of MPP trackers.
  • Smart settable three stages MPPT charging for optimized battery performance.
  • Time of use function.-Smart Load Function.

Inquire

6.2KW ON/OFF GRID SOLAR INVERTER

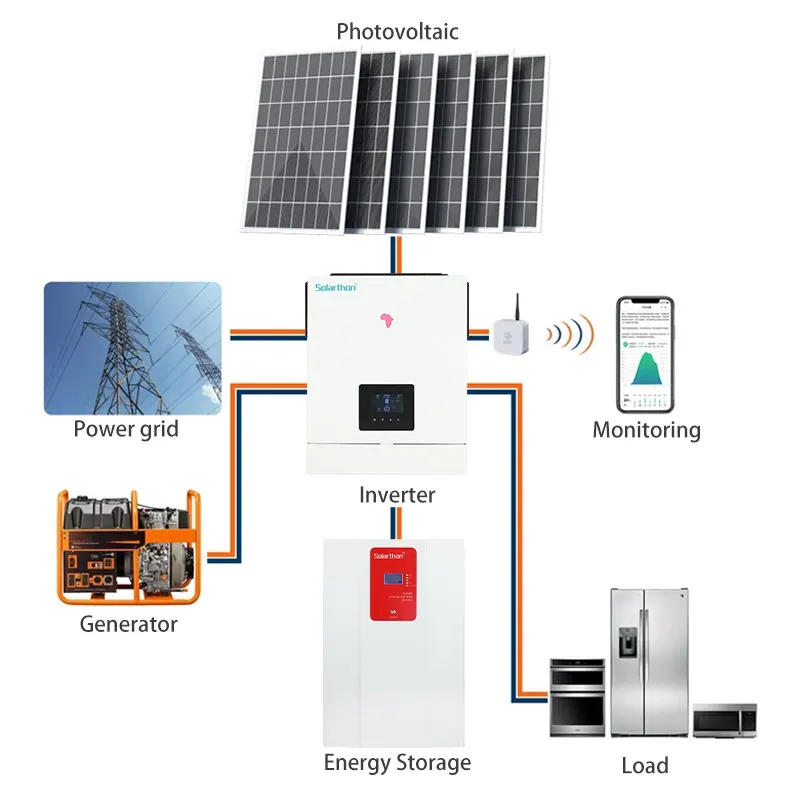

The All-in-one Energy storage system is An integrated system That Places photovoltaic inverters, Batteries, And Controllers inside. As A New Generation product ln The field of Energy storage, The All-in-One Energy storage system ls Easy To Use,Plug And-Play, And can Greaty save installation Time; It is Also More Technically Mature The Product Is More Refined, And Some Performances Have lmproved.

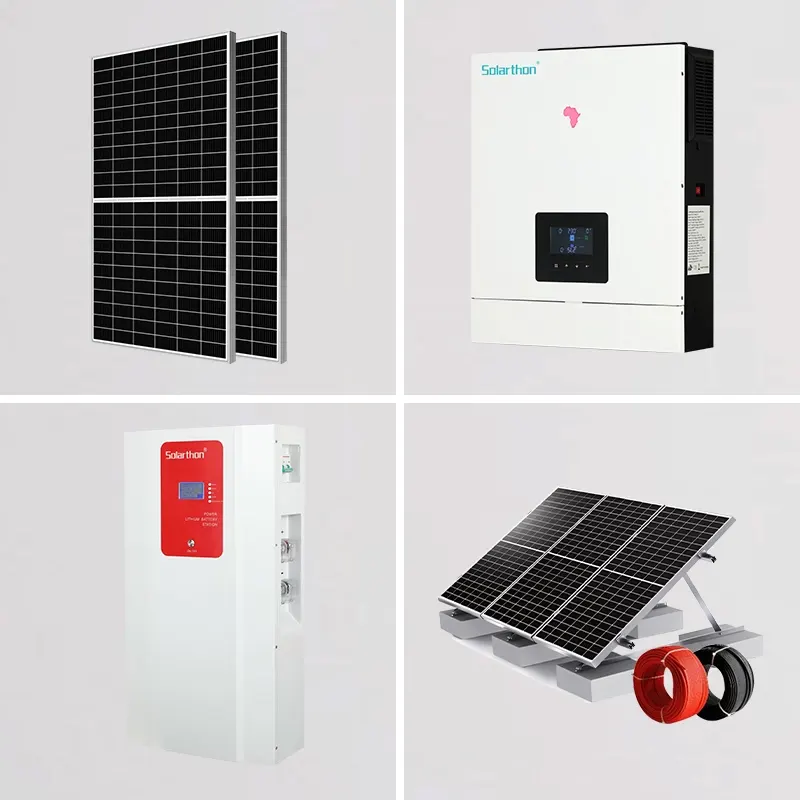

550W mono Half Cell PERC solar panel

Vmp: 41.95V Voc: 49.8V Imp 13.11A
Size: 2279*1134*35mm
weight: 28.3kg
25 years life span
Linear performance: 25 years 80 % ; 10 years 90%
Connection: 15 pcs In Series

6.2KW Solar Inverter (on/off Grid)

Battery Voltage: 51.2VDC
Full Load: 6200W
Nominal Operating Voltage: 240VDC
Maximum PV Voc: 500VDC
PV Input Voltage Range: 60-450VDC
Maximum PV Input Current: 22A
Full Load MPPT Range: 240-450VDC
Maximum PV input Power: 6200W
Nominal Output Voltage: 220/230/240VAC 50/60Hz
Maximum PV charge Current: 120A
Nominal Ac Input Voltage: 230VAC, 50/60Hz
Maximum AC Charging Current: 100A
Communication: RS232/GPRS/WIFI/LITHIUM BATTERY
Product Size: 443*359*113mm
Net Weight: 8.8kg
Warranty: 3 Years

51.2V 200Ah Battery Pack

Battery Type: LiFePo4
Nominal Voltage: 51.2V
Nominal Capacity: 200Ah
Charging Cut-off Voltage: 58.4V
Discharging Cut-off Voltage: 40.8V
Max. Cont. charging/Discharging Current: 100A
Max.Instantaneous Charge/Discharge Current: 200A
Max. Number Of Parallel: 6 sets
Cycle Life: ≥6000
Product Size:800*551*175mm
Weight: 79kg
Warranty: 5 Years

Flat Roof Mounting Structure

Structure: Hot-Dip Galvanized Steel
Wind load: 55m/s,snow load:1.5kn/m2
4mm2 Pv Wire. Red, 20m
4mm2 PV Wire, Black, 20m
4mm2 PV Wire, Black, 2m
50mm2 Pv Wire, Black, 5m
50mm2 Pv Wire, Black, 5m

PROJECT CASE

A: Yes, all our inverters provide true pure sine wave output.

A: Yes, all our inverters provide true pure sine wave output.

A: Low frequency inverters have various protections, strong adaptability to the environment, and are more reliable with voltage regulation.

A: Pure sine wave output inverters provide power quality equivalent to or better than the public power grid. They have a low repair rate, long lifespan, no harmonic pollution, and are environmentally friendly. Modified sine wave output inverters have a negative impact on appliances and cannot load inductive loads, such as air conditioners and refrigerators. Certain motor control circuits may not be compatible with modified sine wave inverters.

A: Our inverters can be used with household, office, agricultural appliances, and other inductive loads such as refrigerators, air conditioners, water pumps, etc.

A: Yes, we accept OEM orders and can customize the products with your company logo.

A: Simply tell us your requirements, and our sales team will recommend a suitable inverter for you.

A: We offer 24-hour after-service consultancy to help you easily solve any technical problems you may encounter.

A: While a power inverter is not absolutely required for a solar energy system, it is necessary if you want to use normal AC appliances. Without a power inverter, you will only have battery power and won’t have 220 or 230 volts AC. This may be acceptable for small RVs or cabins.

A: If any product is faulty, please send us a picture or video, and we will study it. We provide free spare parts of the PCB board for after-sale service.
