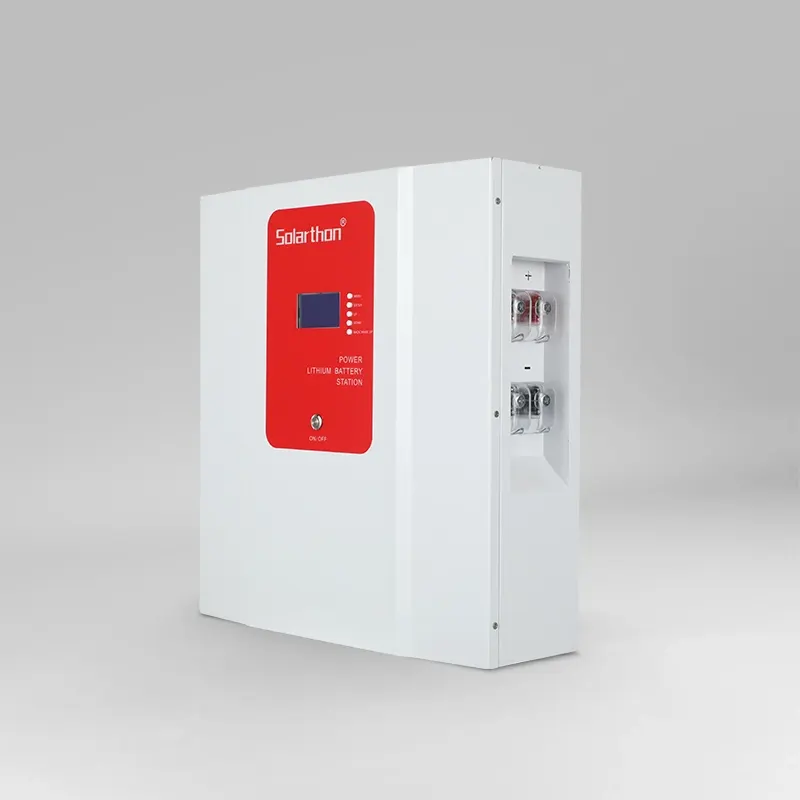

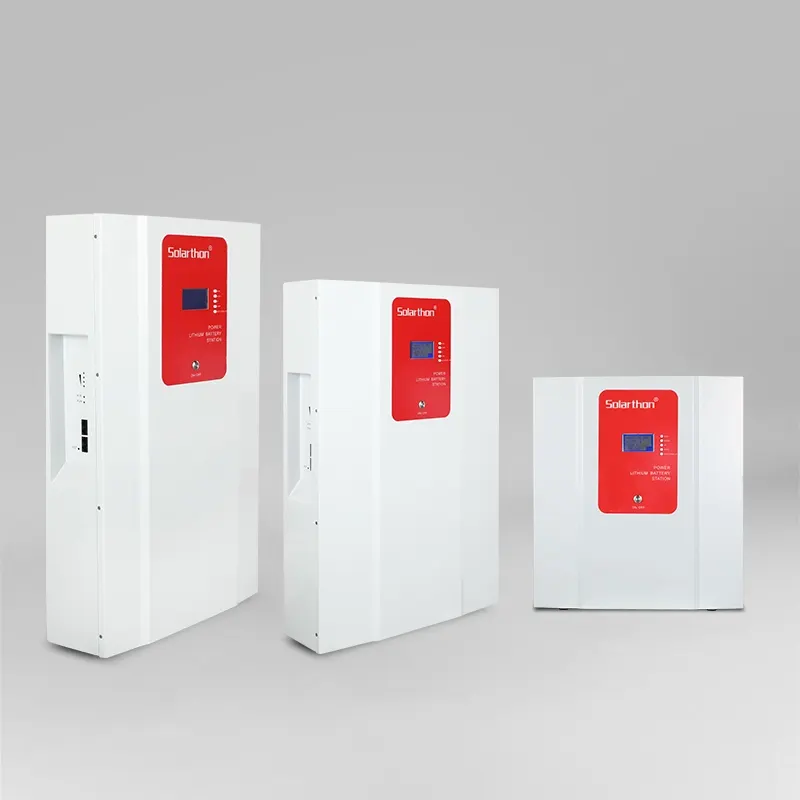

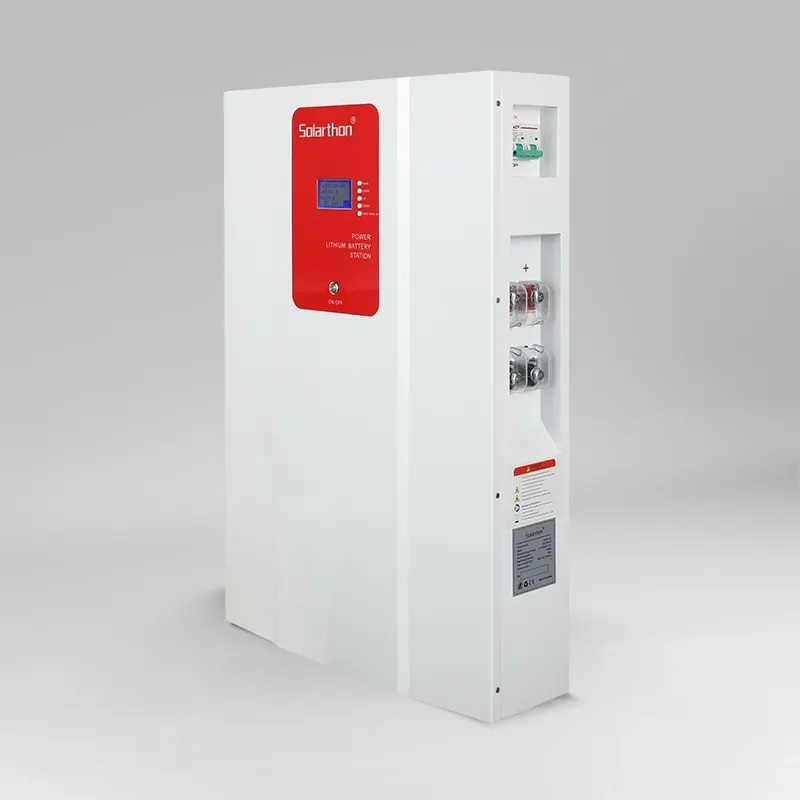

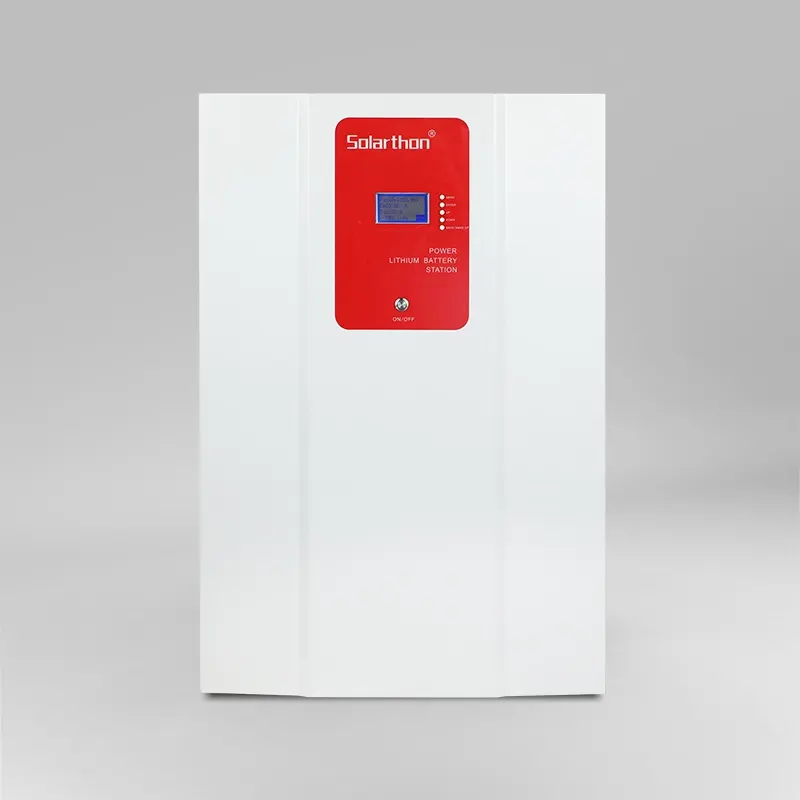

Power Wall Lithium lon Batteries Lifepo4 100Ah 150Ah 184Ah Home Solar Lithium Battery

• Each battery pack is equipped with an intelligent battery management system to manage the modules efficiently.
• Compared with traditional modules, it can meet the capacity storage and greatly improve the cycle life.
• National high-tech enterprise, home intelligent energy management, safe, efficient and green energy

Inquire

LiFeP04 BATTERY SYSTEM

The product belongs to one of the series of household energy storage products that are supply to household, commercial, UPS and other electrical equipment.independently designed and developed by us. It is used for energy storage and energy.
This product enjoys many merits: long cycle life, high safety standard from software protection to strong housing, exquisite looks, and easy installation, etc. It is widely used in energy storage system with off-grid inverters, grid-connected inverters and hybrid inverters.

LONGER CYCLE LIFE
Offers up to 15 times longer cycle life and 5 times longer float/ calendar life than lead acid battery.

LOW SELF-DISCHARGE
Lower self-discharge compared with lead acid battery, longer storage time without recharging.

SUPERIOR SAFETY
Multi-protection methods built inside to protect the battery from overcharge, over discharge and short circuit situation.

HIGH EFFICIENT
Higher round-trip energy efficiency of the average (92%)than lead acid battery 80% (discharge from 100% to 0% and back to 100% charged).

LIGHTER WEIGHT
About 40% weight of a comparable lead acid battery. save up to 60% in weight.




QUICK CHARGE
Short charge time compared with lead acid battery.

25.6V 200AH Battery Pack

Model: LF25200-02
Battery Type: LiFePO4
Nominal Voltage: 25.6V
Nominal Capacity: 200Ah
Charging Cut-off Voltage: 29.2V
Discharging Cut-off Voltage: 21.6V
Max. Cont. Charging/Discharging Current (10s): 100A
Max. Instantaneous Charge/Discharge Current: 200A
Max. Number Of Parallel: 6 sets
Cycle Life: ≥6000
Product Size: 720*355*167mm
Weight: 30kg
Warranty: 5 years

51.2V 100AH Battery Pack

Model：LF51100-10
Battery Type: LiFePO4
Nominal Voltage: 51.2V
Nominal Capacity: 100Ah
Charging Cut-off Voltage: 51.5V-54V
Discharging Cut-off Voltage: 45V-54V
Max. Cont. Charging/Discharging Current (10s): 100A
Max. Cont. Discharging Current: 100A
Max. Number Of Parallel: 6 sets
Cycle Life: ≥6000
Product Size: 530*485*175mm
Weight: 47kg
Warranty: 5 years

51.2V 150AH Battery Pack

Model: LF51150-02
Battery Type: LiFePO4
Nominal Voltage: 51.2V
Nominal Capacity: 150Ah
Charging Cut-off Voltage: 58.4V
Discharging Cut-off Voltage: 40.8V
Max. Cont. Charging/Discharging Current (10s): 100A
Max. Instantaneous Charge/Discharge Current: 200A
Max. Number Of Parallel: 6 sets
Cycle Life: ≥6000
Product Size: 800*435*175mm
Weight: 60kg
Warranty: 5 years

25.6V 200AH Battery Pack

Model: LF51200-02
Battery Type: LiFePO4
Nominal Voltage: 51.2V
Nominal Capacity: 200Ah
Charging Cut-off Voltage: 58.4V
Discharging Cut-off Voltage: 40.8V
Max. Cont. Charging/Discharging Current (10s): 100A
Max. Instantaneous Charge/Discharge Current: 200A
Max. Number Of Parallel: 6 sets
Cycle Life: ≥6000
Product Size: 800*551*175mm
Weight: 79kg
Warranty: 5 years

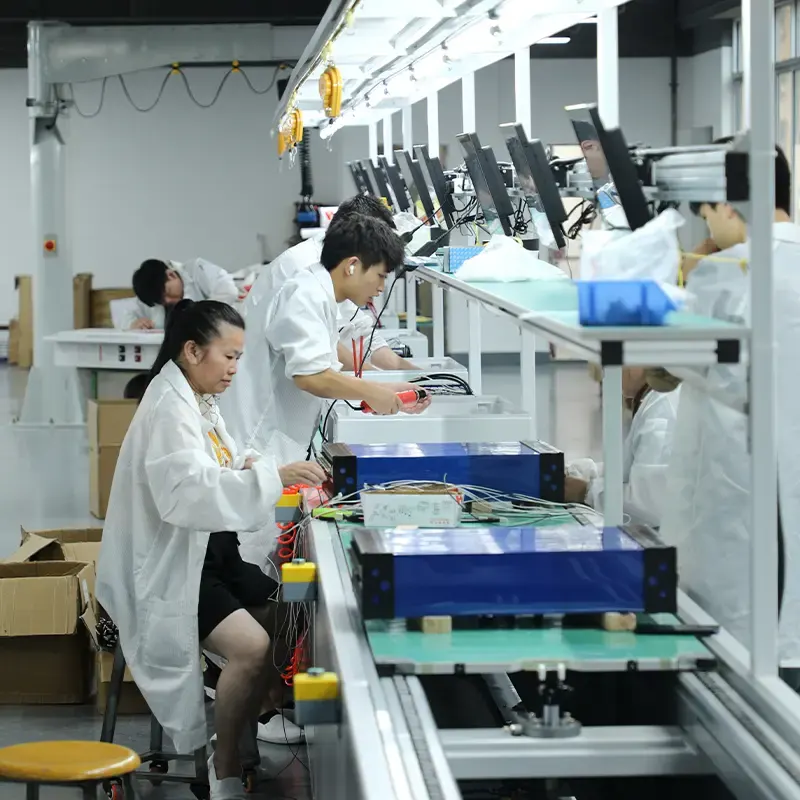

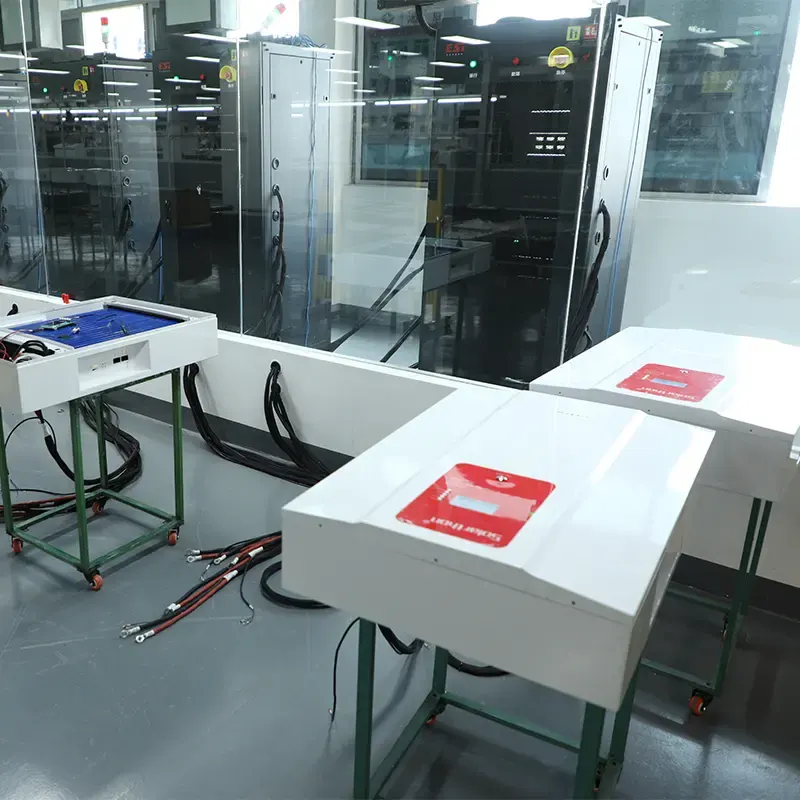

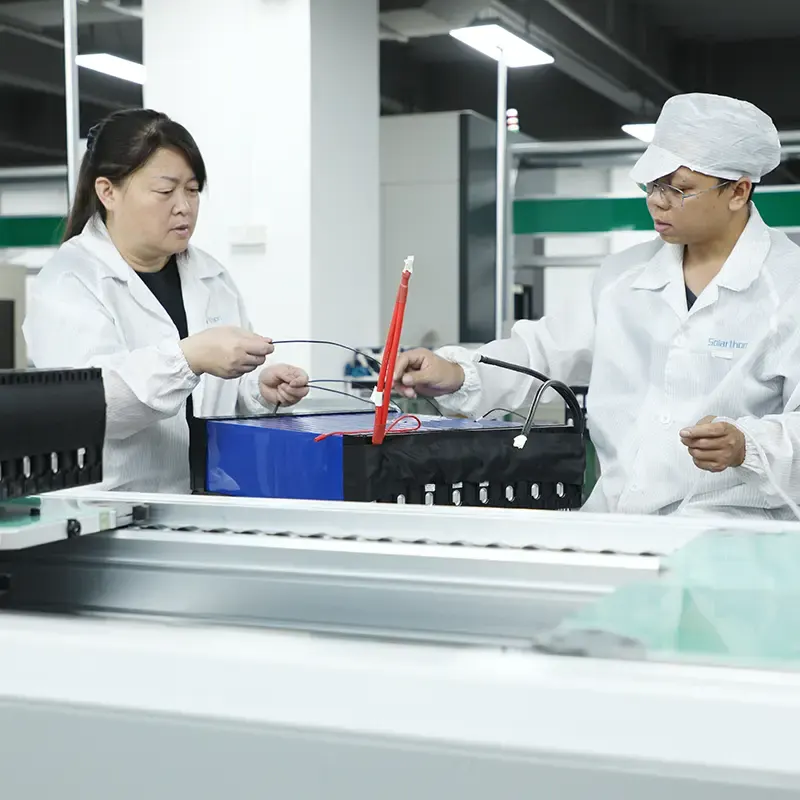

PRODUCTION WORKSHOP

A: Yes, all our inverters provide true pure sine wave output.

A: Yes, all our inverters provide true pure sine wave output.

A: Low frequency inverters have various protections, strong adaptability to the environment, and are more reliable with voltage regulation.

A: Pure sine wave output inverters provide power quality equivalent to or better than the public power grid. They have a low repair rate, long lifespan, no harmonic pollution, and are environmentally friendly. Modified sine wave output inverters have a negative impact on appliances and cannot load inductive loads, such as air conditioners and refrigerators. Certain motor control circuits may not be compatible with modified sine wave inverters.

A: Our inverters can be used with household, office, agricultural appliances, and other inductive loads such as refrigerators, air conditioners, water pumps, etc.

A: Yes, we accept OEM orders and can customize the products with your company logo.

A: Simply tell us your requirements, and our sales team will recommend a suitable inverter for you.

A: We offer 24-hour after-service consultancy to help you easily solve any technical problems you may encounter.

A: While a power inverter is not absolutely required for a solar energy system, it is necessary if you want to use normal AC appliances. Without a power inverter, you will only have battery power and won’t have 220 or 230 volts AC. This may be acceptable for small RVs or cabins.

A: If any product is faulty, please send us a picture or video, and we will study it. We provide free spare parts of the PCB board for after-sale service.
