On Grid Residential Solar Inverters 1KW 1.5KW 2KW 3KW Ongrid 5kva Solar Inverter for Home Use Inverter

  • Pure sine wave solar inverter
  • Wifi&gprs available for ios and android
  • Built-in anti-dusk kit for harsh environment
  • Smart battery charge design to optimize battery life
  • Meet the rich customize needs of customers
  • Compatibe with lithium battery
  • Solar energy is provided directly to the load first

Inquire

This is a multi-function inverter/charger, combining functions ofinverter, solar charger and battery charger to offer uninterruptiblepower support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

● Pure sine wave solar inverter

● Built-in80a mppt solar charger

● Smart battery charge design to optimize battery life

● Output power factor 1.0

● High pv input voltage range(30-400vdc)

● Meet the rich customize needs of customers

● Wifi&gprs available for ios and android

● Built-in anti-dusk kit for harsh environment

● Solar energy is provided directly to the load first

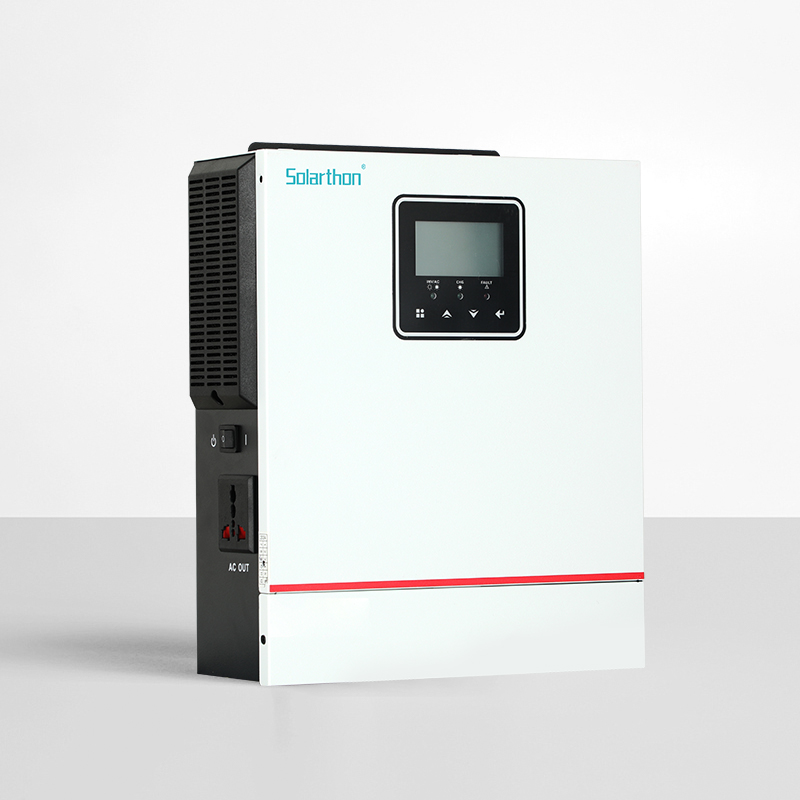

1.0KW Solar Inverter

Model: STN10212
Rated Power: 1000VA/1000W
Surge Power: 2000VA
AC Input Voltage: 230VAC
Frequency Range: 50Hz/60Hz(Auto Sensing)
AC Output Voltage: 230VAC
Efficiency(Peak)PV To INV: 98%
Efficiency(Peak)Battery To INV: 94%
Maximum AC Charging Current: 40A
Battery Voltage: 12VDC
Maximum PV Array Power: 600W
Maximum PV Array Open Voltage: 150VDC
MPPT Operating Voltage Range: 20~150VDC
Maximum PV Charging Current: 40A
Operating Temperature: -10~50℃
Product Size: 240x290x91mm
Weight: 3.5kg
Warranty: 3 years

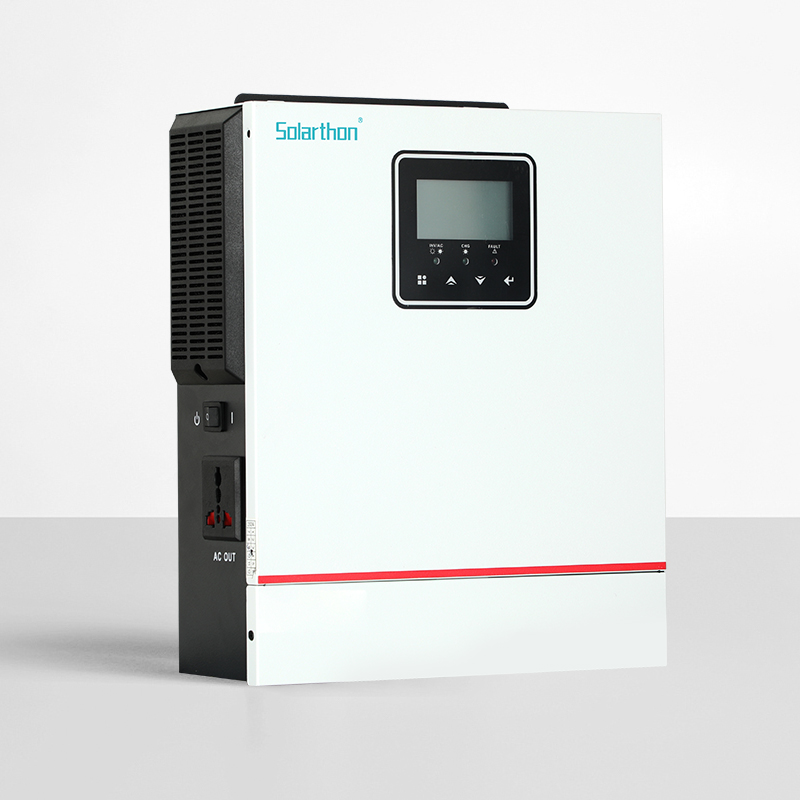

1.5KW Solar Inverter

Model ：STN15224
Rated Power: 1500VA/1500W
Surge Power: 3000VA
AC Input Voltage: 230VAC
Frequency Range: 50/60Hz
AC Output Voltage: 230VAC
Efficiency(Peak)PV To INV: 98%
Maximum AC Charging Current: 40A
Battery Voltage: 24VDC
Maximum PV Array Power: 1200W
Maximum PV Array Open Voltage: 150VDC
MPPT Operating Voltage Range: 30~120VDC
Maximum PV Charging Current: 40A
Operating Temperature: -10~50℃
Product Size: 290x240x91mm
Weight: 3.6kg
Warranty: 3 years

2KW Solar Inverter

Model :STN20212
Rated Power: 2000VA/2000W
Surge Power: 4000VA
AC Input Voltage: 230VAC
Frequency Range: 50 Hz/60Hz(Auto Sensing)
AC Output Voltage: 230VAC
Efficiency(Peak)PV To INV: 98%
Maximum AC Charge Current: 60A
Battery Voltage: 12VDC
Maximum PV Array Power: 2000W
Maximum PV Array Open Circuit Voltage: 400VDC
MPPT Operating Voltage Range: 30~400VDC
Full Load MPPT Operating Voltage : 240~350VDC
Maximum Charging Current: 80A
Operating Temperature: -10~50℃
Communication Interface: RS232/GPRS/WIFI
Product Size: 273x357x95mm
Weight: 5.2kg
Warranty: 3 years

A: Yes, all our inverters provide true pure sine wave output.

A: Yes, all our inverters provide true pure sine wave output.

A: Low frequency inverters have various protections, strong adaptability to the environment, and are more reliable with voltage regulation.

A: Pure sine wave output inverters provide power quality equivalent to or better than the public power grid. They have a low repair rate, long lifespan, no harmonic pollution, and are environmentally friendly. Modified sine wave output inverters have a negative impact on appliances and cannot load inductive loads, such as air conditioners and refrigerators. Certain motor control circuits may not be compatible with modified sine wave inverters.

A: Our inverters can be used with household, office, agricultural appliances, and other inductive loads such as refrigerators, air conditioners, water pumps, etc.

A: Yes, we accept OEM orders and can customize the products with your company logo.

A: Simply tell us your requirements, and our sales team will recommend a suitable inverter for you.

A: We offer 24-hour after-service consultancy to help you easily solve any technical problems you may encounter.

A: While a power inverter is not absolutely required for a solar energy system, it is necessary if you want to use normal AC appliances. Without a power inverter, you will only have battery power and won’t have 220 or 230 volts AC. This may be acceptable for small RVs or cabins.

A: If any product is faulty, please send us a picture or video, and we will study it. We provide free spare parts of the PCB board for after-sale service.

3.0KW Solar Inverter

Model：STN30224
Rated Power: 3200VA/3000W
Surge Power: 6400VA
Frequency Range: 50 Hz/60Hz(Auto Sensing)
AC Output Voltage: 230VAC
Efficiency(Peak)PV To INV: 98%
Efficiency(Peak)Battery To INV: 94%
Maximum AC Charge Current: 60A
Battery Voltage: 24VDC
Maximum PV Array Power: 3000W
Maximum PV Array Open Circuit Voltage: 400VDC
MPPT Operating Voltage Range: 30~400VDC
Full Load MPPT Operating Voltage Range: 240~350VDC
Maximum Charging Current: 80A
Operating Temperature: -10~50℃
Communication Interface: RS232/GPRS/WIFI
Product Size: 273x357x95mm
Weight: 6.2kg
Warranty: 3 years
