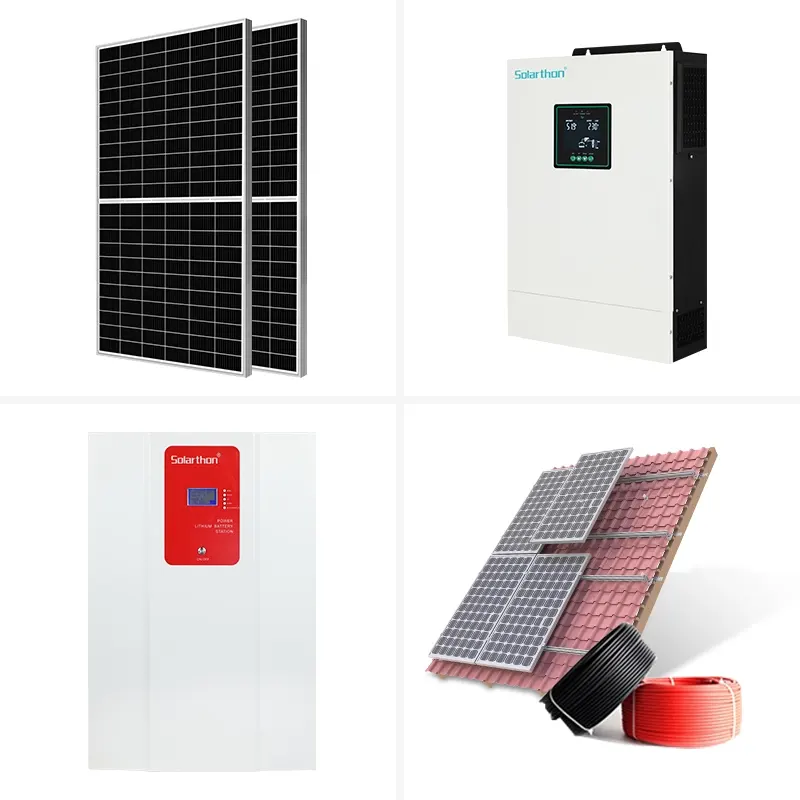

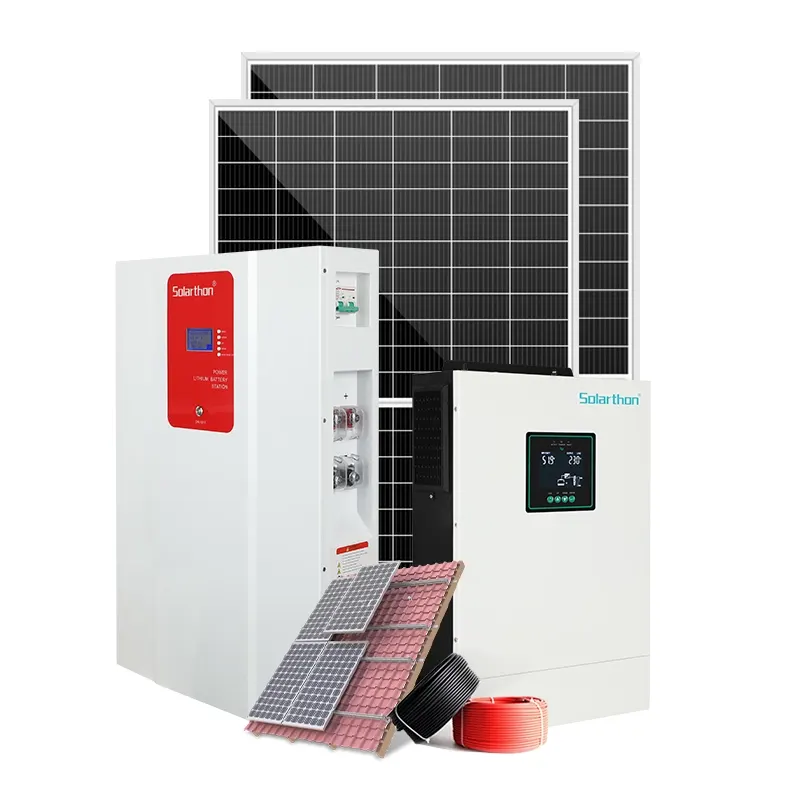

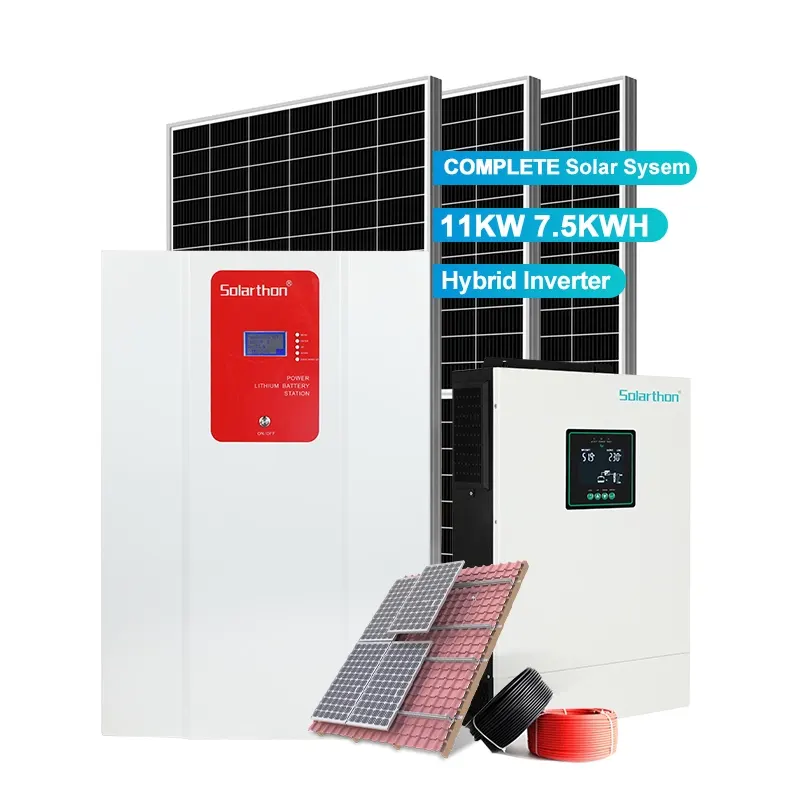

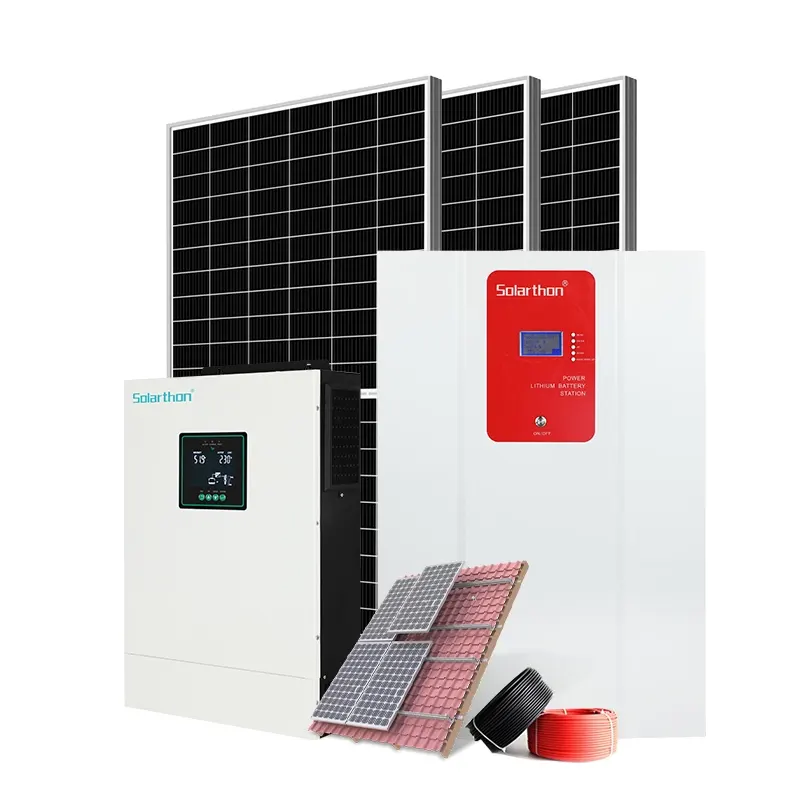

Off Grid Hybrid Solar Energy System 11KW Solar Panel With Battery and InverterComplete Solar Kit for Home

This advanced off-grid solar inverter combines an MPPT solar charge controller, a high-frequency pure sine wave inverter, and a UPS function module into one compact and efficient unit. Designed for versatility, it is perfect for off-grid backup power systems and self-consumption applications. Whether you need reliable power during outages or want to maximize your solar energy usage, this inverter delivers exceptional performance. It operates seamlessly with or without batteries, offering flexibility for a wide range of energy setups. Ideal for residential, commercial, or remote applications, this inverter ensures clean, stable, and uninterrupted power whenever you need it.

Inquire

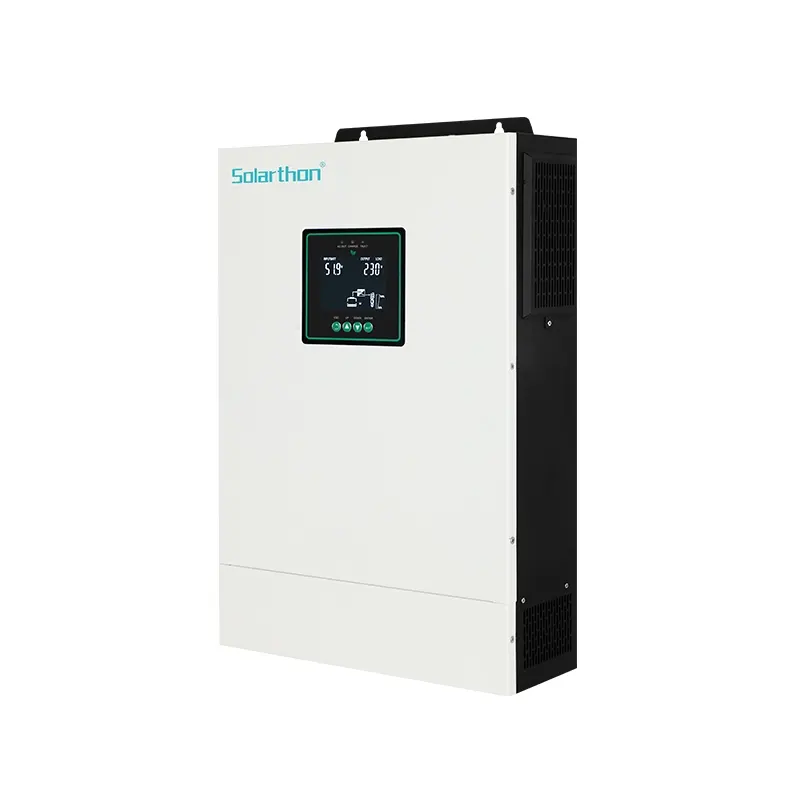

11KW Solar Inverter (On/Off Grid)

The 11KW Hybrid Solar Inverter is a versatile and efficient power solution that integrates multiple functions into one compact unit. Combining the capabilities of an inverter, solar charger, battery charger, and stand-alone inverter, it delivers a reliable uninterruptible power supply for a wide range of applications. With its built-in MPPT solar charge controller, it maximizes solar energy conversion efficiency, ensuring every drop of sunlight is transformed into usable electricity. Whether for home emergency backup, outdoor activities, off-grid power systems, or distributed energy setups, this inverter provides a dependable and efficient power solution. Its flexibility and advanced technology make it the ideal choice for both on-grid and off-grid energy needs.

550W mono Half Cell PERC solar panel

Vmp: 41.95V Voc: 49.8V Imp 13.11A
Size: 2279*1134*35mm
weight: 28.3kg
25 years life span
Linear performance: 25 years 80 % ; 10 years 90%
Connection: 7pcs In Series

11KW Hybrid Inverter

Battery Voltage: 51.2VDC
Rated Power: 11000VA/11000W
Rated AC Output Voltage: 230VAC
Rated AC Output Current: 48A
Battery Input Voltage Range:40~60VDC
Maximum Battery Current: 250A
Rated AC Input Voltage Range: 170-280VAC, 50Hz
Maximum AC Charging Current: 120A
Maximum PV Input Power: 5500W+5500W
MPPT Input Voltage Range: 120-450VDC
Maximum PV Input Current: 22A+22A
Maximum PV Charge Current: 150A
IP Grade: IP20
Max. Number Of Parallel: 6 sets
Product Size: 576*368.6*133mm
Warranty: 3 Years

51.2V 150AH Battery Pack

Battery Type: LiFePO4
Nominal Voltage: 51.2V
Nominal Capacity: 150Ah
Charging Cut-off Voltage: 58.4V
Discharging Cut-off Voltage: 40.8V
Max. Cont. Charging/Discharging Current: 100A
Max. Instantaneous Charge/Discharge Current: 200A
Cycle Life: ≥6000
Max. Number Of Parallel: 6 sets
Product Size: 800*435*175mm
Weight: 60kg
Warranty: 5 year

Slope Roof Mounting Structure

wind load: 55m/s,snow load:1.5kn/m2
structure: Anodized Aluminum
4mm2 PV Wire, Red, 30m
4mm2 PV Wire, Black, 30m
4mm2 PV Wire, Black, 2m

PROJECT CASE

A: Yes, all our inverters provide true pure sine wave output.

A: Yes, all our inverters provide true pure sine wave output.

A: Low frequency inverters have various protections, strong adaptability to the environment, and are more reliable with voltage regulation.

A: Pure sine wave output inverters provide power quality equivalent to or better than the public power grid. They have a low repair rate, long lifespan, no harmonic pollution, and are environmentally friendly. Modified sine wave output inverters have a negative impact on appliances and cannot load inductive loads, such as air conditioners and refrigerators. Certain motor control circuits may not be compatible with modified sine wave inverters.

A: Our inverters can be used with household, office, agricultural appliances, and other inductive loads such as refrigerators, air conditioners, water pumps, etc.

A: Yes, we accept OEM orders and can customize the products with your company logo.

A: Simply tell us your requirements, and our sales team will recommend a suitable inverter for you.

A: We offer 24-hour after-service consultancy to help you easily solve any technical problems you may encounter.

A: While a power inverter is not absolutely required for a solar energy system, it is necessary if you want to use normal AC appliances. Without a power inverter, you will only have battery power and won’t have 220 or 230 volts AC. This may be acceptable for small RVs or cabins.

A: If any product is faulty, please send us a picture or video, and we will study it. We provide free spare parts of the PCB board for after-sale service.
