Industrial Energy Storage Cabinet for Business Metal Fabrication with Battery Storage

● The energy storage cabinet consists of 10 51.2V 100AH battery packs, and the 512V 100AH DC source supplies power to the PCS;
● Three-phase hybrid inverter, 100% unbalanced output per phase, maximum unbalanced output power up to 50% rated power;
● High voltage battery, higher efficiency, low calorific value;
● Built-in WIFI module, check the working status of the device at any time through the mobile APP client;

Inquire

107KWH ESS with 50KW Three Phase Hybrid Inverter Solar Power System

An energy storage cabinet is a device that integrates an energy storage device and a power management system, which is mainly used to store electrical energy and release it when needed.
The concept of an energy storage cabinet is to centrally store electrical energy in order to supply power during peak power demand or in case of emergency. It mainly consists of a battery, an inverter, and a control system. The battery is the core component of the
energy storage cabinet, which can convert electrical energy into chemical energy and store it. The function of the inverter is to convert the stored DC energy into alternating current energy for the use of various electrical equipment.
The control system manages, optimizes energy use, and protects battery life.

Intelligent Management:
● 24-hour Cloud Intelligent Maintenance.
● Fast Fault Location And Analysis.
● Intelligent Temperature Control To Reduce Power Consumption.

Simple Appearance:
● Simple Industrial Beauty.
● Compact Construction.
● Space saving.

All-in-One Design:
● Highly Integrated, All-in-One Design.
● Easy To Transport, Install And Maintain.
● Plug And Play, One-Touch Start/Stop.

Safety And Reliability:
● EV LiFePO4 Batteries.
● Epitaxial Design.
● Patented Flame Retardant.
● Battery Modular Management, Self-diagnosis And Self-recovery Of Faults.

Professional quality:
● Modular design of structure and components, according to different configurations,flexible for a variety of industrial and commercial scenarios such as microgrid,light storage and charging integration.
● Supports parallel connection of multiple units for collaborative control.

Modular design:
● Equipped with EMS system, which can form a microgrid system with other energy sources

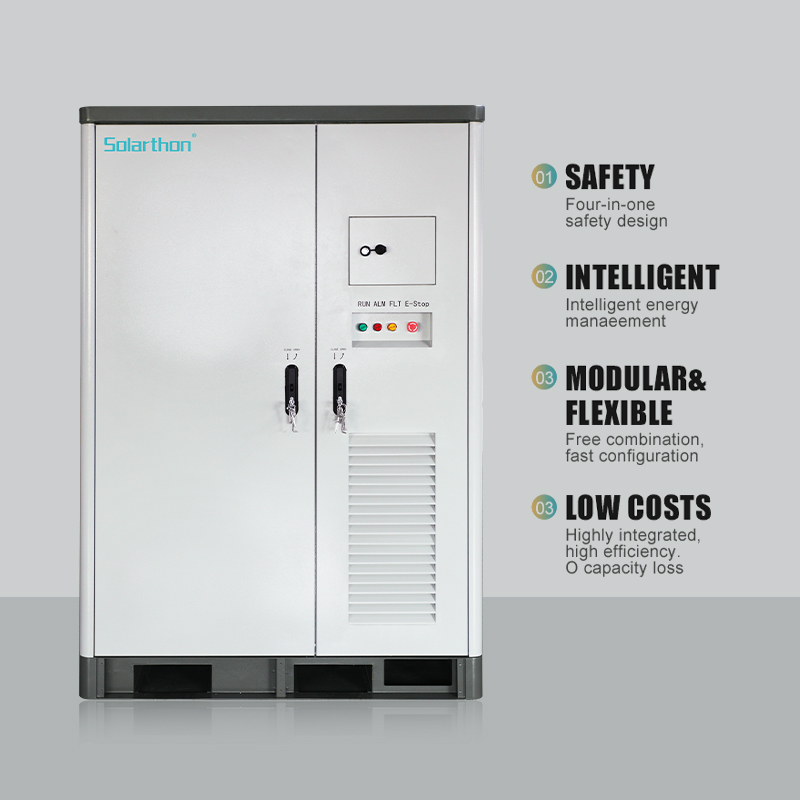

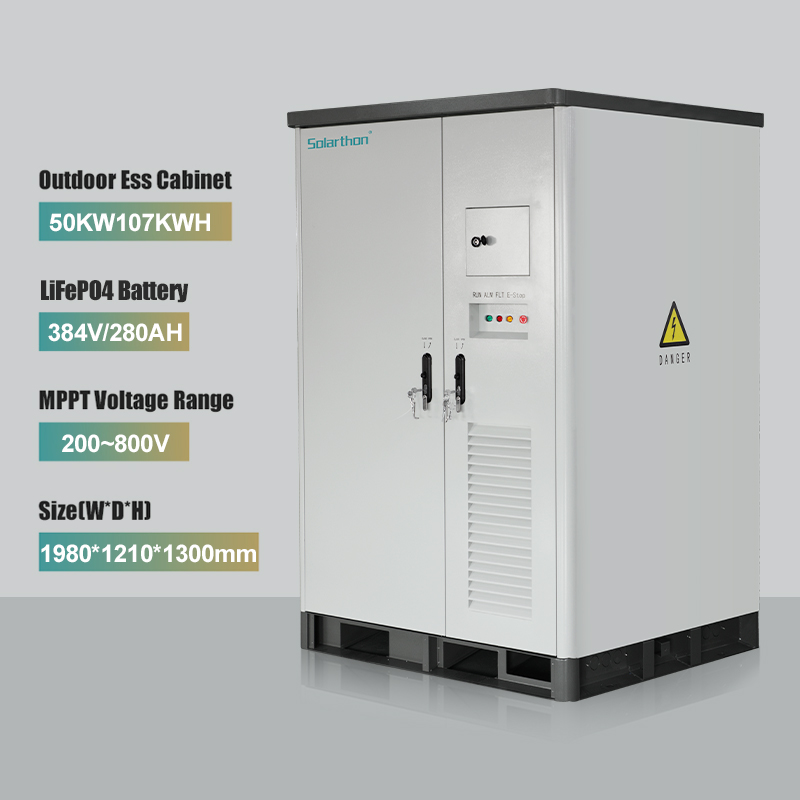

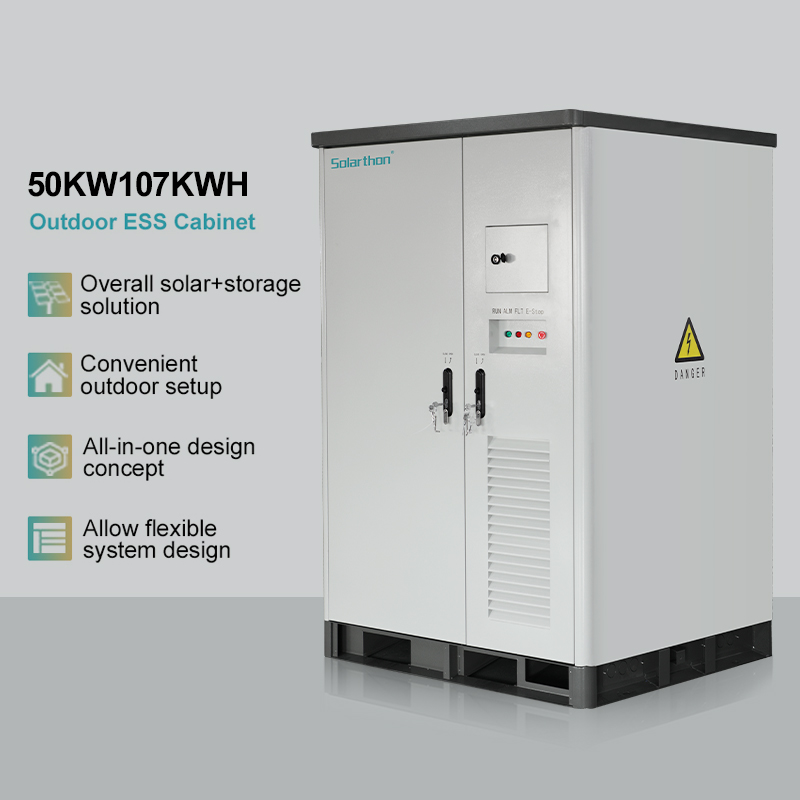

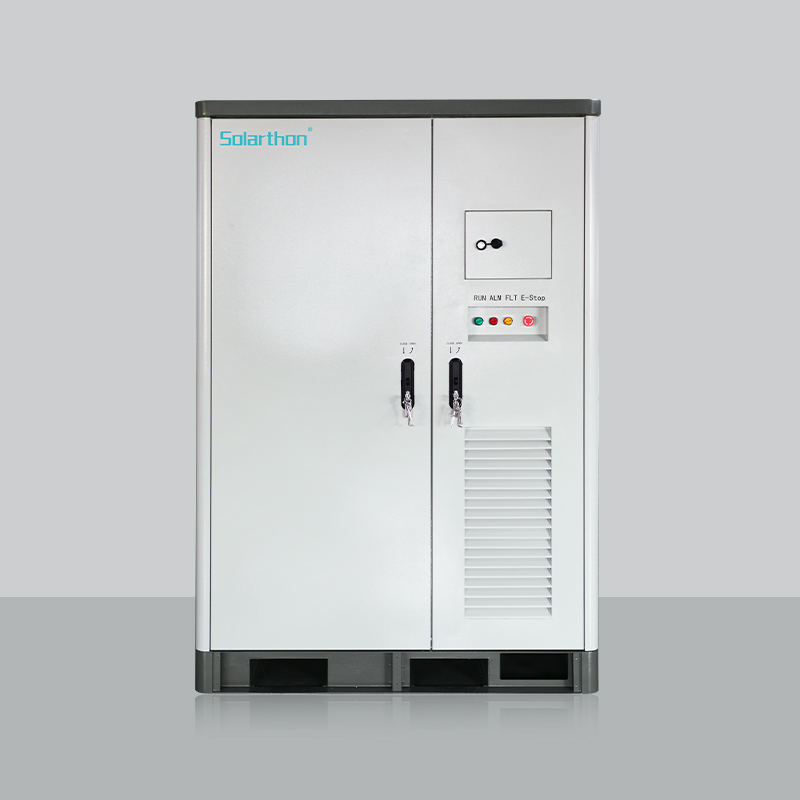

107KWH ESS with 50KW Three Phase Hybrid Inverter Solar Power System

Model: DQ1913C50K-01
Energy Storage System(ESS)
LiFePO4 Battery: 384V/280AH
Three Phase Hybrid Inverter
Rated Power: 50KW
Rated AC Voltage: 230/400V, 50/60Hz
AC Voltage Range: 230/400V, 50/60Hz
DC Voltage Range: 350~850V
Max. PV Charge Power: 38.4KW+38.4KW
Max. PV Input Voltage: 850V
MPPT Voltage Range: 200~800V
Energy Management System(EMS)
LCD monitor, RS485, CAN, TCP/IP

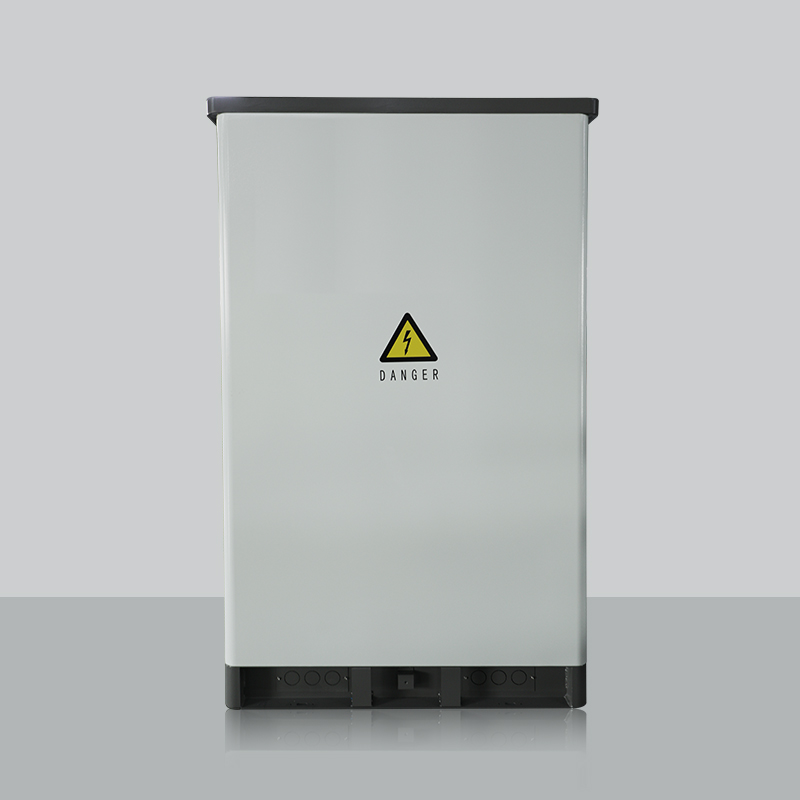

Outdoor Three-cabin Cabinet
Size: 1980*1210*1300mm
Air Conditioner, 2000W, 1 sets
Fire Fighting System

A: Yes, all our inverters provide true pure sine wave output.

A: Yes, all our inverters provide true pure sine wave output.

A: Low frequency inverters have various protections, strong adaptability to the environment, and are more reliable with voltage regulation.

A: Pure sine wave output inverters provide power quality equivalent to or better than the public power grid. They have a low repair rate, long lifespan, no harmonic pollution, and are environmentally friendly. Modified sine wave output inverters have a negative impact on appliances and cannot load inductive loads, such as air conditioners and refrigerators. Certain motor control circuits may not be compatible with modified sine wave inverters.

A: Our inverters can be used with household, office, agricultural appliances, and other inductive loads such as refrigerators, air conditioners, water pumps, etc.

A: Yes, we accept OEM orders and can customize the products with your company logo.

A: Simply tell us your requirements, and our sales team will recommend a suitable inverter for you.

A: We offer 24-hour after-service consultancy to help you easily solve any technical problems you may encounter.

A: While a power inverter is not absolutely required for a solar energy system, it is necessary if you want to use normal AC appliances. Without a power inverter, you will only have battery power and won’t have 220 or 230 volts AC. This may be acceptable for small RVs or cabins.

A: If any product is faulty, please send us a picture or video, and we will study it. We provide free spare parts of the PCB board for after-sale service.
