ESS Battery Cabinet 6.2KW/28KWH Waterproof Outdoor Cabinet For Commercial

● The energy storage cabinet consists of 2 51.2V 280AH battery packs, and the 51.2V 560AH DC source supplies power to the inverter;
● Adopt 6.2KW hybrid inverter, support mains, solar energy, battery input at the same time;
● Optional mains priority or solar priority mode to supply power to the load, when there is no mains or insufcient solar energy, the battery will supply power to the load;
● Mains and solar power can charge the battery at the same time;
● High voltage battery, higher efciency, low caloric value;
● Built-in 4 x 65W fans

Inquire

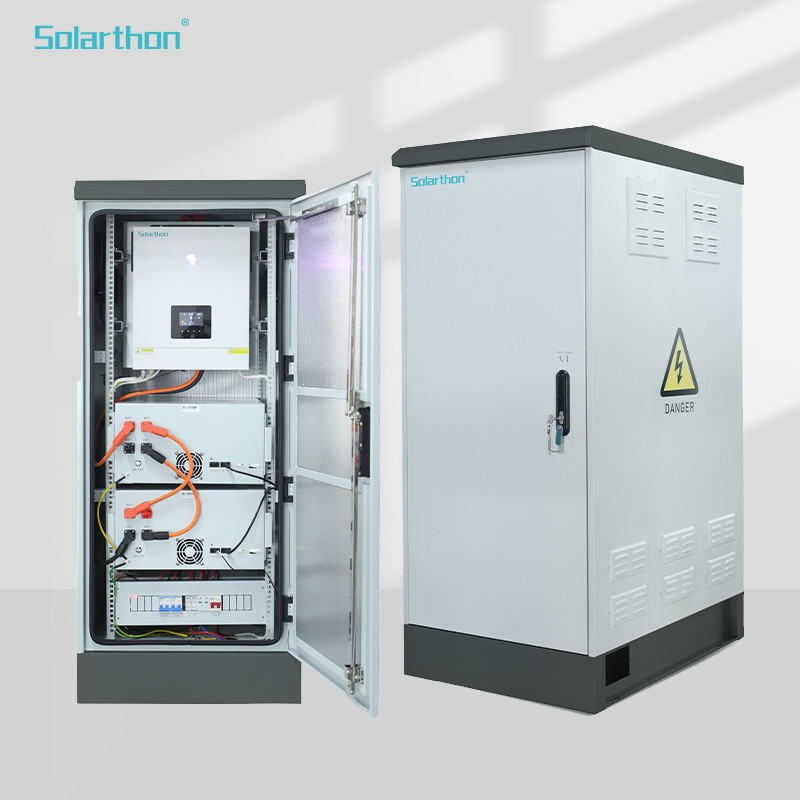

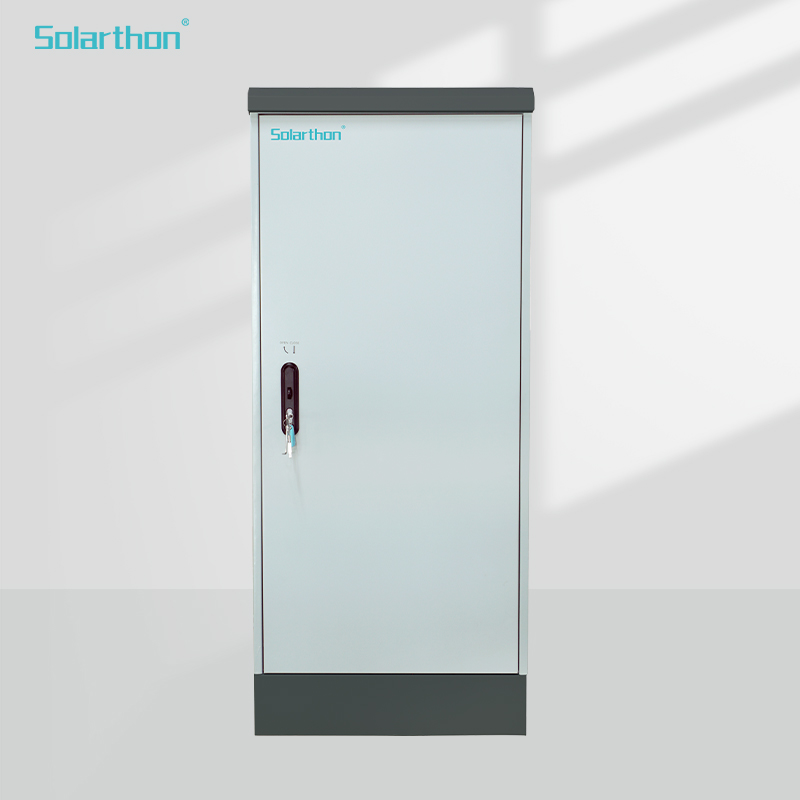

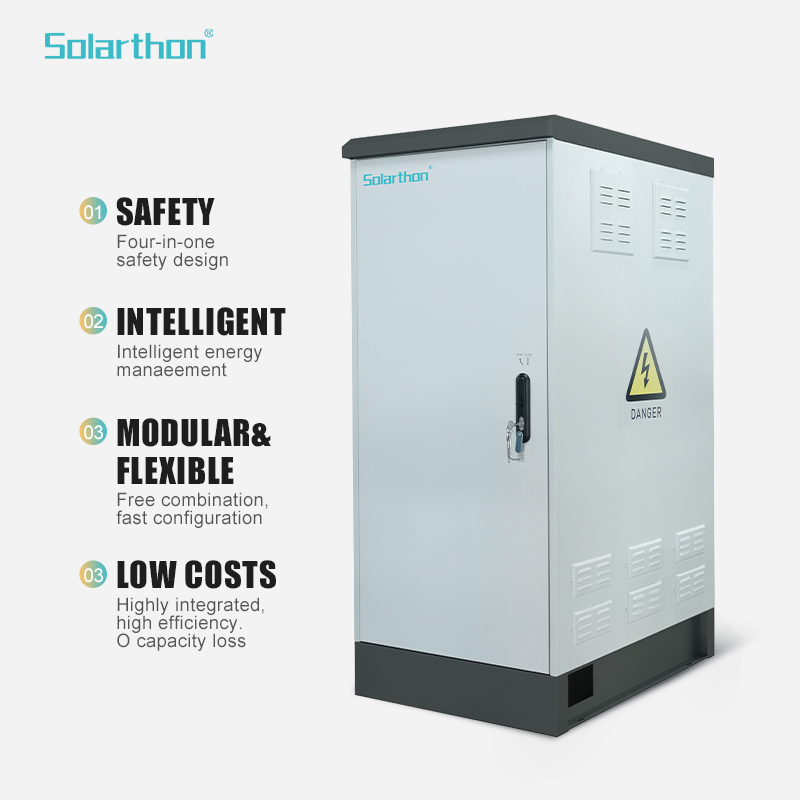

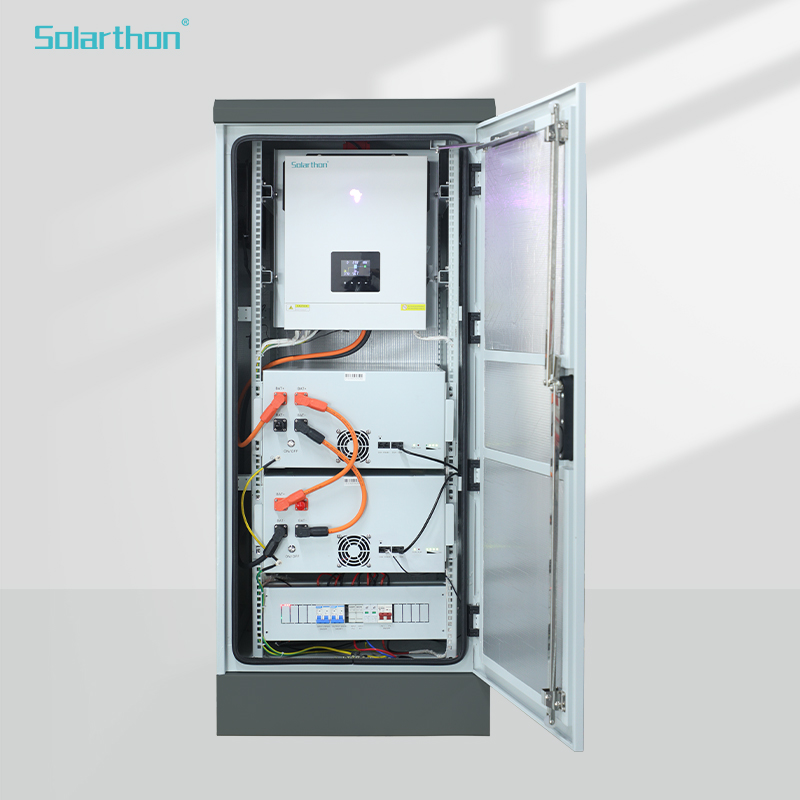

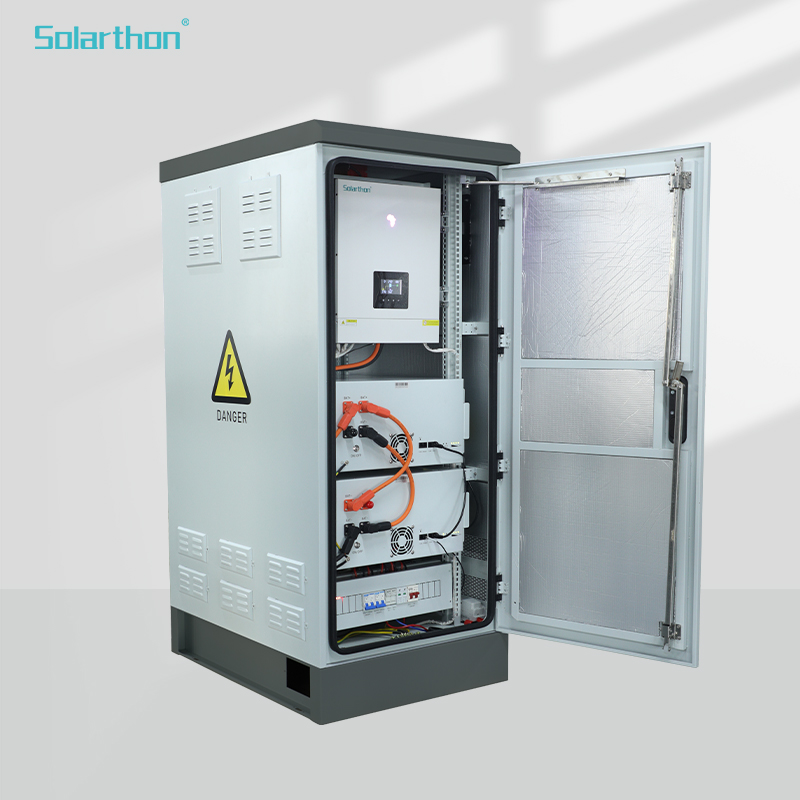

6.2KW/28KWH Outdoor Ess Cabinet

● The energy storage cabinet consists of 2 51.2V 280AH battery packs, and the 51.2V 560AH DC source supplies power to the inverter;
● Adopt 6.2KW hybrid inverter, support mains, solar energy, battery input at the same time;
● Optional mains priority or solar priority mode to supply power to the load, when there is no mains or insufcient solar energy, the battery will supply power to the load;
● Mains and solar power can charge the battery at the same time;
● High voltage battery, higher efciency, low caloric value;
● Built-in 4 x 65W fans;

Intelligent Management:
● 24-hour Cloud Intelligent Maintenance.
● Fast Fault Location And Analysis.
● Intelligent Temperature Control To Reduce Power Consumption.

Simple Appearance:
● Simple Industrial Beauty.
● Compact Construction.
● Space saving.

All-in-One Design:
● Highly Integrated, All-in-One Design.
● Easy To Transport, Install And Maintain.
● Plug And Play, One-Touch Start/Stop.

Safety And Reliability:
● EV LiFePO4 Batteries.
● IP55 Protection.
● Epitaxial Design.
● Patented Flame Retardant.
● Battery Modular Management, Self-diagnosis And Self-recovery Of Faults.

Professional quality:
● Modular design of structure and components, according to different configurations,flexible for a variety of industrial and commercial scenarios such as microgrid,light storage and charging integration.
● Supports parallel connection of multiple units for collaborative control.

Modular design:
● Equipped with EMS system, which can form a microgrid system with other energy sources

6.2KW/28KWH Outdoor Ess Cabinet

Model：DQ1908A6K2-01
DC Parameters
Battery Type: Lithium iron phosphate
Cycle Life: ≥6000
Cell Specification: 3.2V 280AH
Battery Cluster Specifications: 2P16S
Number Of Battery Clusters: 1 Cluster
Battery Rated Capacity: 28KWH
Nominal Voltage: 51.2VDC
Operating Voltage Range: 45~58VDC
AC Parameters
Rated AC Power: 6.2KW
Rated Voltage: AC230V
Maximum AC Current: 26.9A
Grid Frequency: 50/60HZ
MPPT Charger
Maximum DC Input Power: 6.5KW
Maximum DC Input Voltage: 500VDC
Starting Voltage: 90VDC
MPPT Voltage Range: 60-450VDC
DC Rated Input Voltage: 360VDC
PV Input Current: 22A
MPPT Input: 1 channel
Size(WDH): 898*652*1518mm
Weight:132kg
Warranty: 5 years

A: Yes, all our inverters provide true pure sine wave output.

A: Yes, all our inverters provide true pure sine wave output.

A: Low frequency inverters have various protections, strong adaptability to the environment, and are more reliable with voltage regulation.

A: Pure sine wave output inverters provide power quality equivalent to or better than the public power grid. They have a low repair rate, long lifespan, no harmonic pollution, and are environmentally friendly. Modified sine wave output inverters have a negative impact on appliances and cannot load inductive loads, such as air conditioners and refrigerators. Certain motor control circuits may not be compatible with modified sine wave inverters.

A: Our inverters can be used with household, office, agricultural appliances, and other inductive loads such as refrigerators, air conditioners, water pumps, etc.

A: Yes, we accept OEM orders and can customize the products with your company logo.

A: Simply tell us your requirements, and our sales team will recommend a suitable inverter for you.

A: We offer 24-hour after-service consultancy to help you easily solve any technical problems you may encounter.

A: While a power inverter is not absolutely required for a solar energy system, it is necessary if you want to use normal AC appliances. Without a power inverter, you will only have battery power and won’t have 220 or 230 volts AC. This may be acceptable for small RVs or cabins.

A: If any product is faulty, please send us a picture or video, and we will study it. We provide free spare parts of the PCB board for after-sale service.
