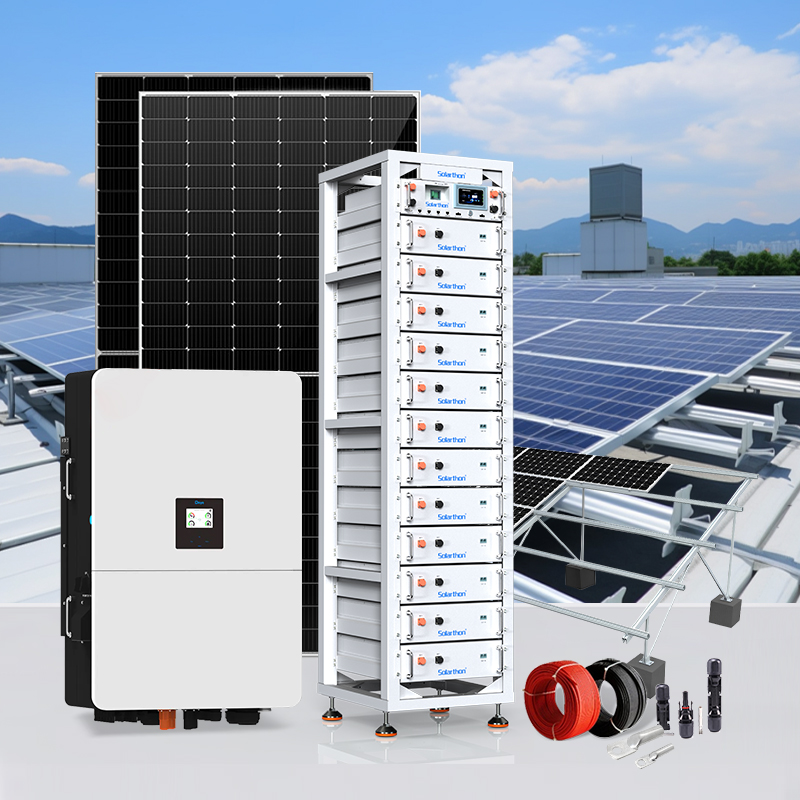

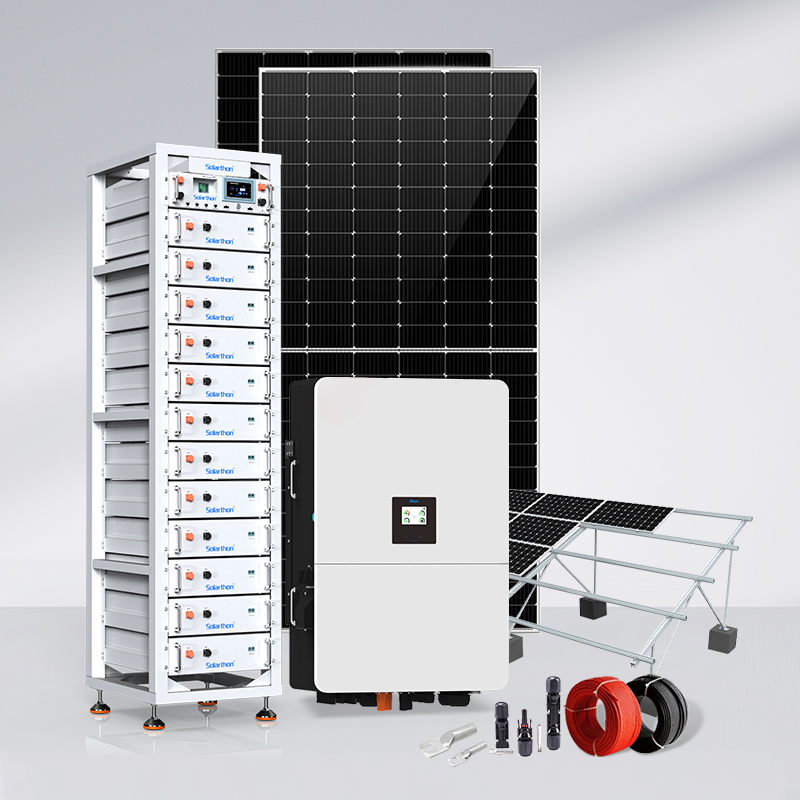

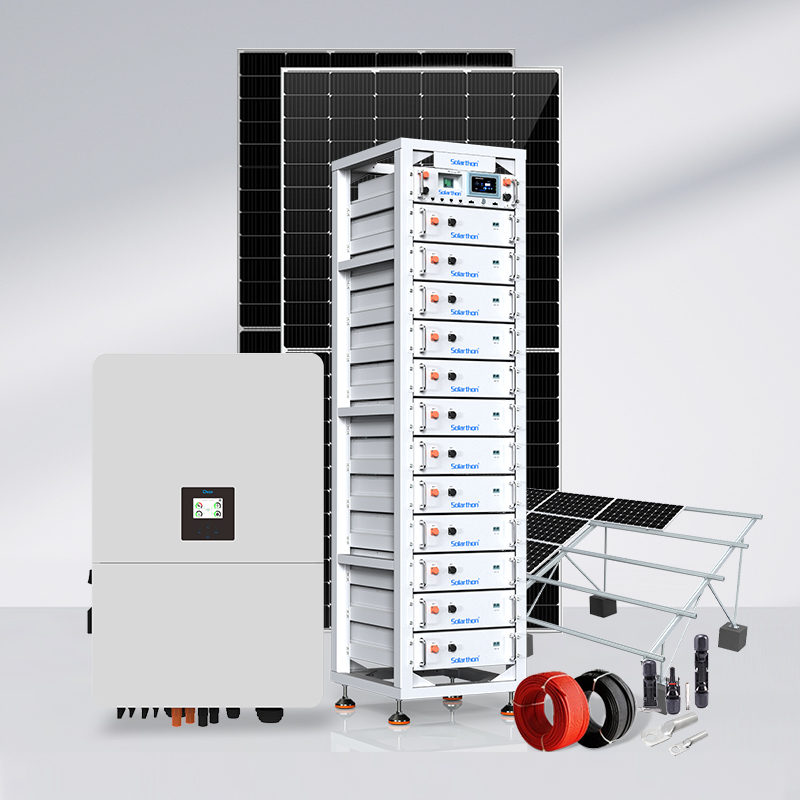

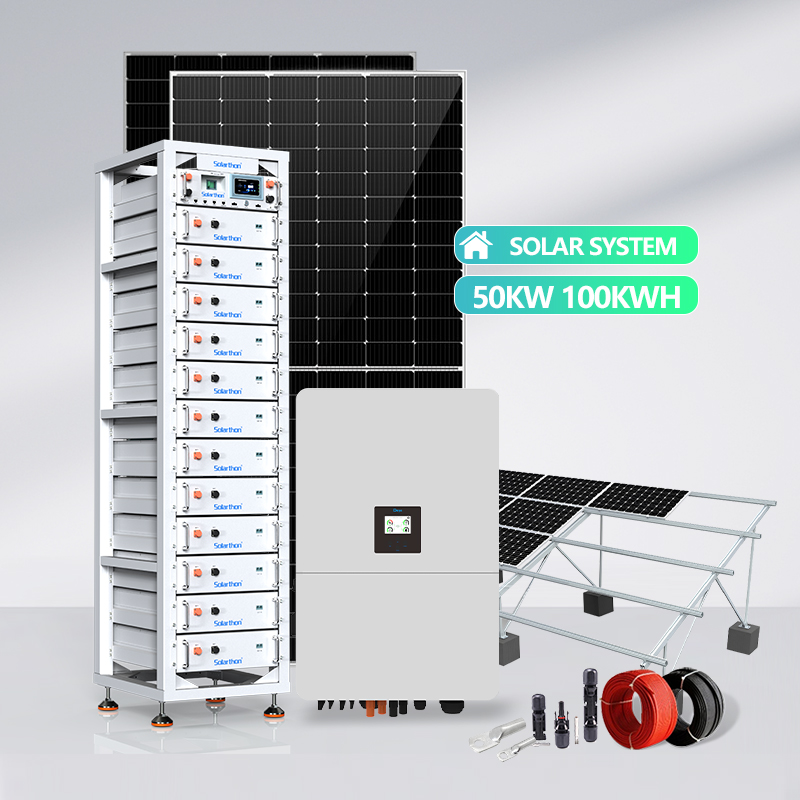

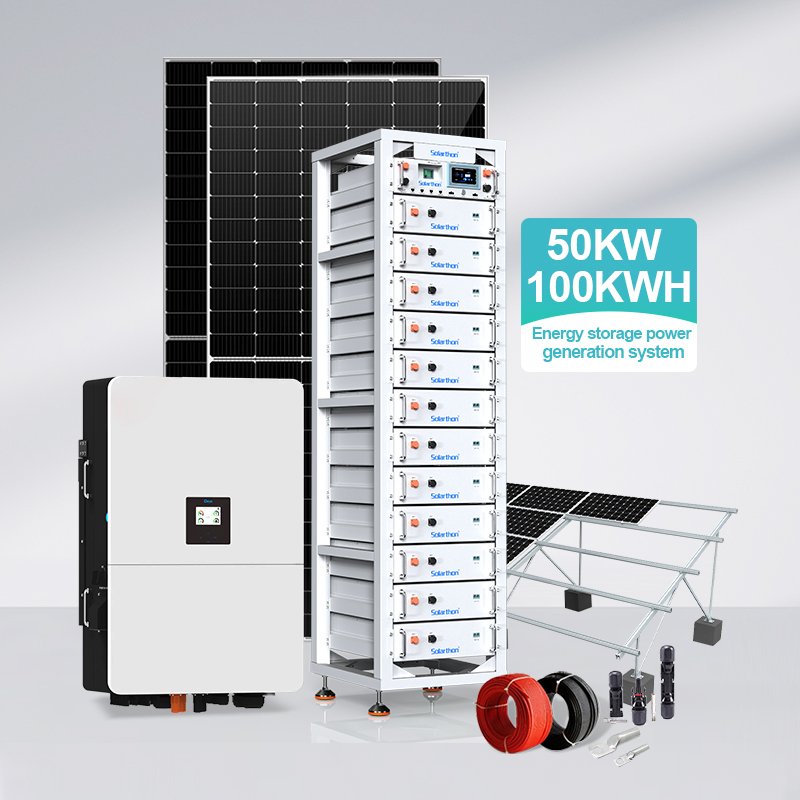

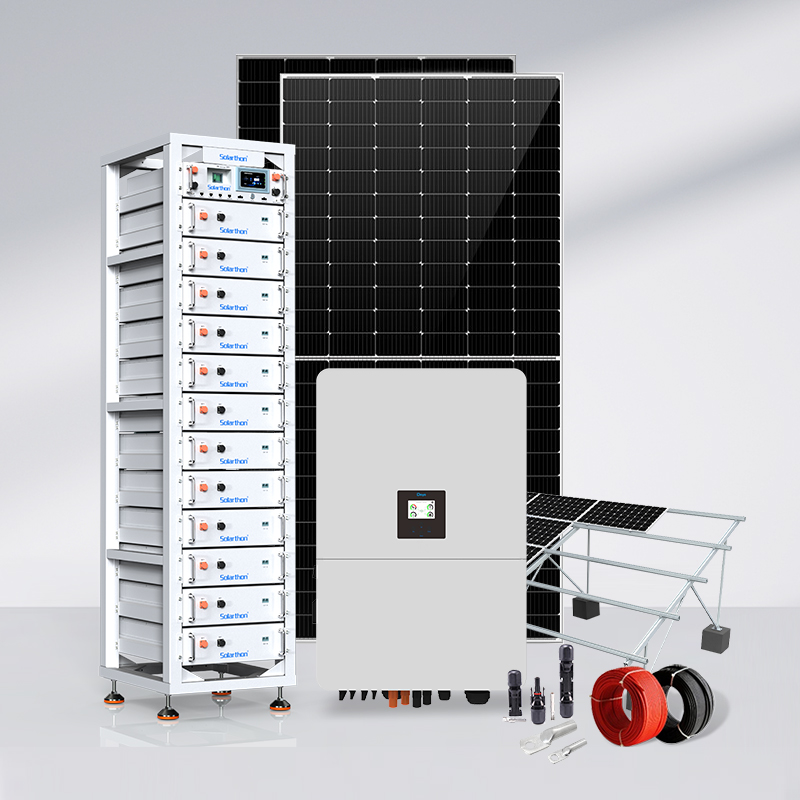

Hybrid Solar Inverter 50Kw Split Phase 100KWH All In One Energy Storage High Voltage Solar Inverters

  • Flexible configuration
  • Intelligent BMS
  • Eco friendly
  • Convenient
  • Safe and reliable

Inquire

Vertically Stacked Energy Storage Battery Pack

Key features of this battery pack include a service life of more than 10 years, integrated battery management system protection, an operating temperature range of -20°C to 55°C, and a depth of discharge of up to 90% for excellent energy. The intrinsically safe LiFePO4 chemistry also makes the system reliable and environmentally friendly. Advanced monitoring and control capabilities to optimize system performance and longevity.

550W Mono Half Cell PERC Solar Panel

Vmp: 41.95V Voc: 49.8V Imp 13.11A
Size: 2279113435mm
weight: 28.3kg
25 years life span
Linear performance: 25 years 80 % ; 10 years 90%
Connection: 11 pcs In Series

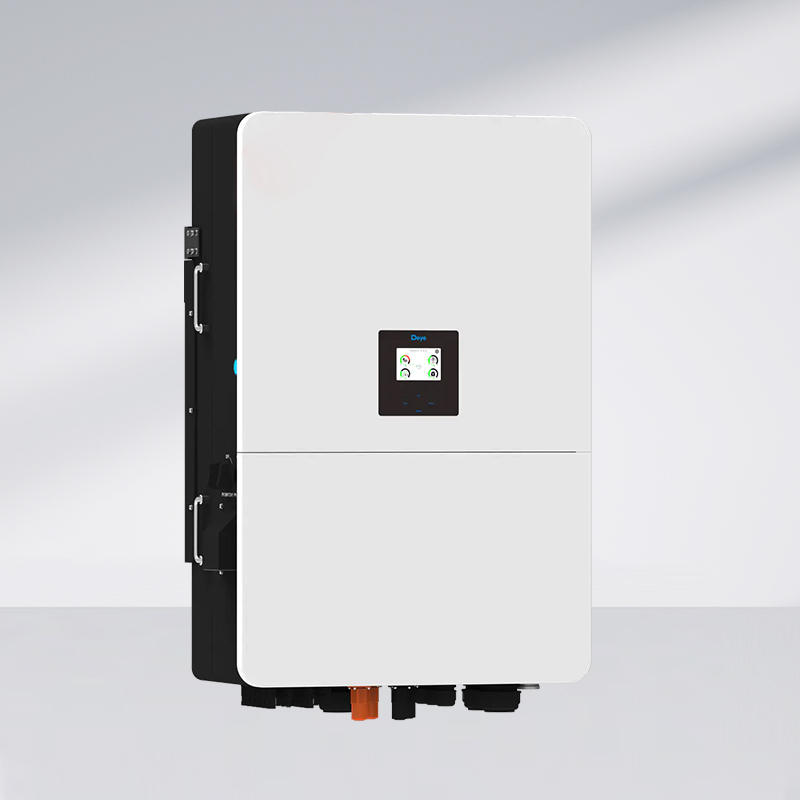

50KW Three Phase Hybrid Inverter

Rated Output Power: 50KW
Rated Output Voltage: 400VAC, 50Hz/60Hz
MPPT Number/Road: 4/2+2+2+2
MPPT Voltage Range: 150~850V
Full Load Voltage Range: 450~850V
PV Input Current: 36+36+36+36A
Battery Voltage Range : 160-800VDC
Number Of Battery Input: 2
Max. Charging Current: 50+50A
Max. Discharging Current: 50+50A
Max. Efficiency: 97.60%
Protection Class: IP65
Size: 527*894*294mm
Weight: 80kg
Warranty: 5 Years

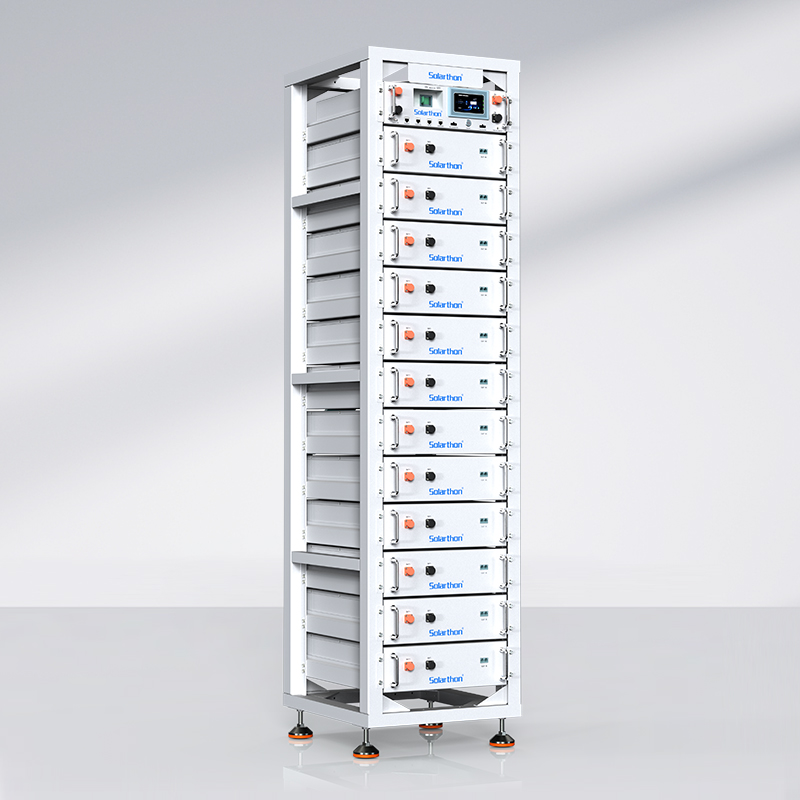

512V 100AH Vertically Stacked Energy Storage Battery Pack

Battery Type: LiFePO4
Nominal Voltage: 512V
Nominal Capacity: 100Ah
Charging Cut-off Voltage: 576V
Discharging Cut-off Voltage: 448V
Max. Cont. Charging/Discharging Current: 100A
Max. Instantaneous Charge/Discharge Current: 100A
Cycle Life: ≥6000
Product Size: 610.5*549*1896mm
Weight: 544kg
Warranty: 5 years

Flat Roof Mounting Structure

structure: Hot-Dip Galvanized Steel
wind load: 55m/s,snow load:1.5kn/m2
4mm² PV cable: 100m, Red
4mm² PV cable: 100m, Black
35mm2 PV Wire, Red, 5m
35mm2 PV Wire, Black, 5m
MC4 Connector, Male Plug
MC4 Connector, Female Plug
Copper Lug: 35mm2

A: Yes, all our inverters provide true pure sine wave output.

A: Yes, all our inverters provide true pure sine wave output.

A: Low frequency inverters have various protections, strong adaptability to the environment, and are more reliable with voltage regulation.

A: Pure sine wave output inverters provide power quality equivalent to or better than the public power grid. They have a low repair rate, long lifespan, no harmonic pollution, and are environmentally friendly. Modified sine wave output inverters have a negative impact on appliances and cannot load inductive loads, such as air conditioners and refrigerators. Certain motor control circuits may not be compatible with modified sine wave inverters.

A: Our inverters can be used with household, office, agricultural appliances, and other inductive loads such as refrigerators, air conditioners, water pumps, etc.

A: Yes, we accept OEM orders and can customize the products with your company logo.

A: Simply tell us your requirements, and our sales team will recommend a suitable inverter for you.

A: We offer 24-hour after-service consultancy to help you easily solve any technical problems you may encounter.

A: While a power inverter is not absolutely required for a solar energy system, it is necessary if you want to use normal AC appliances. Without a power inverter, you will only have battery power and won’t have 220 or 230 volts AC. This may be acceptable for small RVs or cabins.

A: If any product is faulty, please send us a picture or video, and we will study it. We provide free spare parts of the PCB board for after-sale service.
