Industrial And Commercial Energy Storage Battery Industrial Battery Storage Battery 215kwh BESS

• Support on-grid loff-grid (Need to customize).
• Equipped with fire protection system.
• Liquid cooling balance temperature prolong life cycle.
• Plastic slots design with electrodes and busbars

Inquire

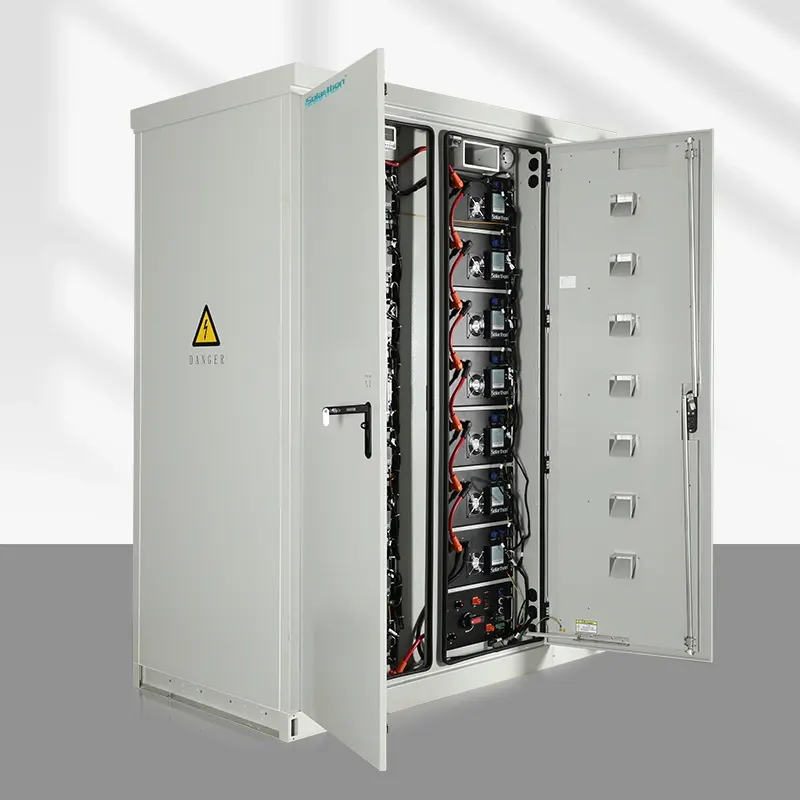

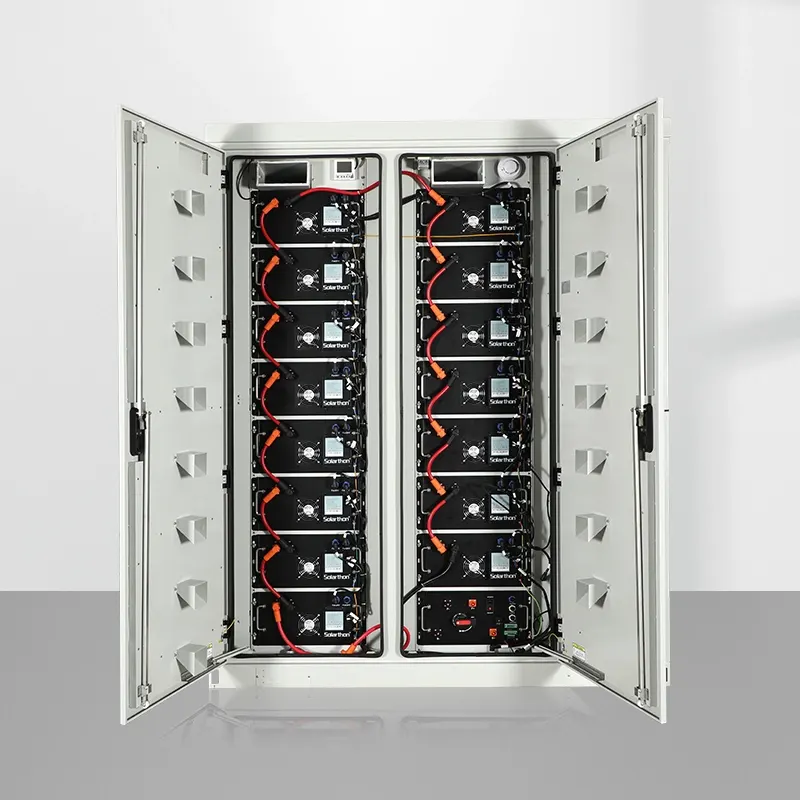

215KWH ENERGY STORNGE SYSTEM

Solarthon new generation of liquid-cooled energy storage container system, equipped with lithium iron phosphate battery, integrates the industry’s advanced design concept. With the advantages of intelligent liquid cooling, higher efficiency, safety and reliability, and intelligent operation and maintenance, the product provides customers with efficient integrated energy storage solutions. Suitable for peak cutting and valley filling, high-power grid expansion, factory backup, industrial and commercial power security. emergency power supply, AC charging pile expansion and other application scenarios.

Intelligent Management:
● 24-hour Cloud Intelligent Maintenance.
● Fast Fault Location And Analysis.
● Intelligent Temperature Control To Reduce Power Consumption.

Simple Appearance:
● Simple Industrial Beauty.
● Compact Construction.
● Space saving.

All-in-One Design:
● Highly Integrated, All-in-One Design.
● Easy To Transport, Install And Maintain.
● Plug And Play, One-Touch Start/Stop.

Safety And Reliability:
● EV LiFePO4 Batteries.
● IP55 Protection.
● Epitaxial Design.
● Patented Flame Retardant.
● Battery Modular Management, Self-diagnosis And Self-recovery Of Faults.

Professional quality:
● Modular design of structure and components, according to different configurations,flexible for a variety of industrial and commercial scenarios such as microgrid,light storage and charging integration.
● Supports parallel connection of multiple units for collaborative control.

Modular design:
● Equipped with EMS system, which can form a microgrid system with other energy sources

215KWH ESS with 100KW PCS and Solar Charging System

Energy Storage System(ESS)
LiFePO4 Battery: 768V/280AH
Battery Voltage Range: 672~864V
Power Conversion System(PCS)
Rated Power: 100KW
Rated AC Voltage: 400V, 50/60Hz
AC Voltage Range: 320~460V, 50/60Hz
DC Voltage Range: 420~850V
Solar Charger
Max. PV Charge Power: 120KW
Max. PV Input Voltage: 1000V
MPPT Voltage Range: 250~850V
Energy Management System(EMS)
LCD monitor, RS485, CAN, TCP/IP

215KWH ESS with 100KW PCS

Energy Storage System(ESS)
LiFePO4 Battery: 768V/280AH
Battery Voltage Range: 672~864V
Power Conversion System(PCS)
Rated Power: 100KW
Rated AC Voltage: 400V, 50/60Hz
AC Voltage Range: 320~460V, 50/60Hz
DC Voltage Range: 420~850V
Energy Management System(EMS)
LCD monitor, RS485, CAN, TCP/IP
Outdoor Three-cabin Cabinet
Size: 2300*1100*2550mm
Air Conditioner, 600W, 2 sets
Fire Fighting System

Product display

A: Yes, all our inverters provide true pure sine wave output.

A: Yes, all our inverters provide true pure sine wave output.

A: Low frequency inverters have various protections, strong adaptability to the environment, and are more reliable with voltage regulation.

A: Pure sine wave output inverters provide power quality equivalent to or better than the public power grid. They have a low repair rate, long lifespan, no harmonic pollution, and are environmentally friendly. Modified sine wave output inverters have a negative impact on appliances and cannot load inductive loads, such as air conditioners and refrigerators. Certain motor control circuits may not be compatible with modified sine wave inverters.

A: Our inverters can be used with household, office, agricultural appliances, and other inductive loads such as refrigerators, air conditioners, water pumps, etc.

A: Yes, we accept OEM orders and can customize the products with your company logo.

A: Simply tell us your requirements, and our sales team will recommend a suitable inverter for you.

A: We offer 24-hour after-service consultancy to help you easily solve any technical problems you may encounter.

A: While a power inverter is not absolutely required for a solar energy system, it is necessary if you want to use normal AC appliances. Without a power inverter, you will only have battery power and won’t have 220 or 230 volts AC. This may be acceptable for small RVs or cabins.

A: If any product is faulty, please send us a picture or video, and we will study it. We provide free spare parts of the PCB board for after-sale service.
