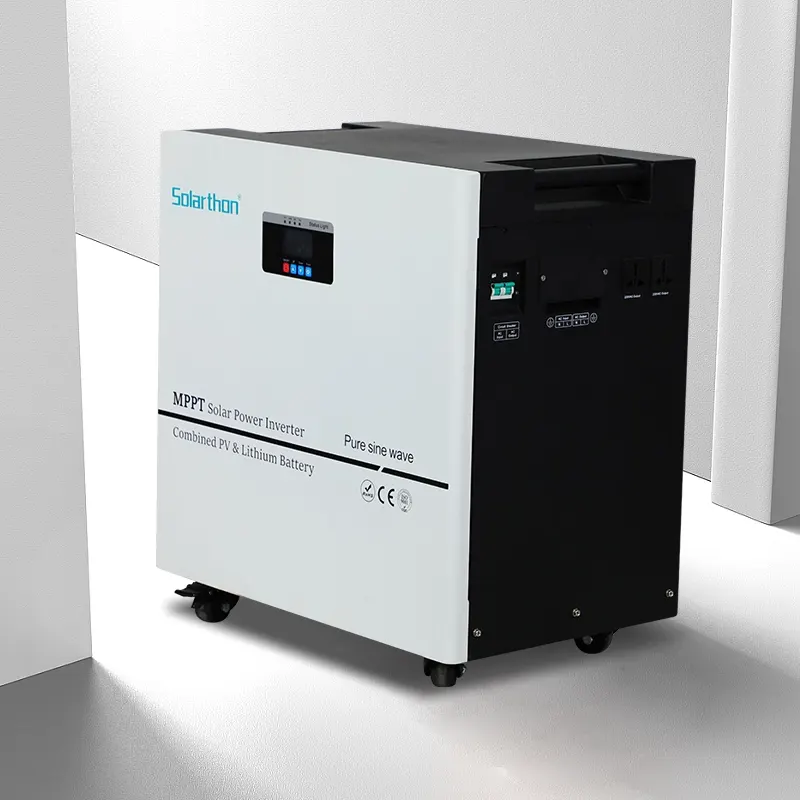

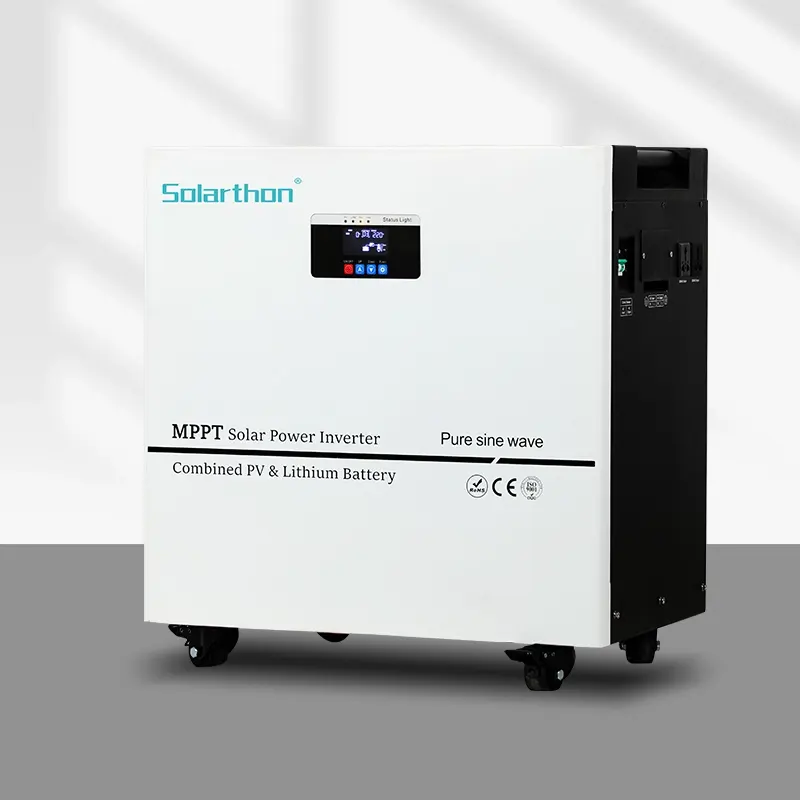

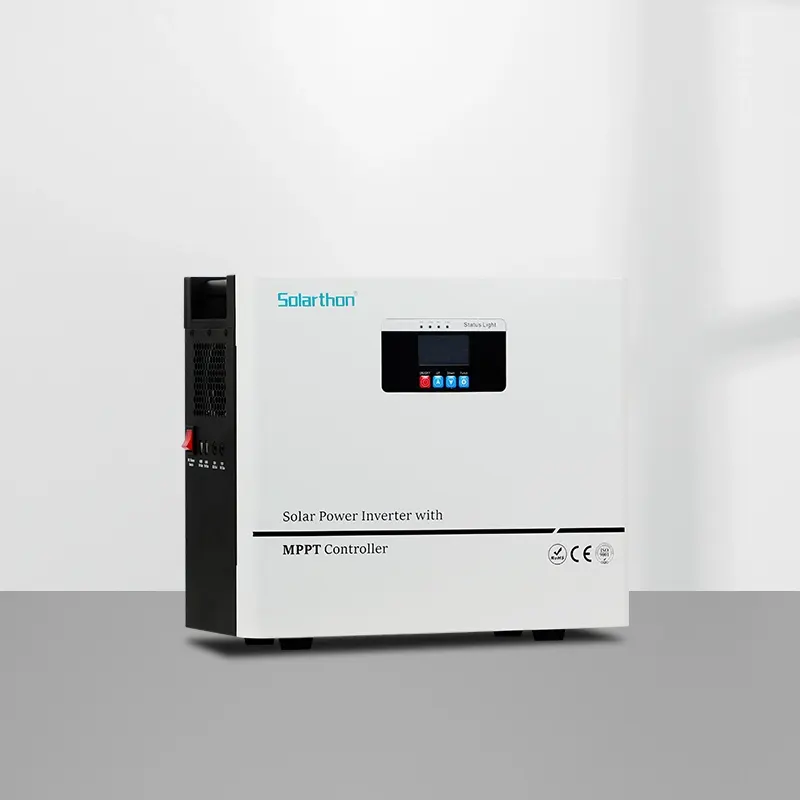

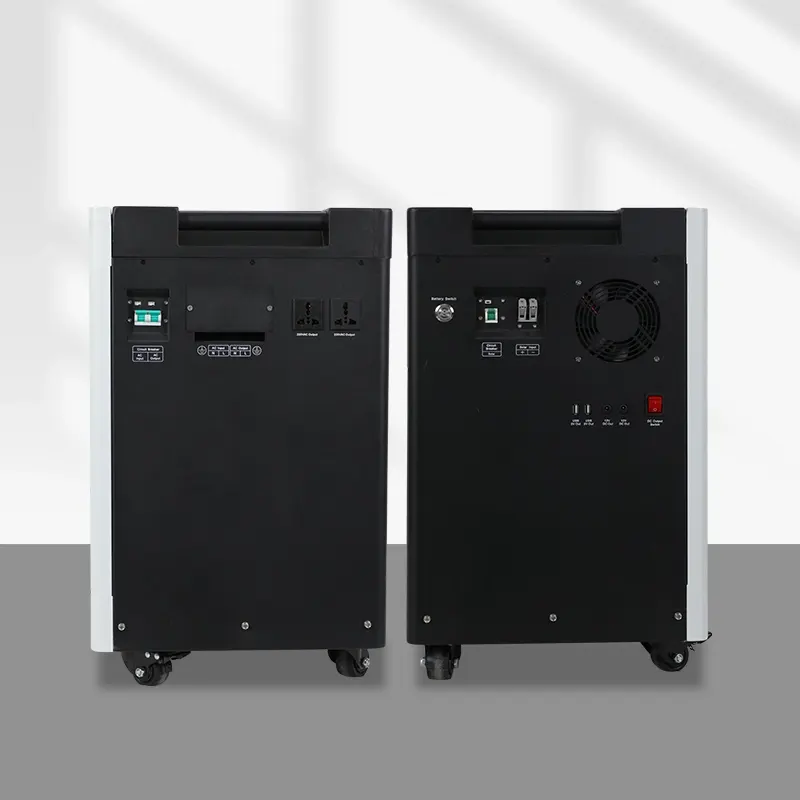

Hybrid System Solar Kit 3Kw 5Kw Off Grid Solar Power Energy System Storage Home Commercial

●Dual CPU intelligent control technology, excellent performance.
●Pure sine wave AC output, suitable for a wide range of loads.
●Power supply mode/energy-saving mode/battery mode can be exibly set.
●Convenient and practical 5VDC-USB output port and 12VDC output port.
●Digital LCD and LED for visualizing the operating status of the device.
●Overcharge protection and over discharge protection to extend battery life.
●Safe and reliable, intelligent exhaust fan control.
●Overall automatic protection and alarm, including AC output overload protection, short circuit protection, etc.

Inquire

600W/1200W/2200W/3500W/5000W Solar Power System

Solar power system is an off-grid solar generator designed to provide stable and reliable power to homes and communities or areas without or even electricity without access to grid power. The solar system is characterized by convenient movement, easy installation, and reliable performance,which is very suitable for situations requiring emergency power.
It is the ideal, reliable energy source for many applications such as lighting, radios, fans, Tvs, computers, refrigerators. The USB port is compatible with all 5V-USB charging devices. It can also be used as a backup power source in mergency stations.

Fast charging efficiency
High quality solar panels, fast full charge, sunlight charging conversion efficiency up to 20%.

Large Capacity Is More Durable
Upgraded high-capacity, 365 days of range with recharge and discharge protection.

Easy to move
The product comes with wheels, which can be moved anywhere. saving effort and worry.

Multiple Charging Ports
The solar system is equipped with multiple charging ports: AC, USB, and car charger ports, providing AC and DC output in two different voltage modes, which can supply power to multiple devices at the same time to meet your various needs.

LED display
Night view display, so that the operation is clearer,avoid operation errors can be dealt with in time.




Fast heat dissipation
Built-in temperature sensor and cooling fan, after using high temperature, automatic heat dissipation, guaranteed, more safe.

0.6kW Solar Power System

Rated Power: 0.6kW
In-Built Lithium Battery: 50Ah/12.8V
Output Voltage: 220VAC
Output Frequency: 50/60Hz
Input Voltage Range: 145-275VAC
Input Frequency: 50/60Hz
Maximum Photovoltaic Voltage: 100VDC
MPPT Tracking Voltage Range: 18-100VDC
Rated Charge Current: 30A
Maximum Power: 420Wp
5VDC USB Output Port: 2 Units/MAX 2A
12VDC Output Port: 2DC Ports/MAX 2A
Ambient Temperature For Operation: -20-+50℃
Ambient Temperature For Storage: -25 -+55℃
External Dimensions: 460*182*397mm
Warranty: 3 years

1.2kW Solar Power System

Rated Power: 1.2kW
In-Built Lithium Battery: 50Ah/25.6V
Output Voltage: 220VAC
Output Frequency: 50/60Hz
Input Voltage Range: 145-275VAC
Input Frequency: 50/60Hz
Maximum Photovoltaic Voltage: 100VDC
MPPT Tracking Voltage Range: 35-100VDC
Rated Charge Current: 30A
Maximum Power: 840Wp
5VDC USB Output Port: 2 Units/MAX 2A
12VDC Output Port: 2DC Ports/MAX 2A
Ambient Temperature For Operation: -20-+50℃
Ambient Temperature For Storage: -25 -+55℃
External Dimensions: 485*202*406mm
Warranty: 3 years

2.2kW Solar Power System

Rated Power: 2.2kW
In-Built Lithium Battery: 100Ah/25.6V
Output Voltage: 220VAC
Output Frequency: 50/60Hz
Input Voltage Range: 170-275VAC
Input Frequency: 50/60Hz
Maximum Photovoltaic Voltage: 100VDC
MPPT Tracking Voltage Range: 35-100VDC
Rated Charge Current: 30A
Maximum Power: 840Wp
5VDC USB Output Port: 2 Units/MAX 2A
12VDC Output Port: 2DC Ports/MAX 2A
Ambient Temperature For Operation: -20-+50℃
Ambient Temperature For Storage: -25 -+55℃
External Dimensions: 500*229*464mm
Warranty: 3 years

3.5kW Solar Power System

Rated Power: 3.5kW
In-Built Lithium Battery: 75Ah/51.2V
Output Voltage: 220VAC
Output Frequency: 50/60Hz
Input Voltage Range: 170-275VAC
Input Frequency: 50/60Hz
Maximum Photovoltaic Voltage: 150VDC
MPPT Tracking Voltage Range: 60-150VDC
Rated Charge Current: 30A
Maximum Power: 1500Wp
5VDC USB Output Port: 2 Units/MAX 2A
12VDC Output Port: 2DC Ports/MAX 2A
Ambient Temperature For Operation: -20-+50℃
Ambient Temperature For Storage: -25 -+55℃
External Dimensions: 577*350*644mm
Warranty: 3 years

5kW Solar Power System

Rated Power: 5kW
In-Built Lithium Battery: 100Ah/51.2V
Output Voltage: 220VAC
Output Frequency: 50/60Hz
Input Voltage Range: 170-275VAC
Input Frequency: 50/60Hz
Maximum Photovoltaic Voltage: 150VDC
MPPT Tracking Voltage Range: 60-150VDC
Rated Charge Current: 60A
Maximum Power: 3000Wp
5VDC USB Output Port: 2 Units/MAX 2A
12VDC Output Port: 2DC Ports/MAX 2A
Ambient Temperature For Operation: -20-+50℃
Ambient Temperature For Storage: -25 -+55℃
External Dimensions: 627*405*664mm
Warranty: 3 years

3.0kW Solar Power System

Rated Power: 3kW
In-Built Lithium Battery: 75Ah/51.2V
Output Voltage: 220VAC
Output Frequency: 50/60Hz
Input Voltage Range: 170-275VAC
Input Frequency: 50/60Hz
Maximum Photovoltaic Voltage: 150VDC
MPPT Tracking Voltage Range: 60-150VDC
Maximum Charge Current: 60A
Maximum Power: 3000Wp
5VDC USB Output Port: 2 Units/MAX 2A
12VDC Output Port: 2DC Ports/MAX 2A
Ambient Temperature For Operation: -20-+50℃
Ambient Temperature For Storage: -25 -+55℃
External Dimensions: 577*350*644mm
Warranty: 3 years

A: Yes, all our inverters provide true pure sine wave output.

A: Yes, all our inverters provide true pure sine wave output.

A: Low frequency inverters have various protections, strong adaptability to the environment, and are more reliable with voltage regulation.

A: Pure sine wave output inverters provide power quality equivalent to or better than the public power grid. They have a low repair rate, long lifespan, no harmonic pollution, and are environmentally friendly. Modified sine wave output inverters have a negative impact on appliances and cannot load inductive loads, such as air conditioners and refrigerators. Certain motor control circuits may not be compatible with modified sine wave inverters.

A: Our inverters can be used with household, office, agricultural appliances, and other inductive loads such as refrigerators, air conditioners, water pumps, etc.

A: Yes, we accept OEM orders and can customize the products with your company logo.

A: Simply tell us your requirements, and our sales team will recommend a suitable inverter for you.

A: We offer 24-hour after-service consultancy to help you easily solve any technical problems you may encounter.

A: While a power inverter is not absolutely required for a solar energy system, it is necessary if you want to use normal AC appliances. Without a power inverter, you will only have battery power and won’t have 220 or 230 volts AC. This may be acceptable for small RVs or cabins.

A: If any product is faulty, please send us a picture or video, and we will study it. We provide free spare parts of the PCB board for after-sale service.
