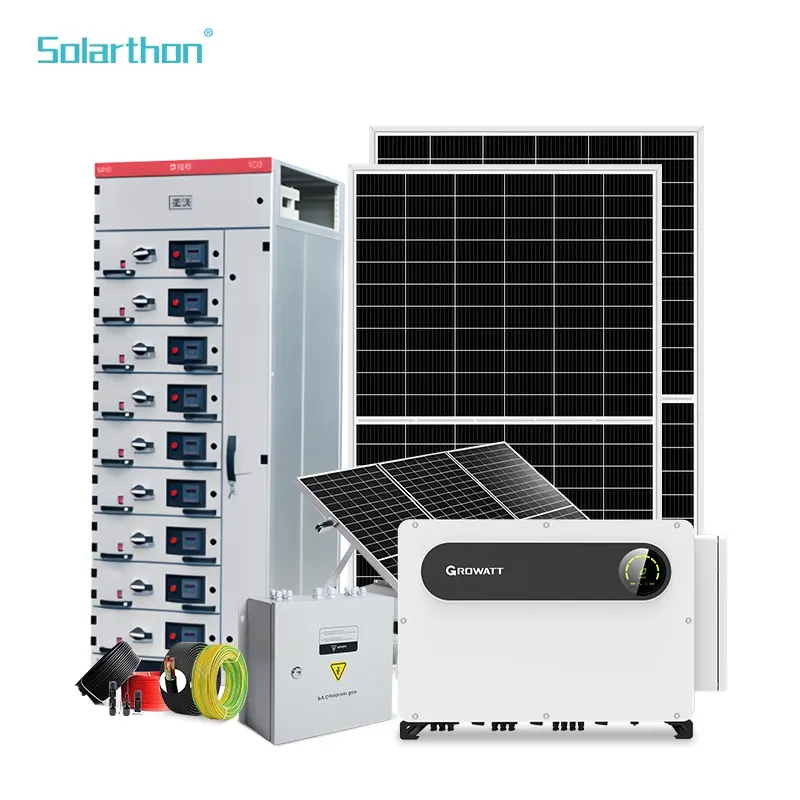

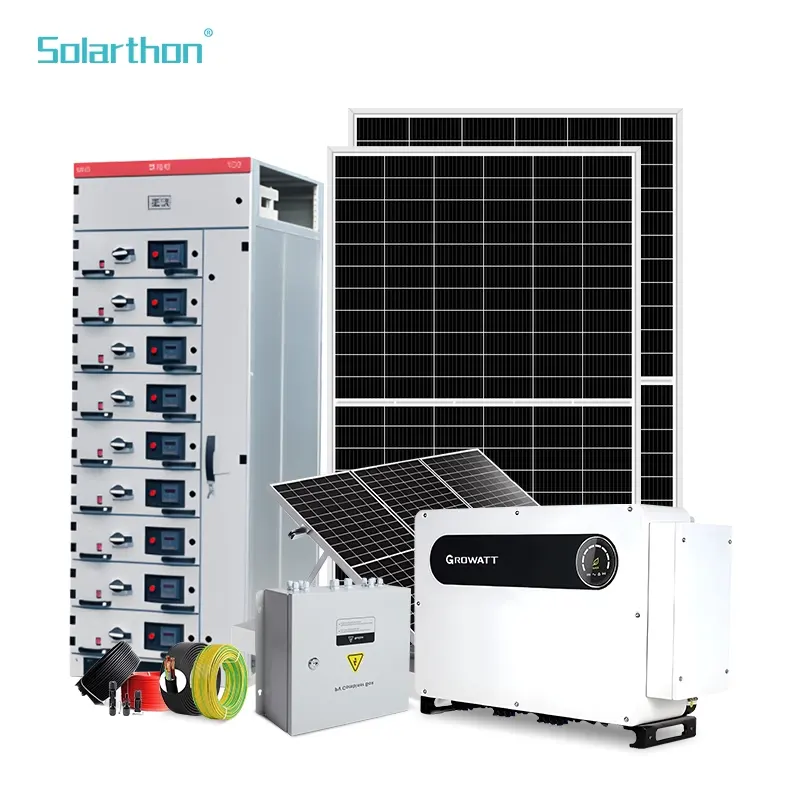

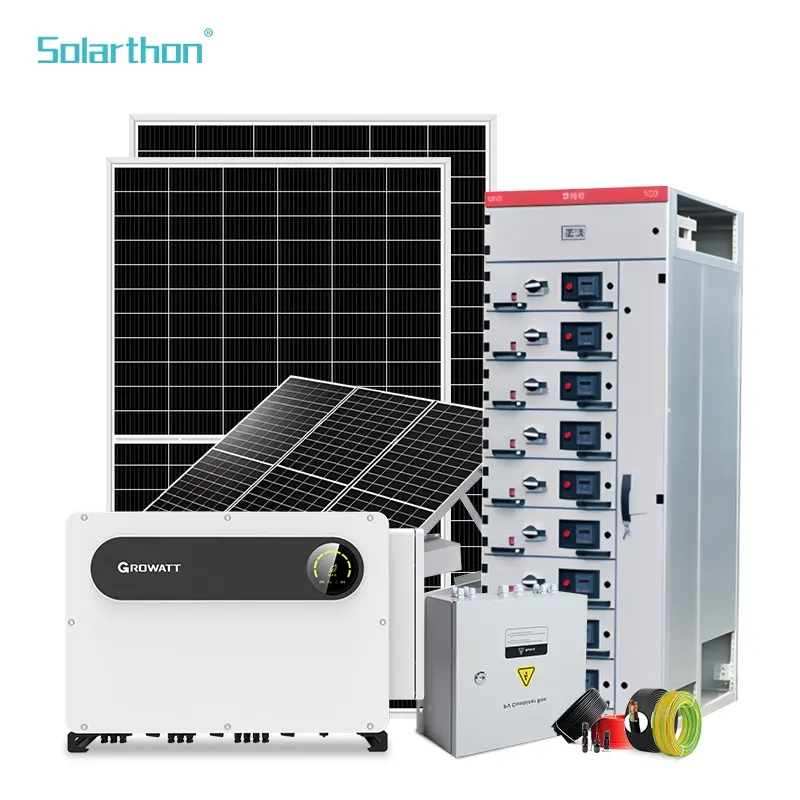

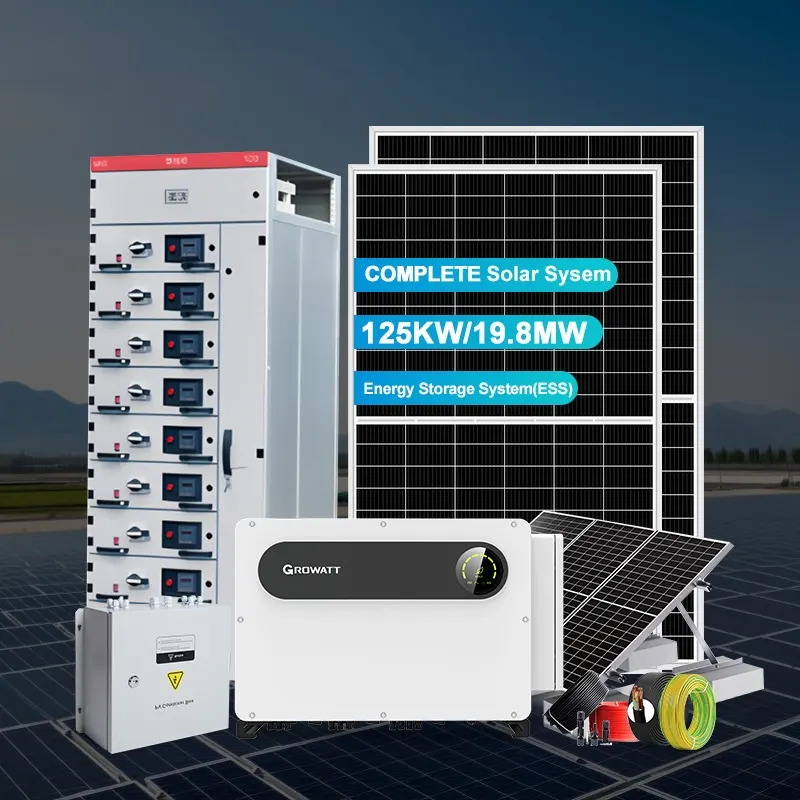

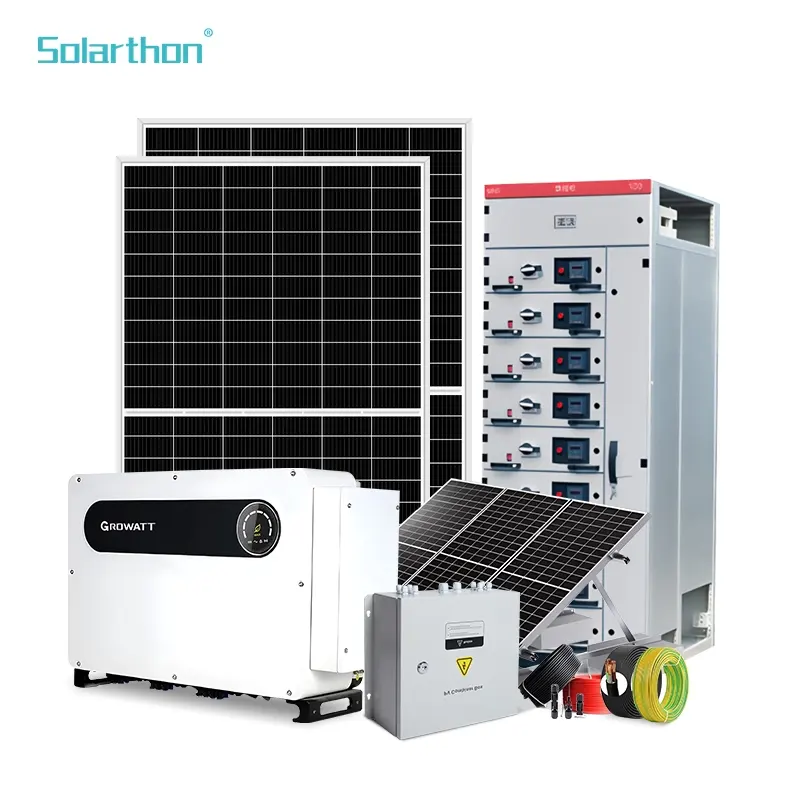

Hybrid Off-Grid Home Solar Panel Kit with Inverter 19.8MW System Lifepo4 Battery Solar Power Capability

This all-in-one solar power system includes high-efficiency solar panels and a compact energy storage unit, perfect for residential use.
Reduce electricity bills and minimize your carbon footprint with clean, renewable energy.
Simple to install and designed to fit various home types, providing reliable energy around the clock.

Inquire

19.8MW On Grid Solar Inverter

High Efficiency and Reliability: The solar inverter boasts an impressive inverter efficiency of 98.7%, ensuring maximum energy conversion from solar power to grid power. This reliability is further enhanced by its robust design, with a protection degree of IP66, capable of withstanding harsh environmental conditions.
Wide Compatibility and Flexibility: This inverter supports a wide range of input voltage and output frequency options, 50Hz/60Hz, making it suitable for various solar panel systems and grid connections.
Advanced Communication and Monitoring: The solar inverter features RS485 or Wi-Fi communication, allowing users to monitor and control their solar power system remotely, ensuring seamless integration with existing infrastructure. performance in various environments.

550W mono Half Cell PERC solar panel

Vmp: 41.95V Voc: 49.8V Imp 13.11A
Size: 2279*1134*35mm
weight: 28.3kg
25 years life span
Linear performance: 25 years 80 % ; 10 years 90%
Connection: 15 pcs In Series

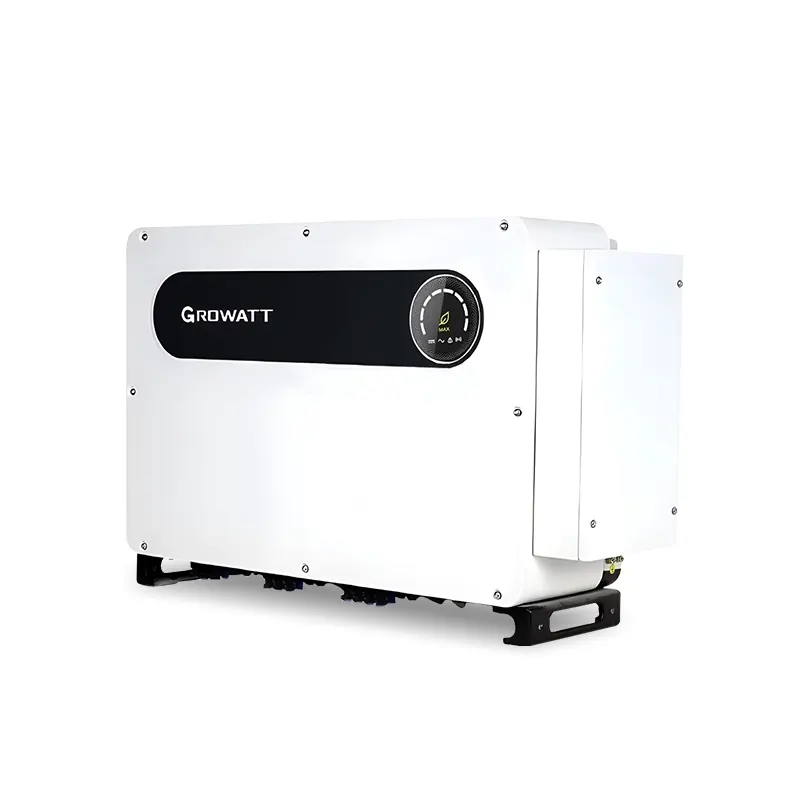

125KW On Grid Solar Inverter

Rated Output Power: 125KW
Rated Output Voltage: 400VAC, 50Hz/60Hz
MPPT Number/Road: 8/2
MPPT Rated Voltage: 600V
MPPT Voltage Range: 200~1000V
Max. Input Current Of Each MPPT: 32A
Max. Efficiency: 98.7%
Protection Class: IP66
Size: 970x640x345mm
Weight: 84kg

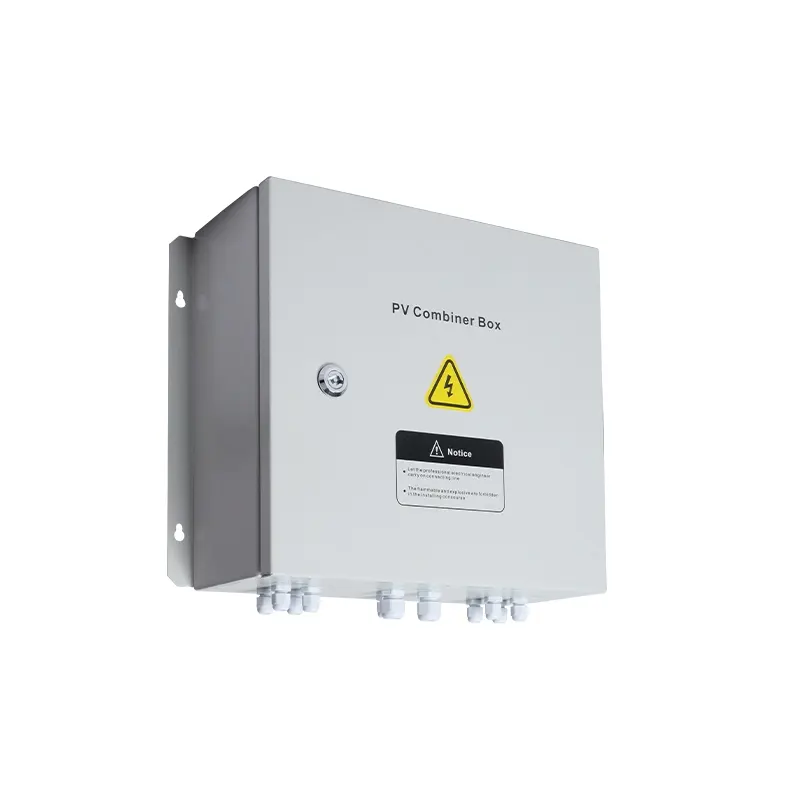

13 In 13 Out PV Lightning Arrester Box

Simplify Wiring Between PV Array And Controller;
Reliable Thunderstorm& Surge Protection
Product Size: 700x500x220mm
Weight: 10.8kg

AC Distribution cabinet

Breaker：250A, 8pcs
Size: 600x2200x1000mm
Weight: 480kg

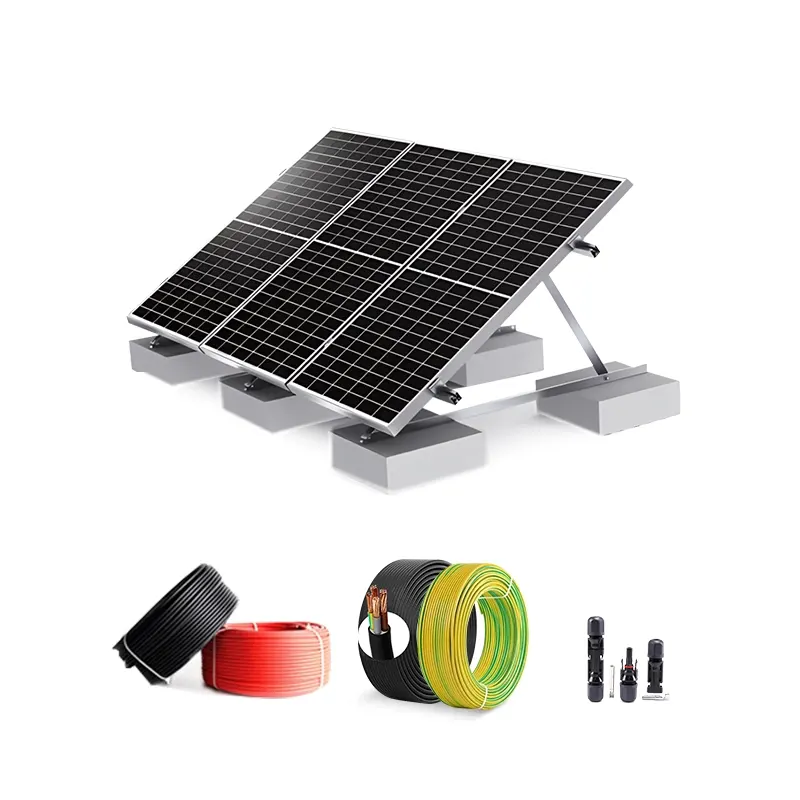

Flat Roof Mounting Structure

structure: Hot-Dip Galvanized Steel
wind load: 55m/s,snow load:1.5kn/㎡
4mm² PV cable: 100m, Red
4mm² PV cable: 100m, Black
AC Cable: 4*120mm² , 100m
AC Cable: 4*240mm² , 100m
BVR-6mm² AC Wire: 100m
BVR-10mm² AC Wire: 100m

PROJECT CASE

A: Yes, all our inverters provide true pure sine wave output.

A: Yes, all our inverters provide true pure sine wave output.

A: Low frequency inverters have various protections, strong adaptability to the environment, and are more reliable with voltage regulation.

A: Pure sine wave output inverters provide power quality equivalent to or better than the public power grid. They have a low repair rate, long lifespan, no harmonic pollution, and are environmentally friendly. Modified sine wave output inverters have a negative impact on appliances and cannot load inductive loads, such as air conditioners and refrigerators. Certain motor control circuits may not be compatible with modified sine wave inverters.

A: Our inverters can be used with household, office, agricultural appliances, and other inductive loads such as refrigerators, air conditioners, water pumps, etc.

A: Yes, we accept OEM orders and can customize the products with your company logo.

A: Simply tell us your requirements, and our sales team will recommend a suitable inverter for you.

A: We offer 24-hour after-service consultancy to help you easily solve any technical problems you may encounter.

A: While a power inverter is not absolutely required for a solar energy system, it is necessary if you want to use normal AC appliances. Without a power inverter, you will only have battery power and won’t have 220 or 230 volts AC. This may be acceptable for small RVs or cabins.

A: If any product is faulty, please send us a picture or video, and we will study it. We provide free spare parts of the PCB board for after-sale service.
