Hybrid Inverter 8KW 10KW 12KW 220V Split Phase Inverter For Solar Energy System

♦ It has the function of sectional charge and discharge.

♦ It can be used without battery. Solar and utility grid can power loads at the same time.

♦ With dual activation function of lithium battery, it can be triggered by any power supply of the mains/photovoltaic.

♦ Two output modes: mains bypass and inverter output; uninterrupted power supply.

♦ Complete protections, including over voltage and under voltage protection, overload protection, reverse protection, etc ,360° all-round protection with a number of protection functions.

♦ ON/OFF rocker switch for AC output control.

♦ Full digital voltage and current double closed loop control, advanced SPWM technology, output of pure sine wave.

♦ Intelligent variable speed fan to efficiently dissipate heat and extend system life.

Inquire

Hybrid Inverter

THON series is a new solar storage inverter, which integrates solar energy storage & mains charging energy storage and AC sine wave output. Thanks to DSP control and advanced control algorithm, it has high response speed, high reliability and high industrial standard. There are four charge modesl namely only solar power, mains power priority, solar power priority, mains power & solar power, inverter and mains outputs are selectable to meetl different application needs.

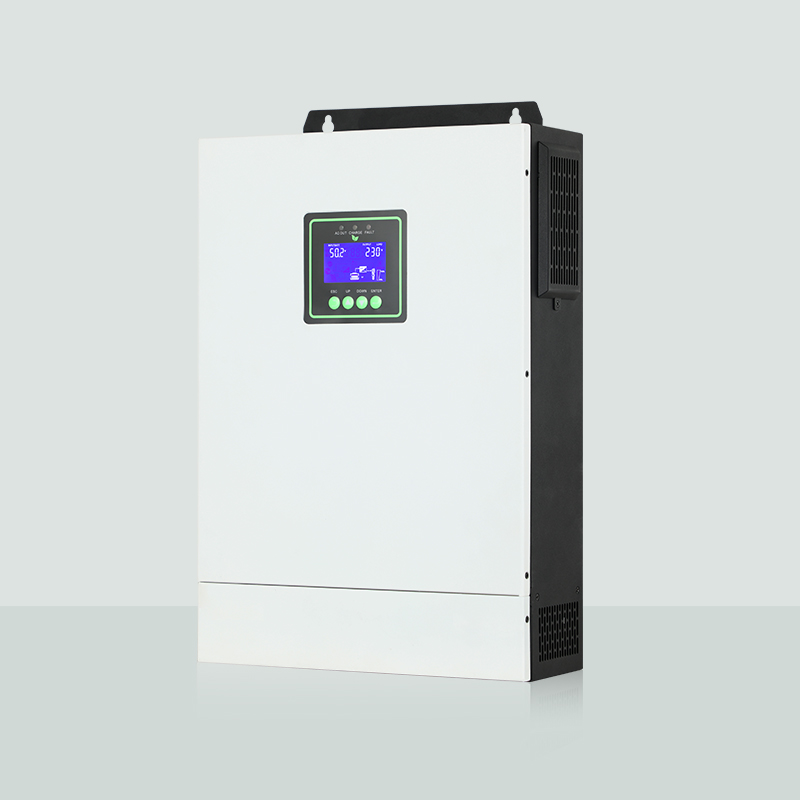

5.6KW Hybrid Inverter

Model: THON-5.6KW-01P
Battery Voltage: 51.2VDC
Rated AC Output Voltage: 230VAC
Rated AC Output Current: 24.3A
Battery Input Voltage Range:40~60VDC
Maximum Battery Current: 125A
Rated AC Input Voltage Range: 170-280VAC, 50/60Hz
Maximum AC Charging Current: 60A
Maximum PV Input Power:5600W
MPPT Input Voltage Range: 120-450VDC
Maximum PV Input Current: 22A
Maximum PV Charge Current: 100A
IP Grade: IP20
Max. Number Of Parallel: 6 sets
Warranty: 3 Years

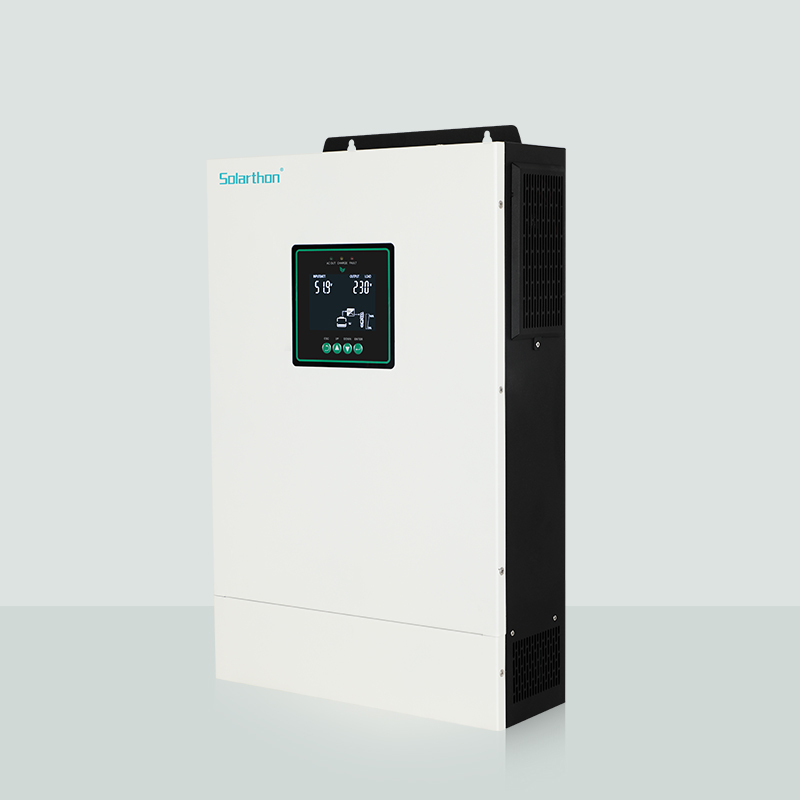

8KW Hybrid Inverter

Model ：THON-8KW-02P
Battery Voltage: 51.2VDC
Rated Power: 10000VA/8000W
Rated AC Output Voltage: 230VAC
Rated AC Output Current: 48A
Battery Input Voltage Range:40~60VDC
Maximum Battery Current: 250A
Rated AC Input Voltage Range: 170-280VAC, 50Hz
Maximum AC Charging Current: 120A
Maximum PV Input Power:5500W+5500W
MPPT Input Voltage Range: 120-450VDC
Maximum PV Input Current: 22A+22A
Maximum PV Charge Current: 150A
IP Grade: IP20
Max. Number Of Parallel: 6 sets
Product Size: 576368.6133m
Warranty: 3 Years

10KW Hybrid Inverter

Model :THON-10KW-01P
Inverter Power: 1500W
Rated Power: 10000VA/10000W
Rated AC Output Voltage: 230VAC
Rated AC Output Current: 50A
Battery Input Voltage Range:40~60VDC
Maximum Battery Current: 260A
Rated AC Input Voltage Range: 170-282VAC, 50/60Hz
Maximum AC Charging Current: 160A
Maximum PV Input Power: 6000W*2
MPPT Input Voltage Range: 120-450VDC
Maximum PV Input Current: 22A*2
Maximum PV Charge Current: 220A
IP Grade: IP20
Max. Number Of Parallel: 6 sets
Product Size: 651.9468.6137mm
Warranty: 3 Years

A: Yes, all our inverters provide true pure sine wave output.

A: Yes, all our inverters provide true pure sine wave output.

A: Low frequency inverters have various protections, strong adaptability to the environment, and are more reliable with voltage regulation.

A: Pure sine wave output inverters provide power quality equivalent to or better than the public power grid. They have a low repair rate, long lifespan, no harmonic pollution, and are environmentally friendly. Modified sine wave output inverters have a negative impact on appliances and cannot load inductive loads, such as air conditioners and refrigerators. Certain motor control circuits may not be compatible with modified sine wave inverters.

A: Our inverters can be used with household, office, agricultural appliances, and other inductive loads such as refrigerators, air conditioners, water pumps, etc.

A: Yes, we accept OEM orders and can customize the products with your company logo.

A: Simply tell us your requirements, and our sales team will recommend a suitable inverter for you.

A: We offer 24-hour after-service consultancy to help you easily solve any technical problems you may encounter.

A: While a power inverter is not absolutely required for a solar energy system, it is necessary if you want to use normal AC appliances. Without a power inverter, you will only have battery power and won’t have 220 or 230 volts AC. This may be acceptable for small RVs or cabins.

A: If any product is faulty, please send us a picture or video, and we will study it. We provide free spare parts of the PCB board for after-sale service.

11KW Hybrid Inverter

Model:THON-11KW-01P
Battery Voltage: 51.2VDC
Rated Power: 11000VA/11000W
Rated AC Output Voltage: 230VAC
Rated AC Output Current: 48A
Battery Input Voltage Range:40~60VDC
Maximum Battery Current: 250A
Rated AC Input Voltage Range: 170-280VAC, 50Hz
Maximum AC Charging Current: 120A
Maximum PV Input Power: 5500W+5500W
MPPT Input Voltage Range: 120-450VDC
Maximum PV Input Current: 22A+22A
Maximum PV Charge Current: 150A
IP Grade: IP20
Max. Number Of Parallel: 6 sets
Product Size: 576*368.6*133mm
Warranty: 3 Years

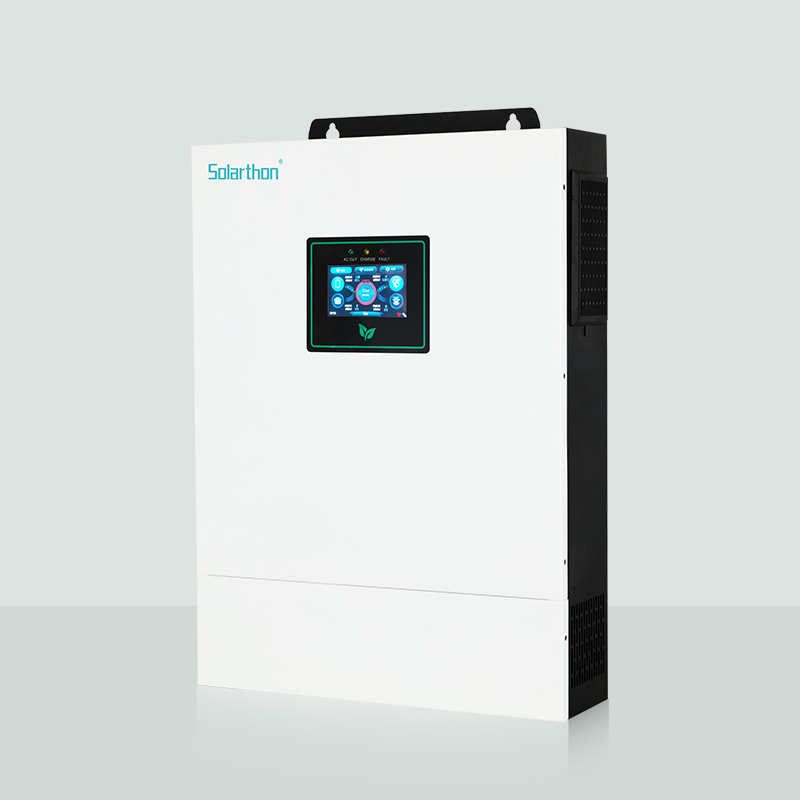

12KW Hybrid Inverter

Model：THON-12KW-01P
Battery Voltage: 51.2VDC
Rated Power: 12000VA/12000W
Rated AC Output Voltage: 230VAC
Rated AC Output Current: 50A
Battery Input Voltage Range:40~60VDC
Maximum Battery Current: 260A
Rated AC Input Voltage Range: 170-282VAC, 50/60Hz
Maximum AC Charging Current: 160A
Maximum PV Input Power: 6000W*2
MPPT Input Voltage Range: 120-450VDC
Maximum PV Input Current: 22A*2
Maximum PV Charge Current: 220A
IP Grade: IP20
Max. Number Of Parallel: 6 sets
Product Size: 651.9468.6137mm
Warranty: 3 Years
