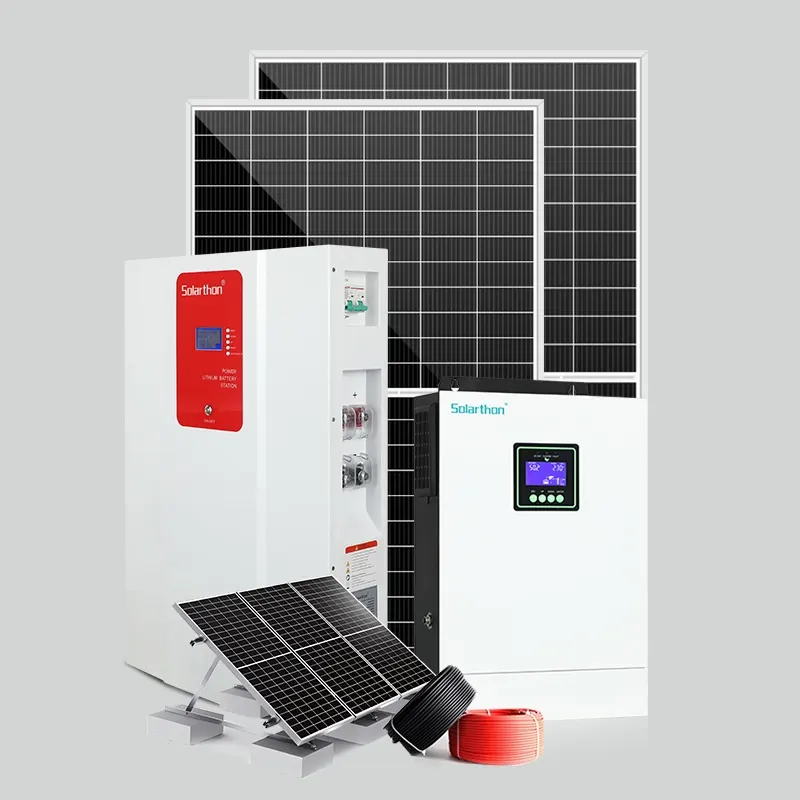

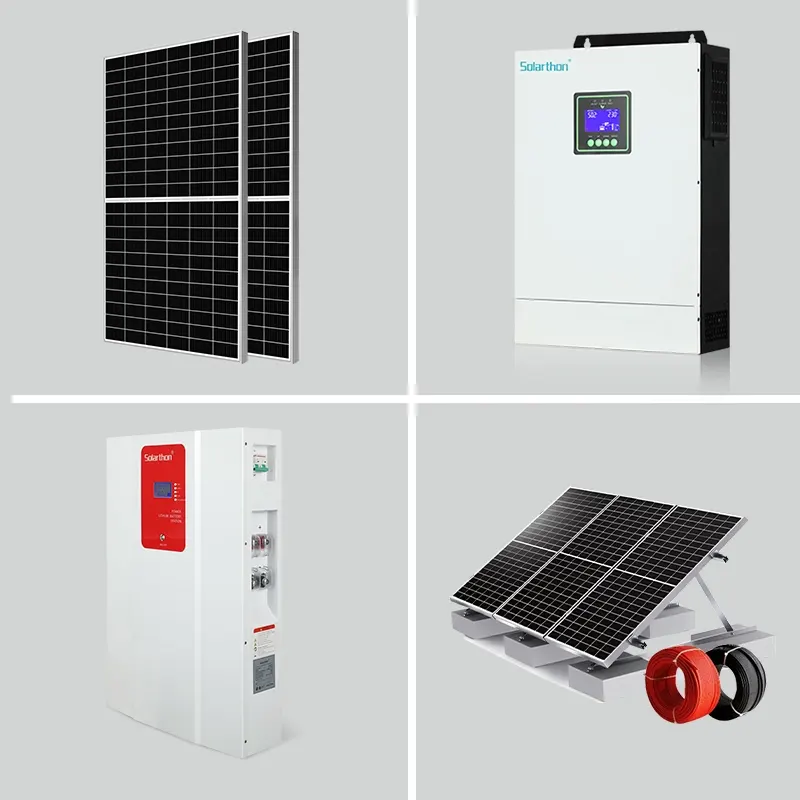

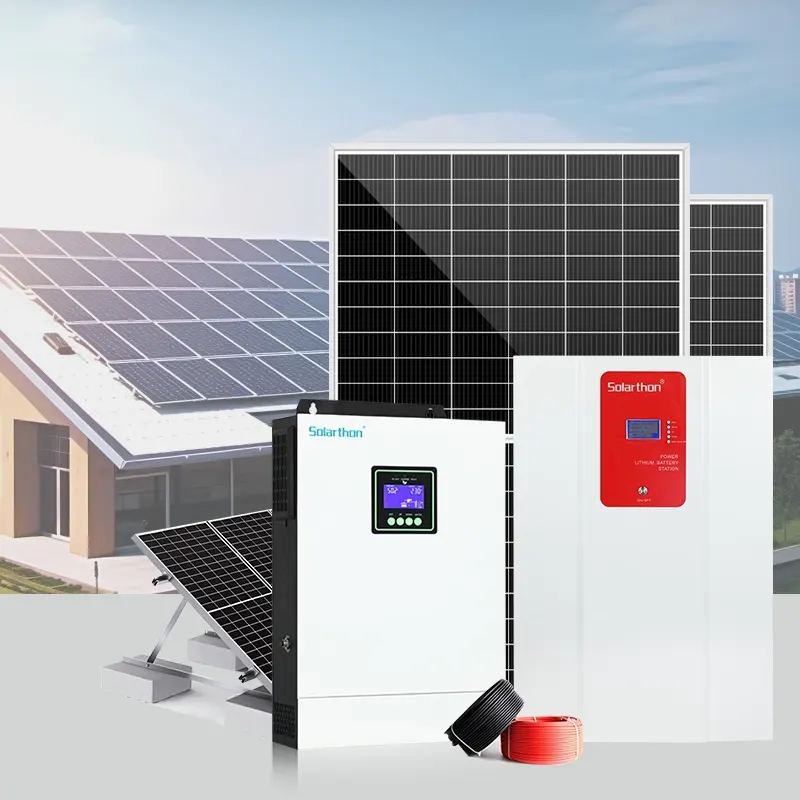

Hybrid Commercial Solar Energy Power System 5.6KW Solar Hybrid Power System Complete 1MW Kit Home

  • It has the function of sectional charge and discharge.
  • Anti-countercurrent grid-connected function (photovoltaic hybrid power supply),grid-connected mode can be
    set.

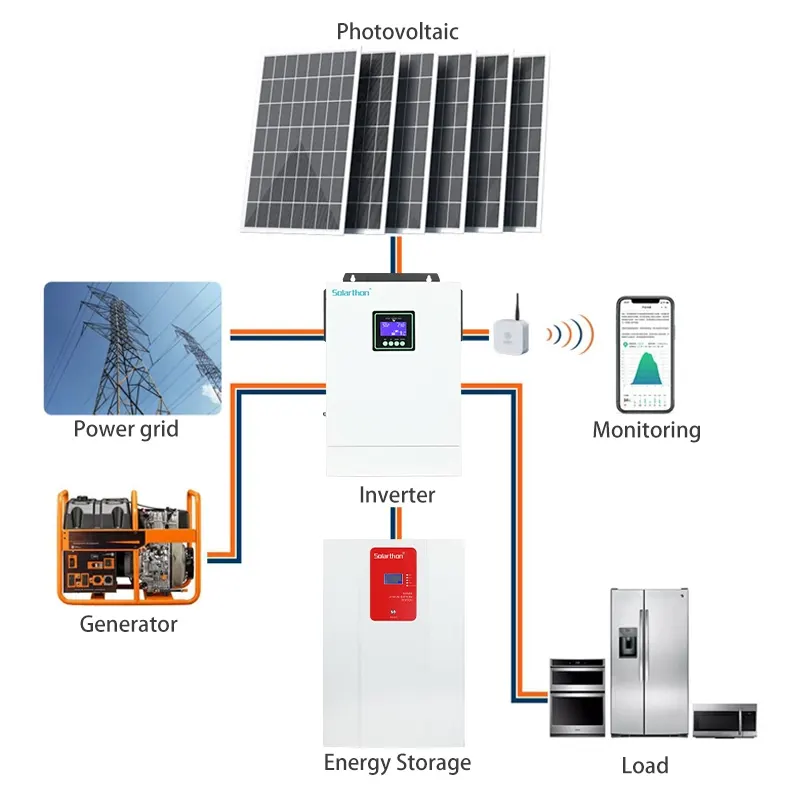

  • It can be used without battery. Solar and utility grid can power loads at the same time.
  • With dual activation function of lithium battery, it can be triggered by any power supply of the mains/photovoltaic.
  • Two output modes: mains bypass and inverter output; uninterrupted power supply.
  • Complete protections, including over voltage and under voltage protection, overload protection, reverse protection,etc ,360° all-round protection with a number of protection functions.
  • ON/OFF rocker switch for Ac output control.
  • Full digital voltage and current double closed loop control, advanced SPWM technology, output of pure sine wave.
  • Intelligent variable speed fan to efficiently dissipate heat and extend system life.

Inquire

5.6KW Hybrid Inverter

Advanced MPPT technology with an efficiency of 99.9%.
Two output modes: mains bypass and inverter output; uninterrupted power supply.
Power saving mode available to reduce no-load loss.

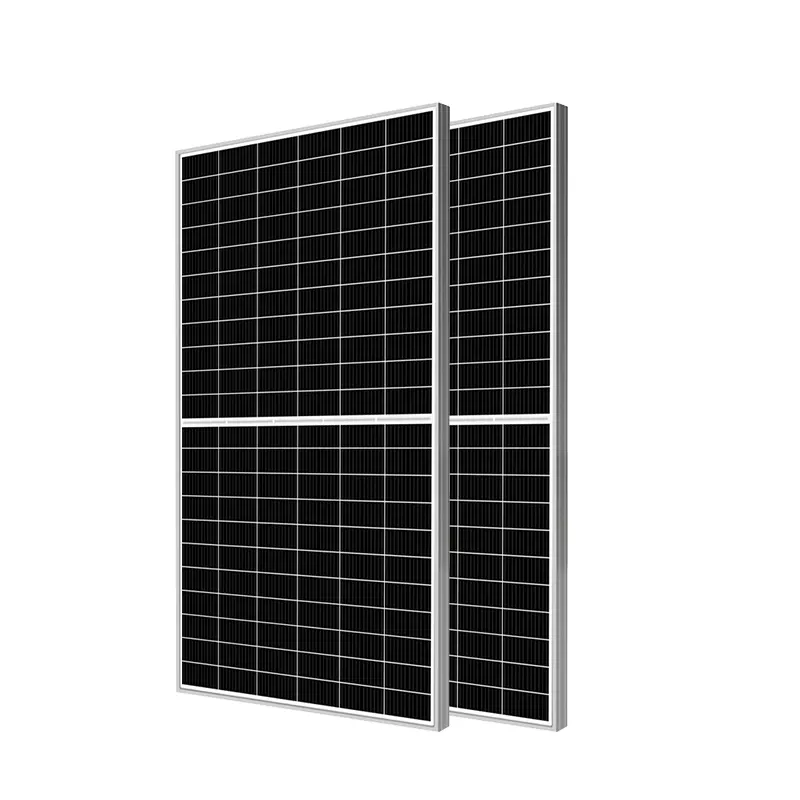

550W mono Half Cell PERC solar panel

Vmp: 41.95V Voc: 49.8V Imp 13.11A
Size: 2279*1134*35mm
weight: 28.3kg
25 years life span
Linear performance: 25 years 80 % ; 10 years 90%
Connection: 9 pcs In Series

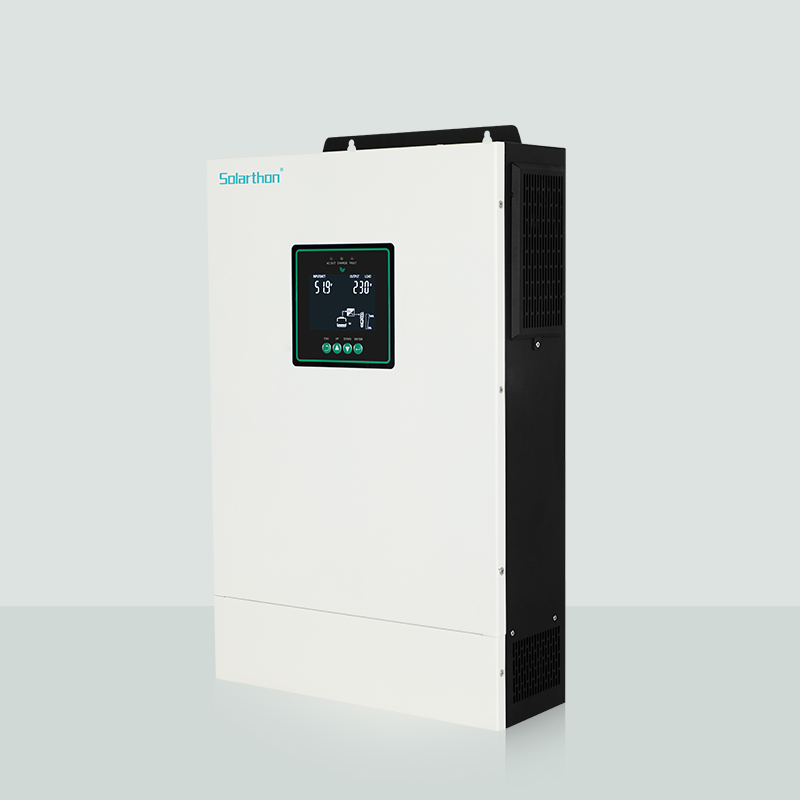

5.6KW Hybrid Inverter

Battery Voltage: 51.2VDC
Full Load: 5600VA/5600W
Nominal Operating Voltage: 230VDC
Rated Ac Input Voltage Range: 170-280VAC, 50/60Hz
Maximum AC Charging Current: 60A
Maximum PV Input Power: 5600W
MPPT Input Voltage Range: 120-450VDC
Maximum PV Input Current: 22A
Maximum PV Charge Current: 100A
IP Grade: lP20
Max. Number of Parallel: 6 sets
Product Size: 470*318.7*117.5mm
Warranty: 3 Years

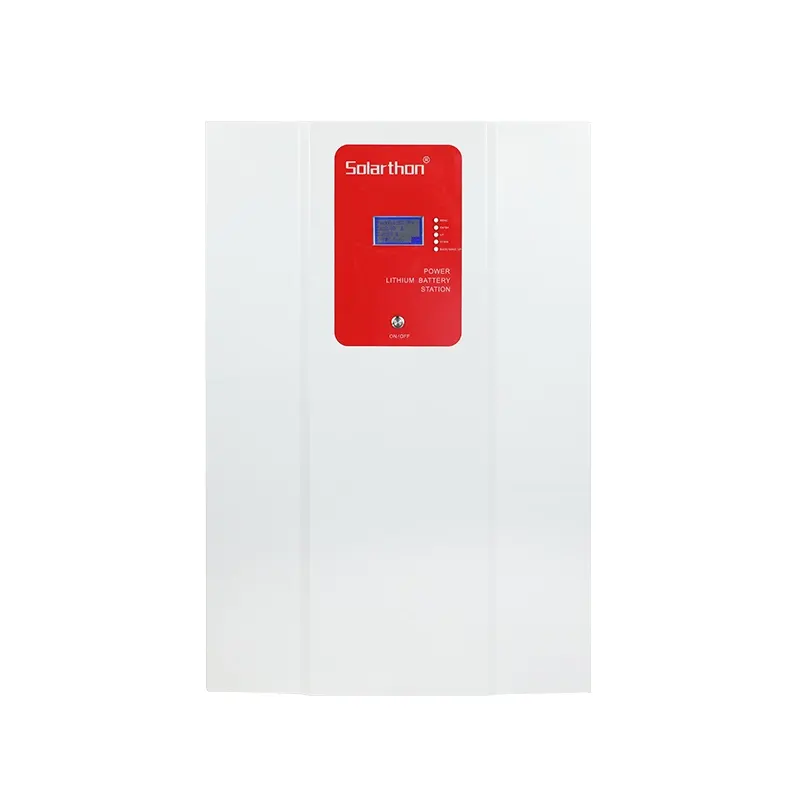

51.2V 200AH Battery Pack

Battery Type: LiFePo4
Nominal Voltage: 51.2V
Nominal Capacity: 200Ah
Charging Cut-off Voltage: 58.4V
Discharging Cut-off Voltage: 40.8V
Max. Cont. charging/Discharging Current: 100A
Max.Instantaneous Charge/Discharge Current: 200A
Max. Number Of Parallel: 6 sets
Cycle Life: ≥6000
Product Size:800*551*175mm
Weight: 79kg
Warranty: 5 Years

Flat Roof Mounting Structure

Structure: Hot-Dip Galvanized Steel
Wind load: 55m/s,snow load:1.5kn/m2
4mm2 Pv Wire. Red, 20m
4mm2 PV Wire, Black, 20m
4mm2 PV Wire, Black, 2m
50mm2 Pv Wire, Black, 5m
50mm2 Pv Wire, Black, 5m

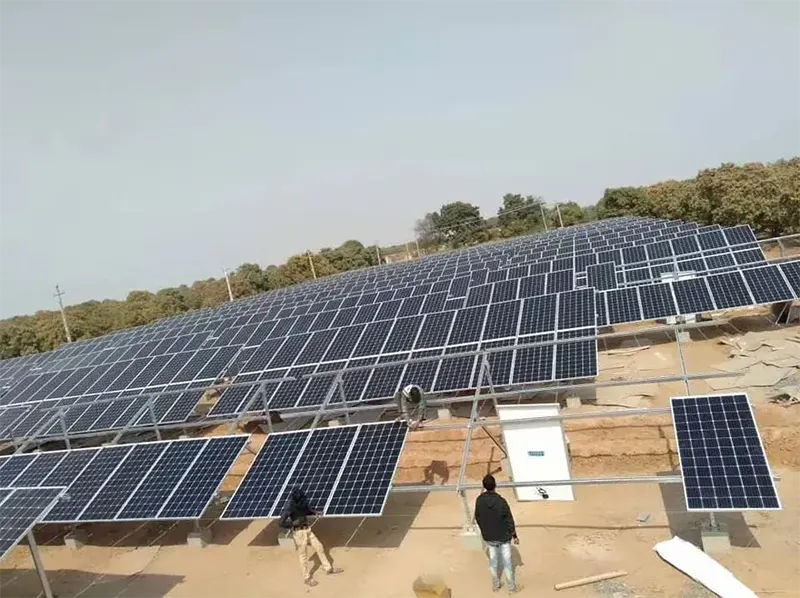

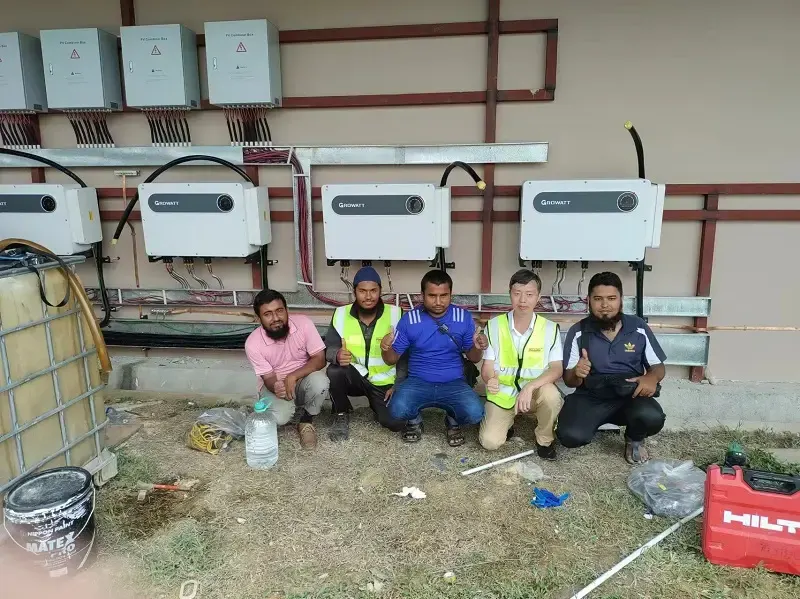

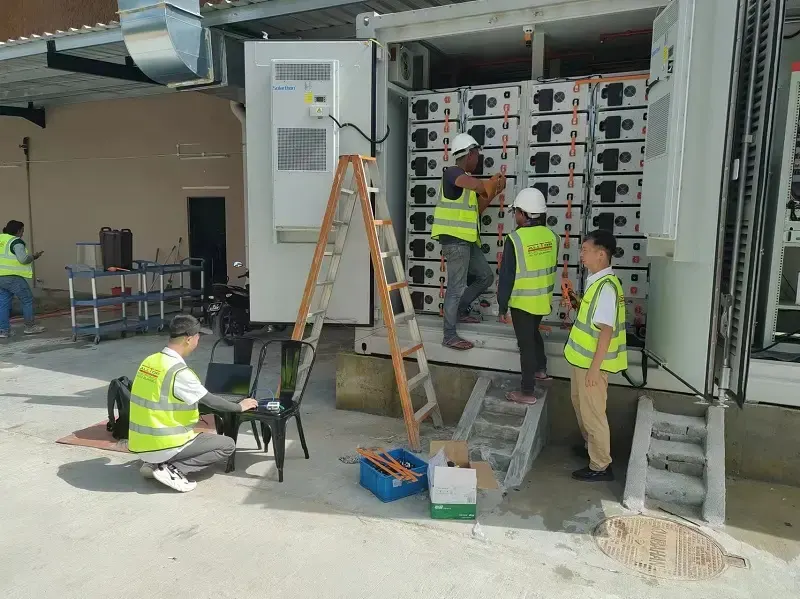

PROJECT CASE

A: Yes, all our inverters provide true pure sine wave output.

A: Yes, all our inverters provide true pure sine wave output.

A: Low frequency inverters have various protections, strong adaptability to the environment, and are more reliable with voltage regulation.

A: Pure sine wave output inverters provide power quality equivalent to or better than the public power grid. They have a low repair rate, long lifespan, no harmonic pollution, and are environmentally friendly. Modified sine wave output inverters have a negative impact on appliances and cannot load inductive loads, such as air conditioners and refrigerators. Certain motor control circuits may not be compatible with modified sine wave inverters.

A: Our inverters can be used with household, office, agricultural appliances, and other inductive loads such as refrigerators, air conditioners, water pumps, etc.

A: Yes, we accept OEM orders and can customize the products with your company logo.

A: Simply tell us your requirements, and our sales team will recommend a suitable inverter for you.

A: We offer 24-hour after-service consultancy to help you easily solve any technical problems you may encounter.

A: While a power inverter is not absolutely required for a solar energy system, it is necessary if you want to use normal AC appliances. Without a power inverter, you will only have battery power and won’t have 220 or 230 volts AC. This may be acceptable for small RVs or cabins.

A: If any product is faulty, please send us a picture or video, and we will study it. We provide free spare parts of the PCB board for after-sale service.
