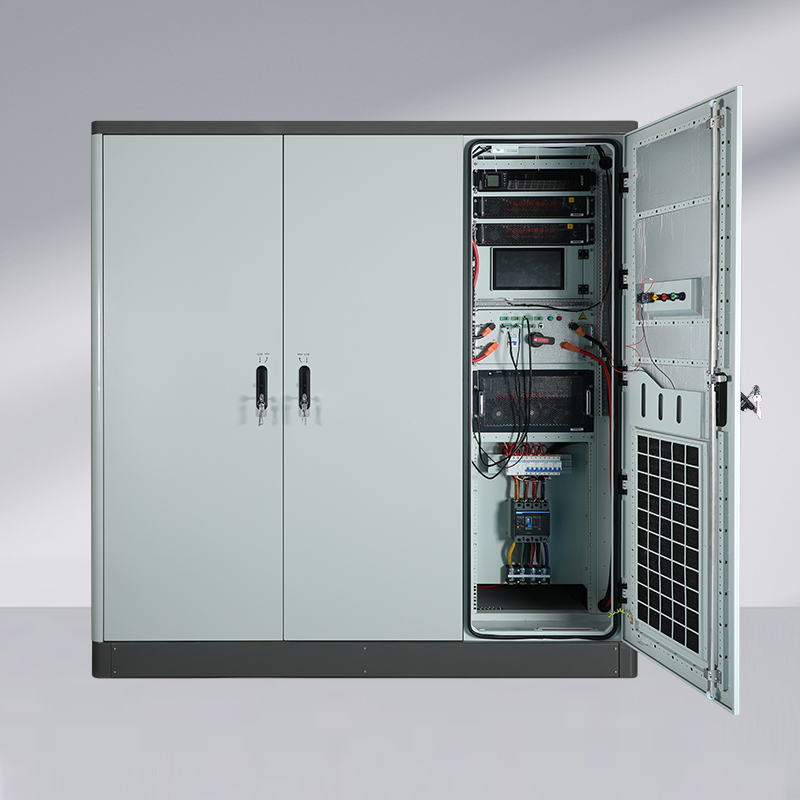

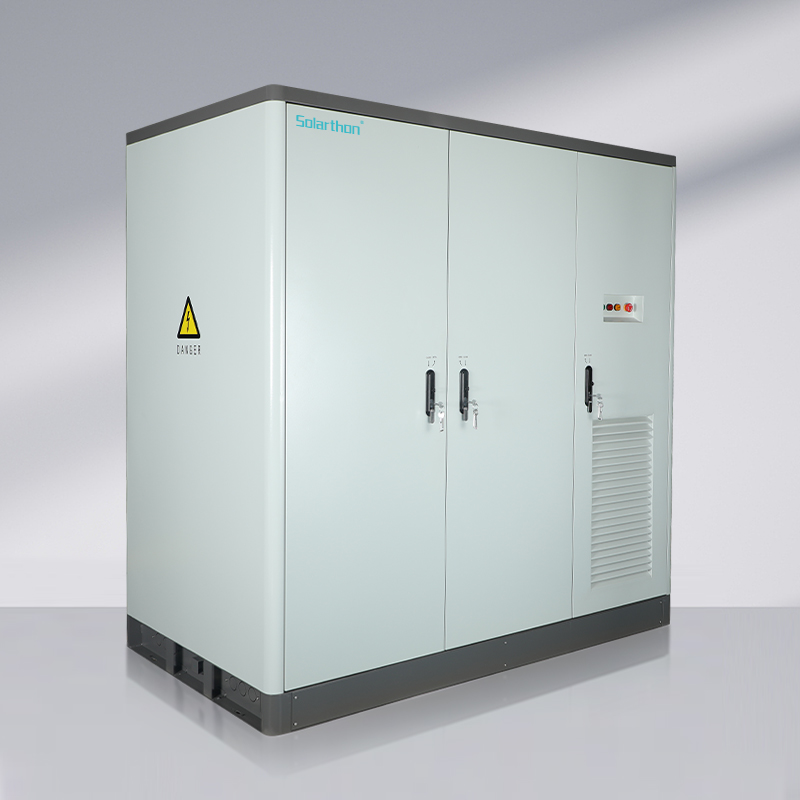

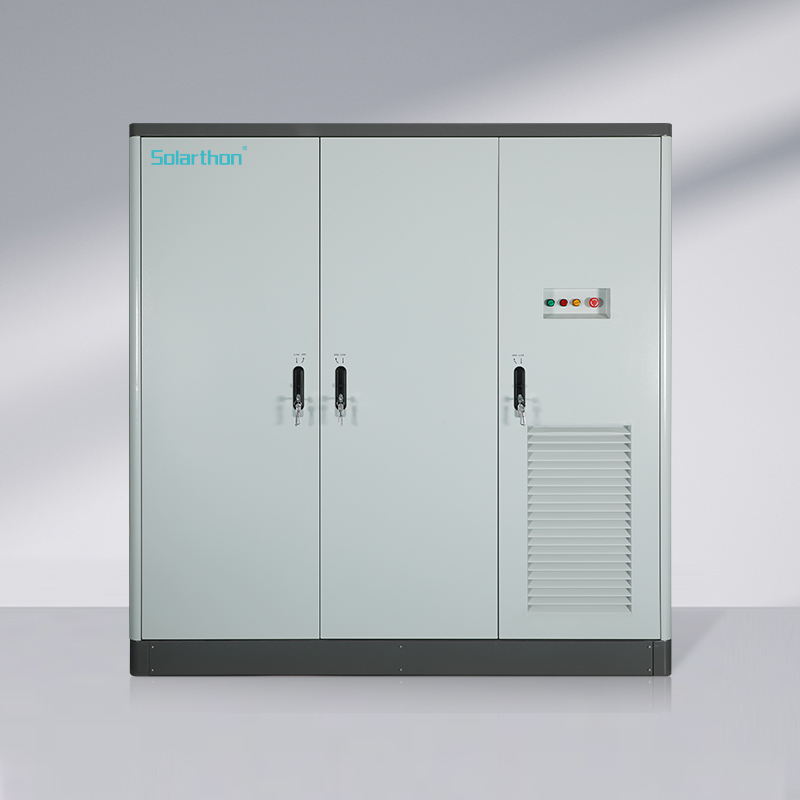

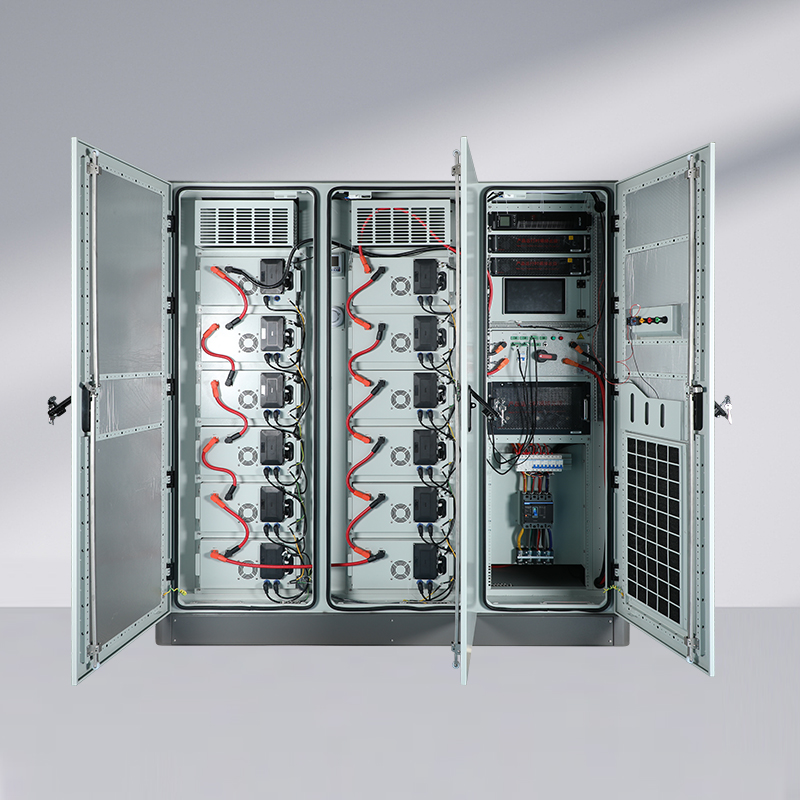

ESS High Voltage 100KW 215KWH Lithium lon Battery System Off-Grid Connection Rack Mount Cabinet for Industrial Energy

Modular design of structure and components, according to different configurations,flexible for a variety of industrial and commercial scenarios such as microgrid , light storage and charging integration. Supports parallel connection of multiple units for collaborative control.

Inquire

215KWH ESS with 100KW PCS and Solar Charging System

An energy storage cabinet is a device that integrates an energy storage device and a power management system, which is mainly used to store electrical energy and release it when needed.

The concept of an energy storage cabinet is to centrally store electrical energy in order to supply power during peak power demand or in case of emergency. It mainly consists of a battery, an inverter, and a control system. The battery is the core component of the energy storage cabinet, which can convert electrical energy into chemical energy and store it. The function of the inverter is to convert the stored DC energy into alternating current energy for the use of various electrical equipment.

The control system manages, optimizes energy use, and protects battery life.

215KWH ESS with 100KW PCS and Solar Charging System

ModelDQ1907C100K-03
Energy Storage System(ESS)
LiFePO4 Battery768V/280AH
Battery Voltage Range672~864V
Power Conversion System(PCS)
Rated Power100KW
Rated AC Voltage230/400V, 50/60Hz
AC Voltage Range230/400V, 50/60Hz
DC Voltage Range615~950V
Solar Charger
Max. PV Charge Power100KW
Max. PV Input Voltage900V
MPPT Voltage Range0~900V
Energy Management System(EMS)
LCD monitor, RS485, CAN, TCP/IP
Parallel and off-grid switching power off for 30-50 seconds
Outdoor Three-cabin Cabinet
Size2100*1210*2150mm
Air Conditioner, 1500W, 2 sets
Fire Fighting System

A: Yes, all our inverters provide true pure sine wave output.

A: Yes, all our inverters provide true pure sine wave output.

A: Low frequency inverters have various protections, strong adaptability to the environment, and are more reliable with voltage regulation.

A: Pure sine wave output inverters provide power quality equivalent to or better than the public power grid. They have a low repair rate, long lifespan, no harmonic pollution, and are environmentally friendly. Modified sine wave output inverters have a negative impact on appliances and cannot load inductive loads, such as air conditioners and refrigerators. Certain motor control circuits may not be compatible with modified sine wave inverters.

A: Our inverters can be used with household, office, agricultural appliances, and other inductive loads such as refrigerators, air conditioners, water pumps, etc.

A: Yes, we accept OEM orders and can customize the products with your company logo.

A: Simply tell us your requirements, and our sales team will recommend a suitable inverter for you.

A: We offer 24-hour after-service consultancy to help you easily solve any technical problems you may encounter.

A: While a power inverter is not absolutely required for a solar energy system, it is necessary if you want to use normal AC appliances. Without a power inverter, you will only have battery power and won’t have 220 or 230 volts AC. This may be acceptable for small RVs or cabins.

A: If any product is faulty, please send us a picture or video, and we will study it. We provide free spare parts of the PCB board for after-sale service.
