Pack for Solar Energy Storage System/Power Battery 51.2V Lifepo4 Battery Home Energy Storage System

BUILT IN BMS: Built-in BMS intelligent security protection system, Protect the battery, Extend battery life. Six layers of intelligent safe typrotection, when the battery voltage and current reach the value set by BMS, The battery will enter the protection state.
SAFETY: National high-tech enterprise, home intelligent energy management, safe, efficient and green energy.
LONG LIFE：Designed for 15-20 years, over 6000 cycles.

Overall, mobile home energy storage lithium battery has good performance and high value in mobile home energy storage system, which can improve the power quality, reliability and efficiency of mobile home energy storage system, and reduce the power loss and maintenance cost of the whole system. Therefore, it is widely used in mobile home energy storage system.

Inquire

25.6V 100AH/25.6V 200AH/25.6V 300AH/51.2V 100AH/51.2V 230AH/51.2V 280AH/51.2V 314AH/51.2V 628AH Battery Pack

This product belongs to one of our self-designed and developed household energy storage product series. It is used for energy storage and energy supply of household, commercial, UPS and other electrical equipment.

This product enjoys many merits: long cydle life, high safety standard from software protection to strong housing, exquisite looks, and easy installation, etc. It is widely used in energy storage system with off-grid inverters, grid-connected inverters and hybrid inverters.

25.6V 100AH Battery Pack

Model: ALF24100-01
Battery Type: LiFePO4
Nominal Voltage: 25.6V
Nominal Capacity: 100Ah
Charging Cut-off Voltage: 29.2V
Discharging Cut-off Voltage: 22.4V
Max. Cont. Charging/Discharging Current (30s): 100A
Continuous Charge/Discharge Current :50A
Max. Number Of Parallel: 6 sets
Cycle Life: ≥6000
Product Size: 430*456*156mm
Weight: 29.5kg(Estimated weight)
Warranty: 5 years

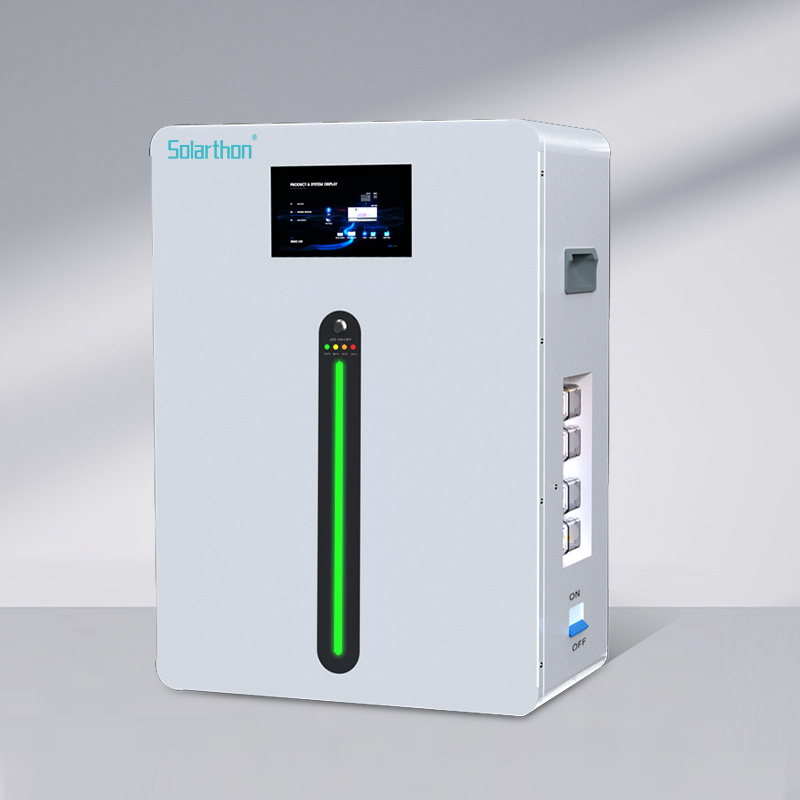

25.6V 200AH Battery Pack

Model：ALF24200-01
Battery Type: LiFePO4
Nominal Voltage: 25.6V
Nominal Capacity: 200Ah
Charging Cut-off Voltage: 29.2V
Discharging Cut-off Voltage: 22.4V
Max. Cont. Charging/Discharging Current (30s): 200A
Continuous Charge/Discharge Current :80A
Max. Number Of Parallel: 6 sets
Cycle Life: ≥6000
Product Size: 635*456*156mm
Weight: 51kg(Estimated weight)
Warranty: 5 years

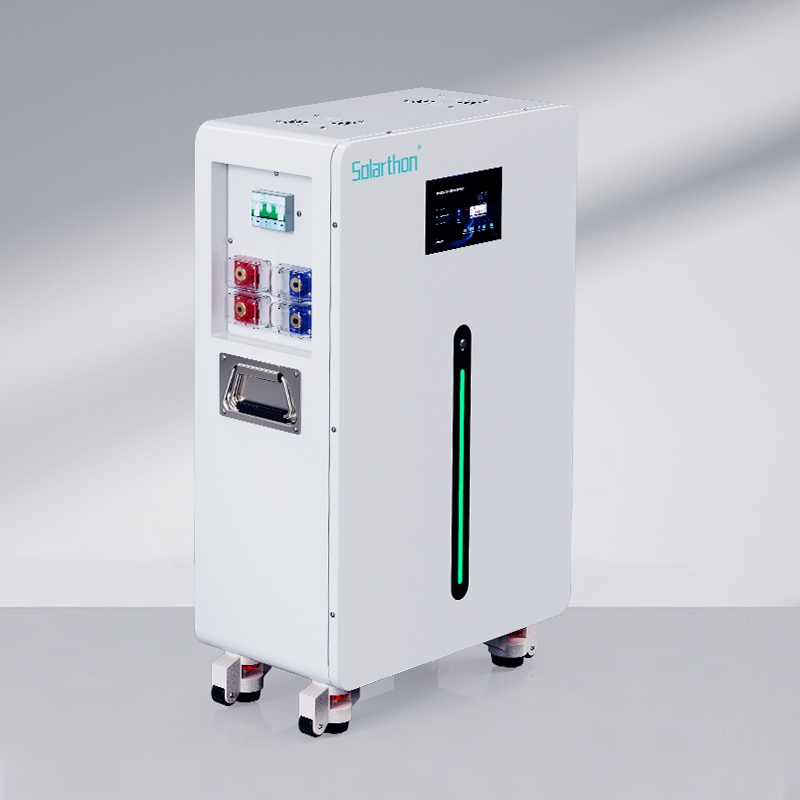

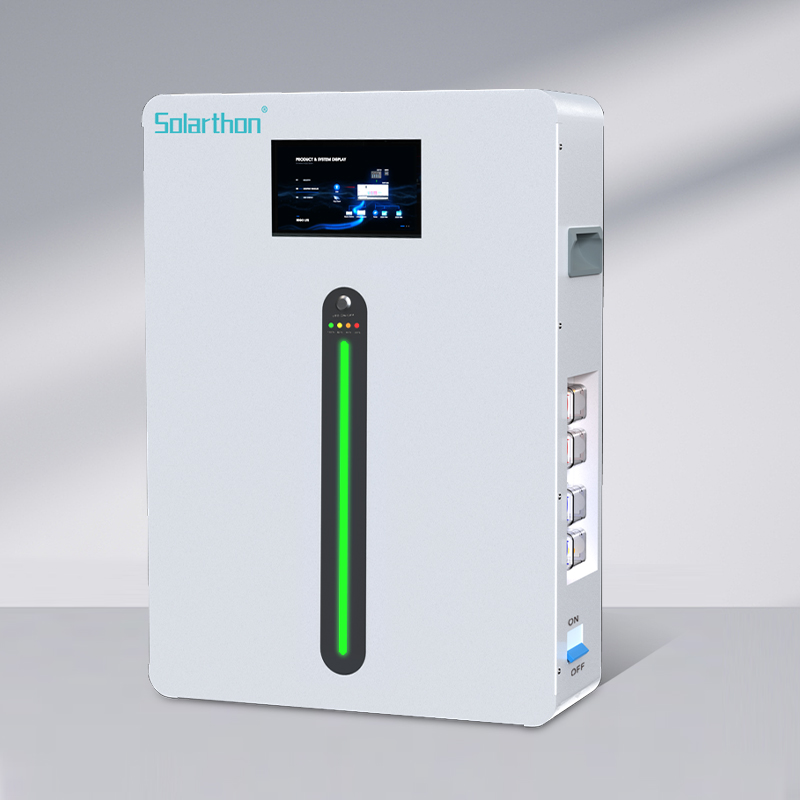

25.6V 300AH Battery Pack

Model: ALF24300-01
Battery Type: LiFePO4
Nominal Voltage: 25.6V
Nominal Capacity: 300Ah
Charging Cut-off Voltage: 29.2V
Discharging Cut-off Voltage: 22.4V
Max. Cont. Charging/Discharging Current (30s): 200A
Continuous Charge/Discharge Current :80A
Max. Number Of Parallel: 6 sets
Cycle Life: ≥6000
Product Size: 635.5*456.5*249.5mm
Weight: 68kg(Estimated weight)
Warranty: 5 years

51.2V 100AH Battery Pack

Model: ALF52100-01
Battery Type: LiFePO4
Nominal Voltage: 51.2V
Nominal Capacity: 100Ah
Charging Cut-off Voltage: 58.4V
Discharging Cut-off Voltage: 44.8V
Max. Cont. Charging/Discharging Current (30s): 200A
Continuous Charge/Discharge Current :75A
Max. Number Of Parallel: 6 sets
Cycle Life: ≥6000
Product Size: 635*456*156mm
Weight: 53kg(Estimated weight)
Warranty: 5 years

A: Yes, all our inverters provide true pure sine wave output.

A: Yes, all our inverters provide true pure sine wave output.

A: Low frequency inverters have various protections, strong adaptability to the environment, and are more reliable with voltage regulation.

A: Pure sine wave output inverters provide power quality equivalent to or better than the public power grid. They have a low repair rate, long lifespan, no harmonic pollution, and are environmentally friendly. Modified sine wave output inverters have a negative impact on appliances and cannot load inductive loads, such as air conditioners and refrigerators. Certain motor control circuits may not be compatible with modified sine wave inverters.

A: Our inverters can be used with household, office, agricultural appliances, and other inductive loads such as refrigerators, air conditioners, water pumps, etc.

A: Yes, we accept OEM orders and can customize the products with your company logo.

A: Simply tell us your requirements, and our sales team will recommend a suitable inverter for you.

A: We offer 24-hour after-service consultancy to help you easily solve any technical problems you may encounter.

A: While a power inverter is not absolutely required for a solar energy system, it is necessary if you want to use normal AC appliances. Without a power inverter, you will only have battery power and won’t have 220 or 230 volts AC. This may be acceptable for small RVs or cabins.

A: If any product is faulty, please send us a picture or video, and we will study it. We provide free spare parts of the PCB board for after-sale service.

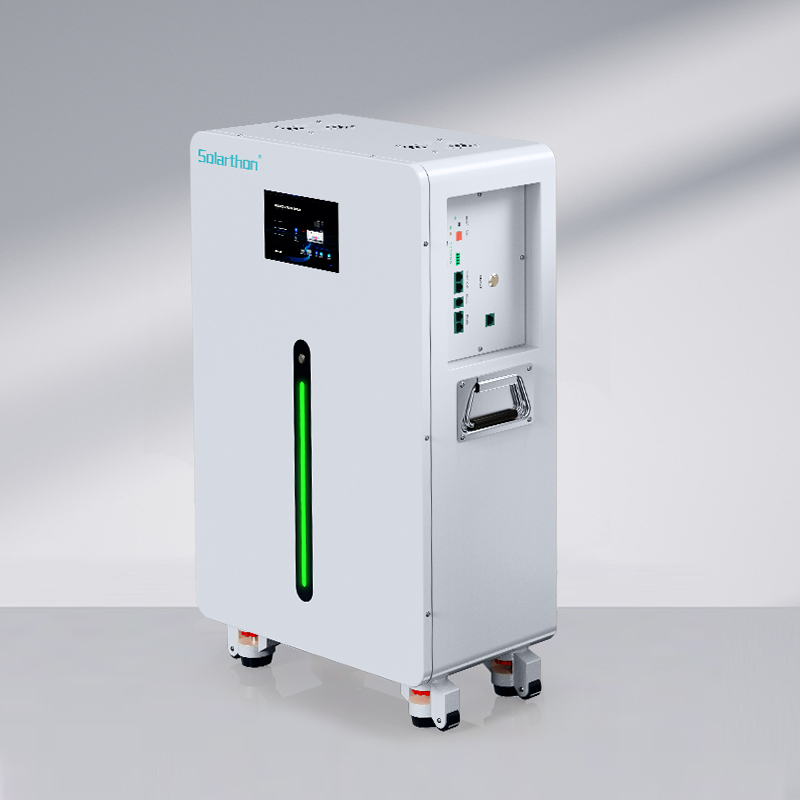

51.2V 230AH Battery Pack

Model：ALF52230-01
Battery Type: LiFePO4
Nominal Voltage: 51.2V
Nominal Capacity: 230Ah
Charging Cut-off Voltage: 58.4V
Discharging Cut-off Voltage: 44.8V
Max. Cont. Charging/Discharging Current (30s): 200A/200A
Continuous Charge/Discharge Current :115A
Max. Number Of Parallel: 6 sets
Cycle Life: ≥6000
Product Size: 470*245*750mm
Weight: 97kg(Estimated weight)
Warranty: 5 years

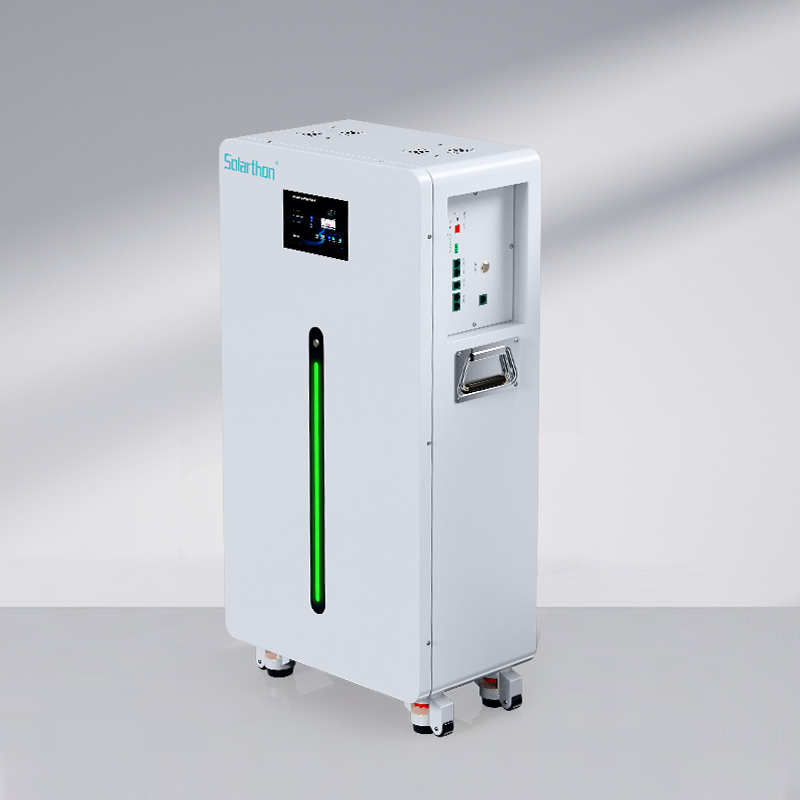

51.2V 280AH Battery Pack

Model: ALF52280-01
Battery Type: LiFePO4
Nominal Voltage: 51.2V
Nominal Capacity: 280Ah
Charging Cut-off Voltage: 58.4V
Discharging Cut-off Voltage: 44.8V
Max. Cont. Charging/Discharging Current (30s): 300A/300A
Continuous Charge/Discharge Current: 140A
Max. Number Of Parallel: 6 sets
Cycle Life: ≥6000
Product Size: 470*245*910mm
Weight: 120kg(Estimated weight)
Warranty: 5 years

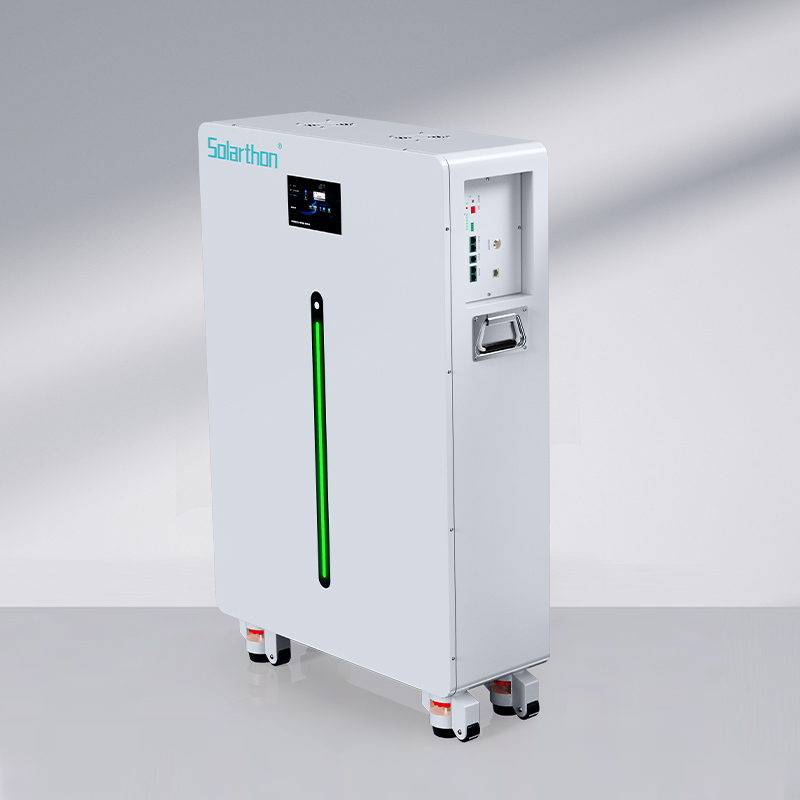

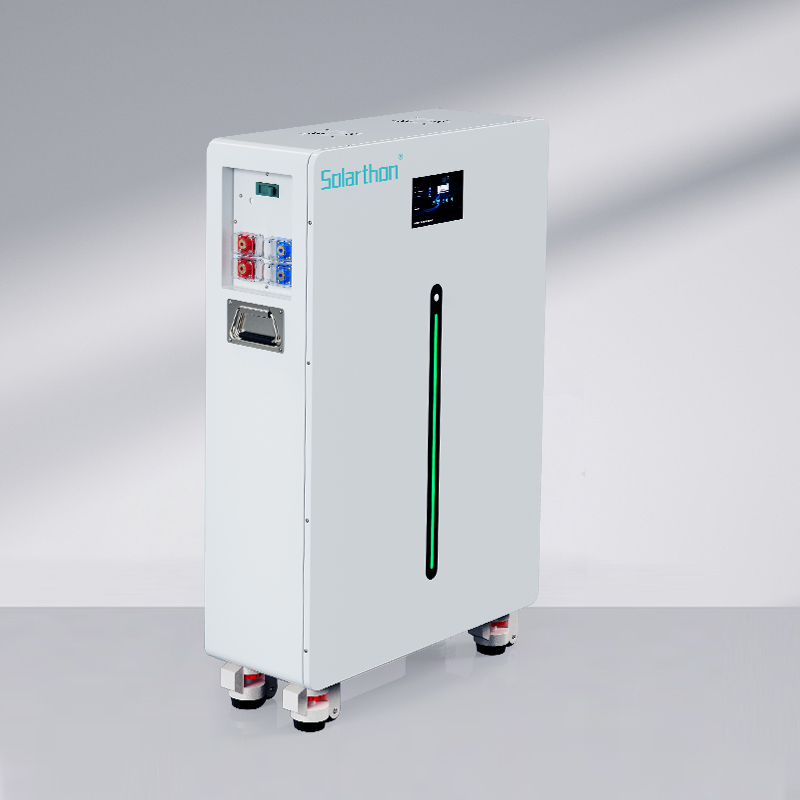

51.2V 314AH Battery Pack

Model：ALF52314-01
Battery Type: LiFePO4
Nominal Voltage: 51.2V
Nominal Capacity: 314Ah
Charging Cut-off Voltage: 58.4V
Discharging Cut-off Voltage: 44.8V
Max. Cont. Charging/Discharging Current (30s): 300A/300A
Continuous Charge/Discharge Current: 150A
Max. Number Of Parallel: 6 sets
Cycle Life: ≥6000
Product Size: 470245910mm
Weight: 120kg(Estimated weight)
Warranty: 5 years

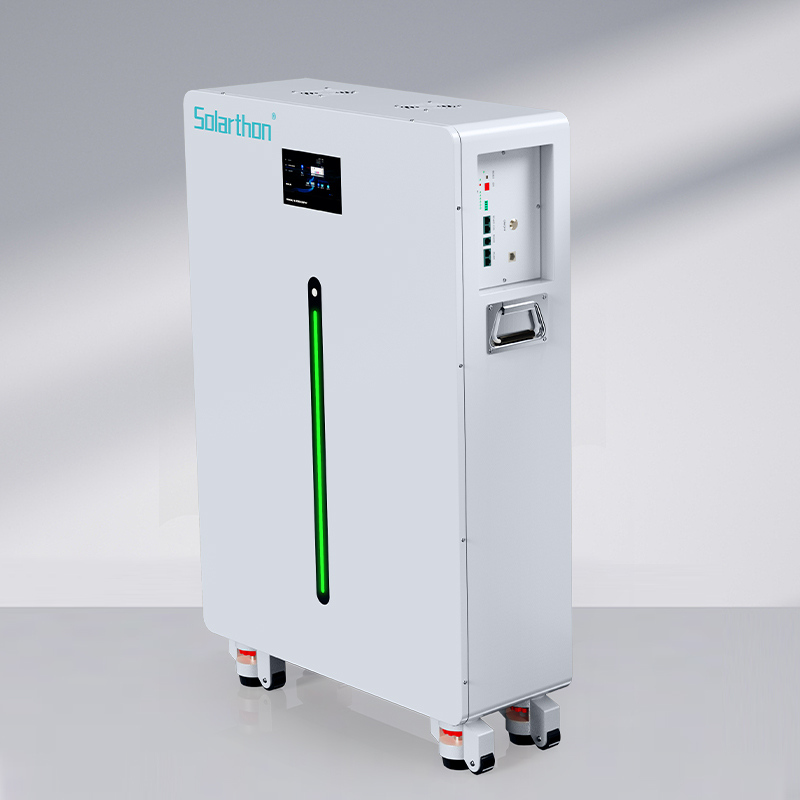

51.2V 628AH Battery Pack

Model: ALF52628-01
Battery Type: LiFePO4
Nominal Voltage: 51.2V
Nominal Capacity: 628Ah
Charging Cut-off Voltage: 58.4V
Discharging Cut-off Voltage: 44.8V
Max. Cont. Charging/Discharging Current (30s): 300A/300A
Continuous Charge/Discharge Current: 230A
Max. Number Of Parallel: 6 sets
Cycle Life: ≥6000
Product Size: 7052501065mm
Weight: 230kg(Estimated weight)
Warranty: 5 years
