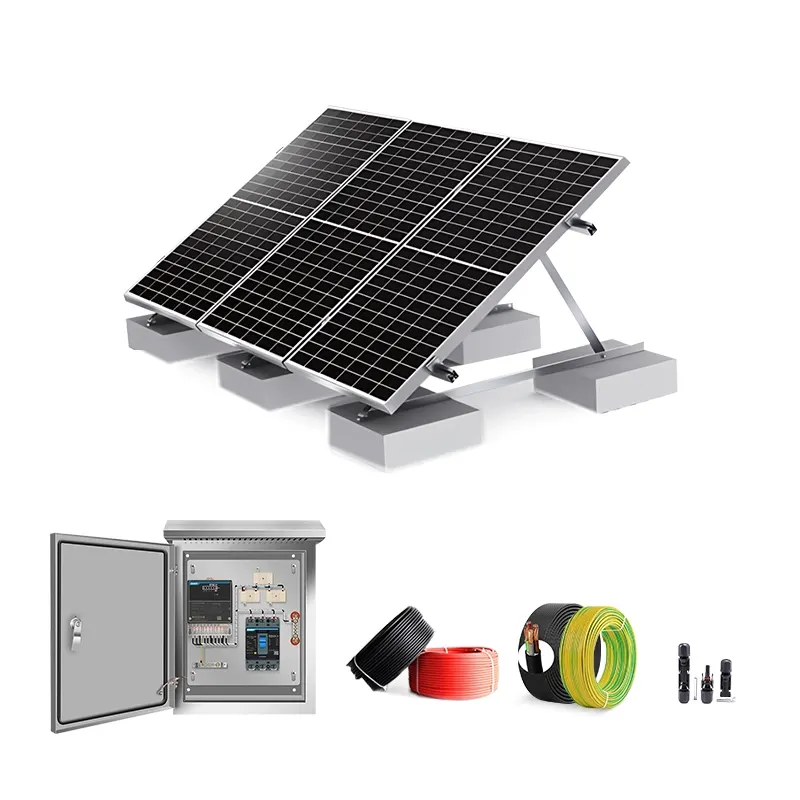

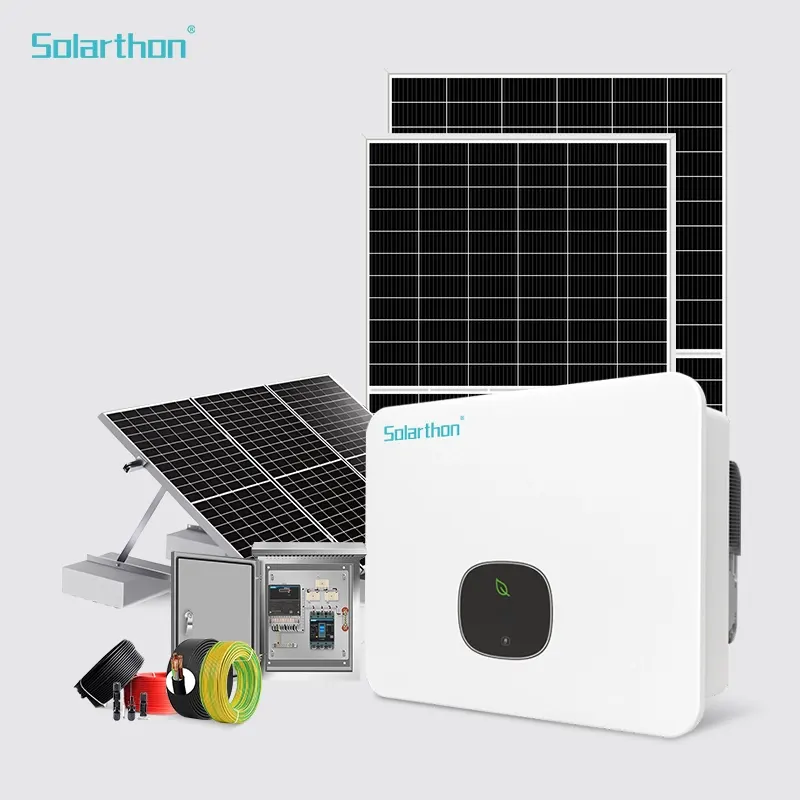

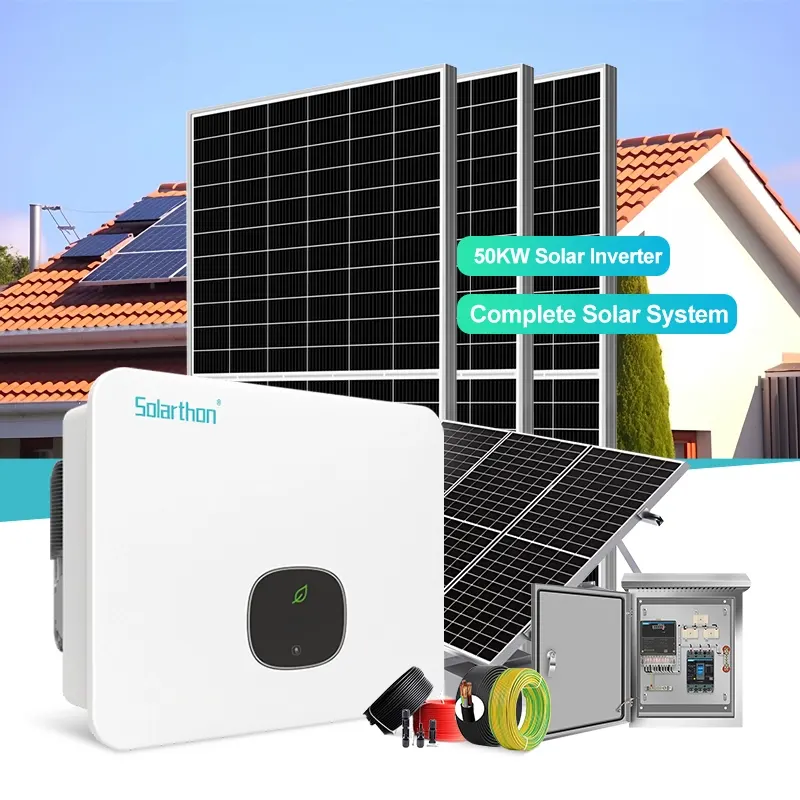

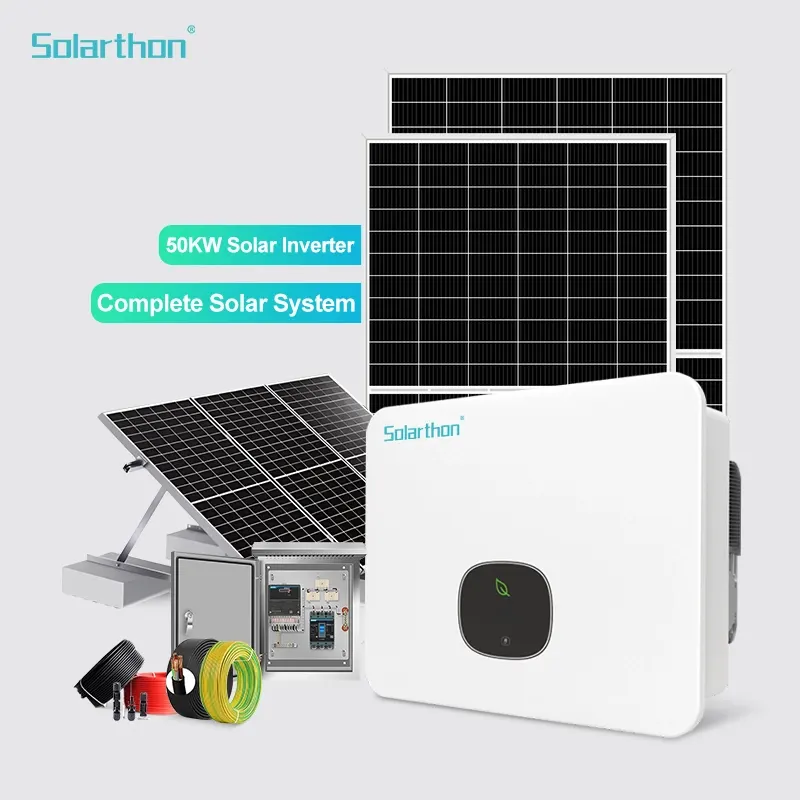

Complete Hybrid Solar System 50Kw Solar Generator Kit Energy System On Grid Solar Inverter

This all-in-one solar power system includes high-efficiency solar panels and a compact energy storage unit, perfect for residential use.
Reduce electricity bills and minimize your carbon footprint with clean, renewable energy.
Simple to install and designed to fit various home types, providing reliable energy around the clock.

Inquire

50KW On Grid Solar Inverter

Future-Proof and Versatile: The Battery ready future proof 50kw solar inverter is designed to be compatible with a wide range of applications, including off-grid and hybrid systems, making it an ideal choice for users who require flexibility and adaptability in their renewable energy solutions.
High Efficiency and Performance: With an inverter efficiency of 98.8%, this solar inverter ensures maximum power output and minimal energy loss, providing a reliable and efficient solution for users who demand high performance from their solar energy systems.
Customizable and Scalable: This solar inverter is designed to be user-friendly, allowing users to customize their system to meet their specific needs, and its scalable design makes it easy to expand or upgrade the system as required, making it an ideal choice for users who require flexibility and adaptability.

550W mono Half Cell PERC solar panel

Vmp: 41.95V Voc: 49.8V Imp 13.11A
Size: 2279*1134*35mm
weight: 28.3kg
25 years life span
Linear performance: 25 years 80 % ; 10 years 90%
Connection: 15 pcs In Series

50KW On Grid Solar Inverter

Rated Output Power: 50KW
Rated Output Voltage: 400VAC, 50Hz/60Hz
MPPT Number/Road: 4/2
MPPT Rated Voltage: 600V
MPPT Voltage Range: 200~1000V
Max. Input Current Of Each MPPT: 32A
Max. Efficiency: 98.8%
Protection Class: IP66
Size: 580x435x230mm
Weight: 37kg

Flat Roof Mounting Structure

structure: Hot-Dip Galvanized Steel
wind load: 55m/s,snow load:1.5kn/㎡
4mm² PV cable: 100m, Red
4mm² PV cable: 100m, Black
AC Cable: 4*120mm² , 100m
AC Cable: 4*240mm² , 10m
BVR-6mm² AC Wire: 100m
BVR-10mm² AC Wire: 10m

PROJECT CASE

A: Yes, all our inverters provide true pure sine wave output.

A: Yes, all our inverters provide true pure sine wave output.

A: Low frequency inverters have various protections, strong adaptability to the environment, and are more reliable with voltage regulation.

A: Pure sine wave output inverters provide power quality equivalent to or better than the public power grid. They have a low repair rate, long lifespan, no harmonic pollution, and are environmentally friendly. Modified sine wave output inverters have a negative impact on appliances and cannot load inductive loads, such as air conditioners and refrigerators. Certain motor control circuits may not be compatible with modified sine wave inverters.

A: Our inverters can be used with household, office, agricultural appliances, and other inductive loads such as refrigerators, air conditioners, water pumps, etc.

A: Yes, we accept OEM orders and can customize the products with your company logo.

A: Simply tell us your requirements, and our sales team will recommend a suitable inverter for you.

A: We offer 24-hour after-service consultancy to help you easily solve any technical problems you may encounter.

A: While a power inverter is not absolutely required for a solar energy system, it is necessary if you want to use normal AC appliances. Without a power inverter, you will only have battery power and won’t have 220 or 230 volts AC. This may be acceptable for small RVs or cabins.

A: If any product is faulty, please send us a picture or video, and we will study it. We provide free spare parts of the PCB board for after-sale service.
