Ac Dc Solar Power Inverter System Combiner Box

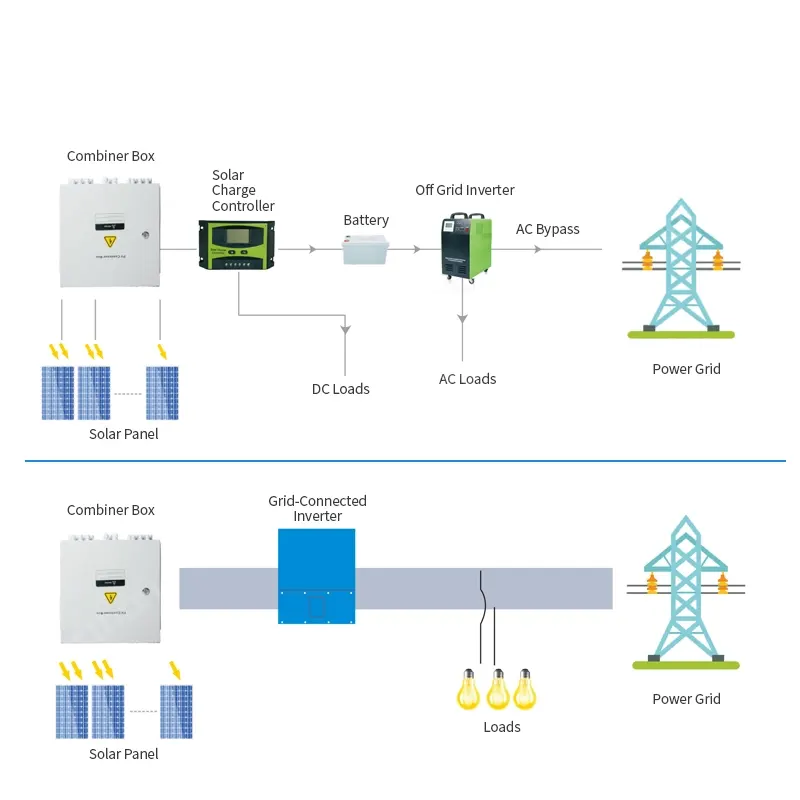

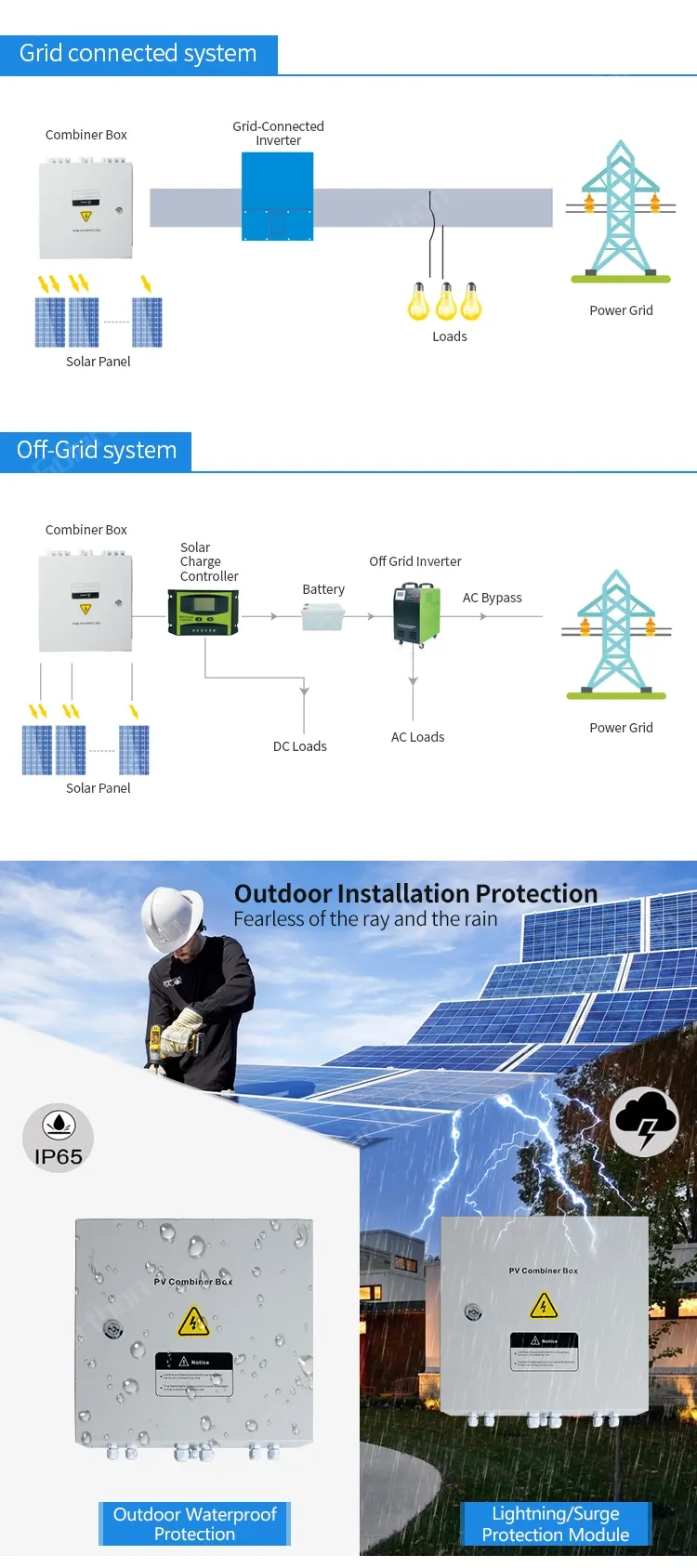

The ac dc solar power inverter system combiner box schematic organizes the connection and confluence of photovoltaic modules. It is used to reduce the connection between the photovoltaic array and the inverter and optimize the system structure.

Inquire

Model:DQ1700
Max single PV array current:10A
Maximum output current:40A
IP Rate:IP65

Brand:solarthon
Wire number of each PV array input:PG7,4mm2
Wire number of esch output:G16, 8mm2 for each
Working Temperature:-30℃ ~ +60℃

Number of PV arrays inputs:4
Number of output:1or 2
Maximum output voltage:800VDC
Cooling menthod:Natura cooling

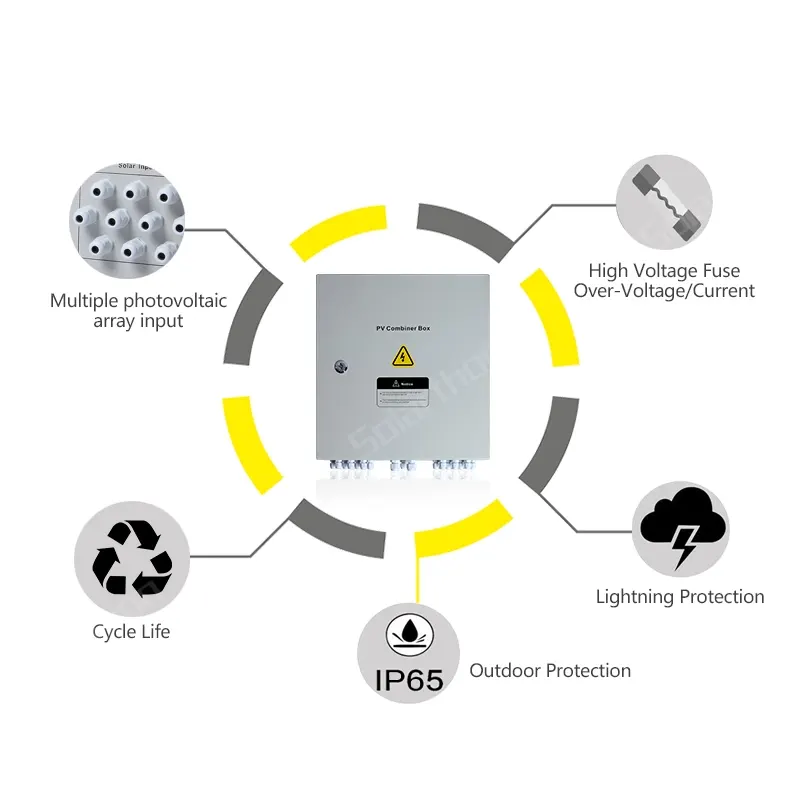

ac dc solar power inverter system combiner box schematic Fuse is used as overload and short circuit protection in lighting circuit and circuit protection in control circuit. It is in series in the line, when the line or equipment short circuit or serious overload, the fuse in the first fuse, so that the line or electrical equipment from, play a protective role, it is a kind of protective electrical applianc

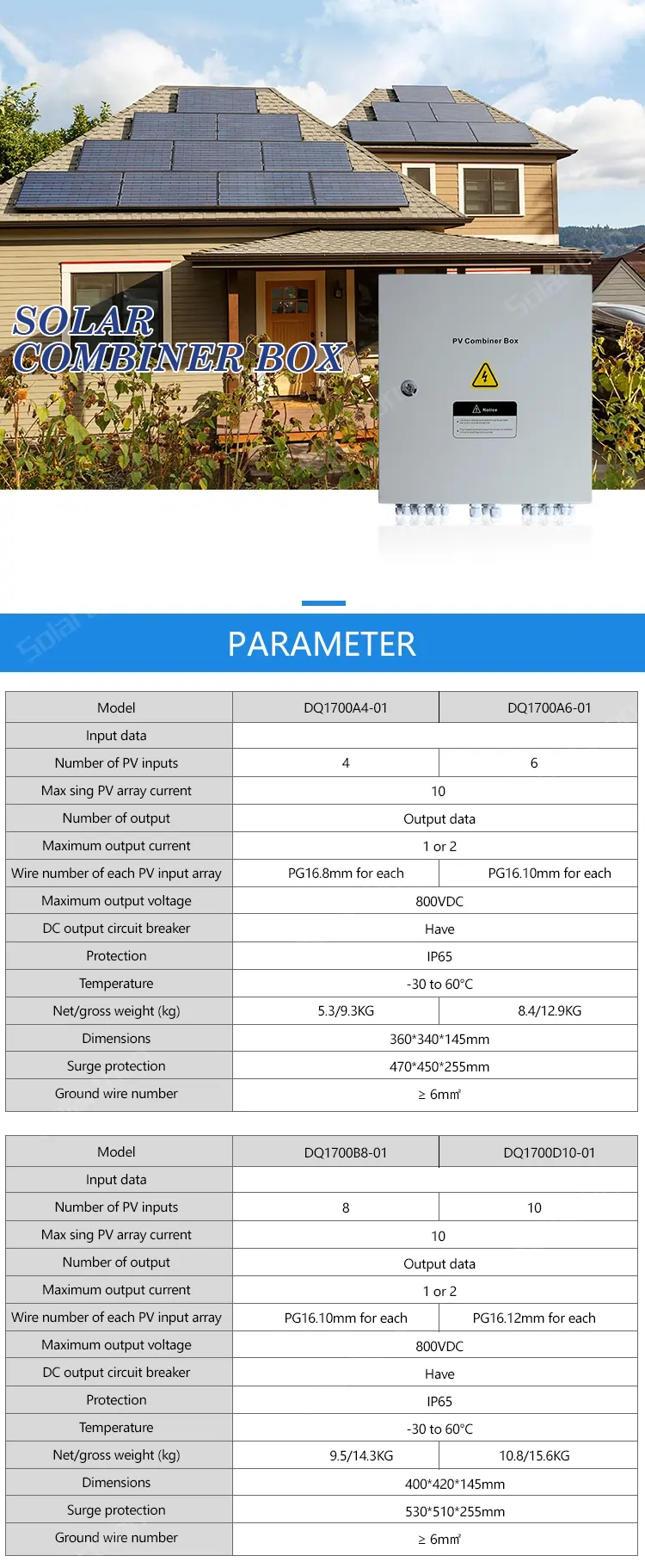

P/NProduct Description
DQ1700A4-014-in-1-out Combiner Box
Number of PV arrays inputs: 4
Max single PV array current: 10A
Wire number of each PV array input: PG7,4mm2
Number of output: 1or 2
Maximum output current: 40A
Wire number of esch output: PG16, 8mm2 for each
Maximum output voltage: 800VDC
IP Rate: IP65
Working Temperature: -30℃ ~ +60℃
Product  N/G Weight: 5.3/9.3kg
Product Dimensions(mm): 360*340*145
Packing Size(mm): 470*450*255
Cooling menthod: Natura cooling
Surge protection: Have
Ground wrie size: ≥6mm²
DQ1700A6-016-in-1-out Combiner Box
Number of PV arrays inputs: 6
Max single PV array current: 10A
Wire number of each PV array input: PG7,4mm2
Number of output: 1or 2
Maximum output current: 60A in all (30A / output)
Wire number of esch output: PG16, 10mm2 for each
Maximum output voltage: 800VDC
IP Rate: IP65
Working Temperature: -30℃ ~ +60℃
Product  N/G Weight: 8.4/12.9kg
Product Dimensions(mm): 360*340*145
Packing Size(mm): 470*450*255
Cooling menthod: Natura cooling
Surge protection: Have
Ground wrie size: ≥6mm²
DQ 170088-018-in-1-out Combiner Box
Number of PV arrays inputs: 8
Max single PV array current: 10A
Wire number of each PV array input: PG7,4mm2
Number of output: 1or 2
Maximum output current: 80A in all (40A / output)
Wire number of esch output: PG16, 10mm2 for each
Maximum output voltage: 800VDC
IP Rate: IP65
Working Temperature: -30℃ ~ +60℃
Product  N/G Weight: 9.5/14.3kg
Product Dimensions(mm): 400*420*145
Packing Size(mm): 530*510*255
Cooling menthod: Natura cooling
Surge protection: Have
Ground wrie size: ≥6mm²

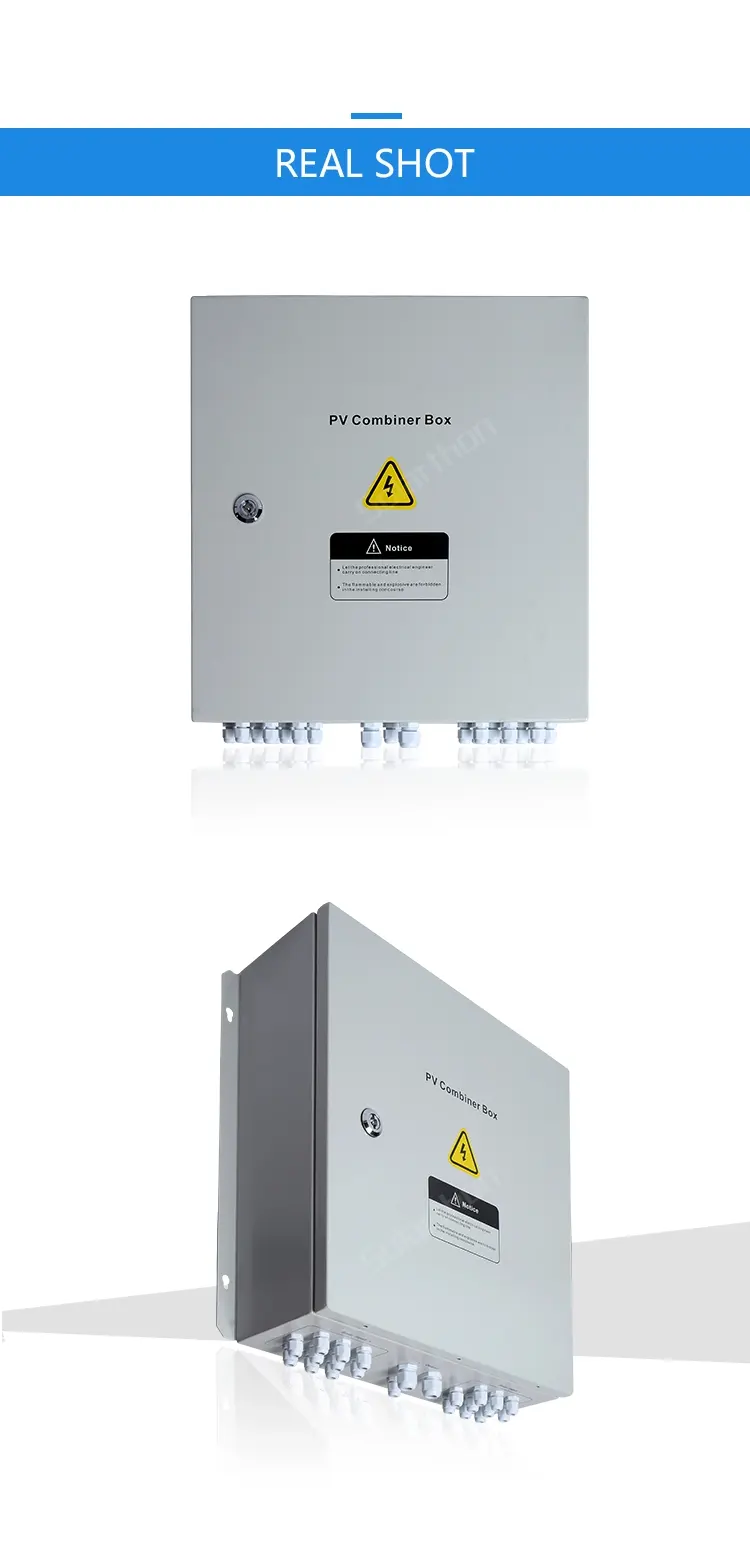

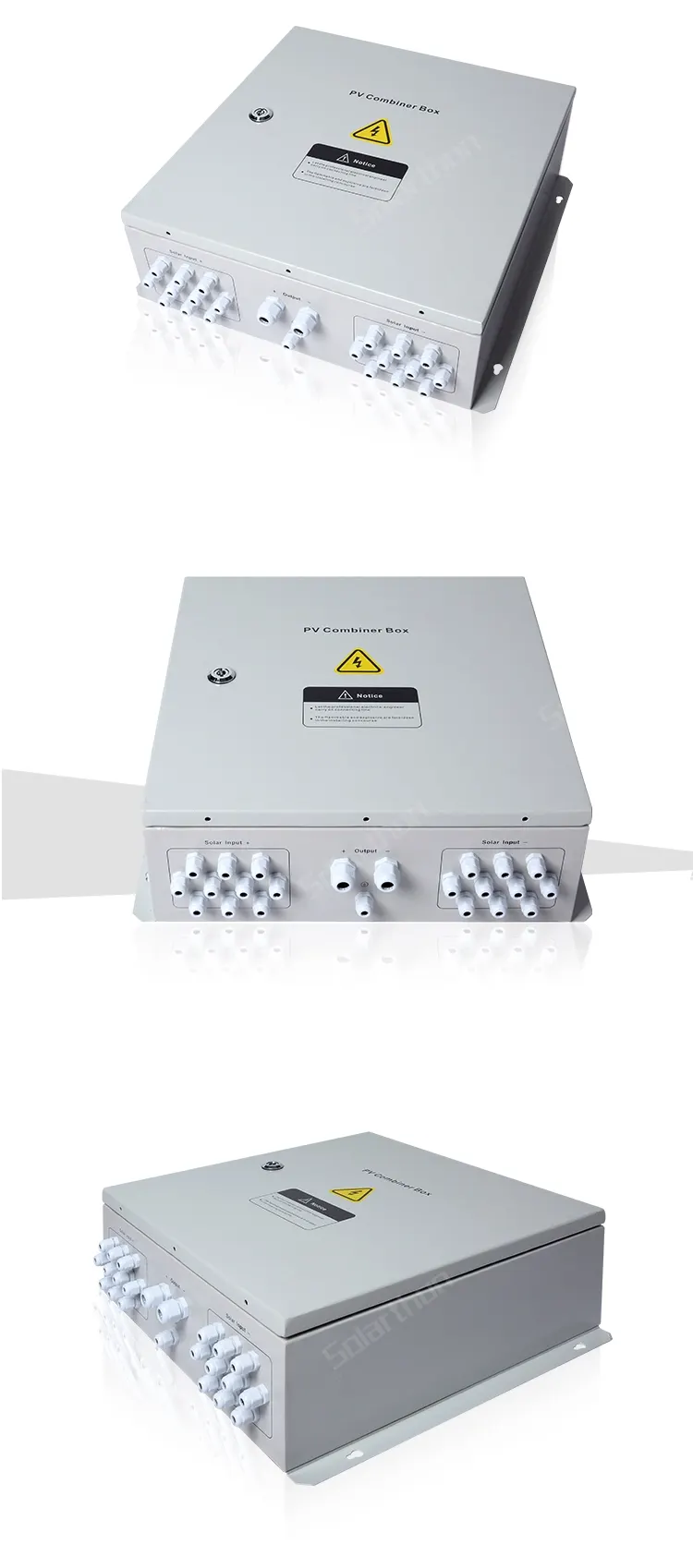

DQ1700B10-0110-in-1-out Combiner Box
Number of PV arrays inputs: 10
Max single PV array current: 10A
Wire number of each PV array input: PG7,4mm2
Number of output: 1or 2
Maximum output current: 100A in all (50A / output)
Wire number of esch output: PG16, 10mm2 for each
Maximum output voltage: 800VDC
IP Rate: IP65
Working Temperature: -30℃ ~ +60℃
Product  N/G Weight: 10.8/15.6kg
Product Dimensions(mm): 400*420*145
Packing Size(mm): 530*510*255
Cooling menthod: Natura cooling
Surge protection: Have
Ground wrie size: ≥6mm²

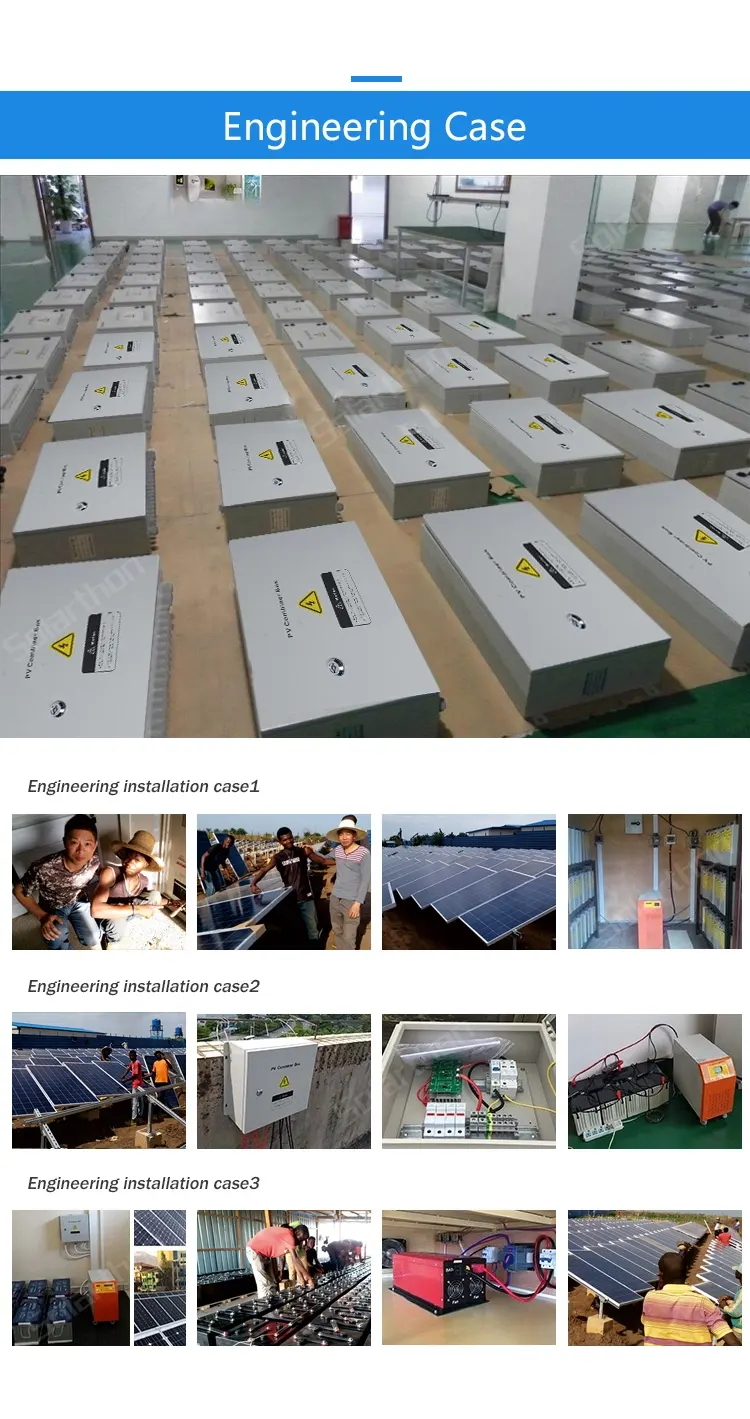

Supporting one-stop procurement, our product categories are complete; There is a specialized production line with guaranteed quality; Batch purchase supports OEM/ODM and provides professional installation guidance. Welcome to contact us!

A: Yes, all our inverters provide true pure sine wave output.

A: Yes, all our inverters provide true pure sine wave output.

A: Low frequency inverters have various protections, strong adaptability to the environment, and are more reliable with voltage regulation.

A: Pure sine wave output inverters provide power quality equivalent to or better than the public power grid. They have a low repair rate, long lifespan, no harmonic pollution, and are environmentally friendly. Modified sine wave output inverters have a negative impact on appliances and cannot load inductive loads, such as air conditioners and refrigerators. Certain motor control circuits may not be compatible with modified sine wave inverters.

A: Our inverters can be used with household, office, agricultural appliances, and other inductive loads such as refrigerators, air conditioners, water pumps, etc.

A: Yes, we accept OEM orders and can customize the products with your company logo.

A: Simply tell us your requirements, and our sales team will recommend a suitable inverter for you.

A: We offer 24-hour after-service consultancy to help you easily solve any technical problems you may encounter.

A: While a power inverter is not absolutely required for a solar energy system, it is necessary if you want to use normal AC appliances. Without a power inverter, you will only have battery power and won’t have 220 or 230 volts AC. This may be acceptable for small RVs or cabins.

A: If any product is faulty, please send us a picture or video, and we will study it. We provide free spare parts of the PCB board for after-sale service.
