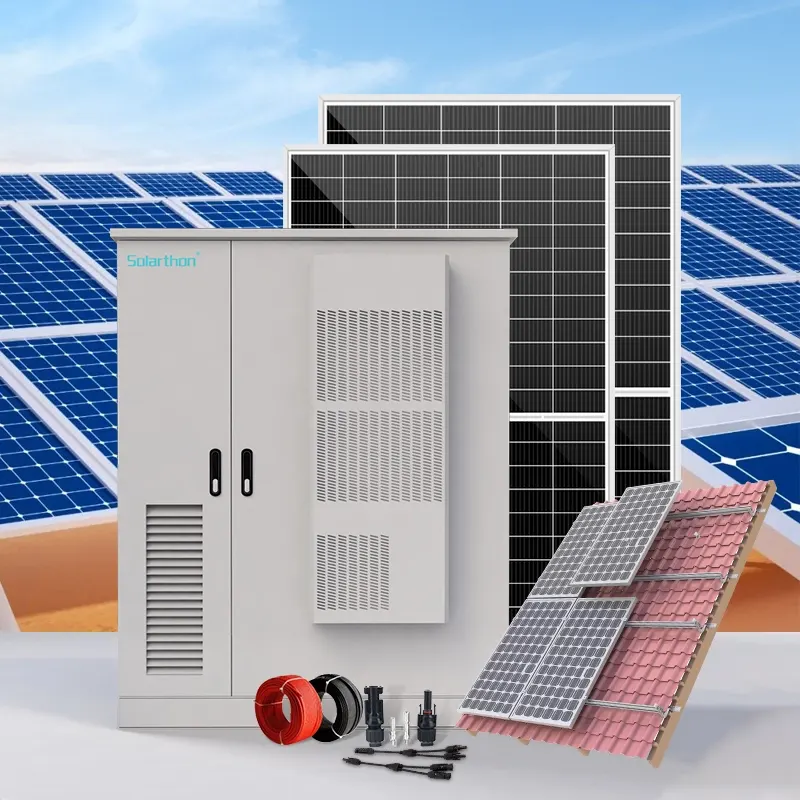

50KWH ESS with 30KW PCS and Solar Charging System Commercial Battery Storage Industrial Solar Panels System

An energy storage cabinet is a device that integrates an energy storage device and a power management system, which is mainly used to store electrical energy and release it when needed.
The concept of an energy storage cabinet is to centrally store electrical energy in order to supply power during peak power demand or in case of emergency. It mainly consists of a battery, an inverter, and a control system. The battery is the core component of the energy storage cabinet, which can convert electrical energy into chemical energy and store it. The function of the inverter is to convert the stored DC energy into alternating current energy for the use of various electrical equipment. The control system manages, optimizes energy use, and protects battery life.

Inquire

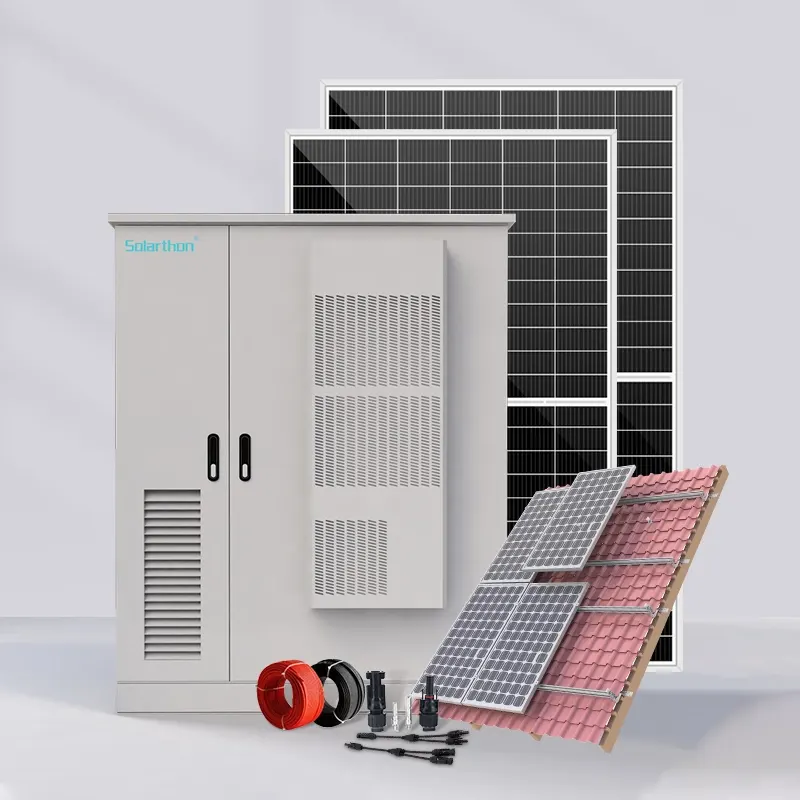

50KWH ESS with 30KW PCS and Solar Charging System

An energy storage cabinet is a device that integrates an energy storage device and a power management system, which is mainly used to store electrical energy and release it when needed.
The concept of an energy storage cabinet is to centrally store electrical energy in order to supply power during peak power demand or in case of emergency. It mainly consists of a battery, an inverter, and a control system. The battery is the core component of the energy storage cabinet, which can convert electrical energy into chemical energy and store it. The function of the inverter is to convert the stored DC energy into alternating current energy for the use of various electrical equipment. The control system manages, optimizes energy use, and protects battery life.

 Provide various application solutions.

Fast delivery and installation,we take care of the entire delivery and installation process, en-suring that the batteryies are installed safely and correctly.

Remote monitoring services to ensure that the system is operating efficiently and to iden-tify potential issues beforethey become major problems.

 Energy storage system and equipment-level 3D visualization, real-time presentation system running status and parameters

Realize energy storage anytime and anywhere through the mobile APP client Station operation status check and maintenance management.

Realize regular storage and distribution of charging and discharging data of energy storage power stations Analysis of power plant investment and operation costs and beneddits in different dimensions.

550W mono Half Cell PERC solar panel

 Vmp: 41V Voc: 49.2V Imp 13.45A
 Size: 2279*1134*35mm
 weight: 28.3kg
 25 years life span
 Linear performance: 25 years 80 % ; 10 years 90%
 Connection: 14 pcs in series

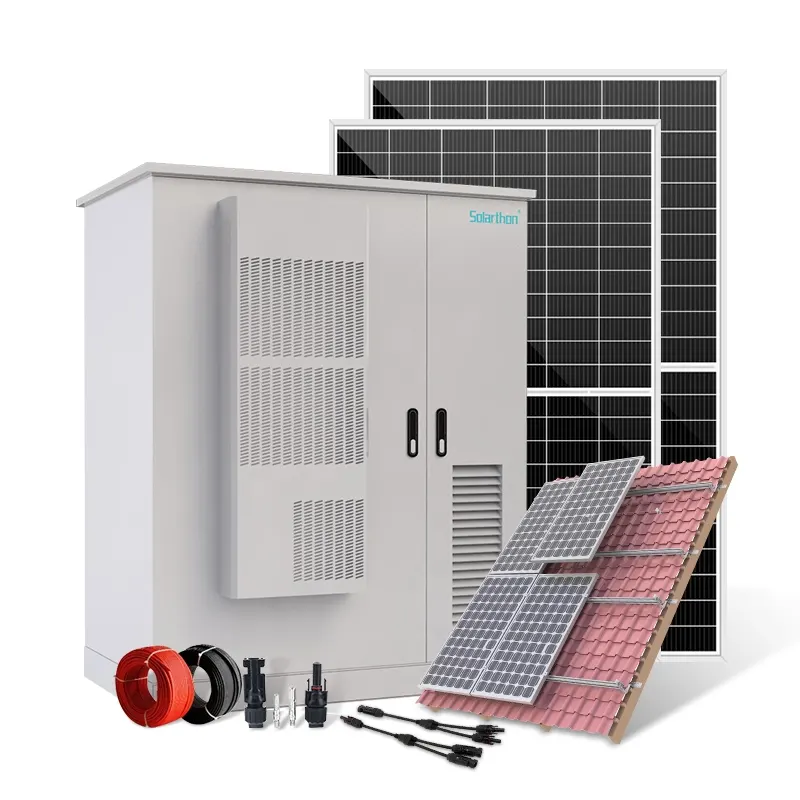

50KWH ESS with 30KW PCS and Solar Charging System

Energy Storage System(ESS)
LiFePO4 Battery: 512V/100AH
Battery Voltage Range: 448~584V

Power Conversion System(PCS)
Rated Power: 30KW
Rated AC Output Voltage: 380V, 50Hz
AC Input Voltage Range: 380V
DC Input Voltage Range: 320~850V

Solar Charger
Max. PV Charge Power: 19.2kW+19.2kW
Max. PV Input Voltage: 850V
MPPT Voltage Range: 200-830V

Energy Management System(EMS)
LCD monitor, RS485, CAN, TCP/IP

Outdoor Three-cabin Cabinet
Size: 2010*1600*1000mm
Air Conditioner, 600W, 2 sets
Fire Fighting System

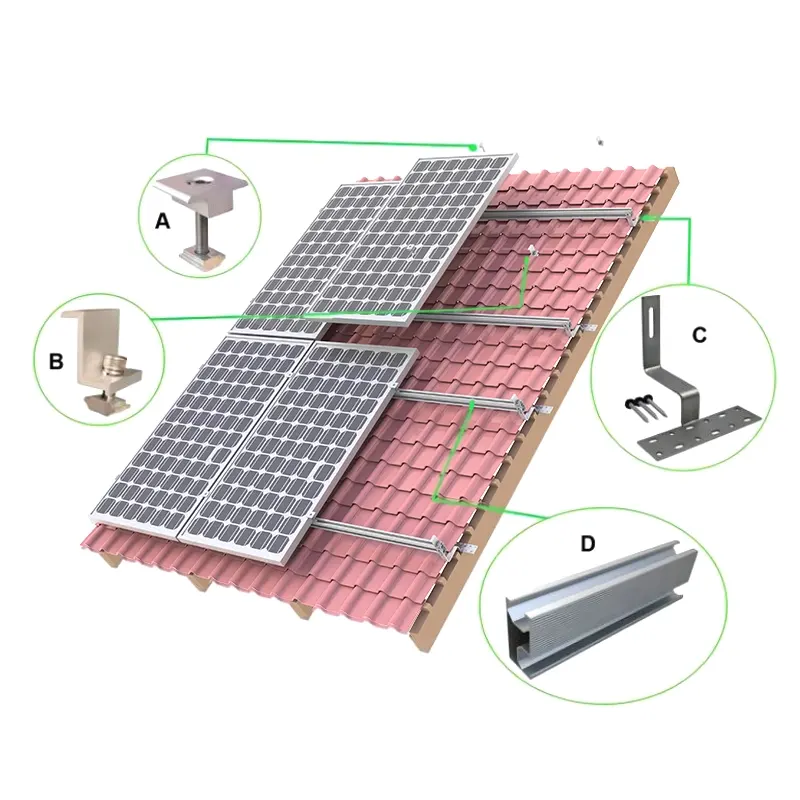

Slope Roof Mounting Structure

wind load: 55m/s,snow load:1.5kn/m2
structure: Anodized Aluminum

MC4-2, Positive PoleMC4-2, Negative Pole
6mm² PV cable: 100m, Red
6mm² PV cable: 100m, Black

MC4 Connector, Male Plug
MC4 Connector, Female Plug

Product display

A: Yes, all our inverters provide true pure sine wave output.

A: Yes, all our inverters provide true pure sine wave output.

A: Low frequency inverters have various protections, strong adaptability to the environment, and are more reliable with voltage regulation.

A: Pure sine wave output inverters provide power quality equivalent to or better than the public power grid. They have a low repair rate, long lifespan, no harmonic pollution, and are environmentally friendly. Modified sine wave output inverters have a negative impact on appliances and cannot load inductive loads, such as air conditioners and refrigerators. Certain motor control circuits may not be compatible with modified sine wave inverters.

A: Our inverters can be used with household, office, agricultural appliances, and other inductive loads such as refrigerators, air conditioners, water pumps, etc.

A: Yes, we accept OEM orders and can customize the products with your company logo.

A: Simply tell us your requirements, and our sales team will recommend a suitable inverter for you.

A: We offer 24-hour after-service consultancy to help you easily solve any technical problems you may encounter.

A: While a power inverter is not absolutely required for a solar energy system, it is necessary if you want to use normal AC appliances. Without a power inverter, you will only have battery power and won’t have 220 or 230 volts AC. This may be acceptable for small RVs or cabins.

A: If any product is faulty, please send us a picture or video, and we will study it. We provide free spare parts of the PCB board for after-sale service.
