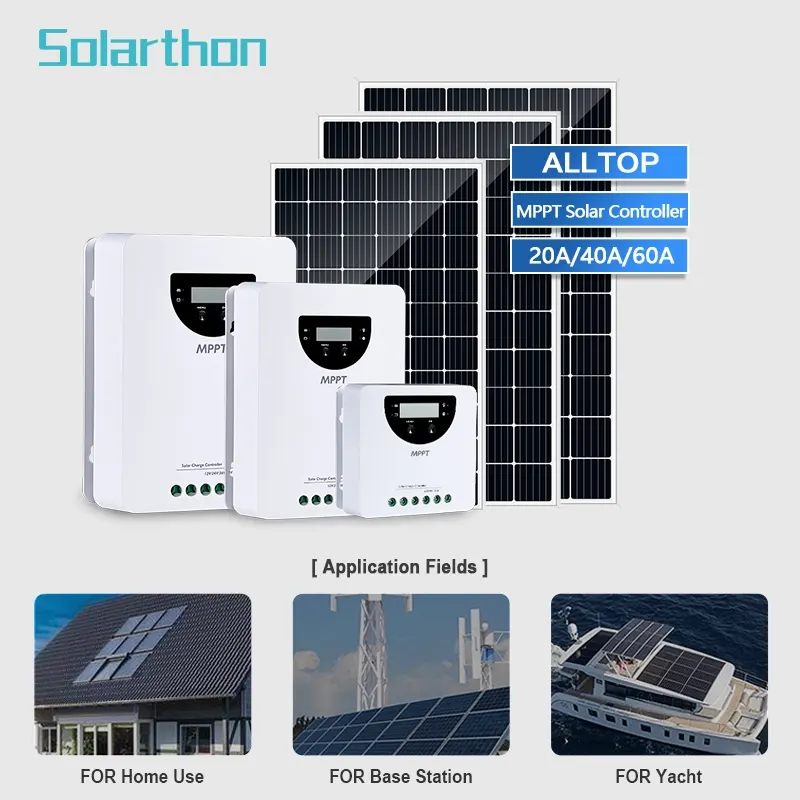

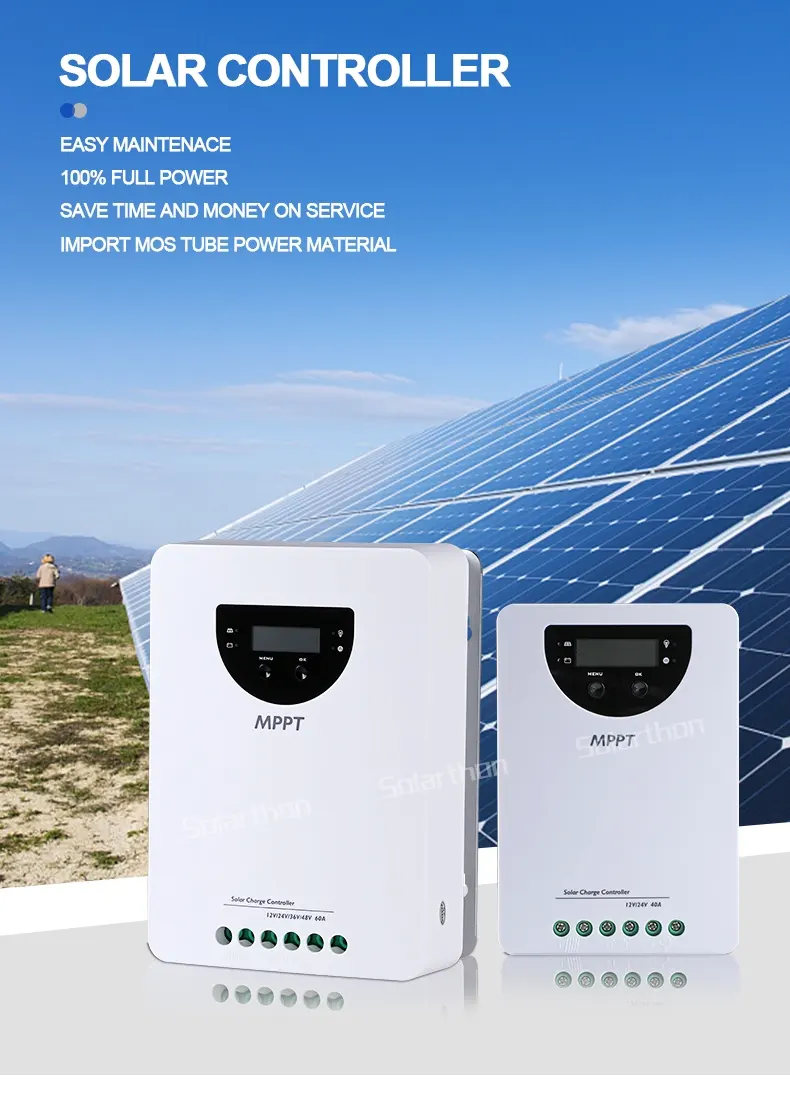

20A 40A 60A Off Grid Solar Panel Charge Controller Inverter

1. Off grid solar panel charge controller inverter various tracking algorithms are combined to accurately track the maximum power point in a very short time
2. Innovative maximum power point tracking technology (MPPT),maximum power point tracking efficiency>99.9%
3. Full digital control technology, charging conversion efficiency up to 98%
4. The Off grid solar panel charge controller inverter LCD screen dynamically displays the operating data and working status of the equipment

Inquire

Model:STB12
System Voltage:12/24V automatic identification
Overcharge protection voltage:10.0~32.0V(lithium battery, default 14.4V)
MPPT Tracking Range:battery voltage+1.0V)~Voc*0.9 *²

Brand:solarthon
MPPT Charging Voltage:<14.5/29V
Battery Type:gel, AGM, lead-acid, lithium (default gel battery)
Output Current:20A

Maximum Charging Current:20A
Maximum Battery Voltage:35V
Maximum PV Voltage:100V(-20℃), 90V(25℃)
Maximum input power:260W/520W

Backup Power for Home and Camping
Hours Super-fast Recharging
Features:
1,Build-in industrial micro controller.
2,One-key setting,digital display,auto memory function.
3,Fully 4-stage PWM charge management.
4,Build-in short-circuit protections,open-circuit protections,reverse protections,over-load protections
5,Dual mosfet Reverse current protections ,low heat productions.

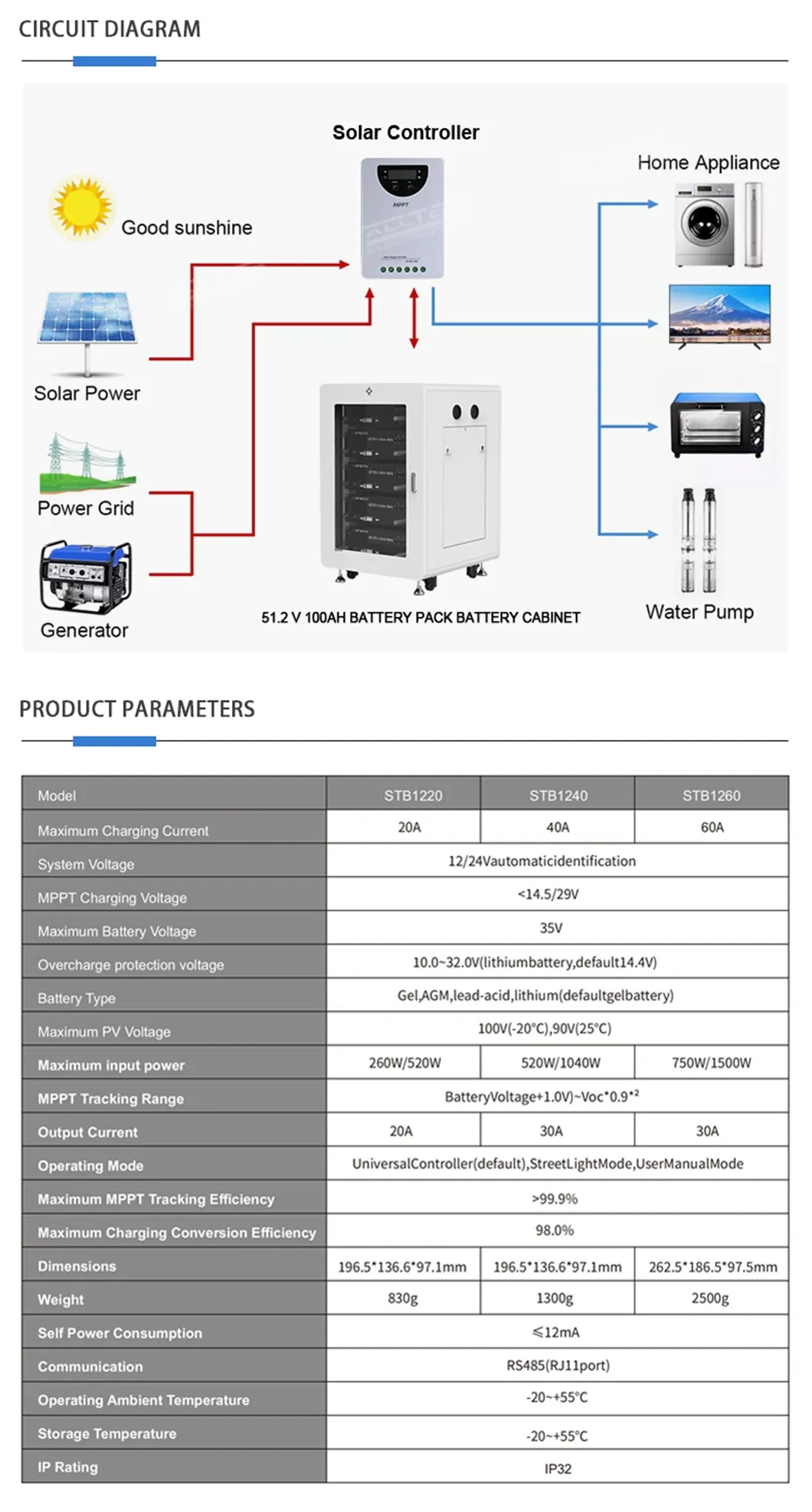

P/NProduct Description
STB122020A MPPT Solar Controller
Maximum Charging Current: 20A
System Voltage: 12/24V automatic identification
MPPT Charging Voltage:<14.5/29V
Maximum Battery Voltage: 35V
Overcharge protection voltage: 10.0~32.0V(lithium battery, default 14.4V)
Battery Type: gel, AGM, lead-acid, lithium (default gel battery)
Maximum PV Voltage: 100V(-20℃), 90V(25℃)
Maximum input power: 260W/520W
MPPT Tracking Range: battery voltage+1.0V)~Voc*0.9 *²
Output Current: 20A
Operating Mode: universal controller (default), street light mode, user manual mode
Maximum MPPT Tracking Efficiency: >99.9%
Maximum Charging Conversion Efficiency: 98.0%
Dimensions: 136.6*136.6*67.1mm
Weight: 830g
Self Power Consumption: ≤12mA
Communication: RS485(RJ11 port)
Operating Ambient Temperature: -20~+55℃
Storage Temperature: -25~+55℃
IP Rating: IP32
STB124040A MPPT Solar Controller
Maximum Charging Current: 40A
System Voltage: 12/24V automatic identification
MPPT Charging Voltage:<14.5/29V
Maximum Battery Voltage: 35V
Overcharge protection voltage: 10.0~32.0V(lithium battery, default 14.4V)
Battery Type: gel, AGM, lead-acid, lithium (default gel battery)
Maximum PV Voltage: 100V(-20℃), 90V(25℃)
Maximum input power: 520W/1040W
MPPT Tracking Range: battery voltage+1.0V)~Voc*0.9 *²
Output Current: 30A
Operating Mode: universal controller (default), street light mode, user manual mode
Maximum MPPT Tracking Efficiency: >99.9%
Maximum Charging Conversion Efficiency: 98.0%
Dimensions: 196.5*136.6*97.1mm
Weight: 1300g
Self Power Consumption: ≤12mA
Communication: RS485(RJ11 port)
Operating Ambient Temperature: -20~+55℃
Storage Temperature: -25~+55℃
IP Rating: IP32
STB126060A MPPT Solar Controller
Maximum Charging Current: 60A
System Voltage: 12/24V automatic identification
MPPT Charging Voltage:<14.5/29V
Maximum Battery Voltage: 35V
Overcharge protection voltage: 10.0~32.0V(lithium battery, default 14.4V)
Battery Type: gel, AGM, lead-acid, lithium (default gel battery)
Maximum PV Voltage: 100V(-20℃), 90V(25℃)
Maximum input power: 750W/1500W
MPPT Tracking Range: battery voltage+1.0V)~Voc*0.9 *²
Output Current: 30A
Operating Mode: universal controller (default), street light mode, user manual mode
Maximum MPPT Tracking Efficiency: >99.9%
Maximum Charging Conversion Efficiency: 98.0%
Dimensions: 262.5*186.5*97.5mm
Weight: 2500g
Self Power Consumption: ≤12mA
Communication: RS485(RJ11 port)
Operating Ambient Temperature: -20~+55℃
Storage Temperature: -25~+55℃
IP Rating: IP32

1【Wide Compatibility】The solar charger controller is compatible with 12V or 24V system automatically, suitable for lead-acid batteries. Dual USB 5V output ports support mobile phones, tablet PCs or other devices that require 5V voltage.

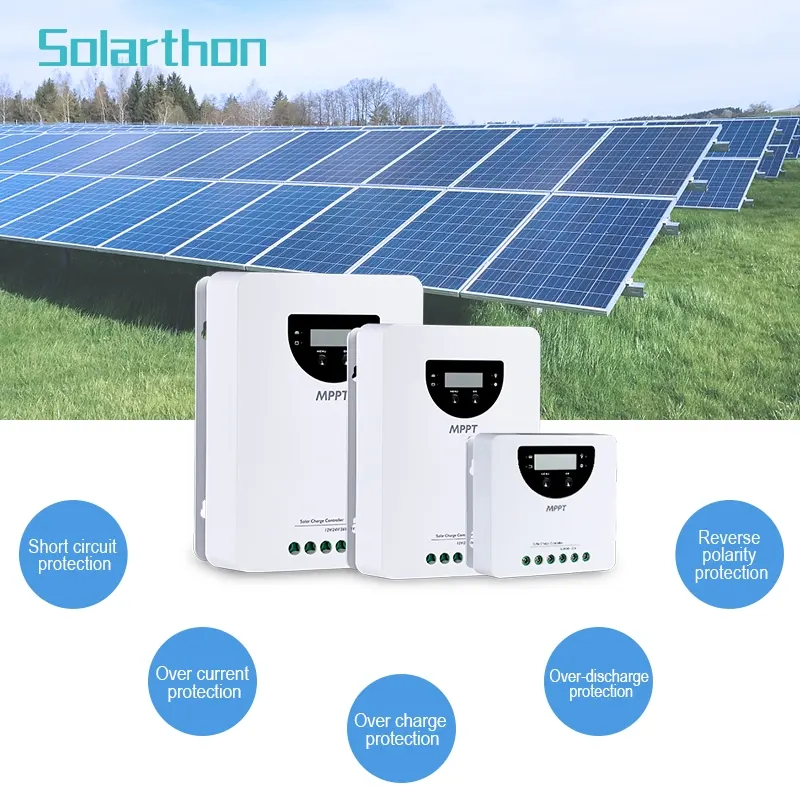

2【Reliable Protection】Solar charge regulator provides over-current protection, short-circuit protection, inverse connection protection, low voltage and overcharge protection, a reliable protector for your devices.
3【Intelligent Controller】Build-in industrial microcontroller for automatical management, memorizing various parameters set by the user and the data won’t be lost when the battery runs out.
4【Digital LCD Display】Intuitive LCD display that can clearly indicate the status and data is able to switch modes and aprameter configuration, suitable for home, industrial, commercial, etc.

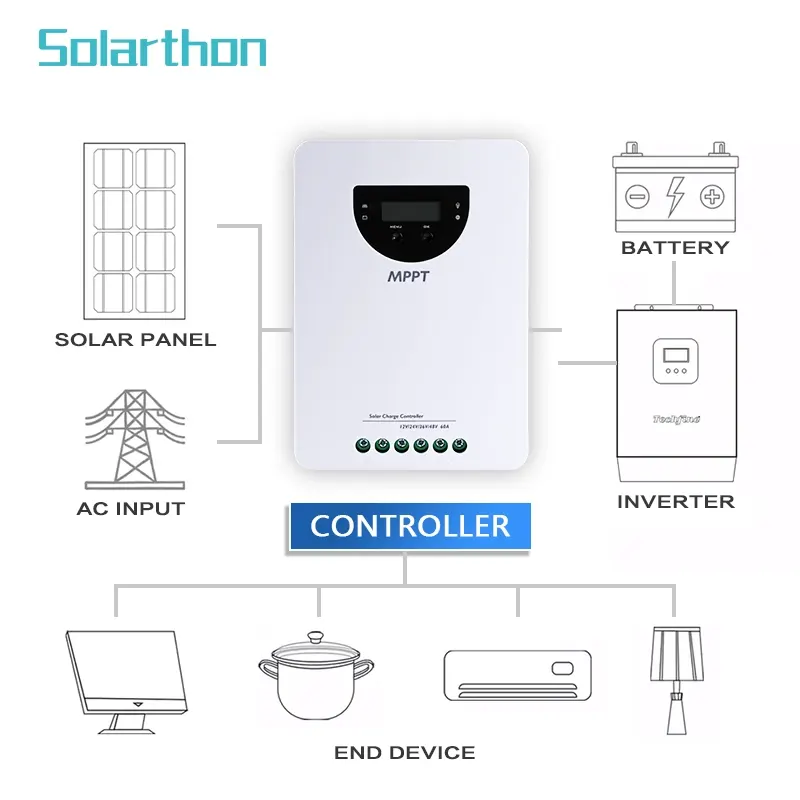

5【Easy to Use】The charge controller should connect the battery first, then the solar panel, and finally the load! You can change the settings by the simple one-button operation.

Supporting one-stop procurement, our product categories are complete; There is a specialized production line with guaranteed quality; Batch purchase supports OEM/ODM and provides professional installation guidance. Welcome to contact us!

A: Yes, all our inverters provide true pure sine wave output.

A: Yes, all our inverters provide true pure sine wave output.

A: Low frequency inverters have various protections, strong adaptability to the environment, and are more reliable with voltage regulation.

A: Pure sine wave output inverters provide power quality equivalent to or better than the public power grid. They have a low repair rate, long lifespan, no harmonic pollution, and are environmentally friendly. Modified sine wave output inverters have a negative impact on appliances and cannot load inductive loads, such as air conditioners and refrigerators. Certain motor control circuits may not be compatible with modified sine wave inverters.

A: Our inverters can be used with household, office, agricultural appliances, and other inductive loads such as refrigerators, air conditioners, water pumps, etc.

A: Yes, we accept OEM orders and can customize the products with your company logo.

A: Simply tell us your requirements, and our sales team will recommend a suitable inverter for you.

A: We offer 24-hour after-service consultancy to help you easily solve any technical problems you may encounter.

A: While a power inverter is not absolutely required for a solar energy system, it is necessary if you want to use normal AC appliances. Without a power inverter, you will only have battery power and won’t have 220 or 230 volts AC. This may be acceptable for small RVs or cabins.

A: If any product is faulty, please send us a picture or video, and we will study it. We provide free spare parts of the PCB board for after-sale service.
