2000W Portable Solar Generator Photovoltaic Power Inverters Power Station

one grid tie hybrid solar power inverter limiter including Short circuit protection, Input over-voltage/under-voltage protection, Output short-circuit, over-load, over-current, over-temperature protection.

Inquire

Model:AT12
Power Surge:≥Rated Power*2
Input Battery Voltage:12V
Input Low Voltage Cut Off:<DC10+0.3V

Brand:solarthon
Output Voltage:AC220V(Internal Adjustable)+10%
Input High Voltage Cut Off:DC15+1V
Input Voltage Range:DC10V-DC15V

Inverter Power:300W/500W/1000W/1500W/2000W
Output Frequency:50Hz+/ 5Hz 50Hz/60Hz Optional
Input Low Voltage Alarm:DC10.5+0.3V
Reverse Connect Protection Input:Reverse Connect Protection Input

one grid tie hybrid solar power inverter limiter built-in cooling fan ensures you an ultra silent using experience, also keeps the inverter running safely and effectively at a low temperature.solar panel power grid tie battery system inverter limiter smart cooling fan system makes more energy efficient and quieter. Effectively prevent inverter from malfunction due to overheating.solar panel power grid tie battery system inverter limiter pure sine wave model can effectively avoid energy waste. The effective utilization rate of energy is not less than 88%.

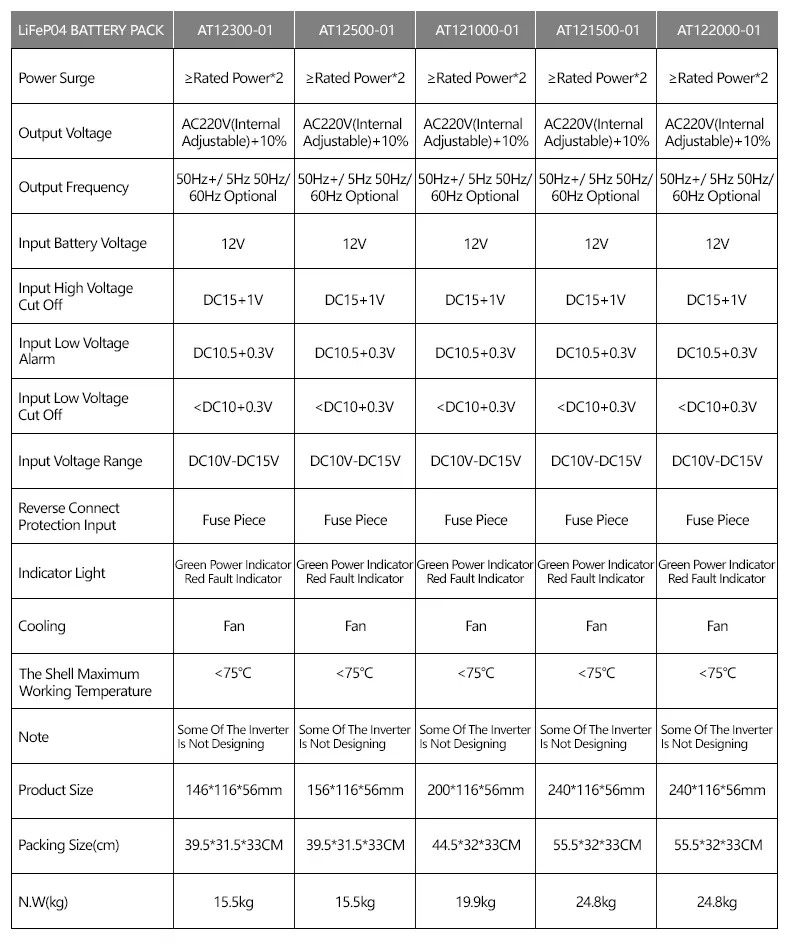

P/NProduct Description
AT12300-01300W DC to AC Power Inverter
Power Surge:  ≥Rated Power*2
Output Voltage: AC220V(Internal Adjustable)+10%
Output Frequency: 50Hz+/ 5Hz 50Hz/60Hz Optional
Input Battery Voltage: 12V
Input High Voltage Cut Off: DC15+1V
Input Low Voltage Alarm: DC10.5+0.3V
Input Low Voltage Cut Off: <DC10+0.3V
Input Voltage Range: DC10V-DC15V
Reverse Connect Protection Input: Fuse Piece
Indicator Light: Green Power Indicator, Red Fault Indicator
Cooling: Fan
The Shell Maximum Working Temperature: <75℃
Note: Some Of The Inverter Is Not Designing Undervoltage Alarm, Under Voltage Protection Is 9.5+0.3V

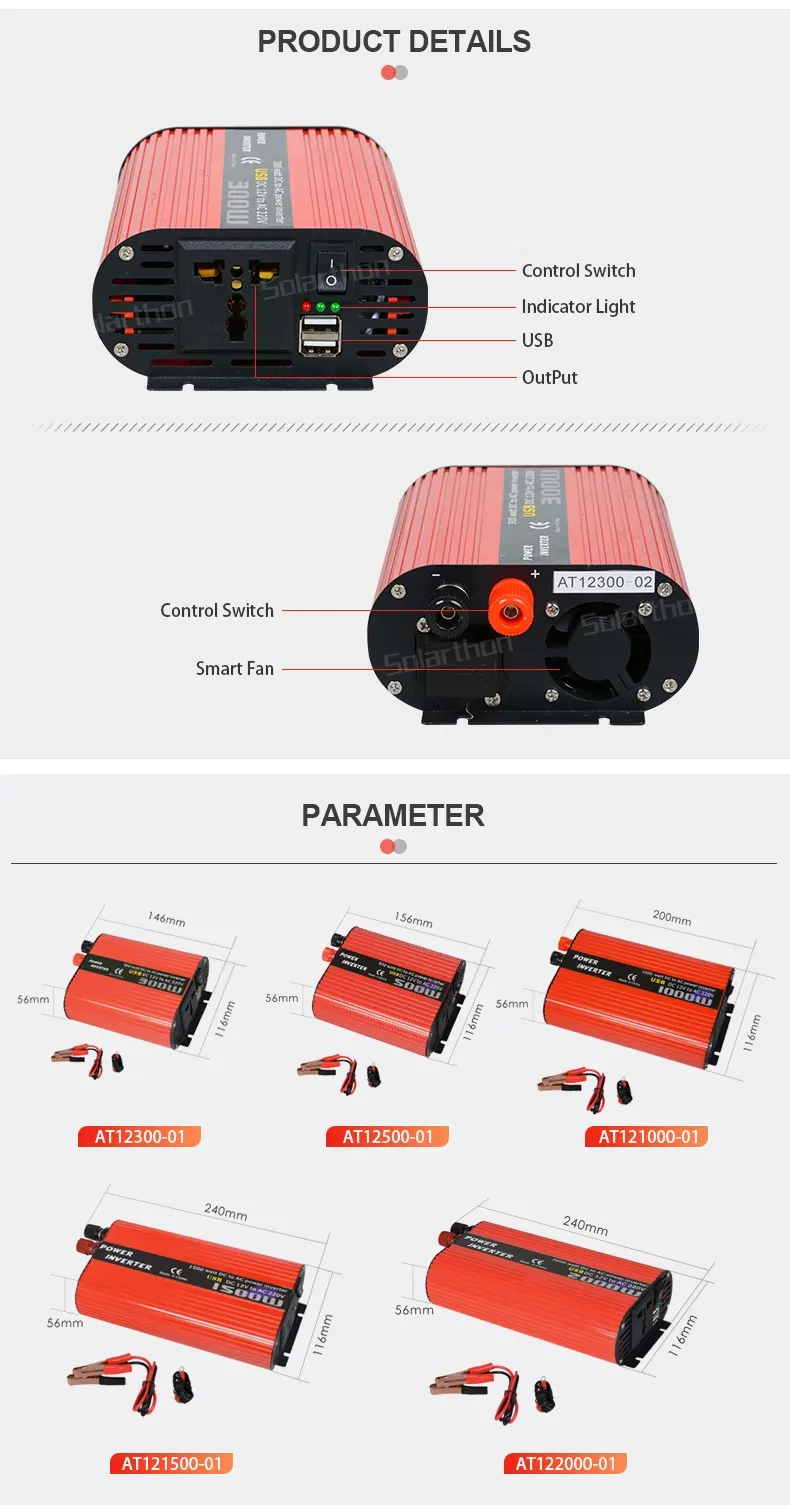

Product Size:146*116*56mm
Packing Size(cm):  39.5*31.5*33CM
20PCS/CTN
N.W(kg):  15.5kg
AT12500-01500W DC to AC Power Inverter
Power Surge:  ≥Rated Power*2
Output Voltage: AC220V(Internal Adjustable)+10%
Output Frequency: 50Hz+/ 5Hz 50Hz/60Hz Optional
Input Battery Voltage: 12V
Input High Voltage Cut Off: DC15+1V
Input Low Voltage Alarm: DC10.5+0.3V
Input Low Voltage Cut Off: <DC10+0.3V
Input Voltage Range: DC10V-DC15V
Reverse Connect Protection Input: Fuse Piece
Indicator Light: Green Power Indicator, Red Fault Indicator
Cooling: Fan
The Shell Maximum Working Temperature: <75℃
Note: Some Of The Inverter Is Not Designing Undervoltage Alarm, Under Voltage Protection Is 9.5+0.3V
Product Size:156*116*56
Packing Size(cm):  39.5*31.5*33CM  20PCS/CTN
N.W(kg):  15.5kg
AT121000-011000W DC to AC Power Inverter
Power Surge:  ≥Rated Power*2
Output Voltage: AC220V(Internal Adjustable)+10%
Output Frequency: 50Hz+/ 5Hz 50Hz/60Hz Optional
Input Battery Voltage: 12V
Input High Voltage Cut Off: DC15+1V
Input Low Voltage Alarm: DC10.5+0.3V
Input Low Voltage Cut Off: <DC10+0.3V
Input Voltage Range: DC10V-DC15V
Reverse Connect Protection Input: Fuse Piece
Indicator Light: Green Power Indicator, Red Fault Indicator
Cooling: Fan
The Shell Maximum Working Temperature: <75℃
Note: Some Of The Inverter Is Not Designing Undervoltage Alarm, Under Voltage Protection Is 9.5+0.3V
Product Size: 200*116*56
Packing Size(cm):  44.5*32*33CM  20PCS/CTN
N.W(kg):  19.9kg
AT121500-011500W DC to AC Power Inverter
Power Surge:  ≥Rated Power*2
Output Voltage: AC220V(Internal Adjustable)+10%
Output Frequency: 50Hz+/ 5Hz 50Hz/60Hz Optional
Input Battery Voltage: 12V
Input High Voltage Cut Off: DC15+1V
Input Low Voltage Alarm: DC10.5+0.3V
Input Low Voltage Cut Off: <DC10+0.3V
Input Voltage Range: DC10V-DC15V
Reverse Connect Protection Input: Fuse Piece
Indicator Light: Green Power Indicator, Red Fault Indicator
Cooling: Fan
The Shell Maximum Working Temperature: <75℃
Note: Some Of The Inverter Is Not Designing Undervoltage Alarm, Under Voltage Protection Is 9.5+0.3V
Product Size: 240*116*56
Packing Size(cm):  55.5*32*33CM   20PCS/CTN
N.W(kg):  24.8kg
AT122000-012000W DC to AC Power Inverter
Power Surge:  ≥Rated Power*2
Output Voltage: AC220V(Internal Adjustable)+10%
Output Frequency: 50Hz+/ 5Hz 50Hz/60Hz Optional
Input Battery Voltage: 12V
Input High Voltage Cut Off: DC15+1V
Input Low Voltage Alarm: DC10.5+0.3V
Input Low Voltage Cut Off: <DC10+0.3V
Input Voltage Range: DC10V-DC15V
Reverse Connect Protection Input: Fuse Piece
Indicator Light: Green Power Indicator, Red Fault Indicator
Cooling: Fan
The Shell Maximum Working Temperature: <75℃
Note: Some Of The Inverter Is Not Designing Undervoltage Alarm, Under Voltage Protection Is 9.5+0.3V
Product Size: 240*116*56
Packing Size(cm):  55.5*32*33CM   20PCS/CTN
N.W(kg):  24.8kg

A: Yes, all our inverters provide true pure sine wave output.

A: Yes, all our inverters provide true pure sine wave output.

A: Low frequency inverters have various protections, strong adaptability to the environment, and are more reliable with voltage regulation.

A: Pure sine wave output inverters provide power quality equivalent to or better than the public power grid. They have a low repair rate, long lifespan, no harmonic pollution, and are environmentally friendly. Modified sine wave output inverters have a negative impact on appliances and cannot load inductive loads, such as air conditioners and refrigerators. Certain motor control circuits may not be compatible with modified sine wave inverters.

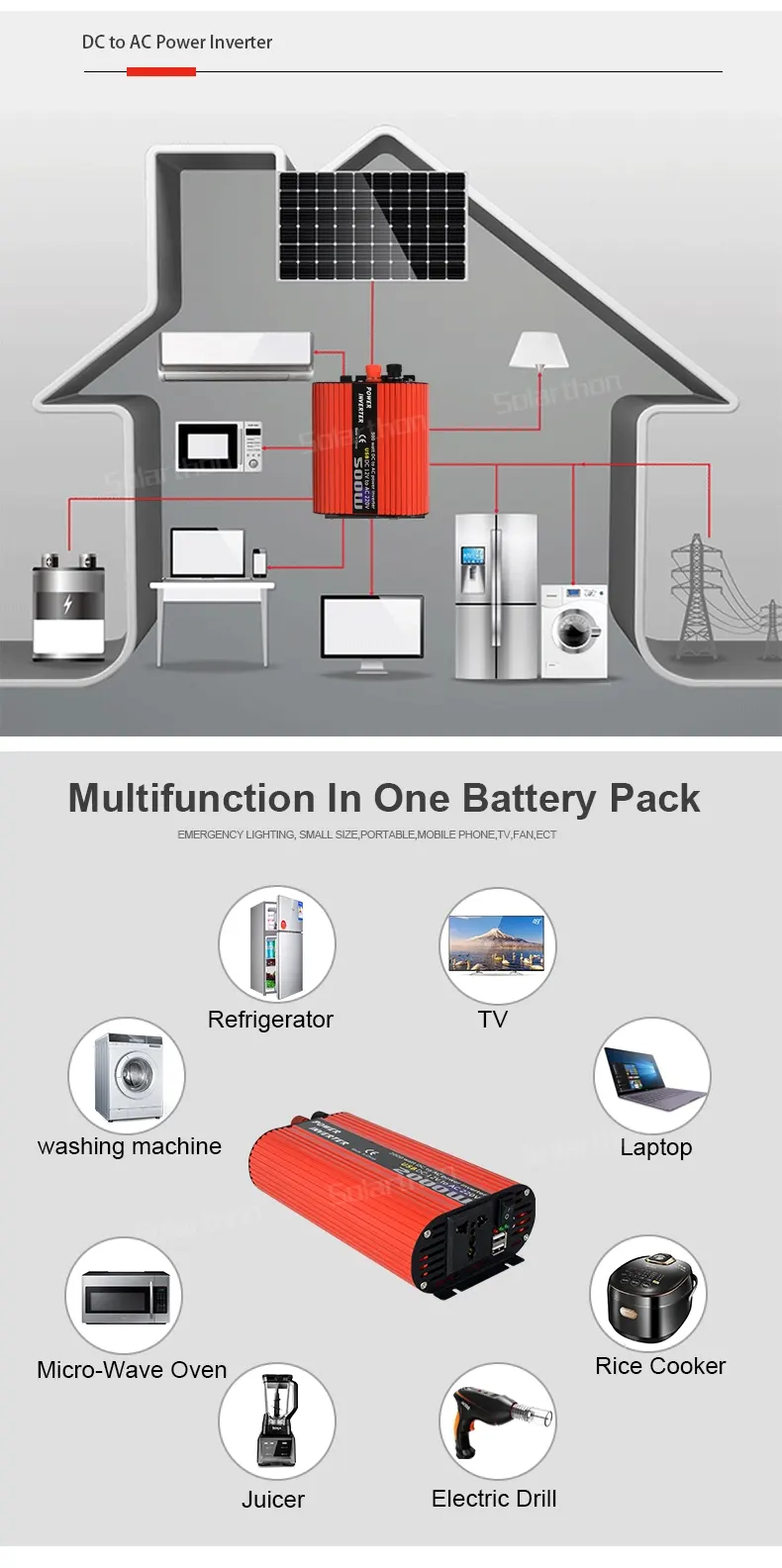

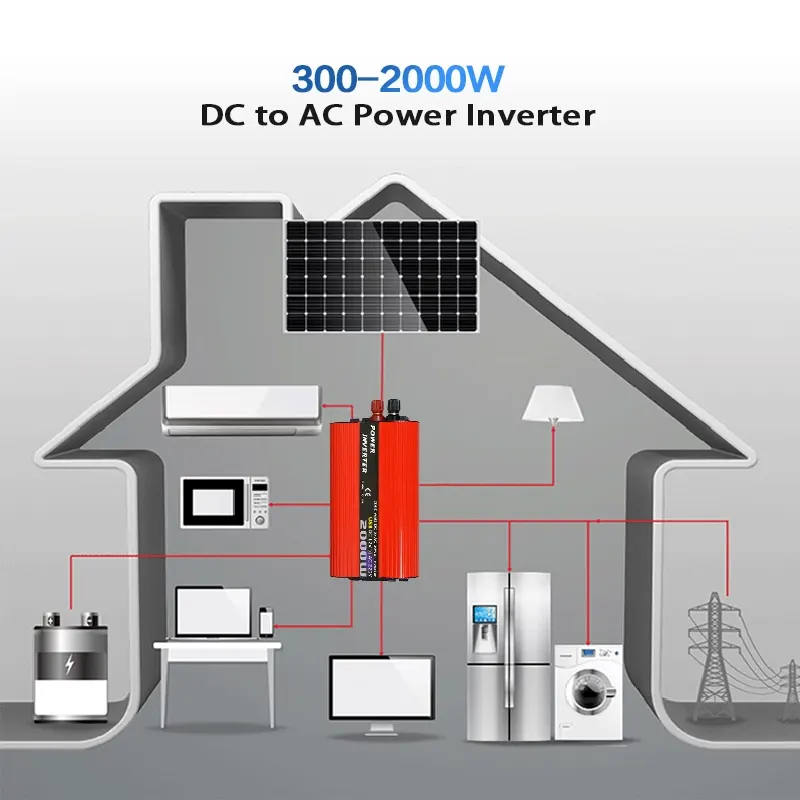

A: Our inverters can be used with household, office, agricultural appliances, and other inductive loads such as refrigerators, air conditioners, water pumps, etc.

A: Yes, we accept OEM orders and can customize the products with your company logo.

A: Simply tell us your requirements, and our sales team will recommend a suitable inverter for you.

A: We offer 24-hour after-service consultancy to help you easily solve any technical problems you may encounter.

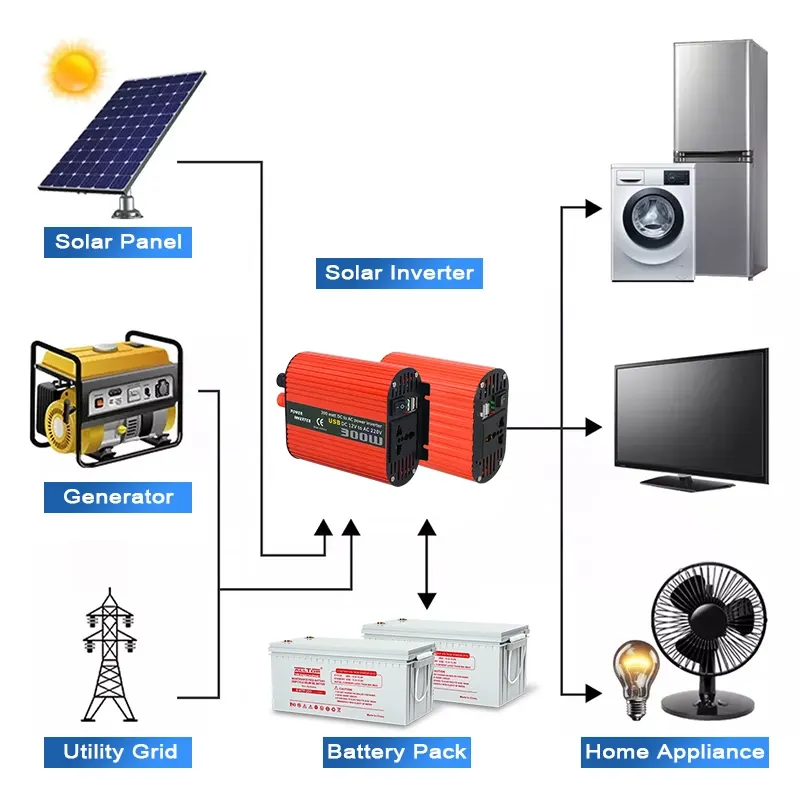

A: While a power inverter is not absolutely required for a solar energy system, it is necessary if you want to use normal AC appliances. Without a power inverter, you will only have battery power and won’t have 220 or 230 volts AC. This may be acceptable for small RVs or cabins.

A: If any product is faulty, please send us a picture or video, and we will study it. We provide free spare parts of the PCB board for after-sale service.
