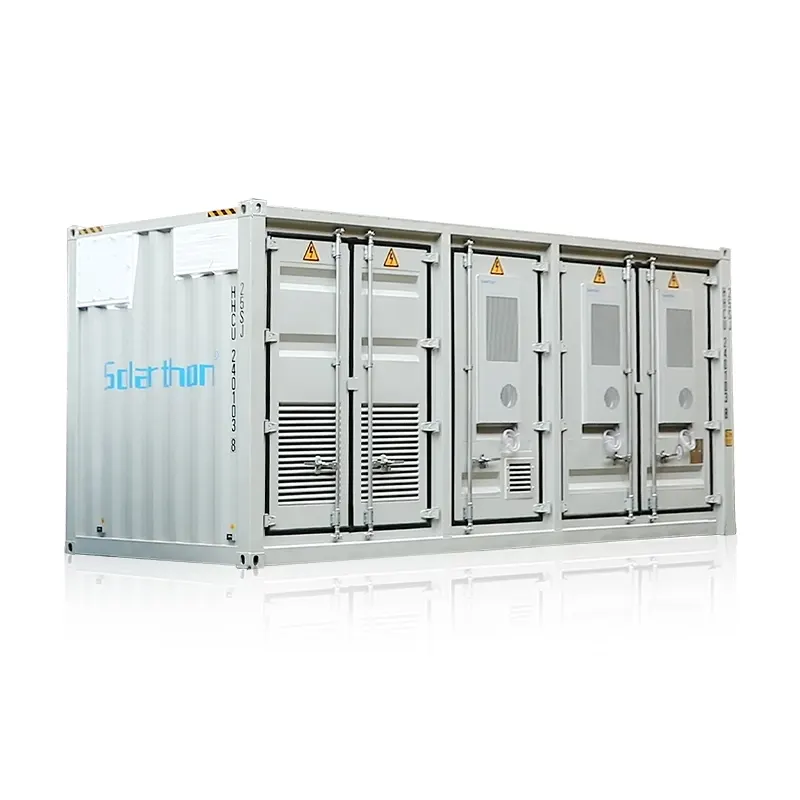

1MWh 5MWh 10Mwh ESS Container Energy Storage System

uses standard battery modules, PCS modules, BMS, EMS and other systems to form standard containers to build large-scale grid-side energy storage projects. The standardized 40ft container system can be configured with 1MW 2MW energy storage system. It meets the application needs of regional power grid peak shaving, frequency regulation, voltage regulation, emergency response, new energy consumption, etc., and ensures the normal operation of the power system.

Inquire

1.0MWH | 2.5MWH | 5.0MWH Industrial & Commercial Energy Storage System

Utility Energy Storage Container 1MW 2MW Off Grid Solar Power System Lithium Storage Energy Battery Systems
︱Safe and reliable︱
■ High quality LFP batteries for mobile use.
■ Intelligent air conditioning design, small temperature fluctuation.Energy Storage Container.
■ Automatic induction of fire source; automatic fire extinguishing; sound and light alarm function.
■ Container-mounted network camera with video surveillance function; (optional)
■ IP54，safe and reliable operation in outdoor environment.energy storage container container.
■ Serially designed PCS and battery pack eliminates circulating current and improve system reliability.
■ Integrated BMS,DC, AC multi-layer protection, maximum safety performance design.
︱Efficient and Convenient︱
■ Container installation, high modularity, simple structure, easy installation and maintenance.
■ All-in-one equipment, which can be fixed, vehicle-mounted, and easy to move.ESS Storage Container.
■ Enables remote monitoring, device management, remote troubleshooting and data analysis.
︱Cost optimization︱
■ One investment, multiple benefits:Peak shaving, backup power supply, microgrid building,power quality improving and energy storage,etc.commercial solar battery storage.
■ Long cycle life, low failure rate, reduce operation and maintenance investment.
■ Maximize green energy utilization.industrial battery storage.

High Security
lithium iron phosphate batteries; module-level fire protection unit;system-level fire protection unit.

Efficient and balanced ESS technology
high-efficiency equalization technology to eliminate series loss.

Long Life Cycle
The battery has more than 6000 cycles, and the system has a long service life.

Efficient thermal management system
Internally integrates a high-efficiency liquid cooling and liquid heating system. which can effectively ensure the consistency of the single cells.

Easy Installation
Standardized product design, installation is extremely simplified, and user deployment is convenient.

Popular trust
Insert the solar panel terminals into the”SOLA RINPUT”Port charging.

1075KWH Energy Storage System(ESS)

1075KWH Ess with 500KWPcs
LiFePO4 Battery. 768V/280AH, 3 sets Battery
Voltage Range: 672-864V
Power Conversion System(PCS)Rated Power: 500KW
Rated AC Voltage :400V, 50/60Hz
Voltage Range : 320–460VDC
Voltage Range: 500-850V
Energy Management System(EMS)LCD monitor, RS485, CAN, TCP/IP
20-foot Container
Size: 6058*2438*2900mm
Air Conditioner, 1800W,
2 setsFire Fighting System

1.0MWH | 2.5MWH | 5.0MWH Industrial & Commercial Energy Storage System

5000KW PCS AND SOLAR CHARGER
AC380V, 50/60Hz, 10MPPT 400VAC 50/60Hz
Max.PV Input Voltage ：1000V
MPPT Voltage Range：250-850V
Max Efficiency 98.1%
IP65, 5 Years Warranty
Size: 1200×720+1600x1050mm
Weight: 3265kg
1505KWh Battery Bank
40-foot Container, Battery Cluster
768V/1960AH
BMS Three-Level Management System
Electrical Equipment
Auxiliary System

Product display

A: Yes, all our inverters provide true pure sine wave output.

A: Yes, all our inverters provide true pure sine wave output.

A: Low frequency inverters have various protections, strong adaptability to the environment, and are more reliable with voltage regulation.

A: Pure sine wave output inverters provide power quality equivalent to or better than the public power grid. They have a low repair rate, long lifespan, no harmonic pollution, and are environmentally friendly. Modified sine wave output inverters have a negative impact on appliances and cannot load inductive loads, such as air conditioners and refrigerators. Certain motor control circuits may not be compatible with modified sine wave inverters.

A: Our inverters can be used with household, office, agricultural appliances, and other inductive loads such as refrigerators, air conditioners, water pumps, etc.

A: Yes, we accept OEM orders and can customize the products with your company logo.

A: Simply tell us your requirements, and our sales team will recommend a suitable inverter for you.

A: We offer 24-hour after-service consultancy to help you easily solve any technical problems you may encounter.

A: While a power inverter is not absolutely required for a solar energy system, it is necessary if you want to use normal AC appliances. Without a power inverter, you will only have battery power and won’t have 220 or 230 volts AC. This may be acceptable for small RVs or cabins.

A: If any product is faulty, please send us a picture or video, and we will study it. We provide free spare parts of the PCB board for after-sale service.
