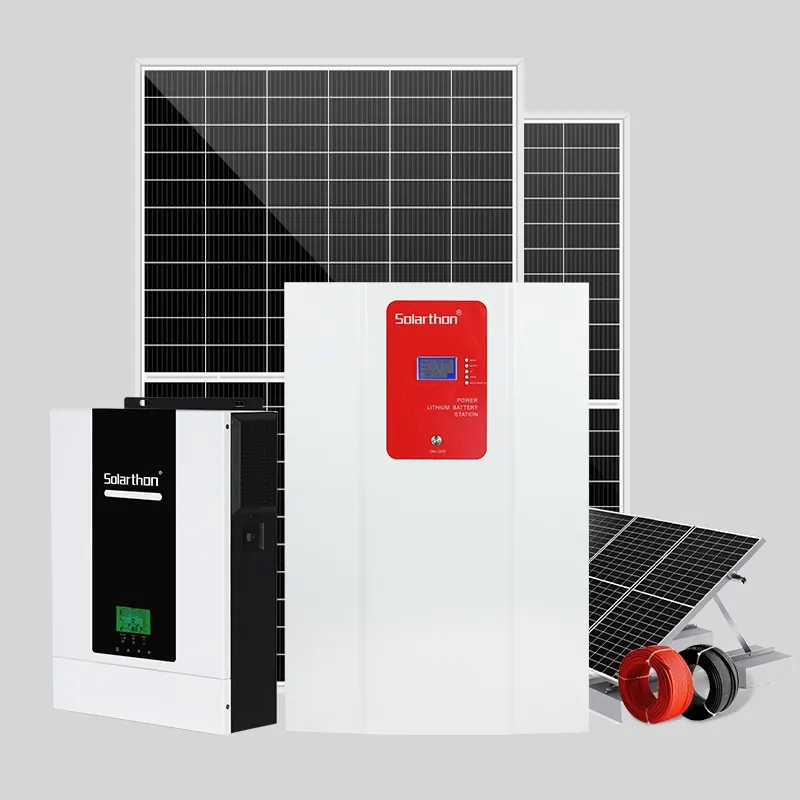

Off On Grid Complete Solar Energy System Hybrid Inverter 5kw 10kw Solar Home Power System

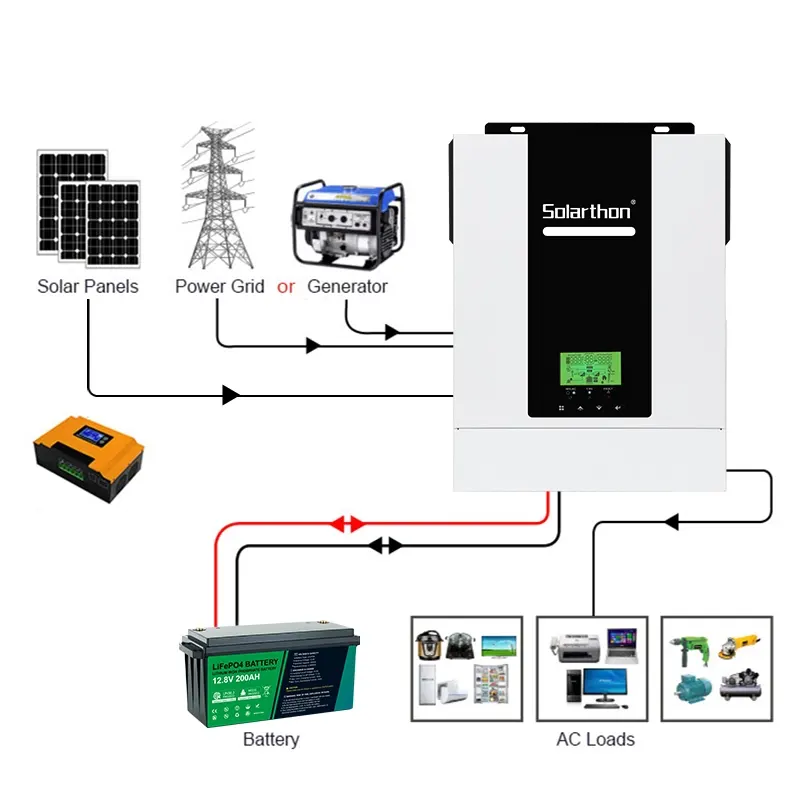

This product has multiple power supply modes of mains and solar energy. Users can flexibly choose theapplication form of energy according to their needs, ensuring the power supply guarantee rate and using cleanenergy at peak value. it is suitable for areas with lack of power and poor stability in the power grid, as well asdiesel fuel ,Gasoline generators instead of grid power supply and occasions with solar energy resources.

Inquire

SOLAR INVERTER 0.55KW/1.1KW/1.65KW/2.2KW/2.75KW

On/Off Grid Solar Inverter 1.6kW/3.0kW
Ranktop energy storage products and system solutins to solve the problem of power supplyin areas with no electricity and weak electricity,.micro inverter,and realizeinteligent supply and demand configuration. This system is designed for the thre-phase energy storage system,.micro inverter,which can reaize the functions of powergeneration in the grid, of-grid inverter, urban power backcharging and so on. When the power grid is powered off,Powerful Hybrid solar lnverter,the storage systemseamlessly switches to the off-grid mode to ensure uninterrupted power supply.Performance characteristic(1) Easy to operate and set parameters on site.dc ac power inverter,Communication and other peripheral functions, improve power reliability.

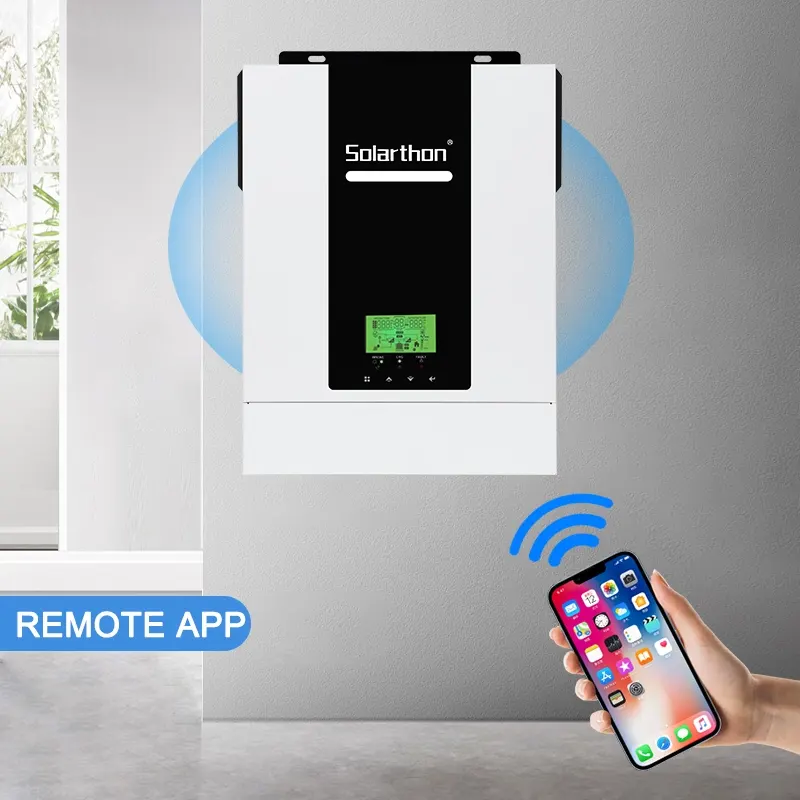

(2) Support R485, WiF,GPRs, Etheret communication, to meet customer remote monitoring and other functions; t an display AC and DCvoltage, urent operation modeoperation status, faultinformation, and upload relevant data to the interet of Things platformthrough the communication interface, and can start and stop power,parameter setting and other operations through the computer or mobile phone:
(3) Design smart grid and smart microgrid, accept power grid dispatching, cut peaks and fill valleys
(4) Meet the lead acid battery,lithium battery,split phase inverter,supercapacitor,vanadium batery and other diferent forms of energy storage access,dc ac inverter,a widerange of applications.

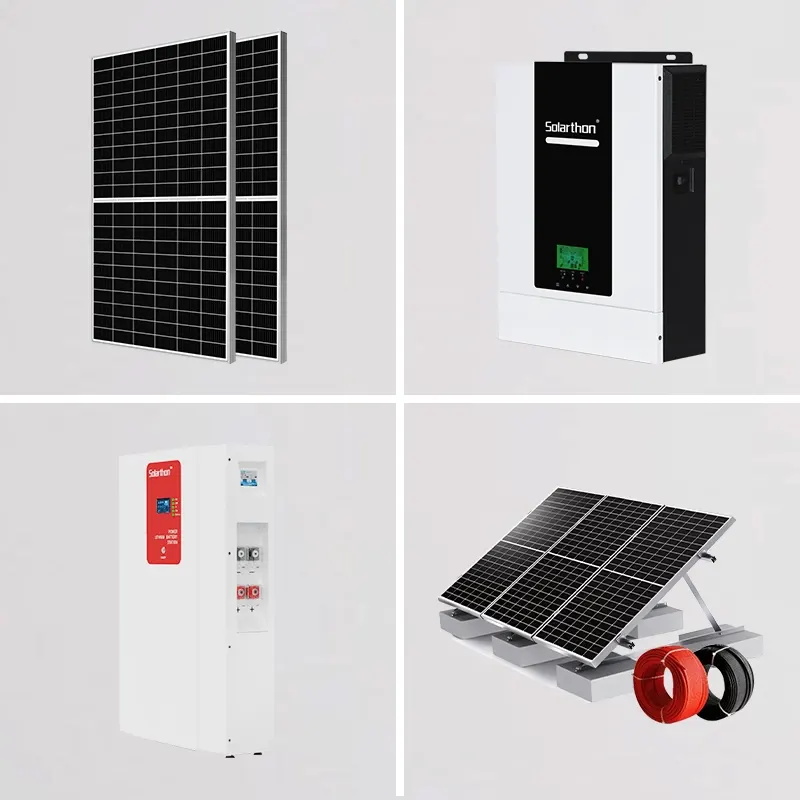

550W mono Half Cell PERC solar panel

Vmp: 41.95V Voc: 49.8V Imp 13.11A
Size: 2279*1134*35mm
weight: 28.3kg
25 years life span
Linear performance: 25 years 80 % ; 10 years 90%
Connection: 15 pcs In Series

125KW On Grid Solar Inverter

Rated Output Power: 3KW
Rated Output Voltage: 230VAC, 50Hz/60Hz
Maximum PV input Voltage(Voc): 400VDC
MPPT Tracking Voltage Range: 30V-400VDC
Baterry Voltage: 24VDC
Maximum PV Array Power: 3000W
Maximum pv Charge Current: 80A
Rated Ac input Voltage: 230VAC, 50Hz/60Hz
Maximum Ac Charge Current: 60A
Product Size: 273x357x95mm
Weight: 6.2kg

25.6V 200AH Battery Pack

Model: LF25200-02
Battery Type: LiFePo4
Nominal Voltage: 25.6V
Nominal Capacity: 200Ah
Charging Cut-off Voltage: 29.2V
Discharging Cut-off Voltage: 21.6V
Max. Cont. charging/Discharging Current: 100A
Max.Instantaneous Charge/Discharge Current: 200A
Max. Number Of Parallel: 6 sets
Cycle Life: ≥6000
Product Size:720*355*167mm
Weight: 30kg

Flat Roof Mounting Structure

Structure: Hot-Dip Galvanized Steel
Wind load: 55m/s,snow load:1.5kn/m2
4mm2 Pv Wire. Red, 20m
4mm2 PV Wire, Black, 20m
25mm2 Pv Wire. Red, 5m

PROJECT CASE

A: Yes, all our inverters provide true pure sine wave output.

A: Yes, all our inverters provide true pure sine wave output.

A: Low frequency inverters have various protections, strong adaptability to the environment, and are more reliable with voltage regulation.

A: Pure sine wave output inverters provide power quality equivalent to or better than the public power grid. They have a low repair rate, long lifespan, no harmonic pollution, and are environmentally friendly. Modified sine wave output inverters have a negative impact on appliances and cannot load inductive loads, such as air conditioners and refrigerators. Certain motor control circuits may not be compatible with modified sine wave inverters.

A: Our inverters can be used with household, office, agricultural appliances, and other inductive loads such as refrigerators, air conditioners, water pumps, etc.

A: Yes, we accept OEM orders and can customize the products with your company logo.

A: Simply tell us your requirements, and our sales team will recommend a suitable inverter for you.

A: We offer 24-hour after-service consultancy to help you easily solve any technical problems you may encounter.

A: While a power inverter is not absolutely required for a solar energy system, it is necessary if you want to use normal AC appliances. Without a power inverter, you will only have battery power and won’t have 220 or 230 volts AC. This may be acceptable for small RVs or cabins.

A: If any product is faulty, please send us a picture or video, and we will study it. We provide free spare parts of the PCB board for after-sale service.
