OEM Energy High Voltage 768V 100AH Industrial Commercial Storage Systems Lithium Commercial Energy Storage

Key features of the solar power battery banks include a long 10+ year lifespan, integrated battery management system for protection, operating temperatures ranging from -20°C to +55°C, and depth of discharge up to 90% for excellent energy harvest. The intrinsically safe LiFePO4 chemistry also makes the system reliable and eco-friendly.
Advanced monitoring and control capabilities like remote upgrade over WiFi, compatibility with Deye hybrid inverters, and thermal management optimize system performance and lifespan.
With certifications like CE, IEC and UL, the WS-HV100 is positioned as a high-quality solar energy storage solution. Its flexible architecture can reliably support small-scale commercial and industrial applications from 20kW to 200kW.

Inquire

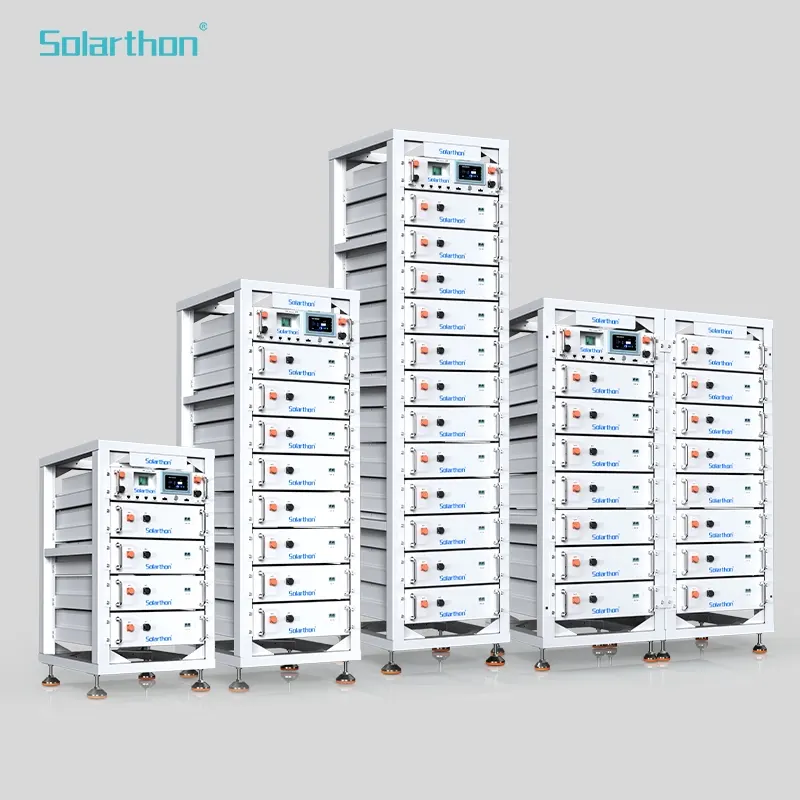

Vertically Stacked Energy Storage Battery Pack

Key features of this battery pack include a service life of more than 10 years, integrated battery management system protection, an operating temperature range of -20°C to 55°C, and a depth of discharge of up to 90% for excellent energy. The intrinsically safe LiFePO4 chemistry also makes the system reliable and environmentally friendly. Advanced monitoring and control capabilities to optimize system performance and longevity.

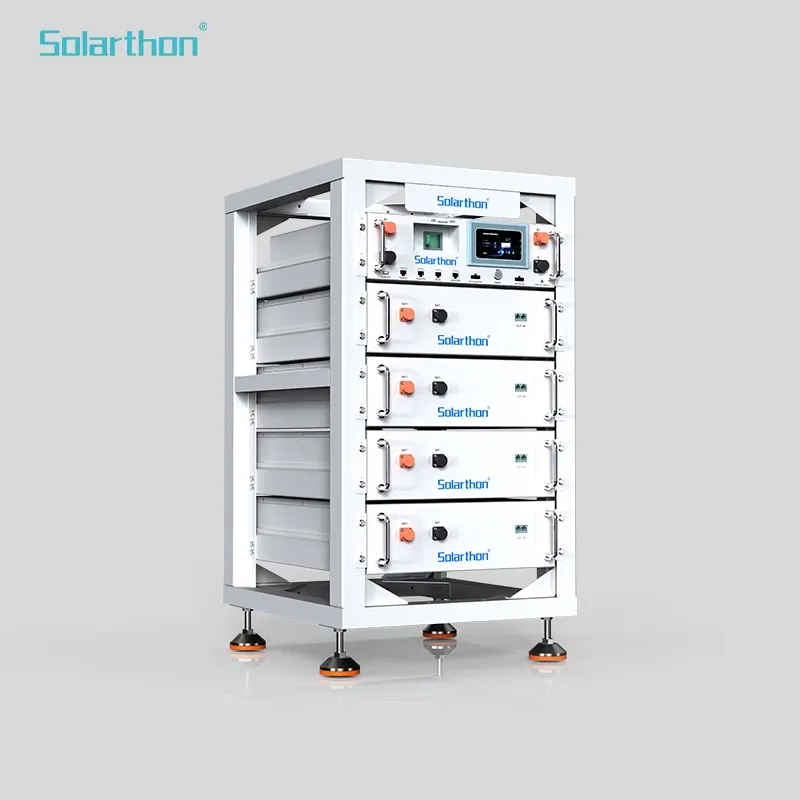

204.8V 100AH Vertically Stacked Energy Storage Battery Pack

Model:DQ2910A20-01
Battery Type: LiFePO4
Nominal Voltage: 204.8V
Nominal Capacity: 100Ah
Charging Cut-off Voltage: 230.4V
Discharging Cut-off Voltage: 179.2V
Max. Cont. Charging/Discharging Current: 100A
Max. Instantaneous Charge/Discharge Current: 100A
Cycle Life: ≥6000
Product Size: 610.5*549*1020mm
Weight: 242kg
Warranty: 5 years

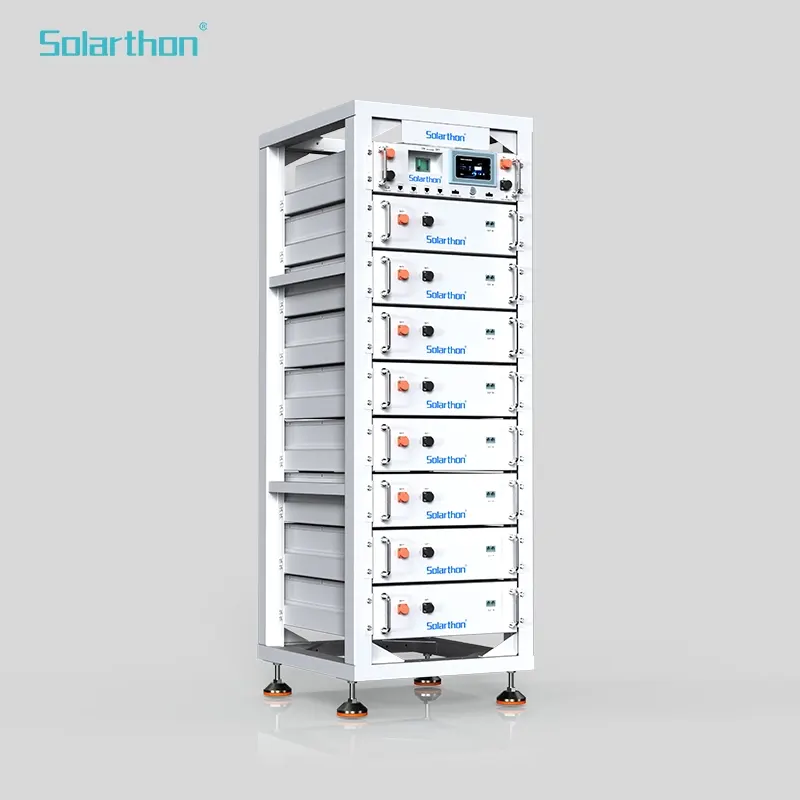

409.6V 100AH Vertically Stacked Energy Storage Battery Pack

Model:DQ2910B40-01
Battery Type: LiFePO4
Nominal Voltage: 409.6V
Nominal Capacity: 100Ah
Charging Cut-off Voltage: 460.8V
Discharging Cut-off Voltage: 358.4V
Max. Cont. Charging/Discharging Current: 100A
Max. Instantaneous Charge/Discharge Current: 100A
Cycle Life: ≥6000
Product Size: 610.5*549*1604mm
Weight: 443kg
Warranty: 5 years

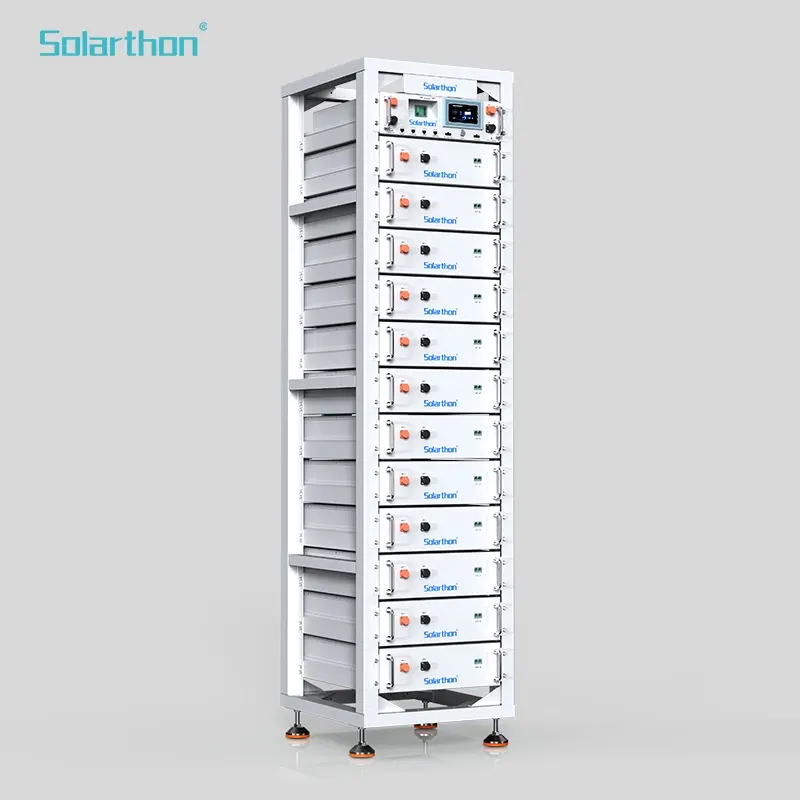

614.4V 100AH Vertically Stacked Energy Storage Battery Pack

Model：DQ2910C60-01
Battery Type: LiFePO4
Nominal Voltage: 614.4V
Nominal Capacity: 100Ah
Charging Cut-off Voltage: 691.2V
Discharging Cut-off Voltage: 537.6V
Max. Cont. Charging/Discharging Current: 100A
Max. Instantaneous Charge/Discharge Current: 100A
Cycle Life: ≥6000
Product Size: 610.5*549*2188mm
Weight: 644kg
Warranty: 5 years

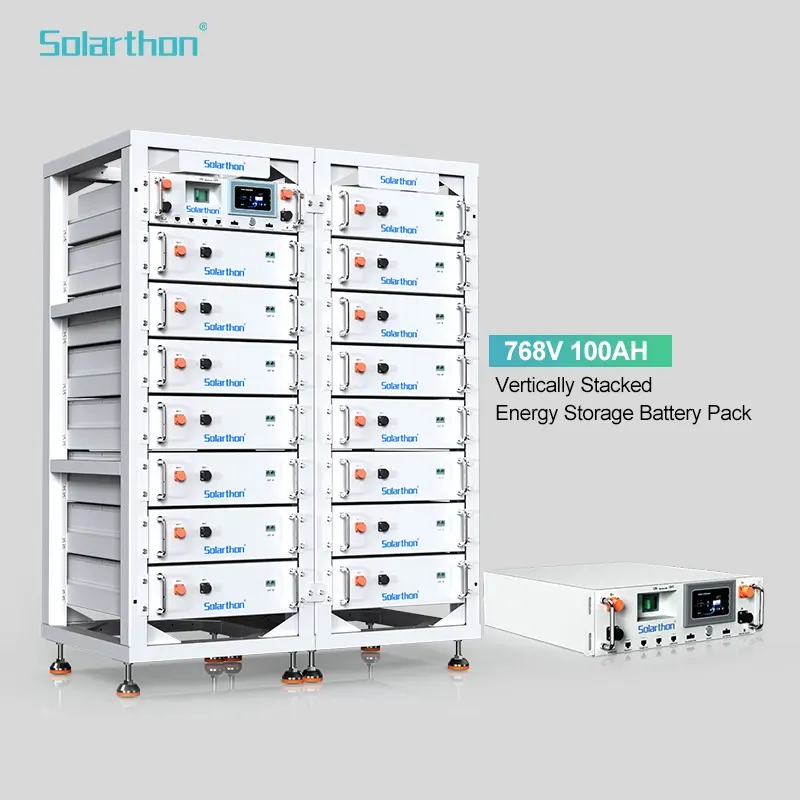

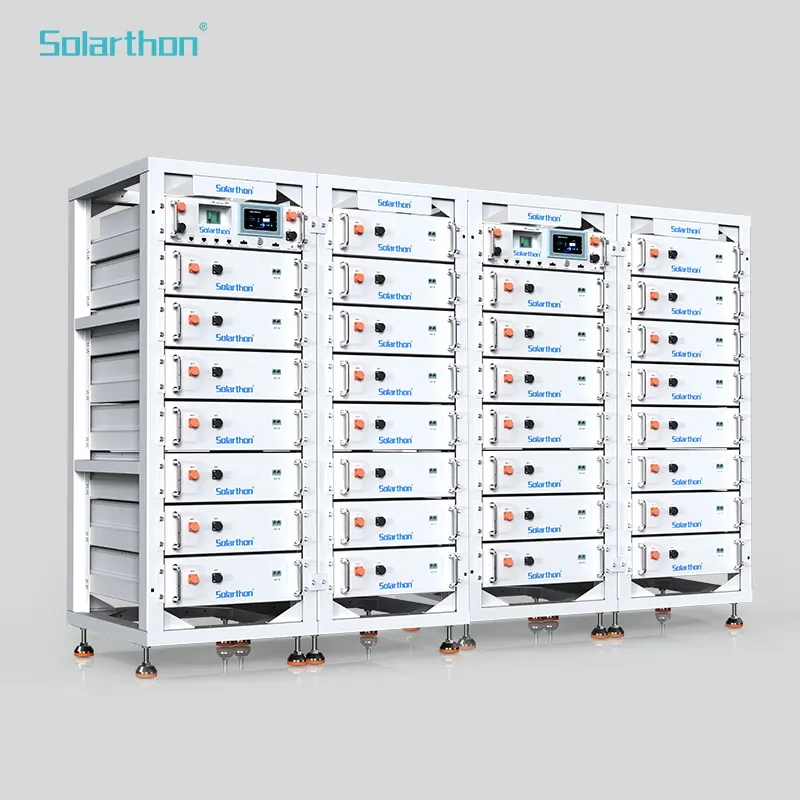

768V 100AH Vertically Stacked Energy Storage Battery Pack

Model:DQ2910D77-01
Battery Type: LiFePO4
Nominal Voltage: 768V
Nominal Capacity: 100Ah
Charging Cut-off Voltage:865V
Discharging Cut-off Voltage: 672V
Max. Cont. Charging/Discharging Current: 100A
Max. Instantaneous Charge/Discharge Current: 100A
Cycle Life: ≥6000
Product Size: 1099*610.5*1454mm
Weight: 813kg
Warranty: 5 years

Flat Roof Mounting Structure

structure: Hot-Dip Galvanized Steel
wind load: 55m/s,snow load:1.5kn/㎡
4mm² PV cable: 100m, Red
4mm² PV cable: 100m, Black
AC Cable: 4*120mm² , 100m
AC Cable: 4*240mm² , 100m
BVR-6mm² AC Wire: 100m
BVR-10mm² AC Wire: 100m

A: Yes, all our inverters provide true pure sine wave output.

A: Yes, all our inverters provide true pure sine wave output.

A: Low frequency inverters have various protections, strong adaptability to the environment, and are more reliable with voltage regulation.

A: Pure sine wave output inverters provide power quality equivalent to or better than the public power grid. They have a low repair rate, long lifespan, no harmonic pollution, and are environmentally friendly. Modified sine wave output inverters have a negative impact on appliances and cannot load inductive loads, such as air conditioners and refrigerators. Certain motor control circuits may not be compatible with modified sine wave inverters.

A: Our inverters can be used with household, office, agricultural appliances, and other inductive loads such as refrigerators, air conditioners, water pumps, etc.

A: Yes, we accept OEM orders and can customize the products with your company logo.

A: Simply tell us your requirements, and our sales team will recommend a suitable inverter for you.

A: We offer 24-hour after-service consultancy to help you easily solve any technical problems you may encounter.

A: While a power inverter is not absolutely required for a solar energy system, it is necessary if you want to use normal AC appliances. Without a power inverter, you will only have battery power and won’t have 220 or 230 volts AC. This may be acceptable for small RVs or cabins.

A: If any product is faulty, please send us a picture or video, and we will study it. We provide free spare parts of the PCB board for after-sale service.
