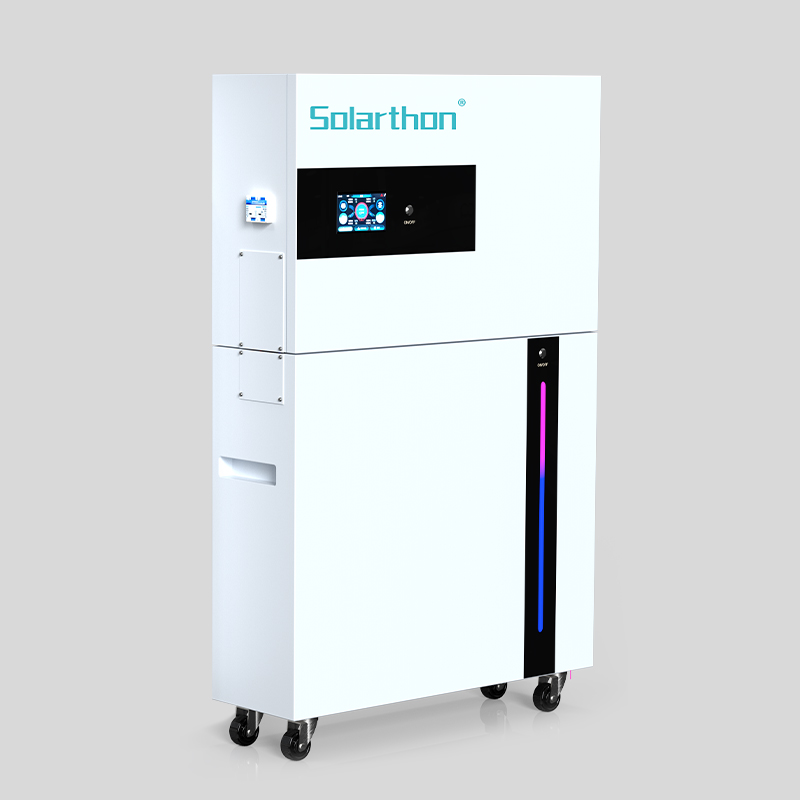

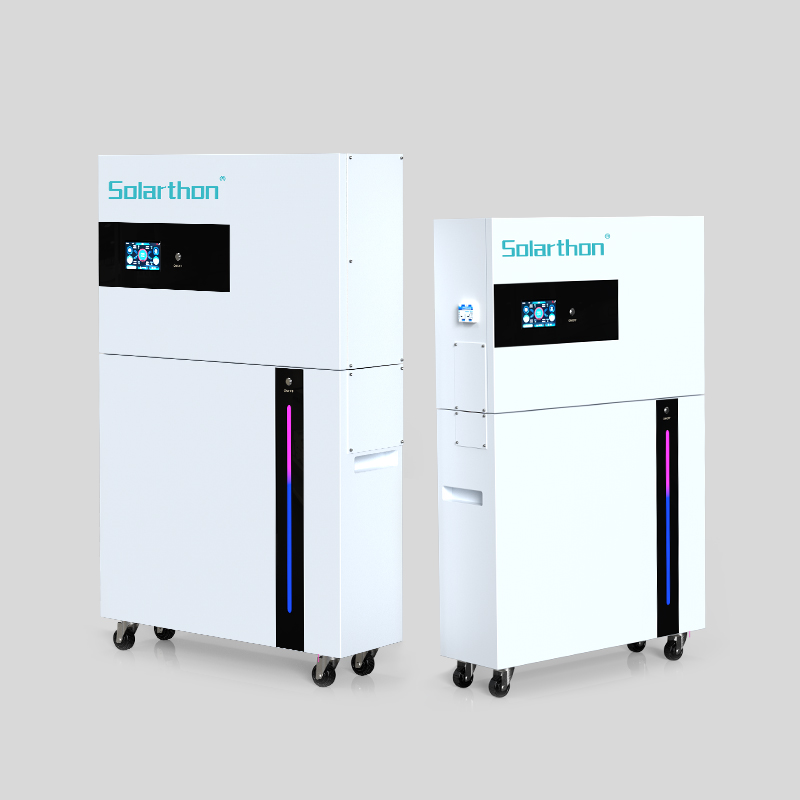

Home Solar Battery Storage System 10KW All in One Solar Power System

  • Pure sine wave inverters;
  • Integrated MPPT controller/charger;
  • Settable priority of utility and PV power supply;
  • Wide PV input voltage;
  • Settable battery type, supporting lead-acid and lithium batteries;
  • Functions and parameters can be set via the LCD;
  • With battery equalization function to optimize battery performance and extend battery life.

Inquire

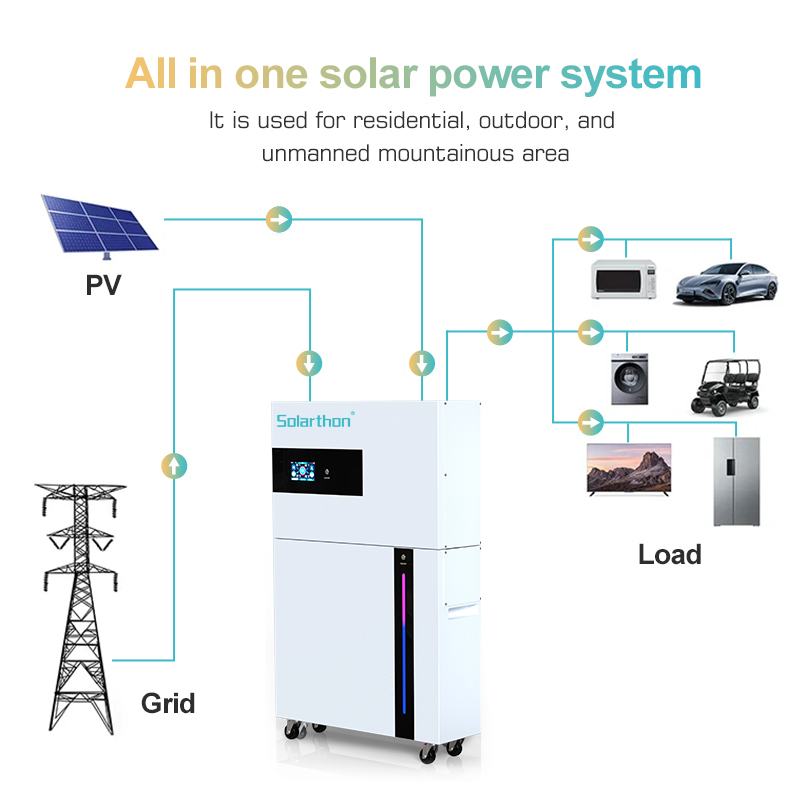

All-in-One Solar Power System

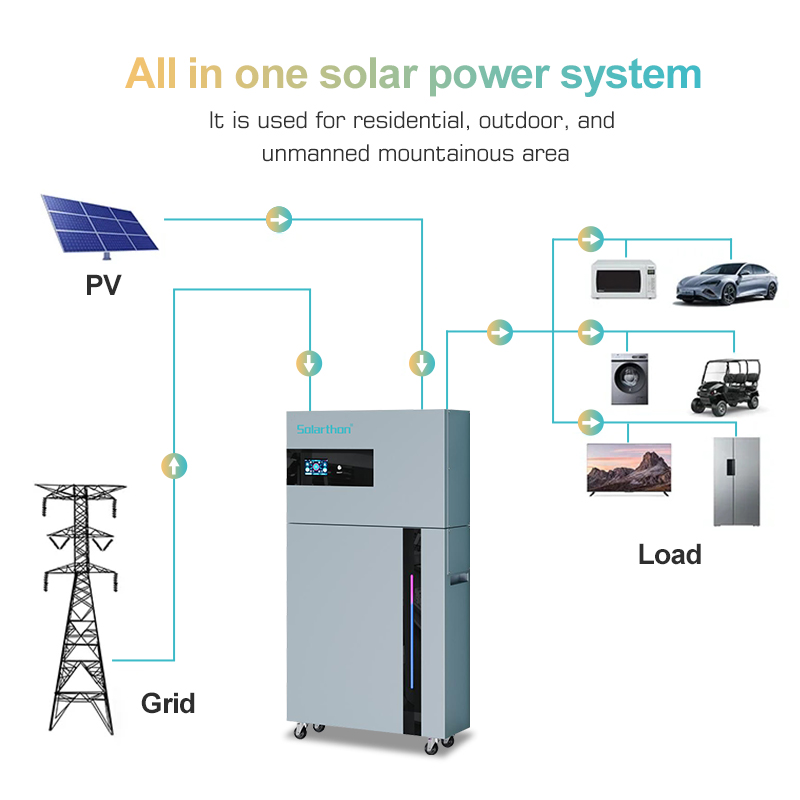

The Energy Storage Controller Inverter Integrated Machine combines the functions of inverter, MPPT solar controller and utility charging to provide stable power supply for power-using equipment in areas with no power, lack of power and unstable power. The product is based on a fully digital intelligent design with advanced SPWM technology,outputting pure sine wave, converting DC power into AC power, suitable for AC loads such as household appliances, power tools, industrial equipment, electronic video and audio. LCD screen display design, real-time display of system operation data and operating status. Comprehensive electronic protection function ensures the whole system is safer and more stable.

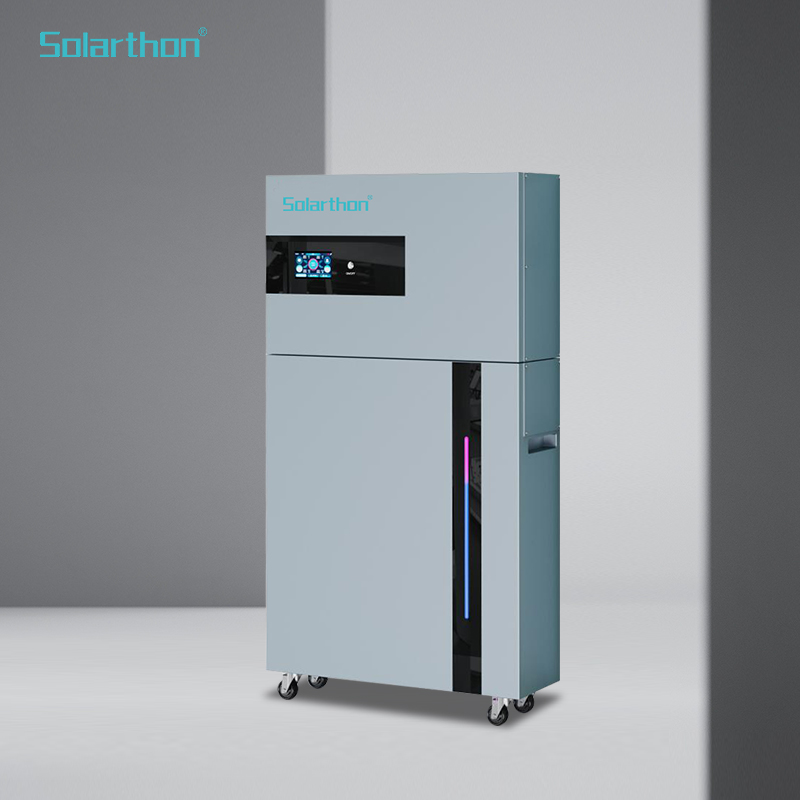

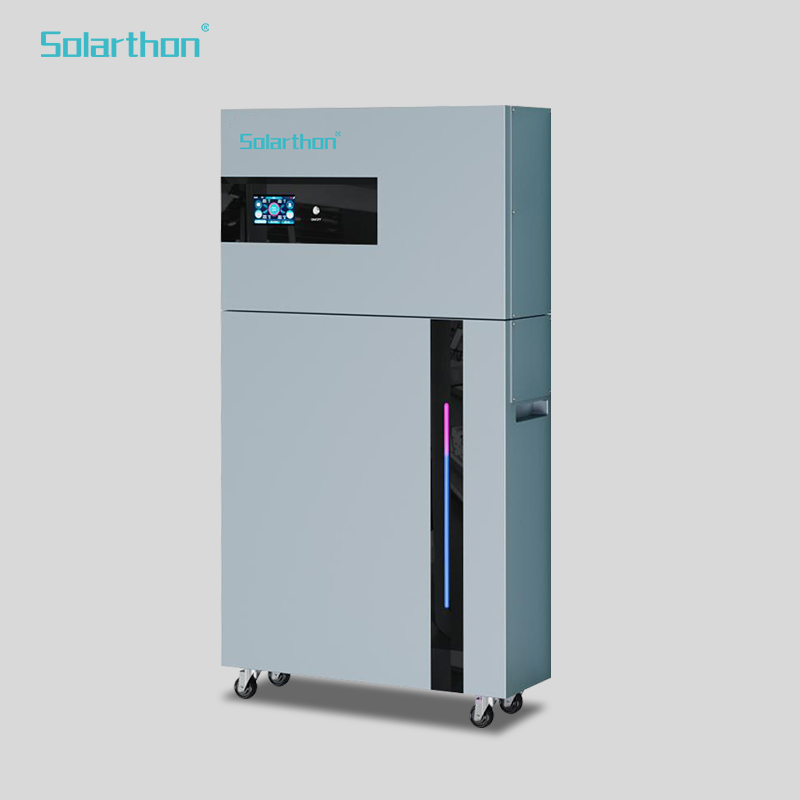

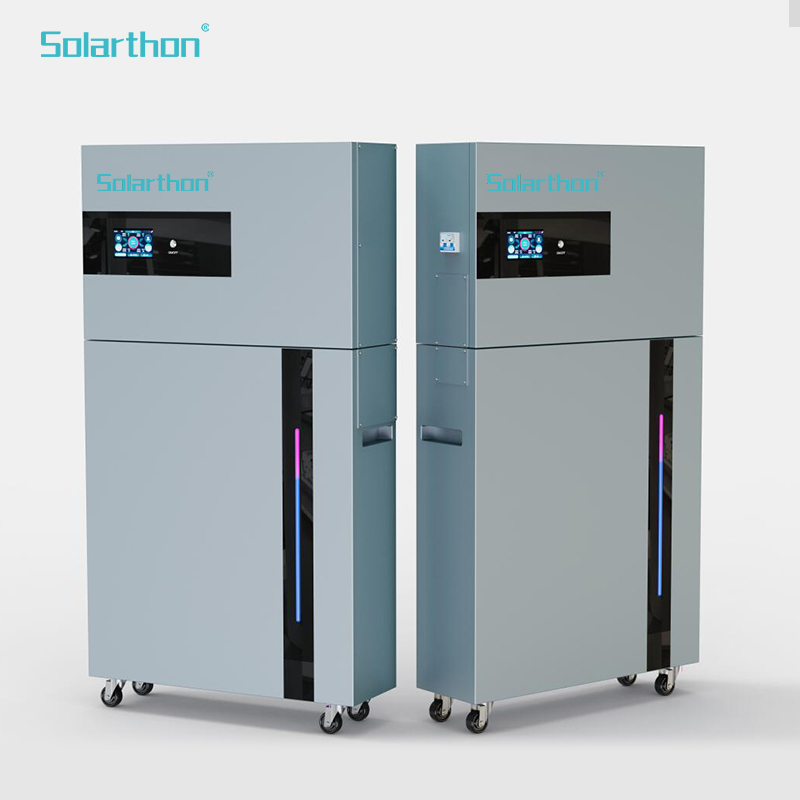

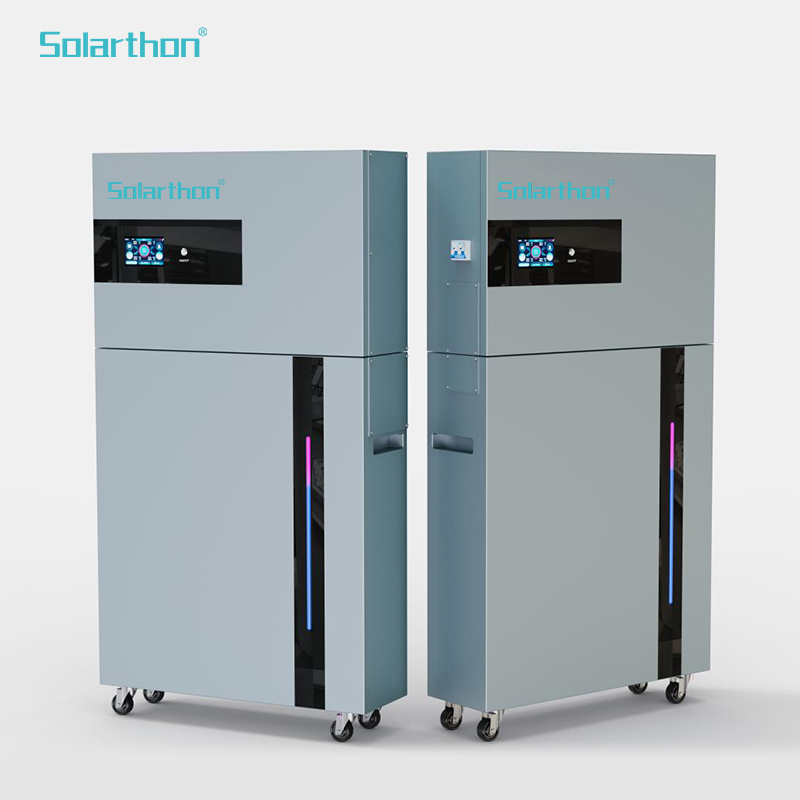

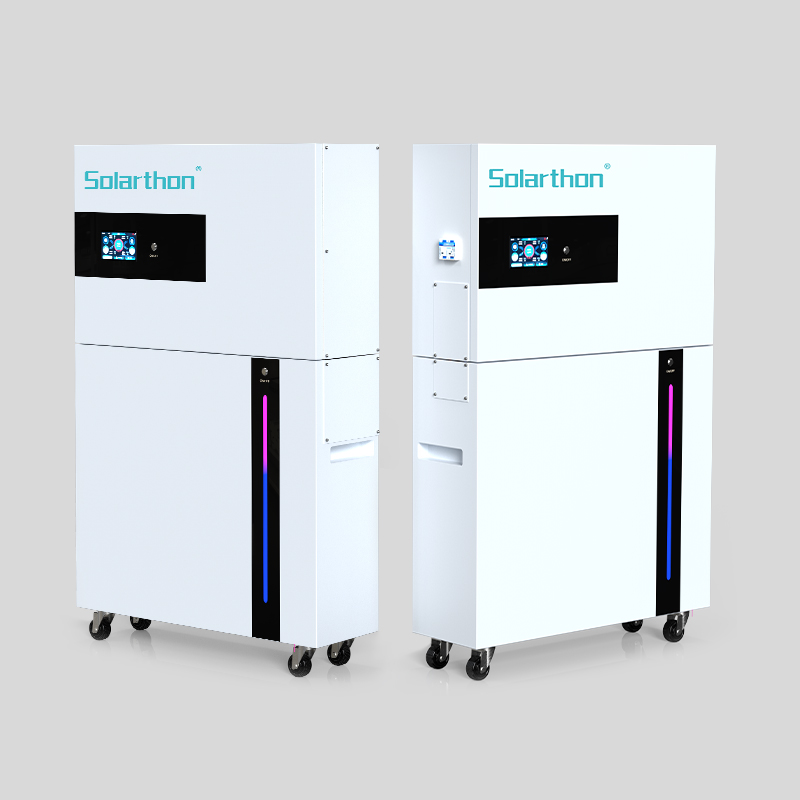

10KW All-In-One Solar Power System

Model:DQ1906E10K-02
Rated Power: 10KW
Lithium Battery: 280Ah/51.2V
AC Output Voltage: 230VAC
AC Output Frequency: 50/60Hz
AC Input Voltage Range: 230VAC
AC Input Frequency: 50/60Hz
Maximum PV Voltage: 500VDC
MPPT Voltage Range: 90-450VDC
PV Charge Current: 150A
Maximum Input Current: 27A*2
Temperature For Operation: -10-+50℃
Temperature For Storage: -15 -+60℃
External Dimensions: 6661157220mm
Max. Number Of Parallel: 6 sets
Warranty: 3 years

A: Yes, all our inverters provide true pure sine wave output.

A: Yes, all our inverters provide true pure sine wave output.

A: Low frequency inverters have various protections, strong adaptability to the environment, and are more reliable with voltage regulation.

A: Pure sine wave output inverters provide power quality equivalent to or better than the public power grid. They have a low repair rate, long lifespan, no harmonic pollution, and are environmentally friendly. Modified sine wave output inverters have a negative impact on appliances and cannot load inductive loads, such as air conditioners and refrigerators. Certain motor control circuits may not be compatible with modified sine wave inverters.

A: Our inverters can be used with household, office, agricultural appliances, and other inductive loads such as refrigerators, air conditioners, water pumps, etc.

A: Yes, we accept OEM orders and can customize the products with your company logo.

A: Simply tell us your requirements, and our sales team will recommend a suitable inverter for you.

A: We offer 24-hour after-service consultancy to help you easily solve any technical problems you may encounter.

A: While a power inverter is not absolutely required for a solar energy system, it is necessary if you want to use normal AC appliances. Without a power inverter, you will only have battery power and won’t have 220 or 230 volts AC. This may be acceptable for small RVs or cabins.

A: If any product is faulty, please send us a picture or video, and we will study it. We provide free spare parts of the PCB board for after-sale service.
