Complete Solar System 100KW 500KW Energy Battery Storage System 215kwh PowerSystem Solar

Containerized Battery Solar Power Storage Plants are suitable for use in public buildings, communities, medium and large enterprises, utility-scale storage systems, off-grid systems, electric vehicles and backup systems.

Inquire

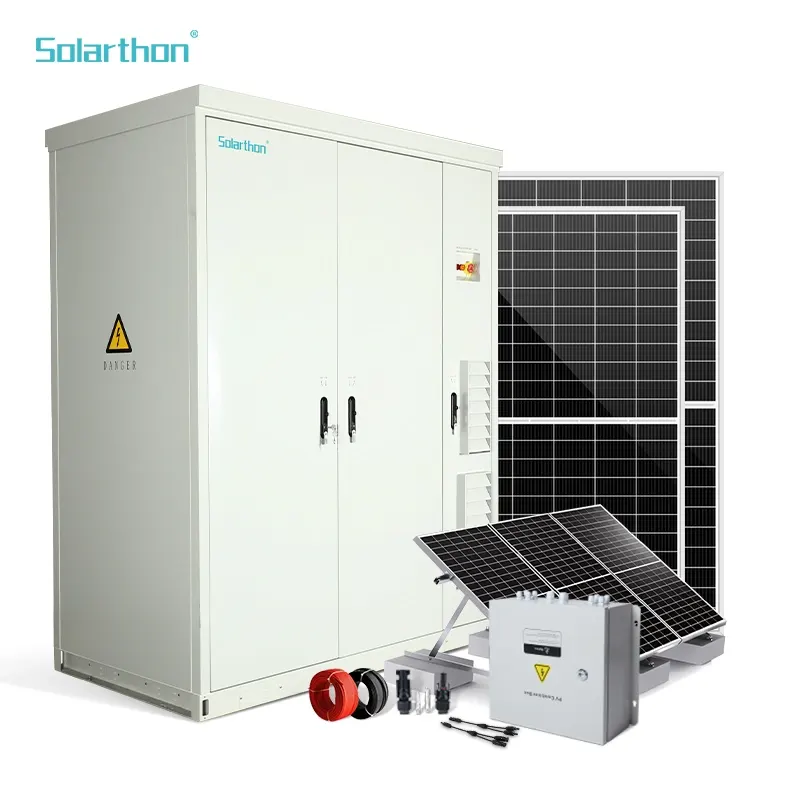

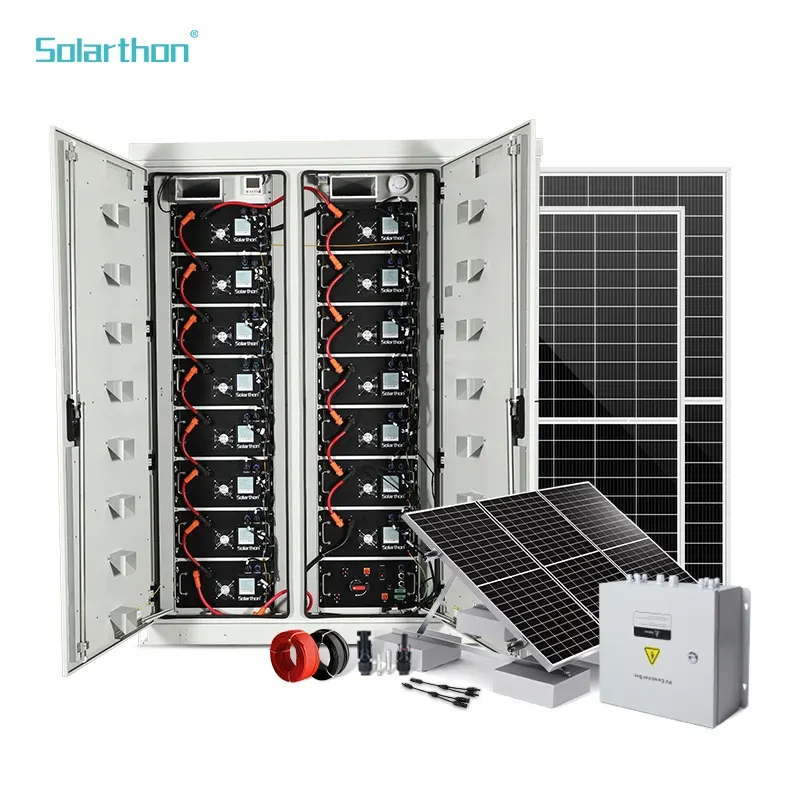

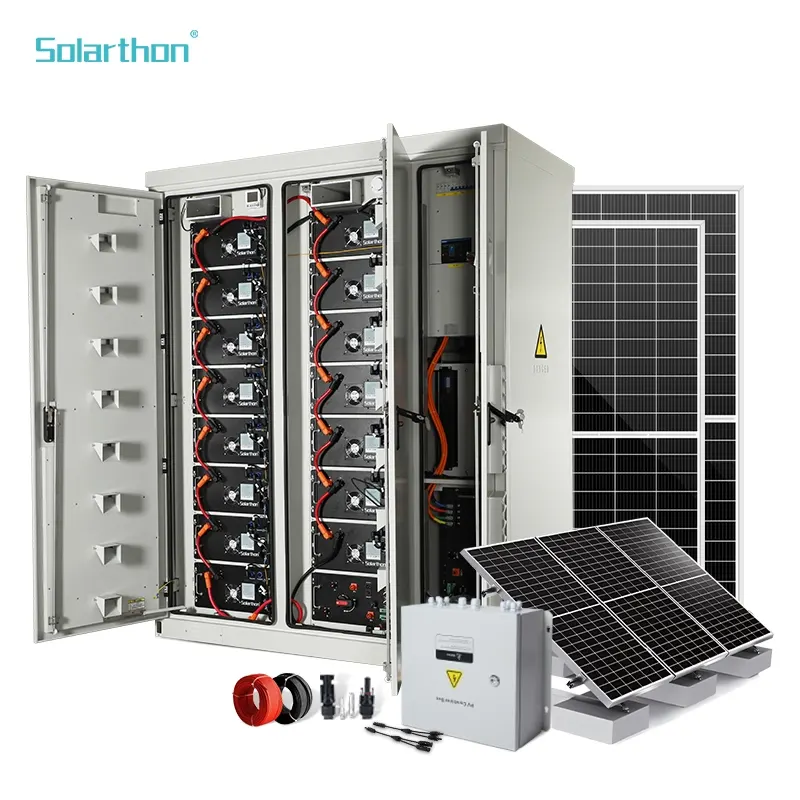

215KWH ESS with 100KW PCS and Solar Charging System

System advantage
1. Schedulable the system how you want it working :
a): Storing solar power throughout the day, and use it at night, increase solar system self-consumption.
b): Storing energy when it is cheap and running your home with battery when rates go up.
2. IP65 & Fanless Design
3.Smart battery management to make your batteries healthier, extend life time.
4. Monitoring your solar system in real time via your phone and laptop.
5. Unique Online Smart Service system

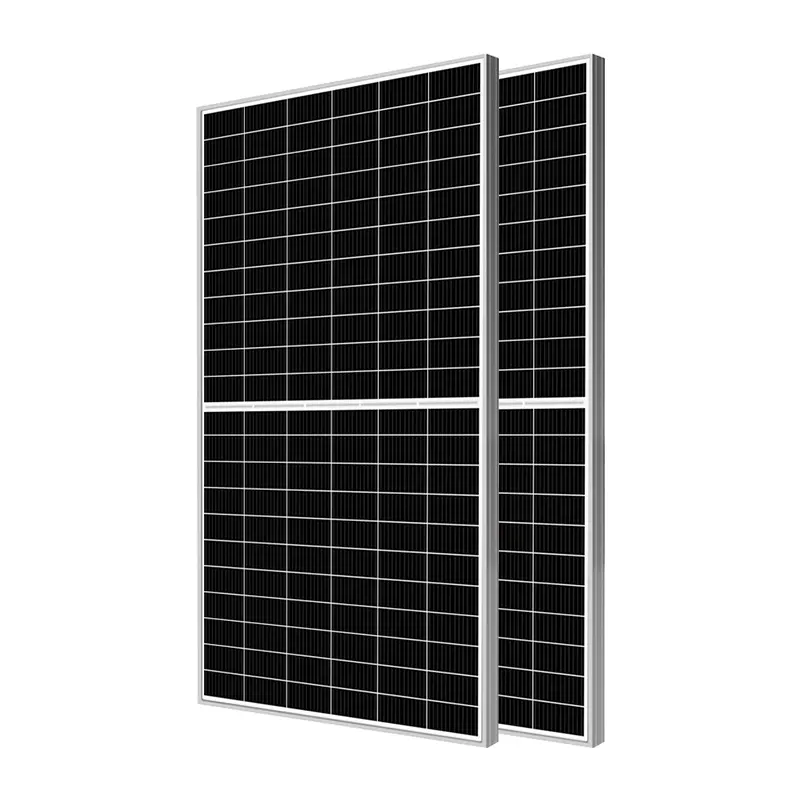

50KWH ESS with 30KW PCS and Solar Charging System

Vmp: 41V Voc: 49.2V Imp 13.45A
Size: 227*911*3435mm
weight: 28.3kg
25 years life span (TUV IEC61215 IEC61730)
Linear performance: 25 years 80 % ; 10 years 90%
Connection: 12 pcs in series

50KWH ESS with 30KW PCS and Solar Charging System

Energy Storage System(ESS)
LiFePO4 Battery: 768V/280AH
Battery Voltage Range: 672~864V
Power Conversion System(PCS)
Rated Power: 100KW
Rated AC Voltage: 400V, 50/60Hz
AC Voltage Range: 320~460V, 50/60Hz
DC Voltage Range: 420~850V
Solar Charger
Max. PV Charge Power: 120KW
Max. PV Input Voltage: 1000V
MPPT Voltage Range: 250~850V
Energy Management System(EMS)
LCD monitor, RS485, CAN, TCP/IP
Outdoor Three-cabin Cabinet
Size: 270011002550mm
Air Conditioner, 600W, 2 sets
Fire Fighting System

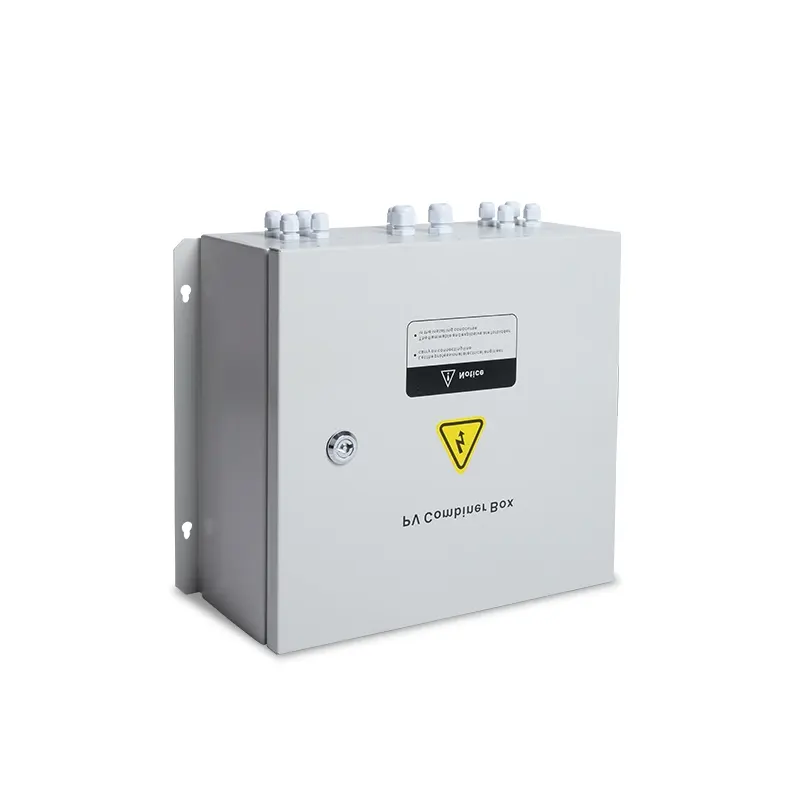

50KWH ESS with 30KW PCS and Solar Charging System

Rated Voltage: 1000VDC
Simplify Wiring Between PV Array And Controller;
Reliable Thunderstorm& Surge Protection
Product Size: 446x420x145mm
Weight: 11kg

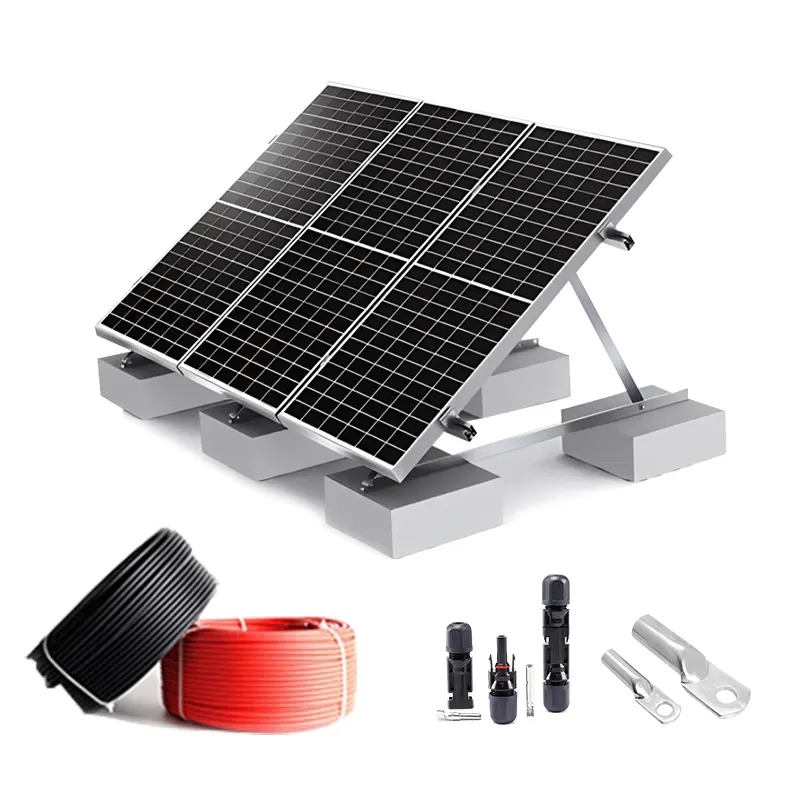

50KWH ESS with 30KW PCS and Solar Charging System

structure: Hot-Dip Galvanized Steel
wind load: 55m/s,snow load:1.5kn/m2 4mm² PV cable: 100m, Red
4mm² PV cable: 100m, Black

25mm² PV cable: 100m, Red
25mm² PV cable: 100m, Black

MC4 Connector, Male Plug
MC4 Connector, Female Plug

Copper Lug: 25mm2

Product display

A: Yes, all our inverters provide true pure sine wave output.

A: Yes, all our inverters provide true pure sine wave output.

A: Low frequency inverters have various protections, strong adaptability to the environment, and are more reliable with voltage regulation.

A: Pure sine wave output inverters provide power quality equivalent to or better than the public power grid. They have a low repair rate, long lifespan, no harmonic pollution, and are environmentally friendly. Modified sine wave output inverters have a negative impact on appliances and cannot load inductive loads, such as air conditioners and refrigerators. Certain motor control circuits may not be compatible with modified sine wave inverters.

A: Our inverters can be used with household, office, agricultural appliances, and other inductive loads such as refrigerators, air conditioners, water pumps, etc.

A: Yes, we accept OEM orders and can customize the products with your company logo.

A: Simply tell us your requirements, and our sales team will recommend a suitable inverter for you.

A: We offer 24-hour after-service consultancy to help you easily solve any technical problems you may encounter.

A: While a power inverter is not absolutely required for a solar energy system, it is necessary if you want to use normal AC appliances. Without a power inverter, you will only have battery power and won’t have 220 or 230 volts AC. This may be acceptable for small RVs or cabins.

A: If any product is faulty, please send us a picture or video, and we will study it. We provide free spare parts of the PCB board for after-sale service.
