Best Small Solar Water Pump Inverter System Price

1.For water supply from wells or reservoris in irrigation of agricuture.
2.For domestic use, widely used for drinking water and living water.
3.For garden use and irrigation

Inquire

Model:DQ200
Solar Panel:18V 165W 2PCS Polycrystalline
Outlet:0.75″IN

Brand:solarthon
Max Flow:1.5M³/h
Outer Diameter:76*460mm

Pump Voltage:DC24V
Max Head:80M
Warranty:1 years

Solar water pump irrigation system is an efficient irrigation solution using solar energy as a power source, which is especially suitable for agricultural deep well wellhead irrigation. The following are the main features and advantages of the system:
Environmental protection and energy saving: The solar water pump system uses clean solar energy as an energy source without diesel or grid support, reducing dependence on fossil fuels while reducing operating costs.
Fully automatic operation: The system can be fully automatic operation without manual duty, reducing the daily maintenance workload.
Strong adaptability: suitable for power shortage or no power areas, can be fully automatic operation in light conditions, without grid support, from deep Wells or distant water sources.
High efficiency low light operation: Even in cloudy weather, the system can maintain high efficiency, ensuring water demand in different weather conditions.
MPPT control technology: The use of new MPPT control technology and inverter technology to ensure the maximum efficiency of the system to use solar power generation.
Optimization design: According to water demand and local sunshine conditions to optimize the system design, improve water efficiency, reduce customer input costs.
Compatibility: The system is compatible with AC input and can flexibly adapt to different power supply environments.
Remote monitoring: Support remote system control and monitoring, improve the convenience of system management.
Economic and environmental protection: the system does not need energy storage batteries, water storage instead of electricity storage, saving the cost of system construction and operation and maintenance.
Widely used: It is suitable for agricultural irrigation, desert greening, desert management and other scenarios, and has great development potential.
In summary, solar water pump irrigation system with its environmental protection, energy saving, high efficiency and low cost characteristics, become the ideal choice in the field of agricultural irrigation.

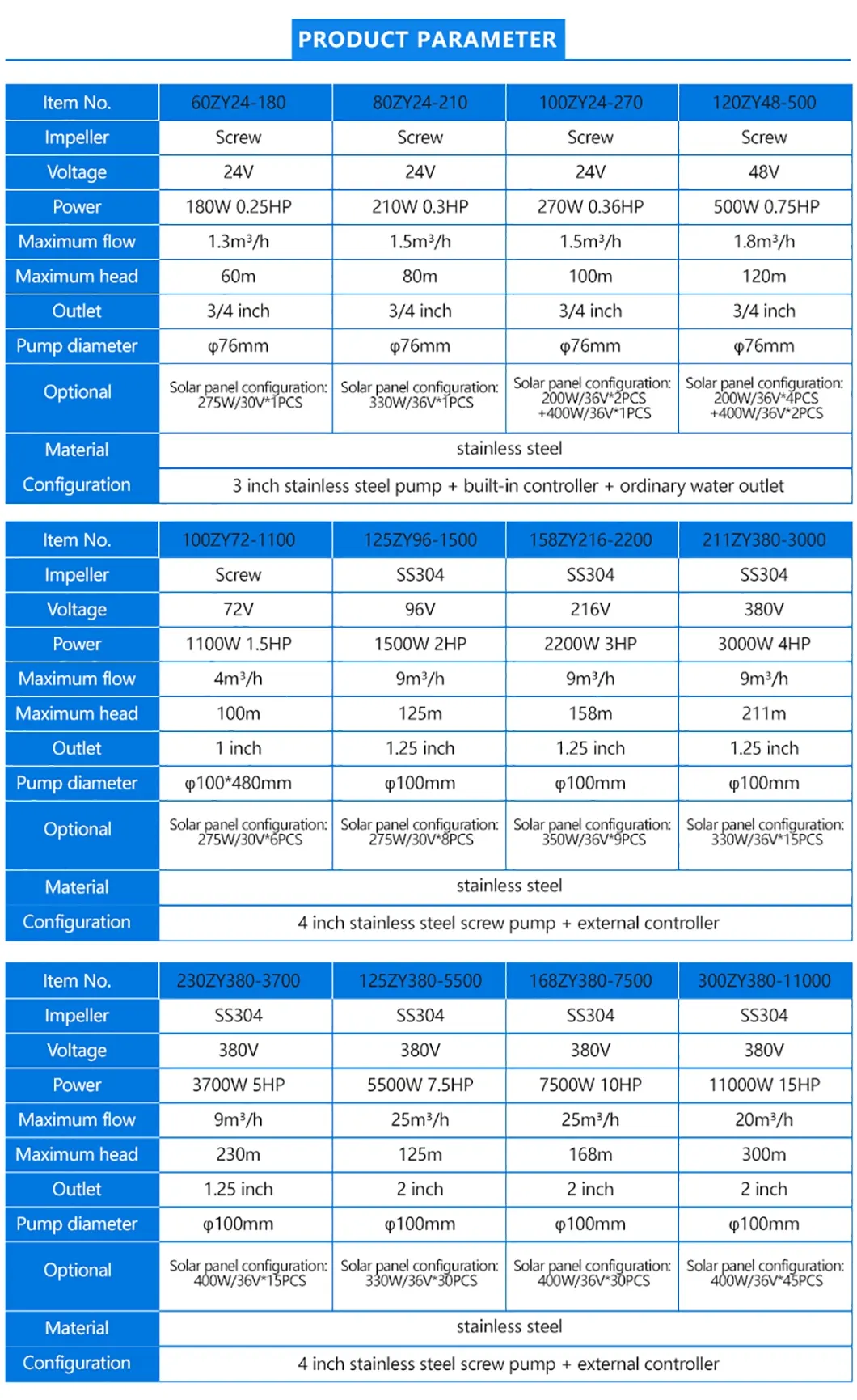

P/NProduct Description
DQ2000A210-01210W Solar Water Pump
Pump Voltage: DC24V
Solar Panel: 18V 165W 2PCS Polycrystalline
Max Flow: 1.5M³/H
Max Head: 80M
Outlet: 0.75″IN
Outer Diameter: 76*460mm
Warranty: 1 years
DQ2000A400-01400W Solar Water Pump
Pump Voltage: DC24V
Solar Panel: 18V 165W 4PCS Polycrystalline
Max Flow: 4 M³/H
Max Head: 55M
Outlet: 1″IN
Outer Diameter: 76*500mm
Warranty: 1 years
DQ2000A800-01800W Solar Water Pump
Pump Voltage: DC48V
Solar Panel: 18V 165W 8PCS Polycrystalline
Max Flow: 2.3 M³/H
Max Head: 100M
Outlet: 0.75″IN
Outer Diameter: 76*460mm
Warranty: 1 years
DQ2000A1000-011000W Solar Water Pump
Pump Voltage: DC48V
Solar Panel: 18V 165W 12PCS Polycrystalline
Max Flow: 2.3 M³/H
Max Head: 120M
Outlet: 0.75″IN
Outer Diameter: 76*460mm
Warranty: 1 years
DQ2000A2200-012200W Solar Water Pump
Pump Voltage: DC216V
Solar Panel: 18V 180W 16PCS Polycrystalline
Max Flow: 6 M³/H
Max Head: 180M
Outlet: 1″IN
Outer Diameter: 76*720mm
Warranty: 1 years
DQ2001A800-01800W Solar Water Pump
Pump Voltage: DC48V
Solar Panel: 18V 165W 8PCS Polycrystalline
Max Flow: 6 M³/H
Max Head: 72M
Outlet: 1.25″IN
Outer Diameter: 100*650mm
Warranty: 1 years
DQ2001A1300-011300W Solar Water Pump
Pump Voltage: DC72V
Solar Panel: 18V 165W 12PCS Polycrystalline
Max Flow: 10 M³/H
Max Head: 90M
Outlet: 1.5″IN
Outer Diameter: 100*680mm
Warranty: 1 years
DQ2001A4000-014000W Solar Water Pump
Pump Voltage: DC216V
Solar Panel: 18V 165W 32PCS Polycrystalline
Max Flow: 13 M³/H
Max Head: 148M
Outlet: 1.5″IN
Outer Diameter: 100mm
Warranty: 1 years

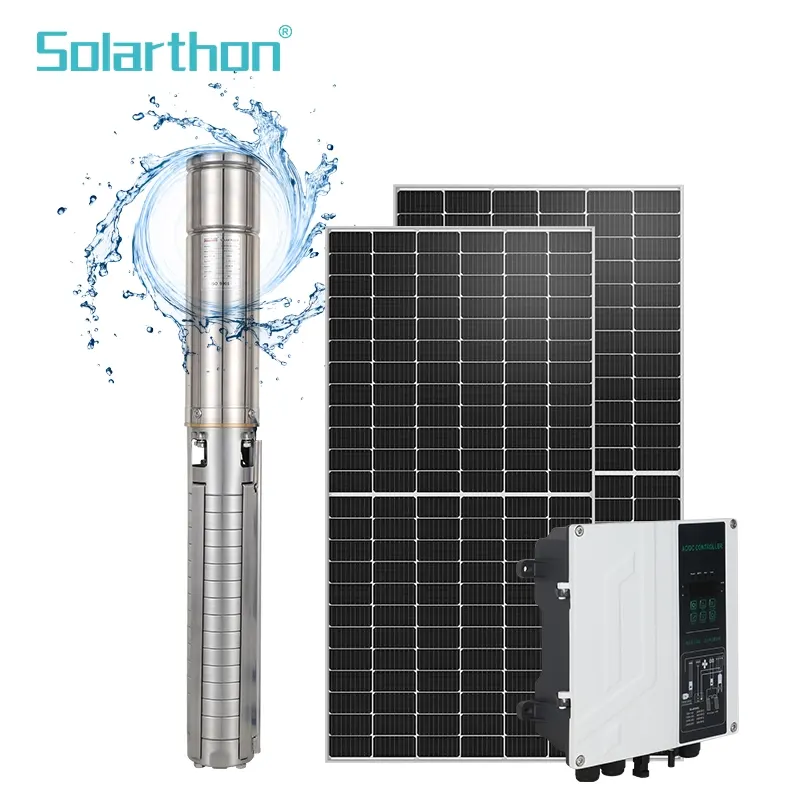

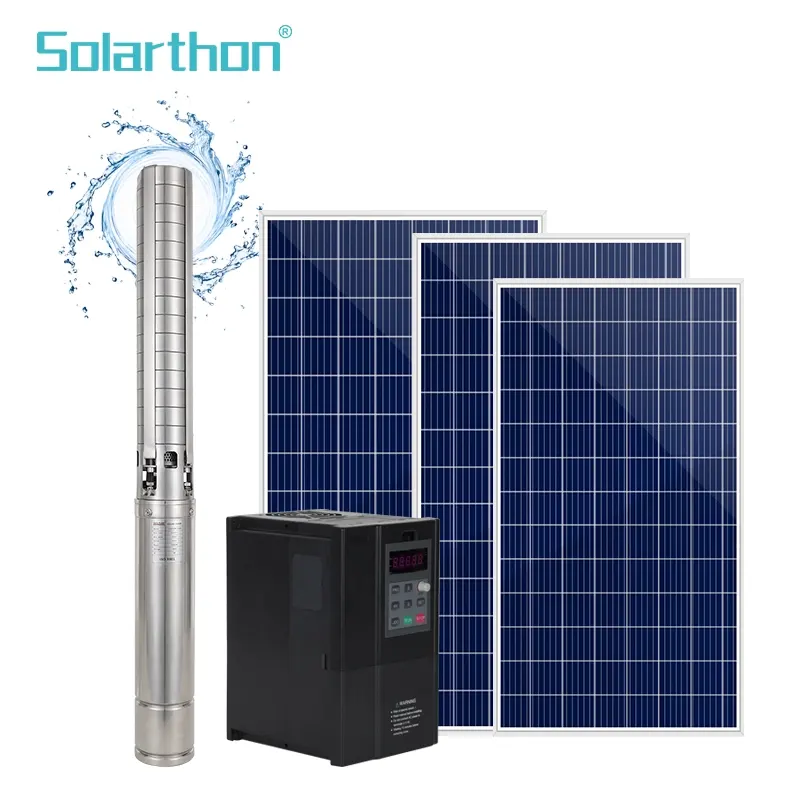

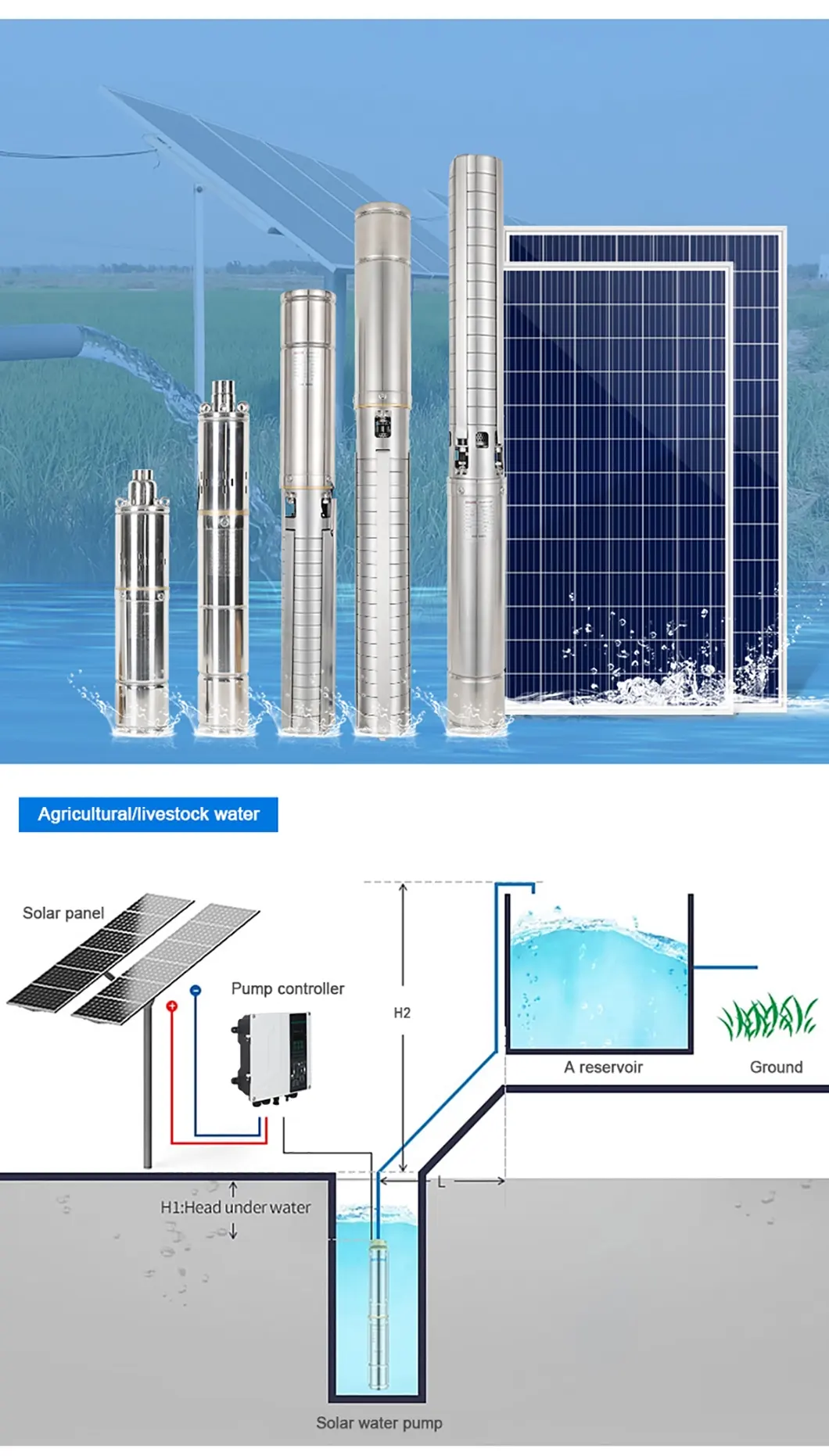

Photovoltaic pump system is the use of solar energy as a power, drive water pumps from deep Wells, rivers, lakes, reservoirs and other water sources, for the grid is difficult to cover the area to solve the daily water, livestock and aquaculture, agricultural irrigation and other design, according to the actual needs of customers (daily water, head, etc.), customized to provide the most suitable for users of the solar pump system. The system is mainly composed of photovoltaic array, submersible pump, control inverter and water storage tank or pipe network.

A: Yes, all our inverters provide true pure sine wave output.

A: Yes, all our inverters provide true pure sine wave output.

A: Low frequency inverters have various protections, strong adaptability to the environment, and are more reliable with voltage regulation.

A: Pure sine wave output inverters provide power quality equivalent to or better than the public power grid. They have a low repair rate, long lifespan, no harmonic pollution, and are environmentally friendly. Modified sine wave output inverters have a negative impact on appliances and cannot load inductive loads, such as air conditioners and refrigerators. Certain motor control circuits may not be compatible with modified sine wave inverters.

A: Our inverters can be used with household, office, agricultural appliances, and other inductive loads such as refrigerators, air conditioners, water pumps, etc.

A: Yes, we accept OEM orders and can customize the products with your company logo.

A: Simply tell us your requirements, and our sales team will recommend a suitable inverter for you.

A: We offer 24-hour after-service consultancy to help you easily solve any technical problems you may encounter.

A: While a power inverter is not absolutely required for a solar energy system, it is necessary if you want to use normal AC appliances. Without a power inverter, you will only have battery power and won’t have 220 or 230 volts AC. This may be acceptable for small RVs or cabins.

A: If any product is faulty, please send us a picture or video, and we will study it. We provide free spare parts of the PCB board for after-sale service.
